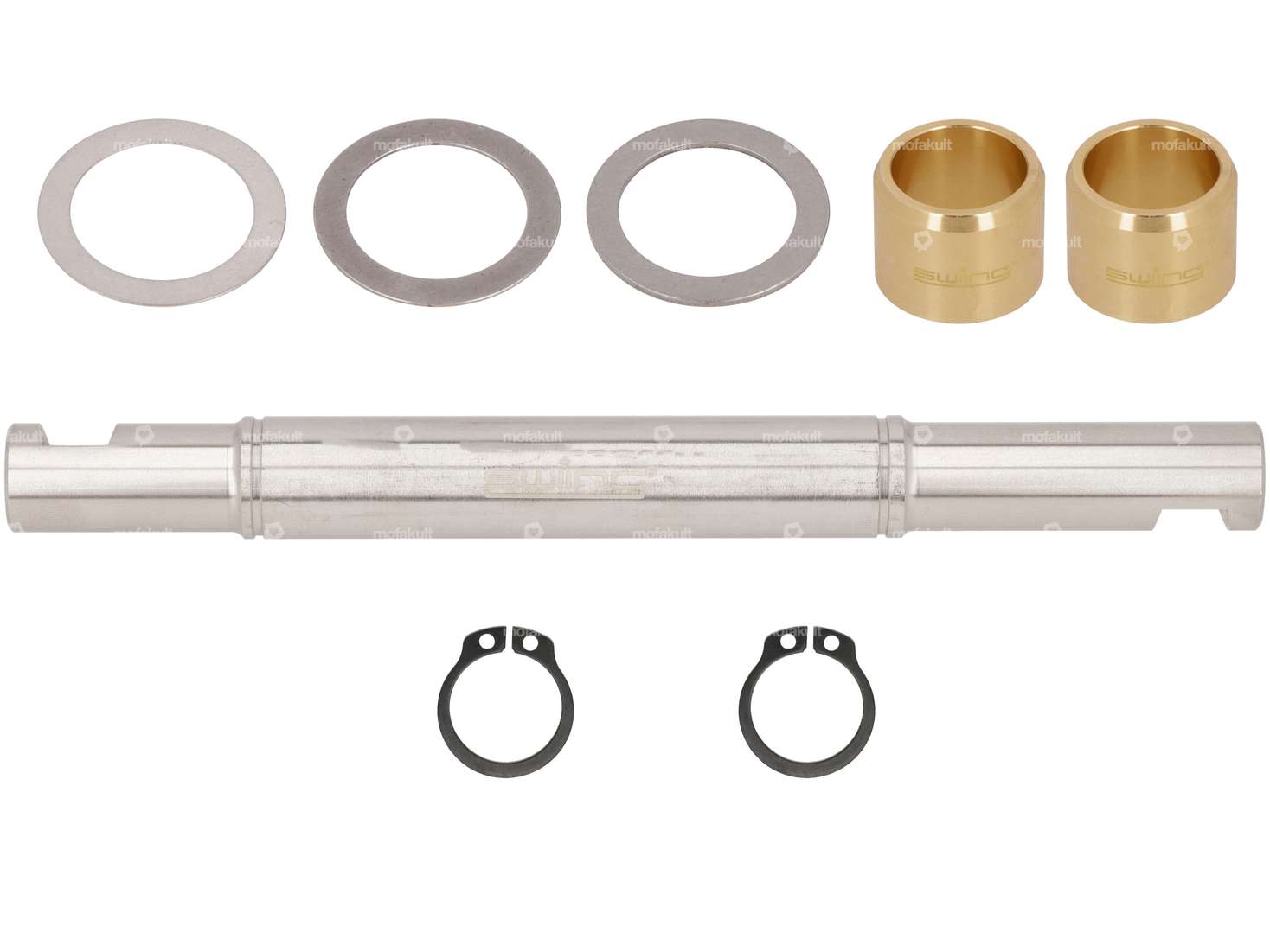

Name: swiing® revival pedal axle set (bushing Ø 23 mm) | Sachs / Tigra Caravelle
Brand: swiing® revival parts
SKU: 26057
Price: 71.60 EUR
Availability: InStock

Inox

Description

Complete pedal shaft made of chrome steel, suitable for äolder vintage mopeds / mopeds.
Fits 50/2 models such as Alpa Kristall, Alpa Oltenia, Alpa Sport, Alpa Tornado, Caravelle (type S25H / S25HA), Comet, Eiger, Göricke, Hercules Prior, Pony Junior, Rico, Rixe, Walco.

Size of pedal shaft
Material: stainless steel (Nirosta)
Total length: 182 mm
Distance of the circlips: 89.5 mm
Ø center: 18 mm
Ø outer pedal arm mount: 15.9 mm

Size of bearing bushes
Material: brass
Ø outer: 23 mm
Ø inner: 18 mm
Length: 18 mm

The set includes three thrust washers with thicknesses of 0.3 / 0.5 / 1 mm.
The corresponding washers can be used depending on the axial play.

Pedals, cranks and wedges can be found under accessories.

Nostalgic product for the highest demands from the quality brand swiing®.

Parts included in the set

swiing® revival pedal axle Inox | Sachs 50/2 Caravelle

23482

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

For: Sachs

Thrust washer 0.3 mm pedal axle | Sachs 50/2 Caravelle

23483

Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Ø inside: 18 mm · Ø outside: 25 mm · Thickness: 0.3 mm

For: Sachs

Thrust washer 0.5 mm pedal axle | Sachs 50/2 Caravelle

23484

Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Ø inside: 18 mm · Ø outside: 25 mm · Thickness: 0.5 mm

For: Sachs

swiing® revival plain bearing 18/23/18 pedal axle | Sachs 50/2 Caravelle

26051

Manufacturer: swiing® revival parts · Material: Brass · Ø inside: 18 mm · Ø outside: 23 mm · Total height: 18 mm · Nominal diameter inside: 18 mm

Quantity: 2

For: Universal · Sachs

Circlip 18 mm pedal axle | Sachs 50/2 Caravelle

23469

Manufacturer: Sachs · Material: Spring steel · Fuse type: Outside · Nominal diameter: 18 mm

Quantity: 2

For: Sachs

Thrust washer 1 mm pedal axle | Sachs 50/2 Caravelle

23485

Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Ø inside: 18 mm · Ø outside: 25 mm · Thickness: 1 mm

Details

Manufacturer	swiing® revival parts
Material	Chrome steel (colloquially known as stainless steel)
Total length	182 mm
Ø outside	18 mm
Ø Pedal arm holder	15.9 mm

Suitable for the following models

Sachs
