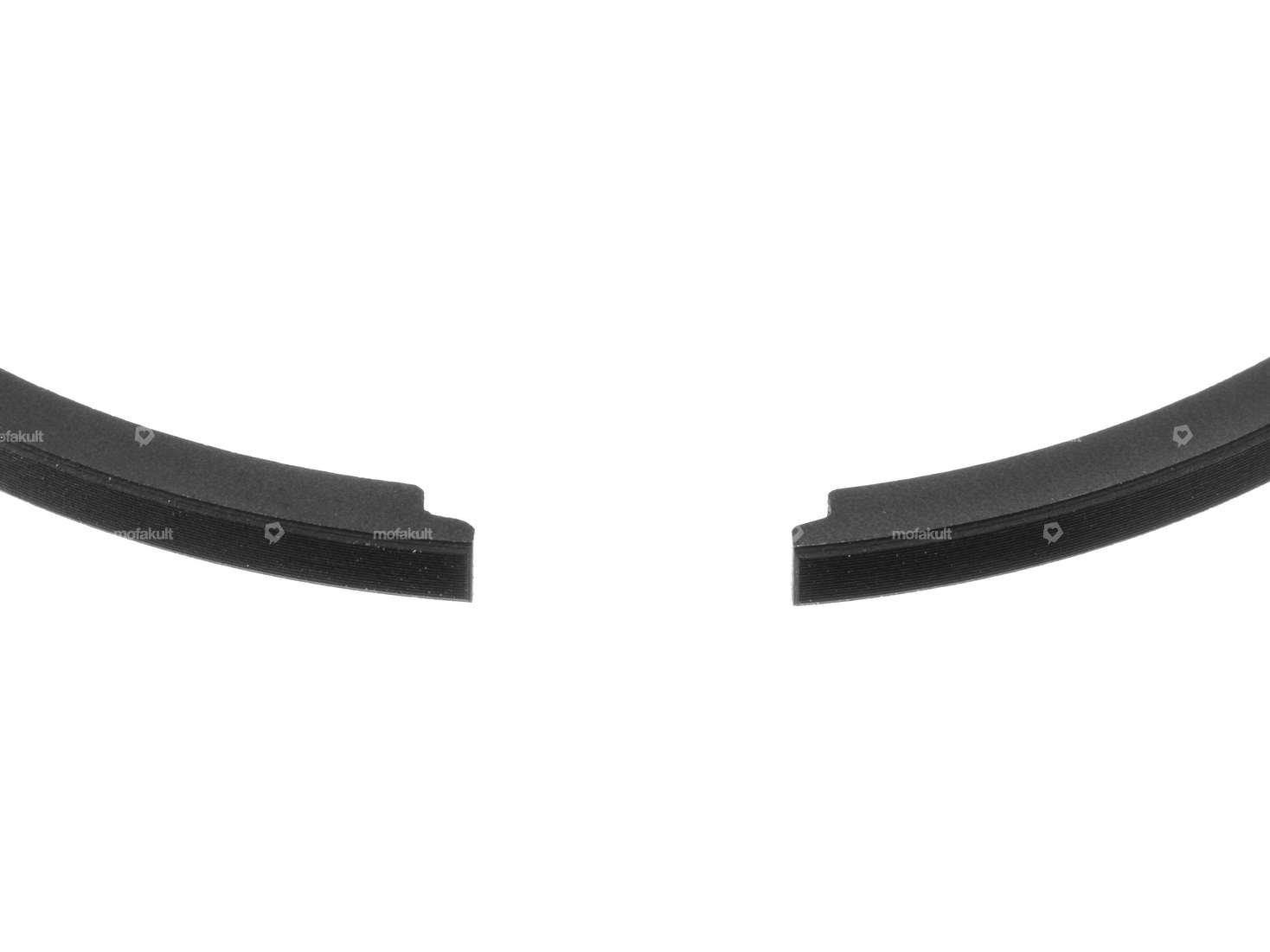

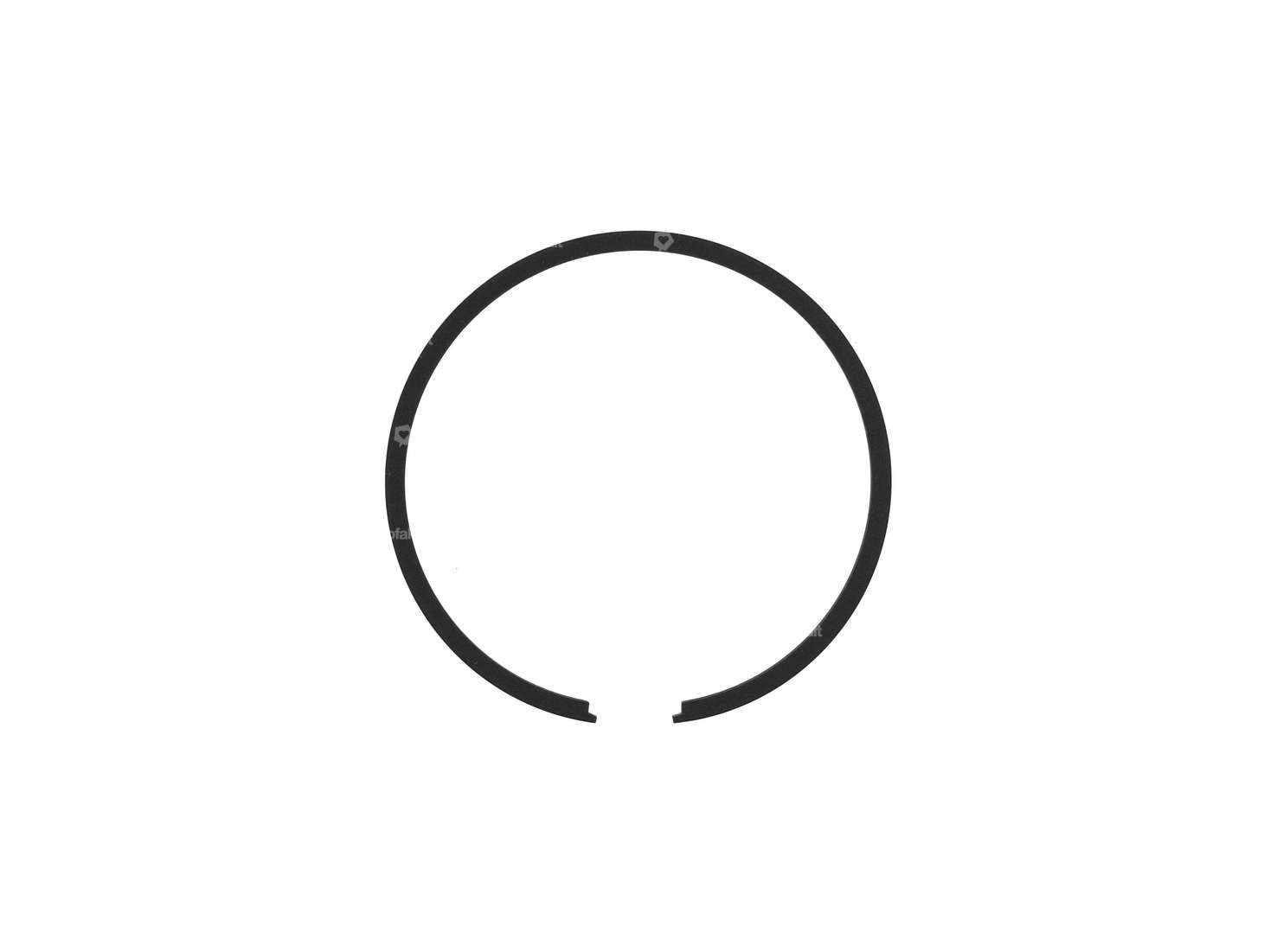

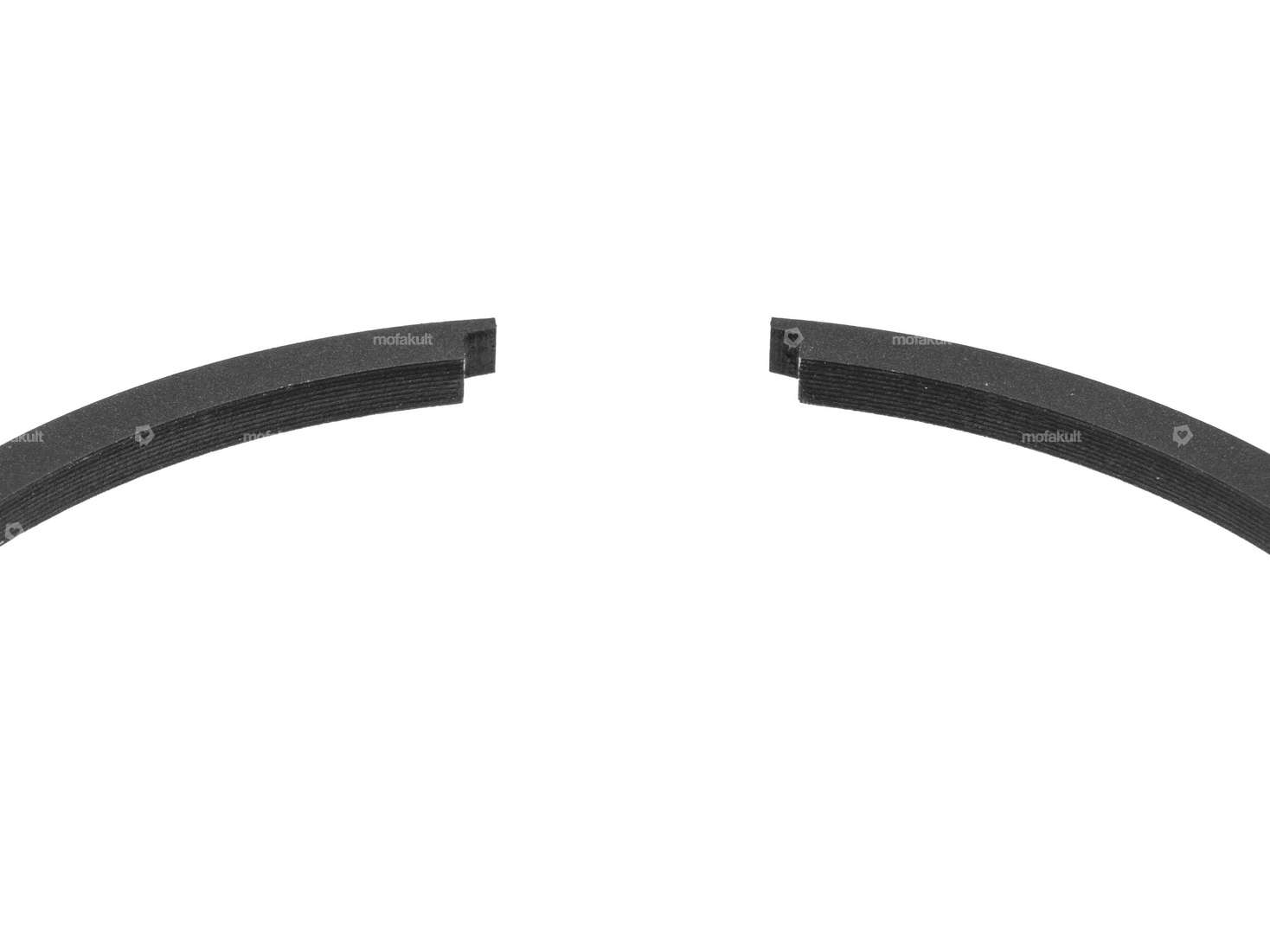

Black 45 x 1.5 mm rectangular piston ring with internal fuse (IS) suitable for the swiing® ingenious 45 mm cylinder kit of your Puch Maxi S / N, X30 Sport NS / NL, X30 Sport NG-2A or Supermaxi mopeds, mopeds.
The detailed dimensioning of the piston ring according to the technical drawing can be found in the details. In addition, you can find out about the common piston rings, their stems and locking types on the legend in the pictures.
Nominal diameter: 45 mm · Diameter: 45 mm
| Nominal diameter | 45 mm |
| Manufacturer | swiing® ingenious parts |
| Surface | blackened |
| Diameter | 45 mm |
| Thick piston ring | 1.8 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Height | 1.5 mm |
| Area of application | Tuning |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
