logo_swiing ingenious parts

For: Puch

15778

swiing® ingenious piston 44 mm | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 55.20

Incl. 25.5% VAT.

Description

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the 45 mm cylinder kits for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.

Tolerance type: C

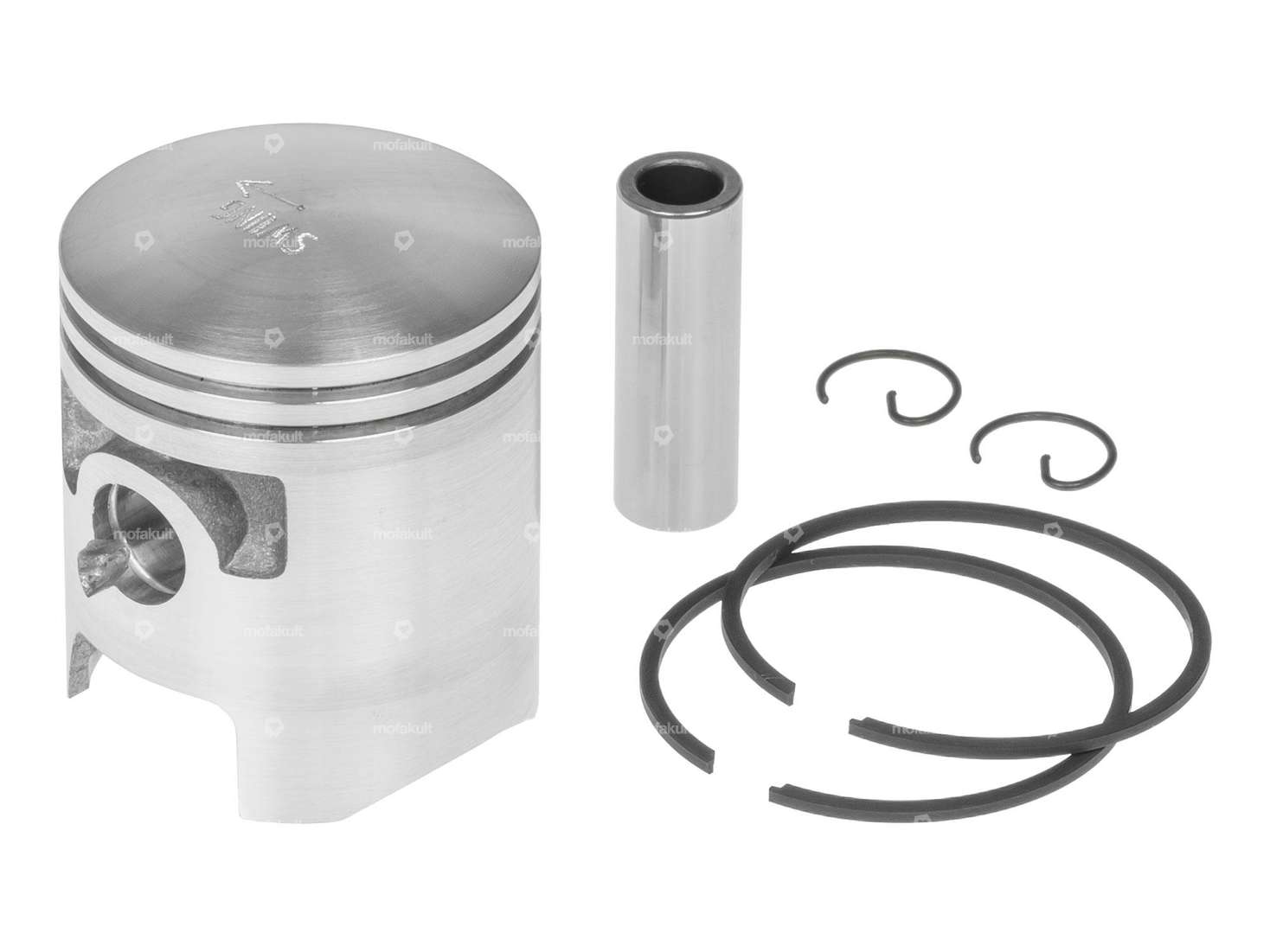

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.

Exceptional product for the highest demands of the quality brand swiing®.

Nominal diameter44 mm
Manufacturerswiing® ingenious parts
Ø outside piston (A)43.96 mm
Compression height (C)22.5 mm
Curvature (D)3.6 mm
Total piston height (E)52.6 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Ø piston pin (B)12 mm
Piston ring height1.5 mm
Weight piston kit91 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
