logo_swiing ingenious parts

For: Cilo

17840

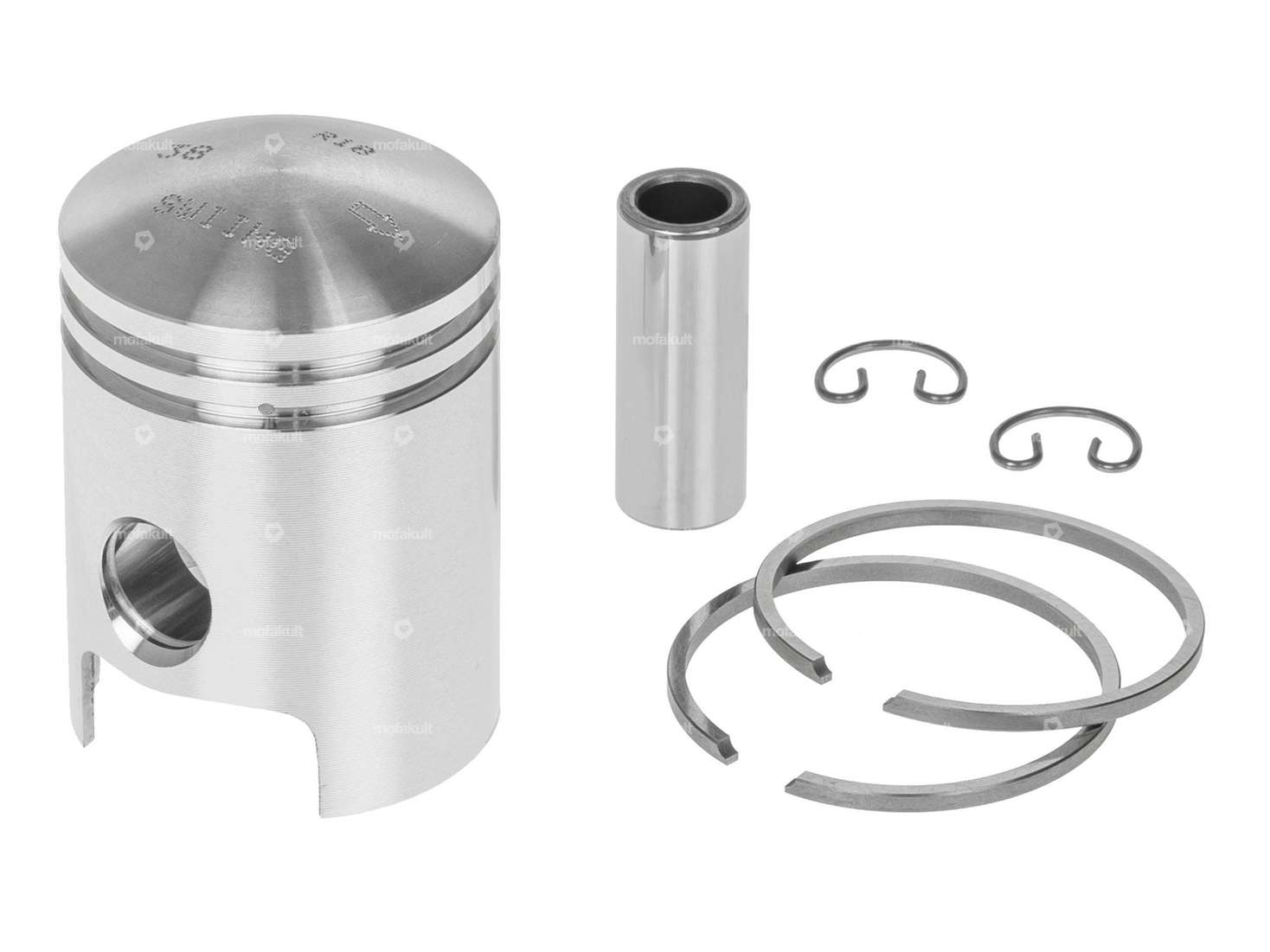

swiing® ingenious piston 40 mm | Cilo 502

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 86.00

Incl. 25.5% VAT.

Description

40 mm replacement piston with two pieces of 2 mm rectangular piston rings with flange lock suitable for the old Cilo 502 mopeds / mopeds with 40 mm cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Manufacturerswiing® ingenious parts
Ø outside piston (A)39.93 mm
Compression height (C)27.9 mm
Curvature (D)5.1 mm
Total piston height (E)54 mm
Number of piston rings (F)2 pcs
Nominal diameter40 mm
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Thick piston ring1.65 mm
Ø piston pin (B)12 mm
Weight piston kit93 g
Cilo

502 / 502t
