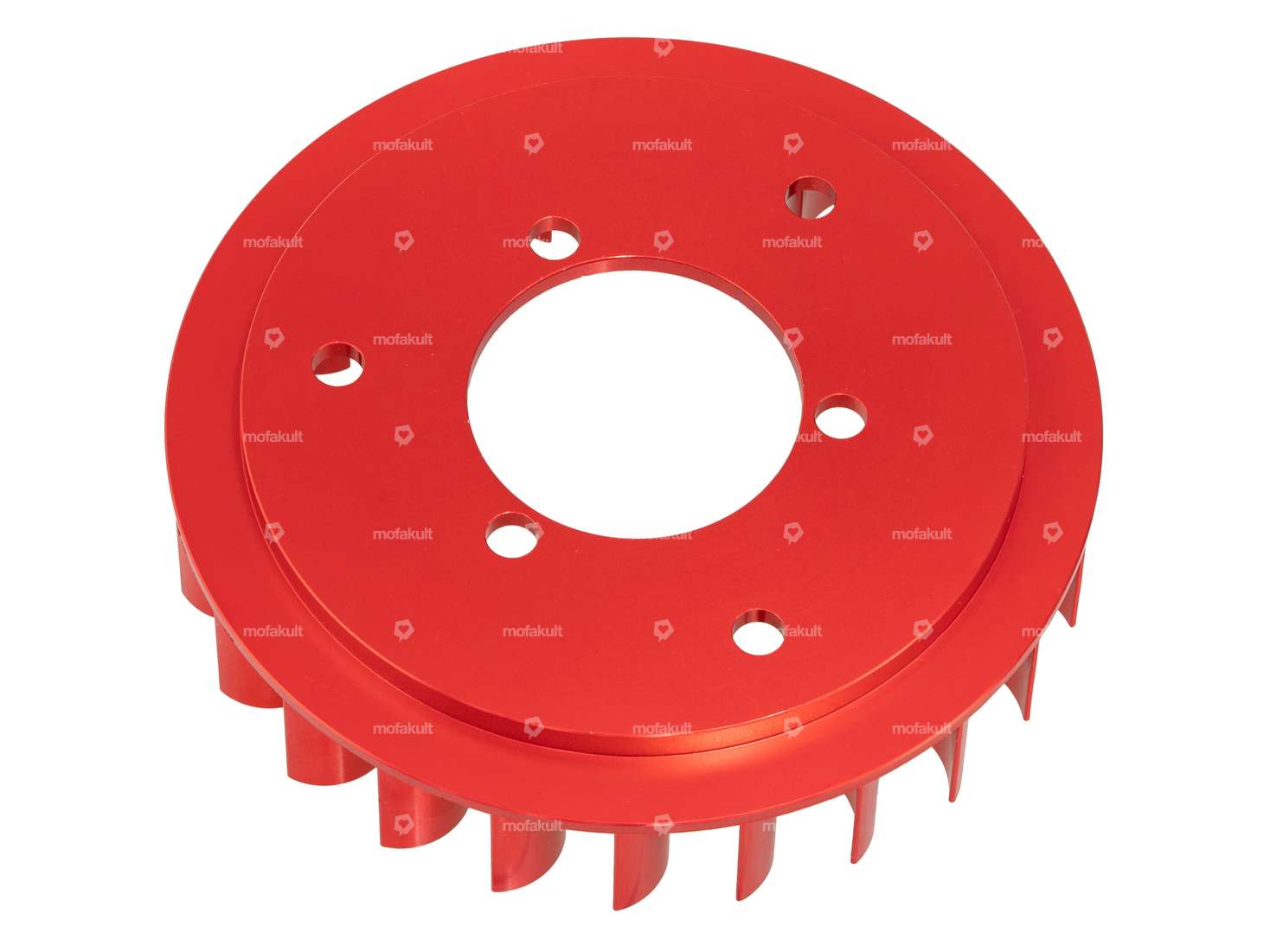

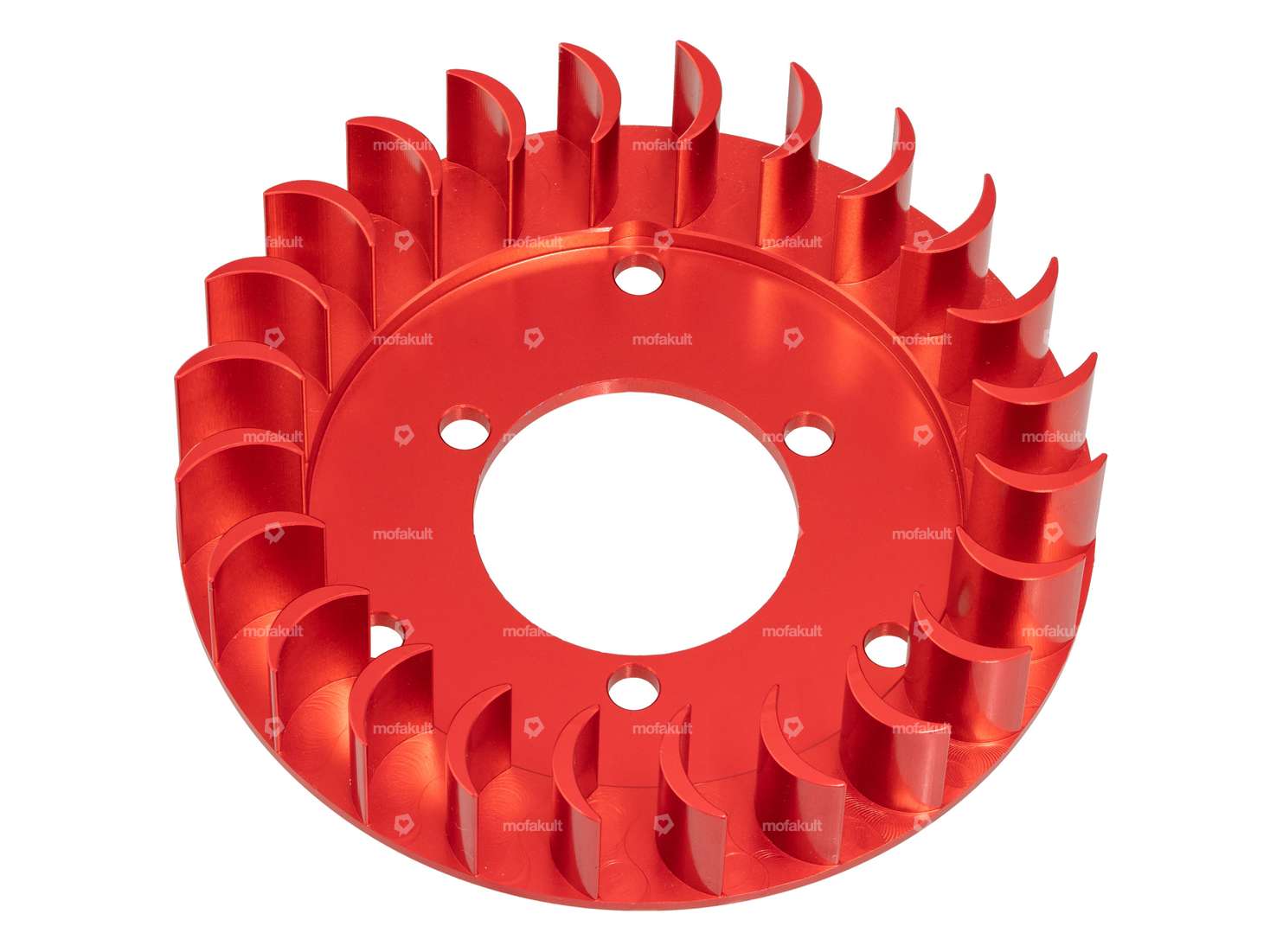

Red anodized fan wheel for your Sachs 50/2 and 50/3 moped / moped.
Due to the different bolt circles, the fan wheel can be mounted on Bosch / Ducati, swiing® ingenious EVO and HPI flywheels.
The wheel is CNC-machined from solid material and is of the highest quality with a perfect fit.
Caution: Under no circumstances should excessively long screws be used for assembly, as otherwise the underlying stator winding may be damaged.
The matching screw set and other mounting parts can be found in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Height | 25 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Color | red |
| Surface | anodized |
| Ø mounting hole | 6 mm |
| Ø inside | 39 mm |
| Ø outside | 110 mm |
| Ø bolt circle | 48 mm |
| Number of fixing points | 6 pcs |
| Weight | 116 g |
| Alternative version of the Pony OEM number | A1026 |
| Alternative version of the Sachs OEM number | 0211 070 105 |
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
