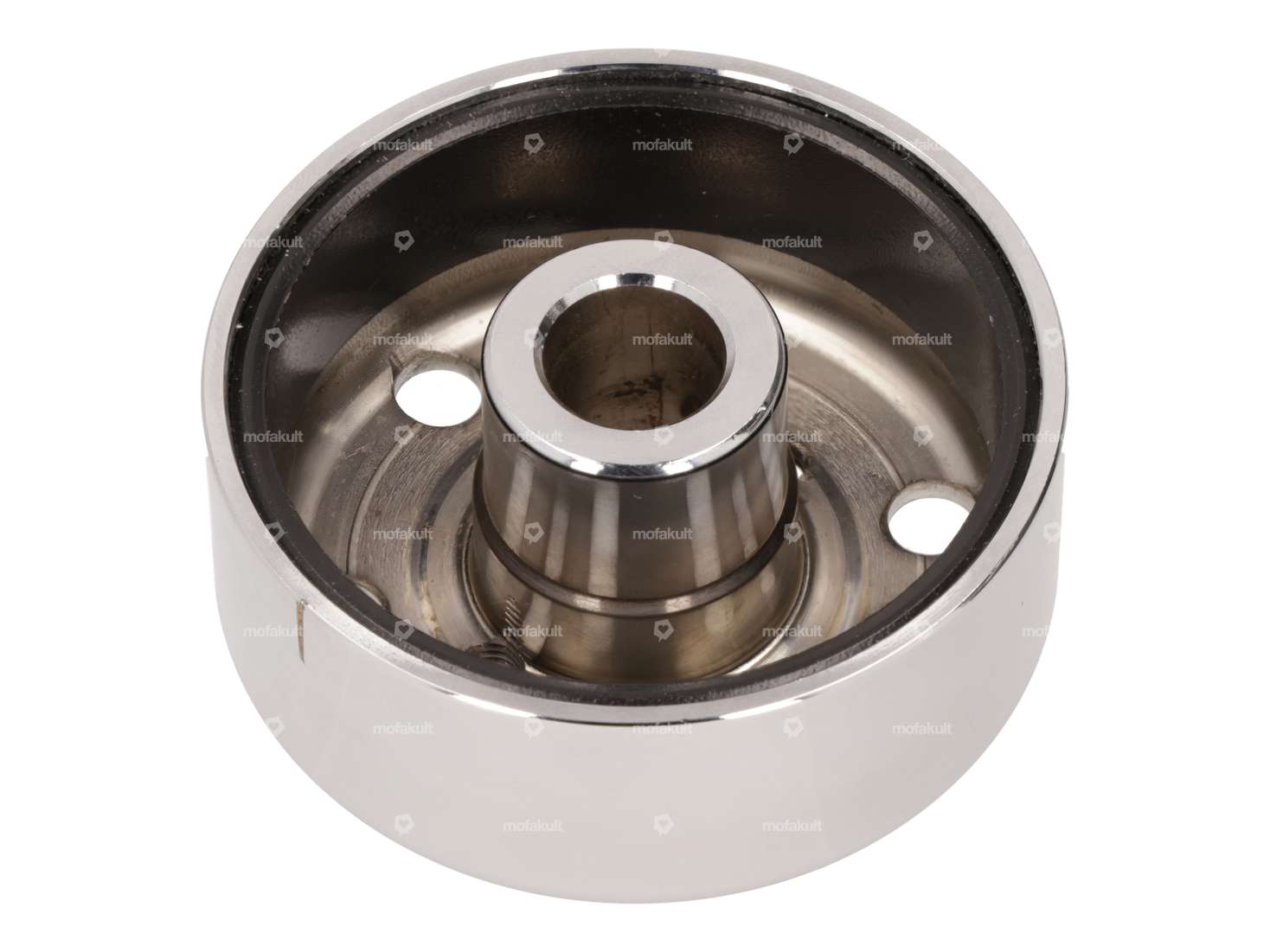

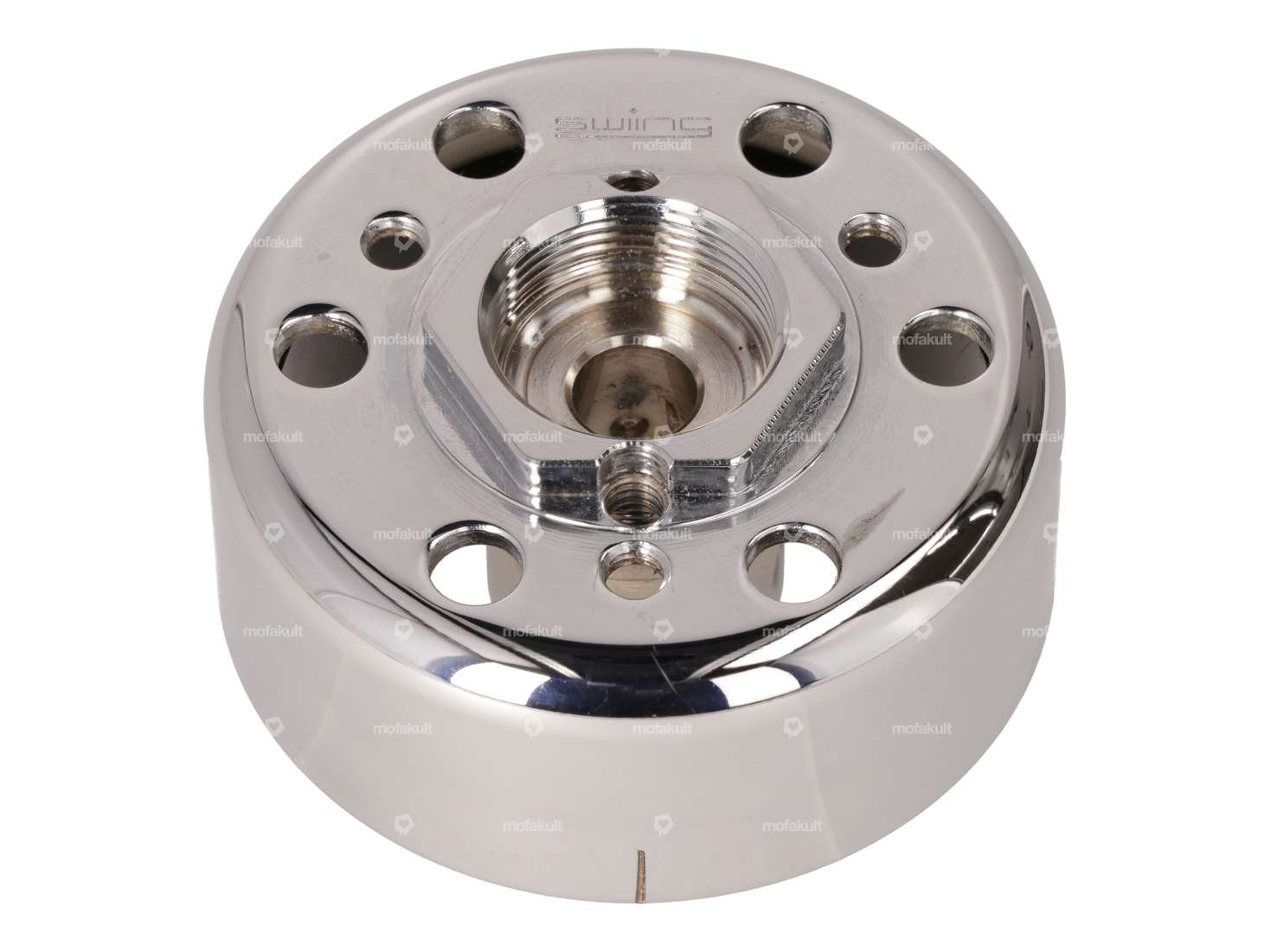

Rotor for the swiing® ingenious EVO ignition on your moped, moped and small motorcycle.
The cone (1:5) is suitable for all Bosch and Ducati ignitions which were installed on mopeds and mopeds such as Puch, Sachs 50/2 & 503, Zündapp Belmondo, Pony Beta with Minarelli engine and others.
Ø outer: 75 mm
Ø cone small: 10.9 mm
Ø cone large: 15.8 mm
Cone length: 28 mm
Slot width (SW): 32.4 mm
Thread: M26x1.5
Weight: 390 gr
Material: Steel, chrome-plated
Attention: The swiing® ingenious EVO Zündungselemente are not compatible with HPI components.
More parts for the swiing® ingenious EVO Zündung as well as the matching puller can be found in the accessories section.
Exclusive product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Ø Internal flywheel | 63.5 mm |
| Direction of rotation | any |
| Weight | 390 g |
| Ø cone small inside | 10.9 mm |
| Ø cone large inside | 15.8 mm |
| Ø Flywheel outside | 75 mm |
| Cone length | 28 mm |
| Cone ratio | 1:5 |
| Thread length | 9 mm |
| Thread type | MF26x1.5 (fine pitch thread) |
| Height | 38 mm |
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 502 1A / 1B (torpedo) |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta various Beta 514 Beta 518 Beta 519 Beta 521 (engine) Beta 520 |
| Zündapp Belmondo | |
| Kreidler | Flory MF |
| Zündapp | 247 Motor |
