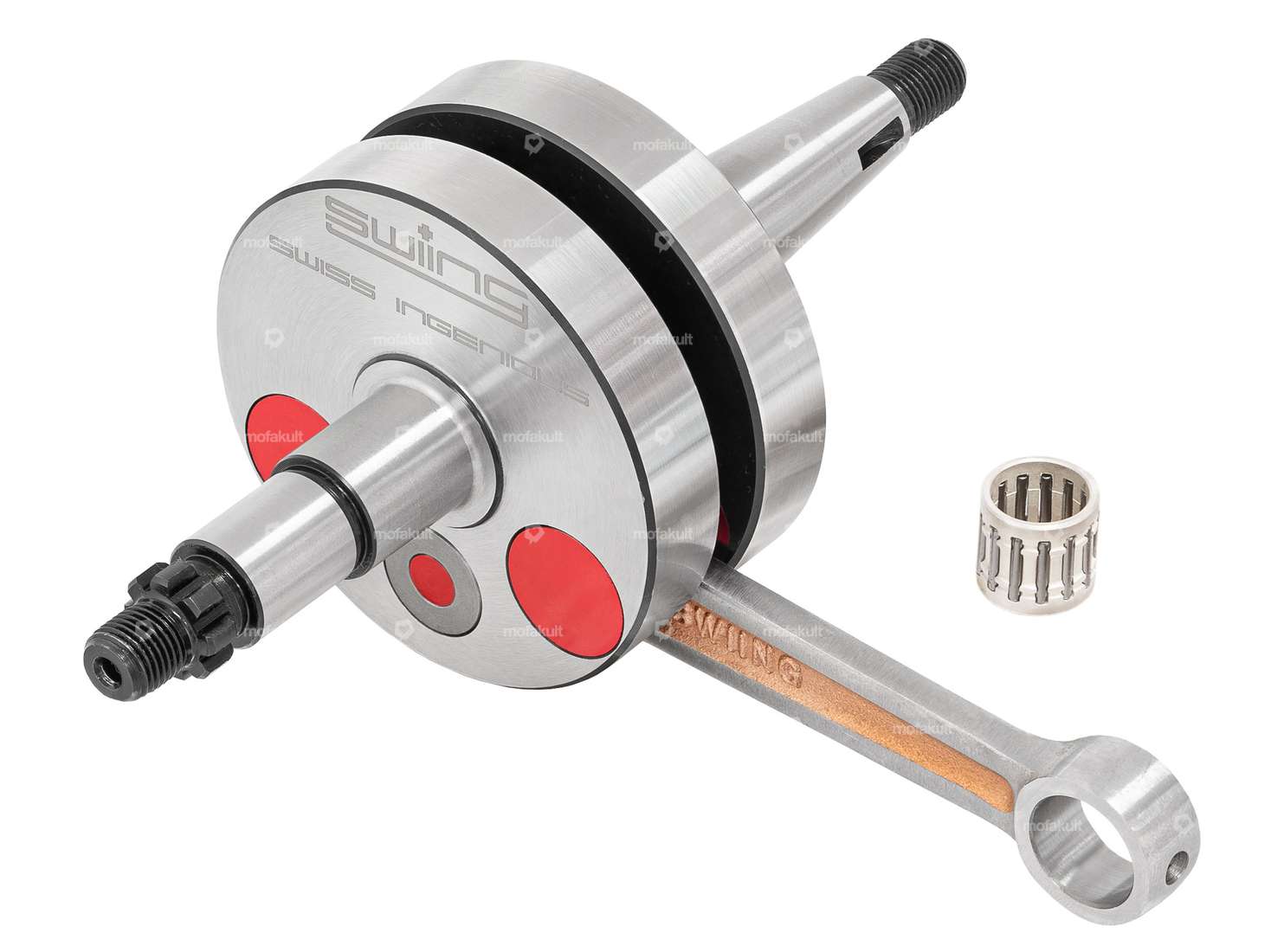

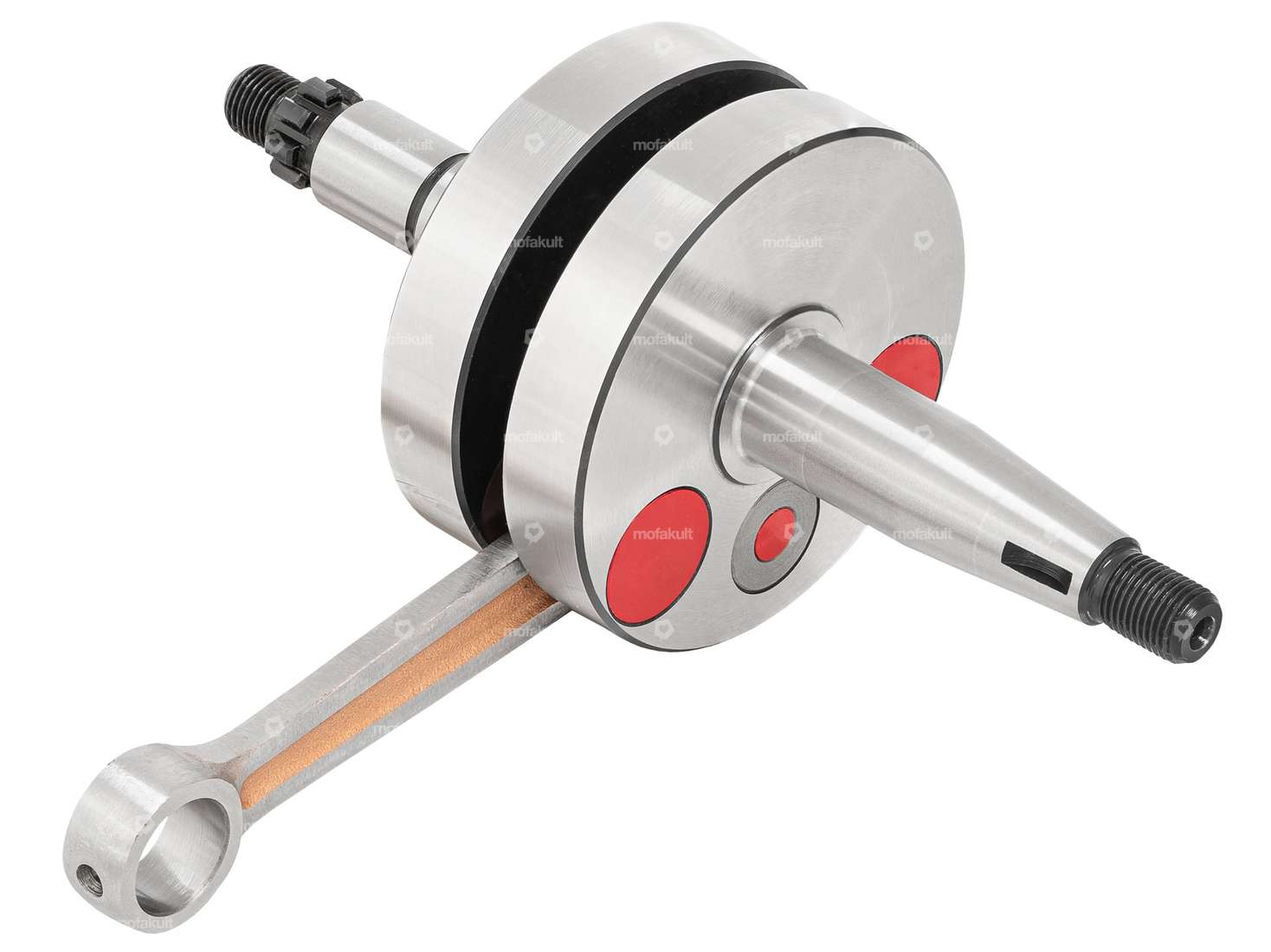

Full-flange crankshaft with reinforced connecting rod suitable for manual Puch X30 Sport NS / NL mopeds / mopeds with Z50 engines (not suitable for Puch X30 Velux engines).
High-quality and precisely fitting racing crankshaft, which has proven itself in various load tests. Designed for use in engines with a large increase in performance.
All balancing holes in the cheeks have been sealed with aluminum inserts for maximum pre-compression. The connecting rod of this crankshaft is also polished. In addition, the connecting rod bearings are silver bearings, which have excellent emergency running properties.
| Manufacturer | swiing® ingenious parts |
| Material | Steel, Aluminum |
| Cheek type | Full cheeks |
| Crankshaft stroke | 43 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 57 mm |
| Total length crankpin ignition side | 66 mm |
| Weight | 954 g |
| Ø crank webs | 70 mm |
| Ø Connecting rod eye | 15 mm |
| Thread length | 10 mm, 13 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Area of application | Racing, Tuning |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Number of gears | 2 pcs |
| Puch | Z50 (X30 Sport) |
