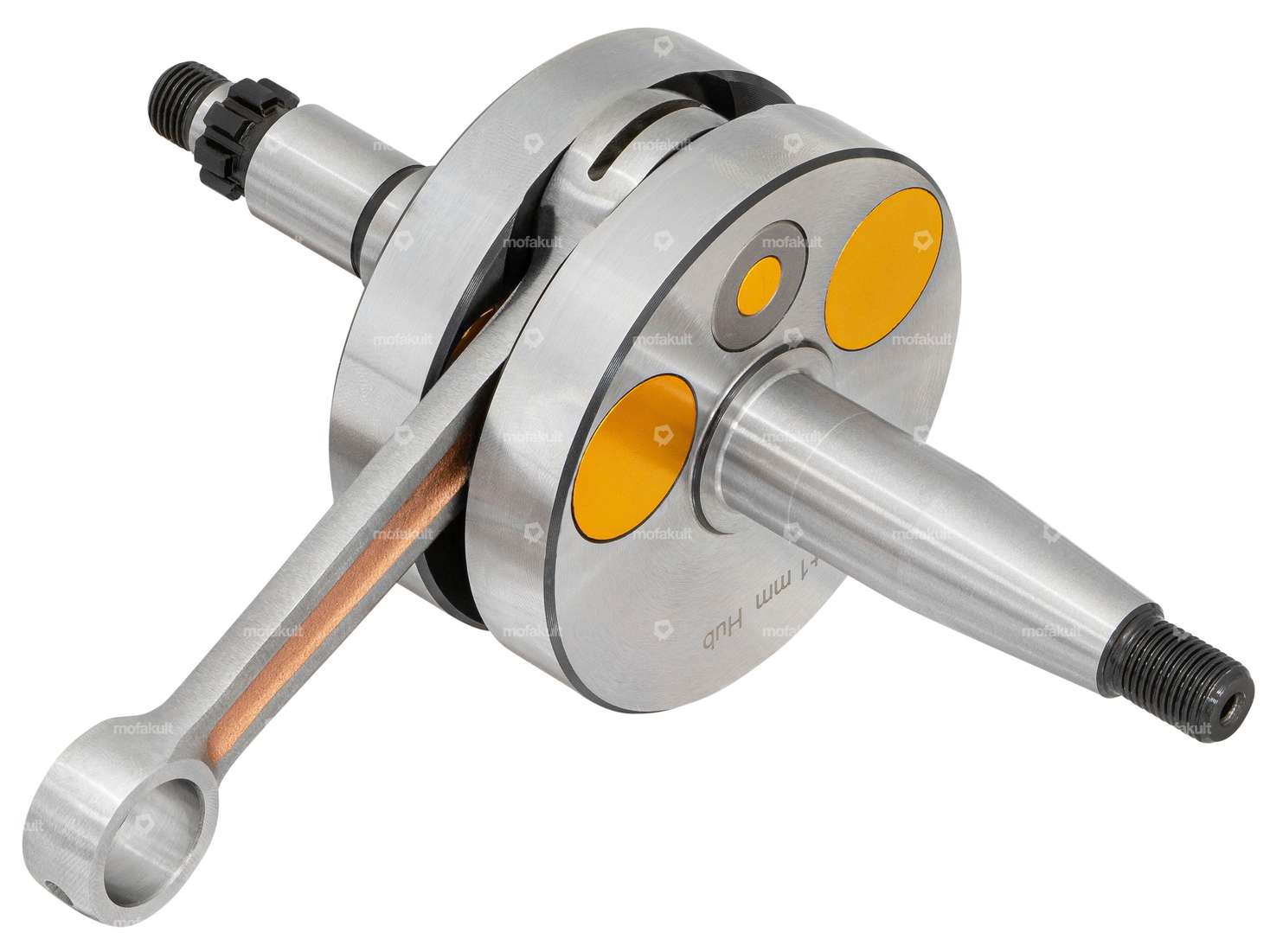

High-end racing crankshaft suitable for manual Puch X30 NS / NL Z50 engines (air cooling).
Attention: Not suitable for Puch X30 Velux engines (blower cooling)!
High-quality and precisely fitting, 942 gram full cheek crankshaft, which has proven itself in various load tests. This was designed for use in engines with a large increase in power.
All balancing holes in the cheeks have been sealed with aluminum inserts for maximum pre-compression.
The solid connecting rod is fitted with a more stable 16 mm connecting rod pin, which is hollow on the inside for better balancing.
In addition, the connecting rod bearings are silver bearings, which have excellent emergency running properties.
| Manufacturer | swiing® ingenious parts |
| Weight | 942 g |
| Material | Steel, Aluminum |
| Area of application | High End, Tuning, Racing |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 57 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 27 mm |
| Puch | Z50 (X30 Sport) |
