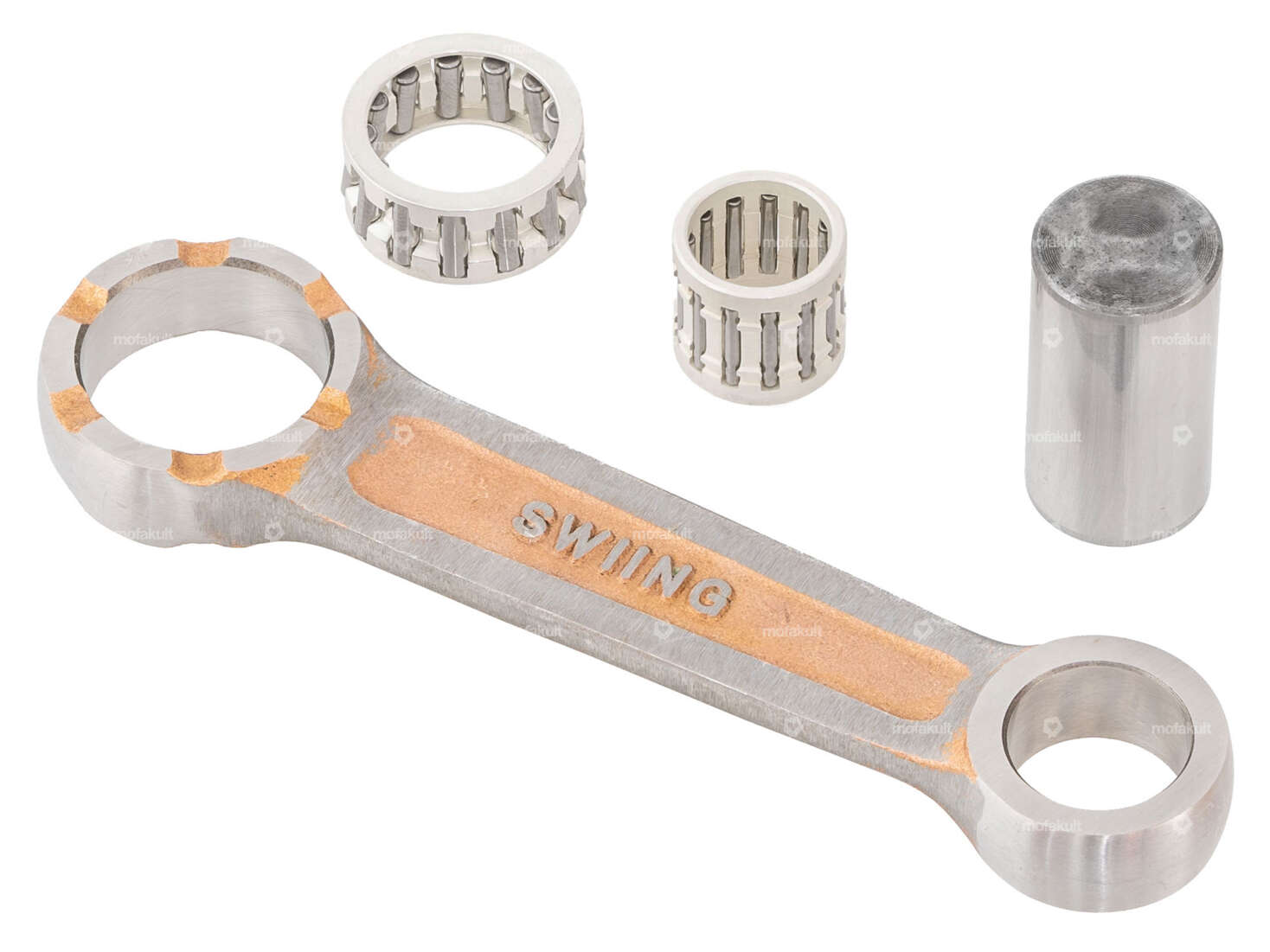

Complete connecting rod suitable for crankshafts on various mopeds, mopeds and small motorcycles with Sachs engine.
Racing version with polished connecting rod and silver-plated needle bearings.
The silver-plated bearing cages have the following advantages:
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | ground |
| Area of application | Tuning |
| Thickness | 10 mm |
| Connecting rod length center-center | 85 mm |
| Ø Connecting rod bolt | 16 mm |
| Ø lower connecting rod eye outside | 28.8 mm |
| Ø upper connecting rod eye outside | 23.4 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 16/21 x 9.7 mm |
| Total length | 111 mm |
| Dimension upper bearing | 12/15 x 14.2 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod pin length | 30 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
