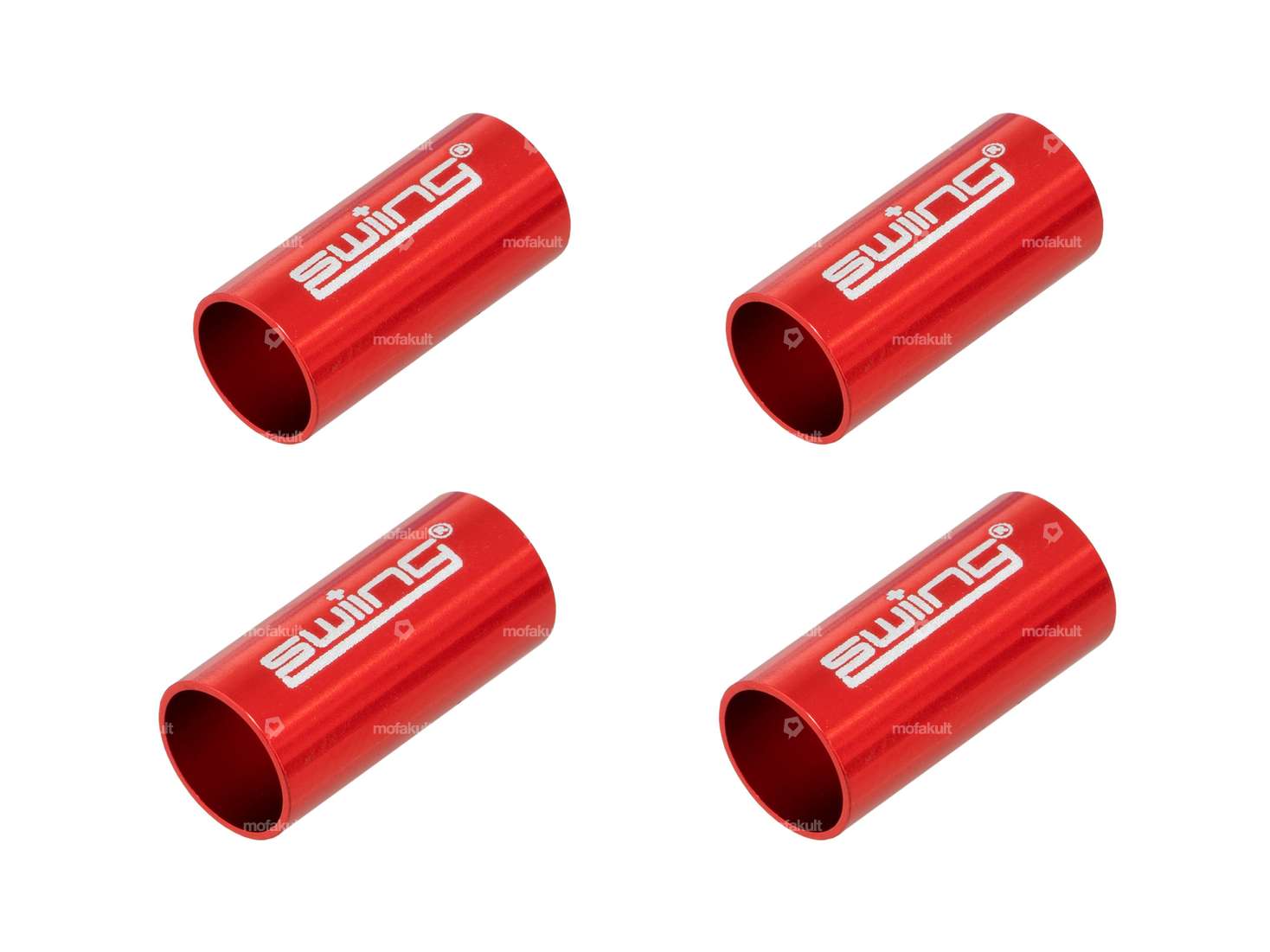

Centring bushes made of aluminium, red anodized, for clean mounting of the cylinder cover on Puch Maxi S / N, Puch X30 NS / NL, Puch X30 N-2AH mopeds / mopeds.
The bushes can be used on all Puch cylinder heads in conjunction with conventional M6 threaded studs.

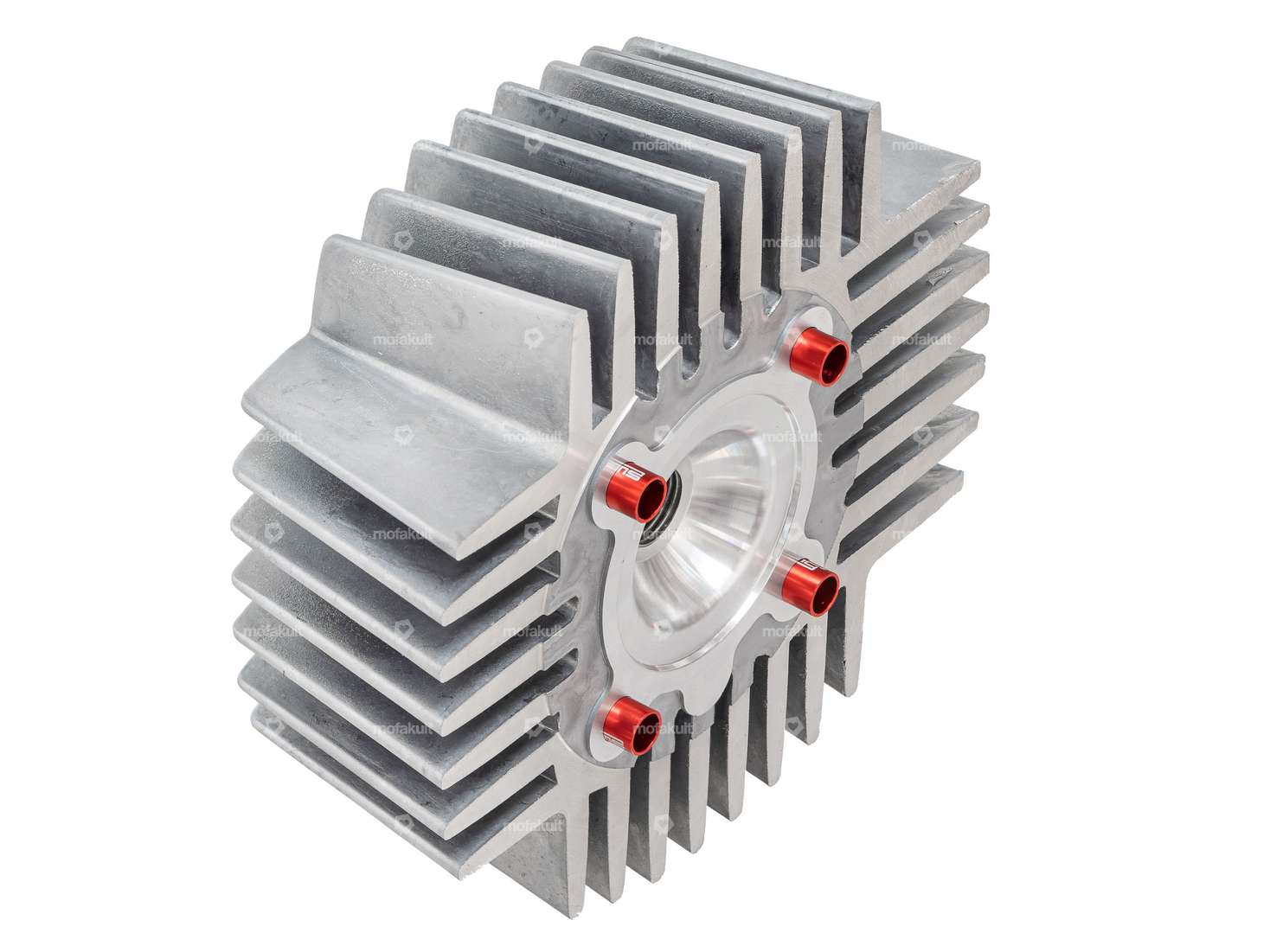

They are pushed into the holes in the cylinder cover so that they protrude slightly above the sealing surface (see Figure 2 for illustration).
We recommend that you glue the guide bushes into the cylinder head with Loctite adhesive so that they do not move during assembly/disassembly.
Now the cylinder head can be pushed perfectly centered onto the stud bolts.
You can find the corresponding cylinder heads, stud bolts, cylinder head gaskets, Loctite, etc. in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Total length | 15 mm |
| Nominal diameter inside | 6 mm |
| Ø inside | 6.25 mm |
| Ø outside | 7.4 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
