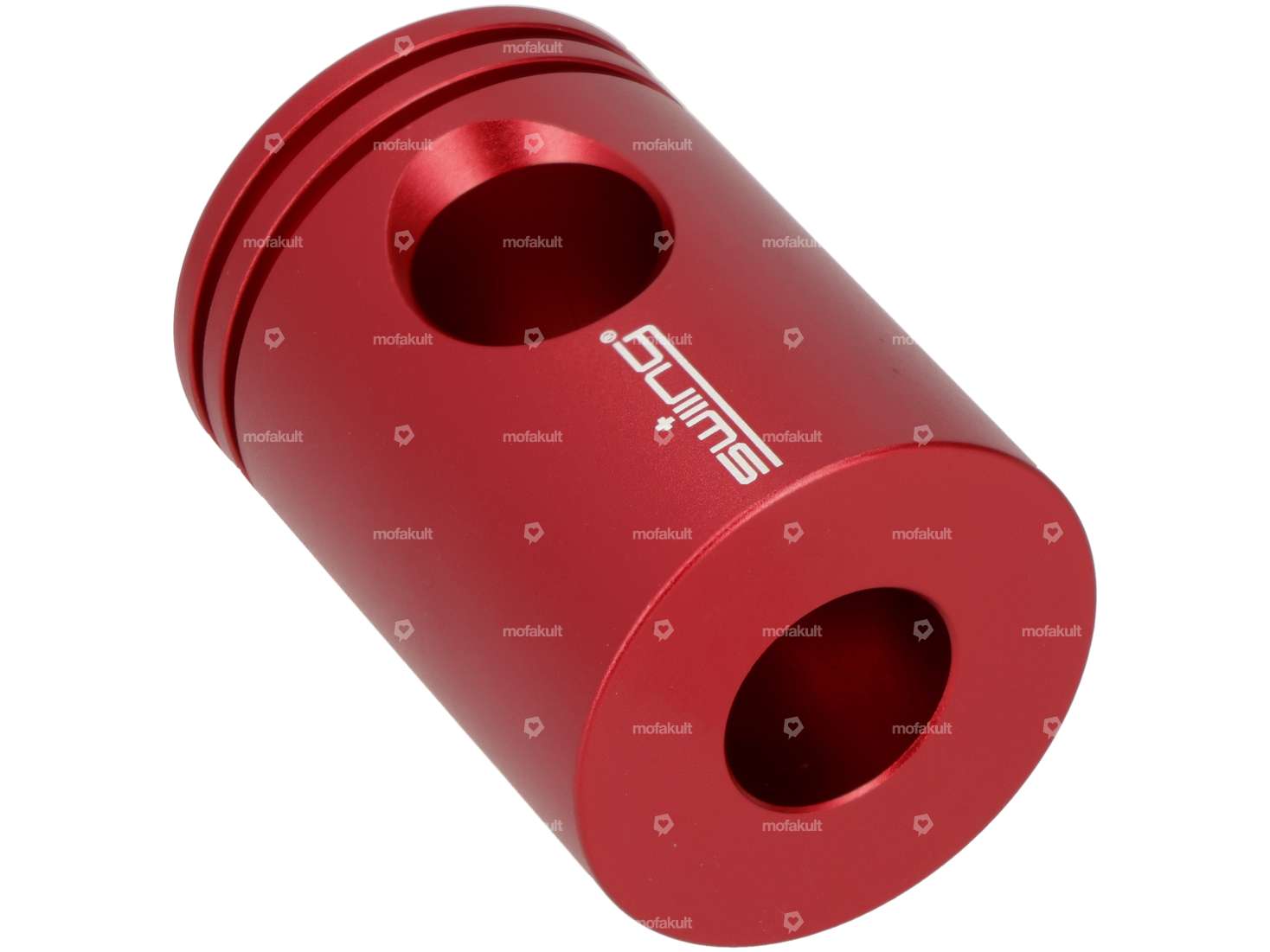

High-quality press-on mandrel in piston design for the proper pressing on of ball bearings on your moped, moped or small motorcycle.

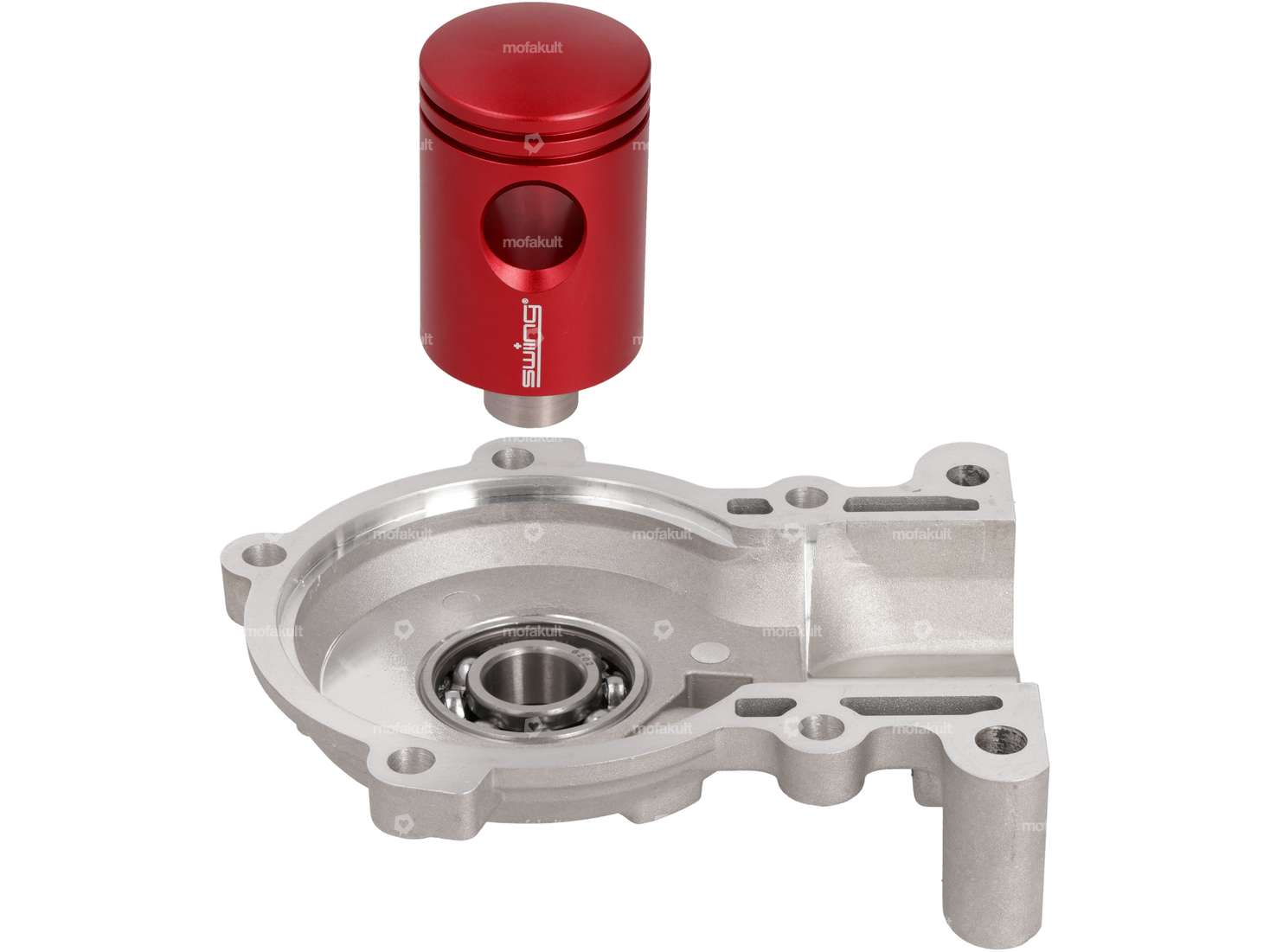

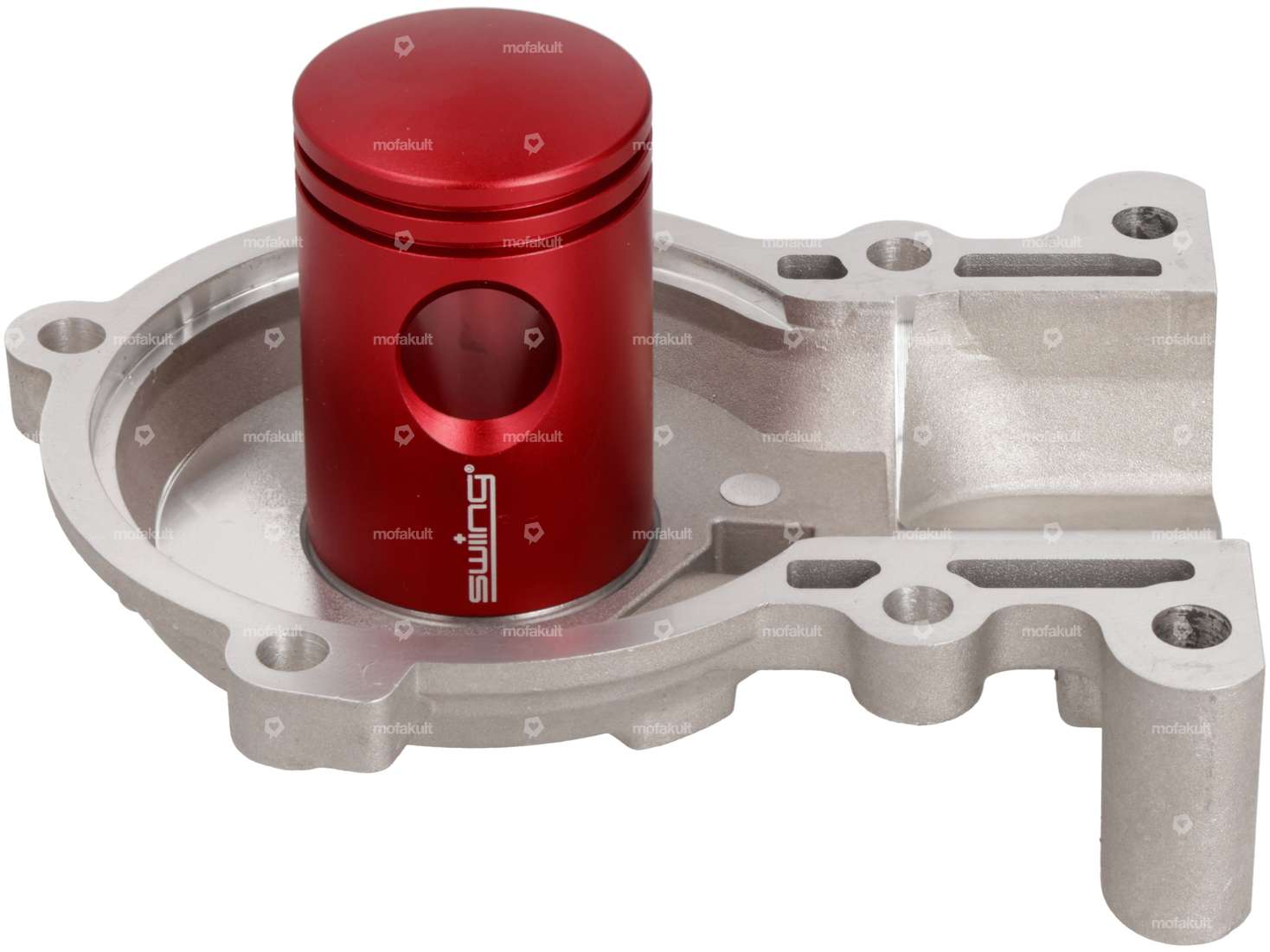

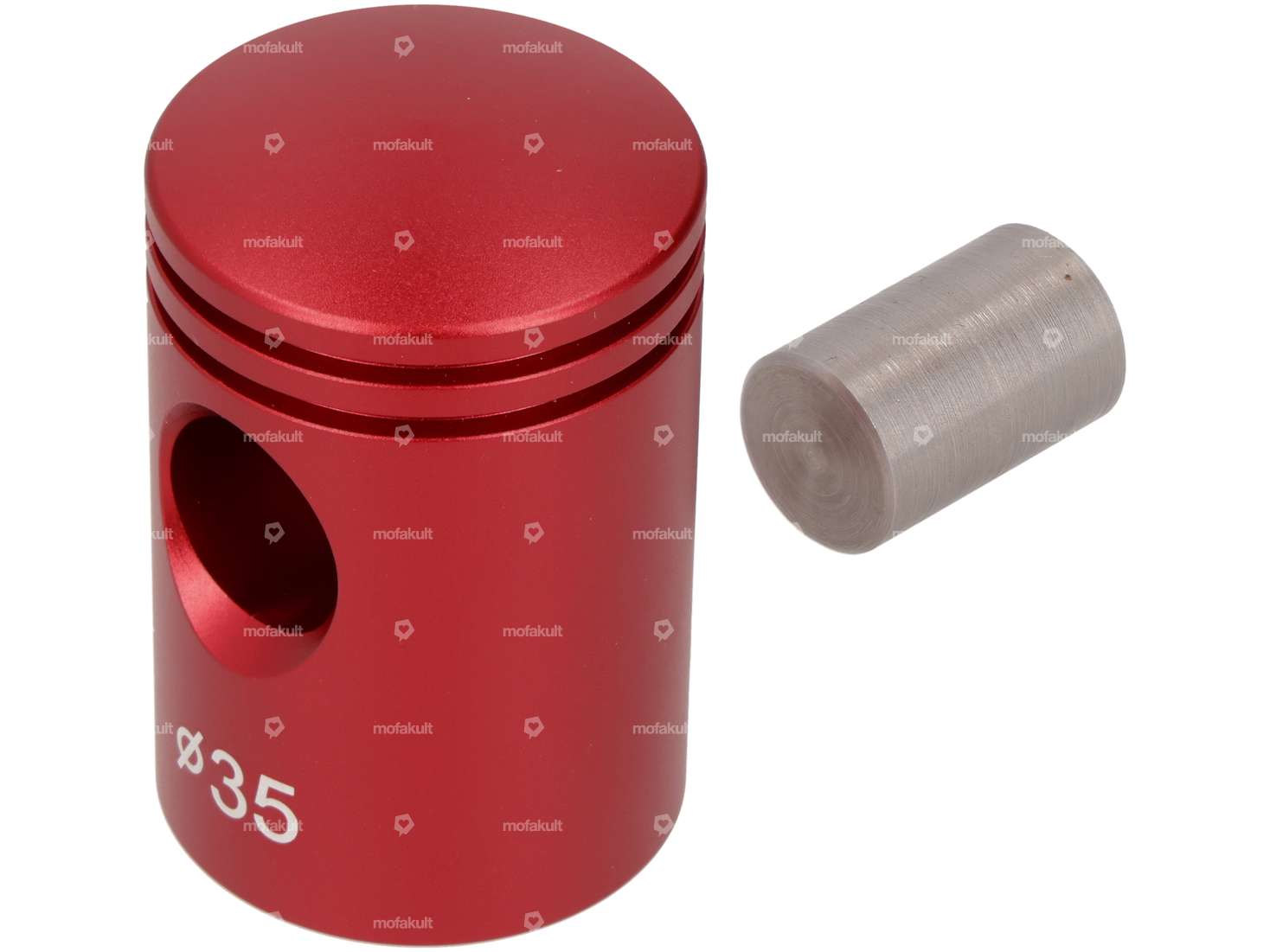

This special bearing press-fit mandrel made of red anodized aluminium is placed on the bearing during assembly. The ball bearings can then be placed precisely in their intended position by gently tapping the tool with a hammer. Thanks to the bolt supplied, slippage is prevented, ensuring even force distribution on the bearing.
Details
| Number of components | 2 pcs |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum, Steel |
| Surface | anodized |
| Total length | 52.5 mm |
| Ø inside | 15 mm |
| Ø outside | 35 mm |
| Ø Pin | 15 mm |
| Area of application | Special tool |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio | |
| Zündapp Belmondo | |
| Tomos | |
| Cilo |
