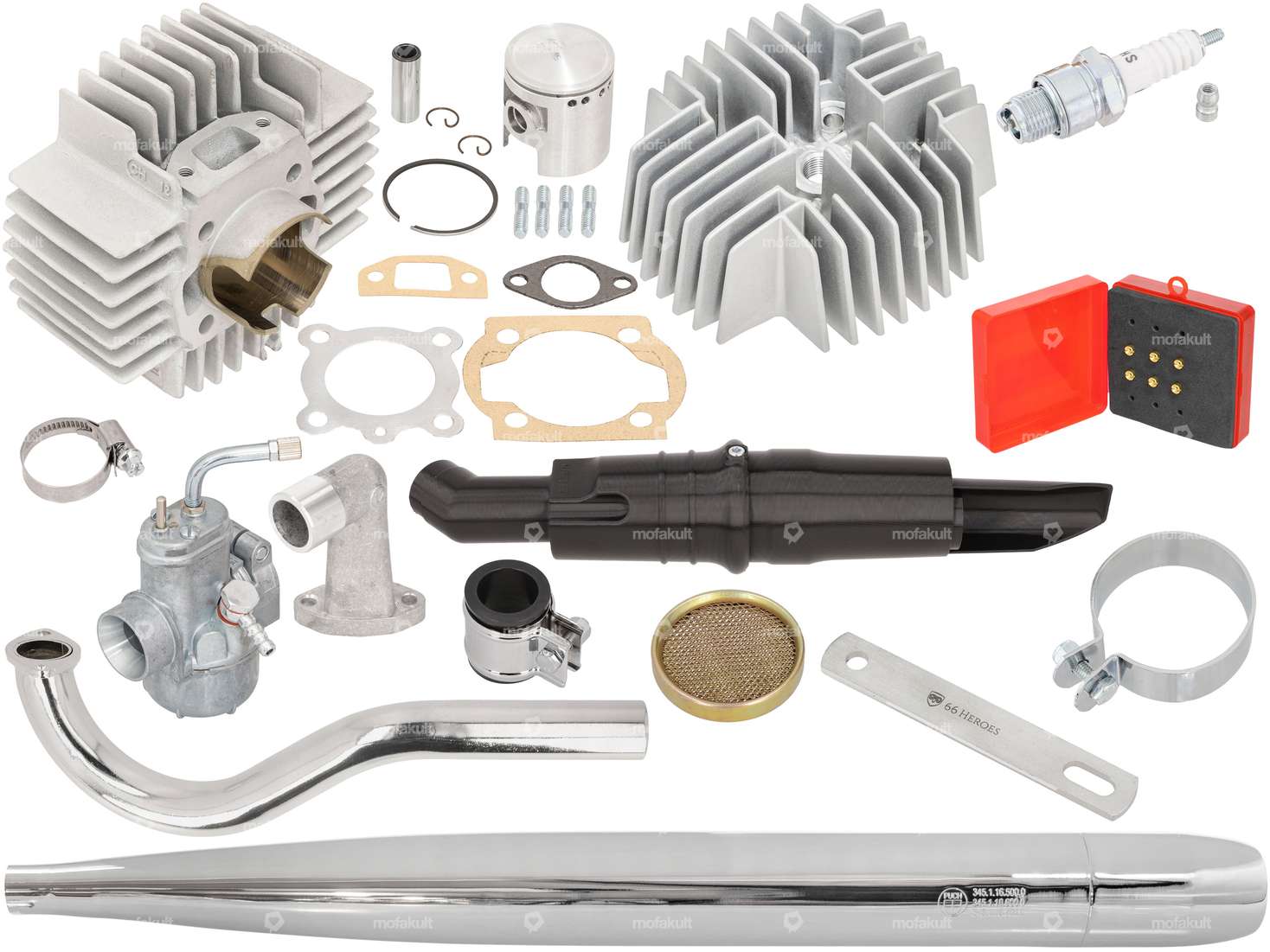

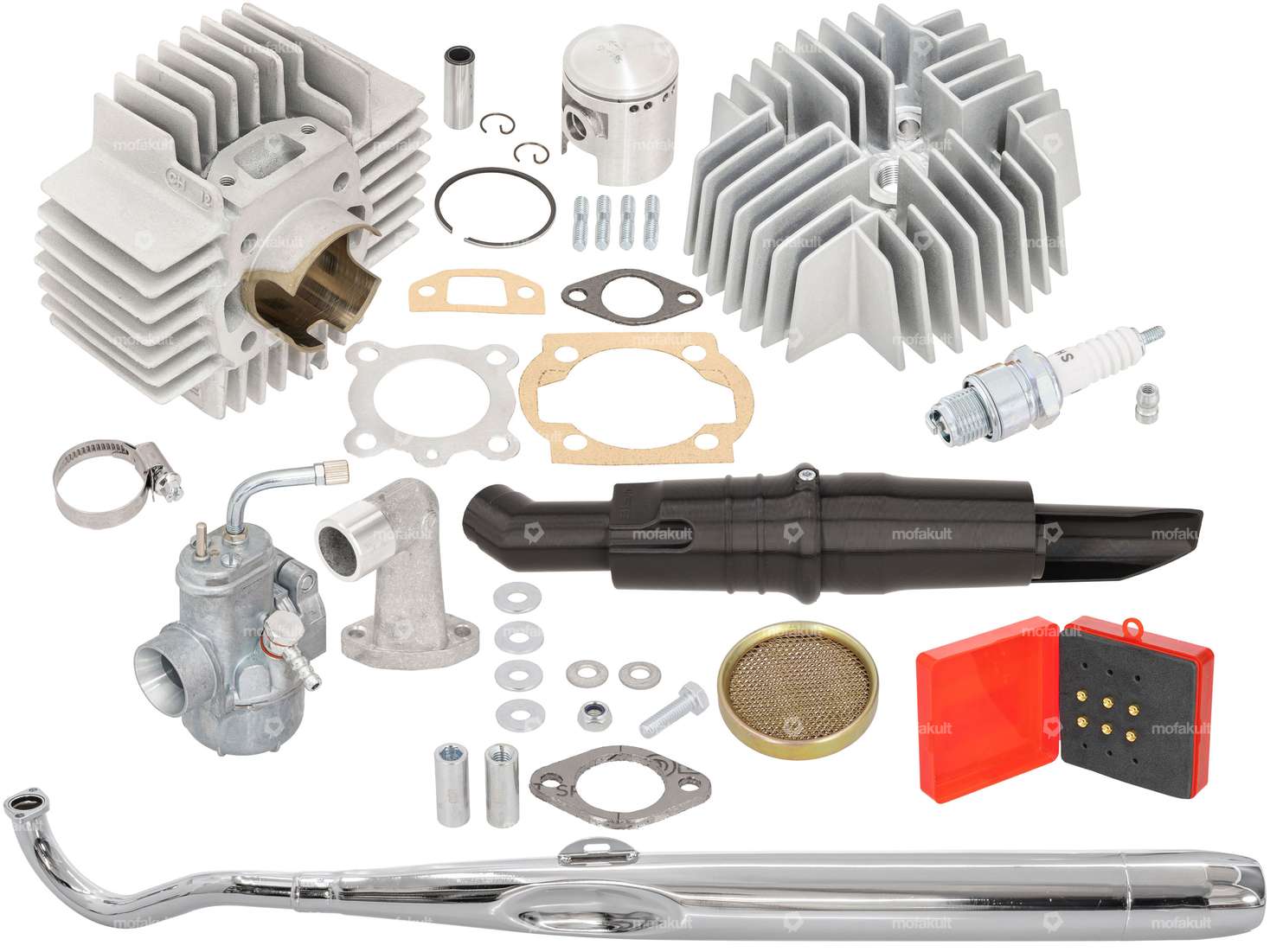

High-quality 45 mm tuning kit for your Puch X30 Sport, Turbo, and Sprinter moped with a 2-speed Z50 engine.
The 45 mm racing kit, the swiing® ingenious 17 mm SRF carburetor, intake manifold, and racing exhaust are perfectly matched to each other and guarantee power across the entire RPM range. The additive-manufactured tuning air filter features an internally optimized airflow design and ensures that your engine receives the necessary amount of air to achieve maximum power output.
With the exception of the intake manifold and the air filter, almost all parts bear the original cast or stamped serial numbers. For example, the 70 ccm cylinder is marked with a “CH12,” the carburetor with the code “1/12/197,” and the resonance pipe features the Puch logo and engraved numbers.
A jet set is included for perfect tuning of the modified carburetor.
Engraved numbers on the muffler:
345.1.16.500.0
345.1.16.600.0
345.1.16.700.0
All individual parts are listed below for closer inspection.
When you purchase this complete set, you’ll save a significant percentage off the retail price of the individual parts.
Notes:
For proper installation, the mounting holes on the exhaust manifold must be slightly enlarged.
The engine housing and the piston must be slightly modified, as the piston interferes with the rear section of the housing.
You can find additional tuning kits, individual components, and installation hardware in the accessories section.
A sophisticated product from the premium brand swiing® that meets the highest standards.
Hole pattern [mm]: 44 x 44 · Inlet window: 23.6 / 21.2 x 14.7 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Ø inside: 17 mm · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 73 mm · Height flange center hole: 61 mm · Total length: 45 mm · Area of application: Tuning, Racing, Performance
Nozzle block: 2.2 · Nozzle size: 74 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Ø Inside entrance: 17 mm · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 3 N/m, 4 N/m · Total length: 65 mm · Width: 47 mm · Height: 109 mm, 89 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: GPO · Camouflaged: No · Color: yellow · Material: Steel · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm · Area of application: Tuning
Manufacturer: FST RACING · Color: black · Material: Plastic · Total length: 350 mm
Manufacturer: GEMI · Material: Chrome steel (colloquially known as stainless steel), Steel · Surface: galvanized (blue) · Ø inside: 20 - 32 mm · Width: 9 mm · Pony OEM number: A3346
Nozzle size: 76, 78, 80, 82, 84, 86 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/31) Velux, SRA (1/11/35) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 985 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Welded lug · Flame tube attachment: Nuts
Manufacturer: swiing® ingenious parts · Material: Steel, Graphite / Graphite · Surface: galvanized (blue) · Thread type: M6x1 (standard thread)
| Puch | Z50 (X30 Sport) |
