First-class racing kit with 50 cc displacement, suitable for your Puch Maxi S / N, X30 Sport NS / NL, X30 Sport NG-2A or Supermaxi moped, moped.

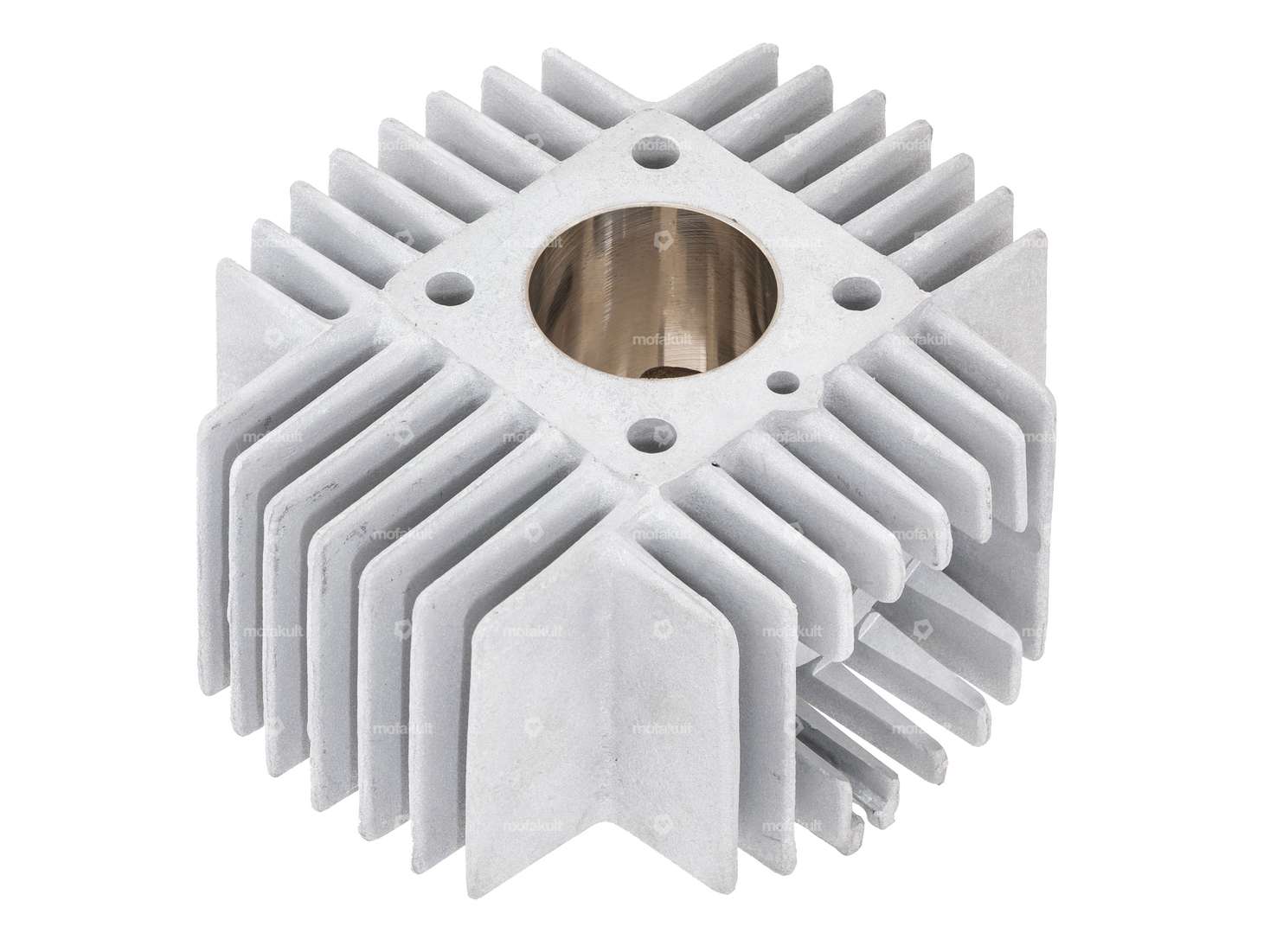

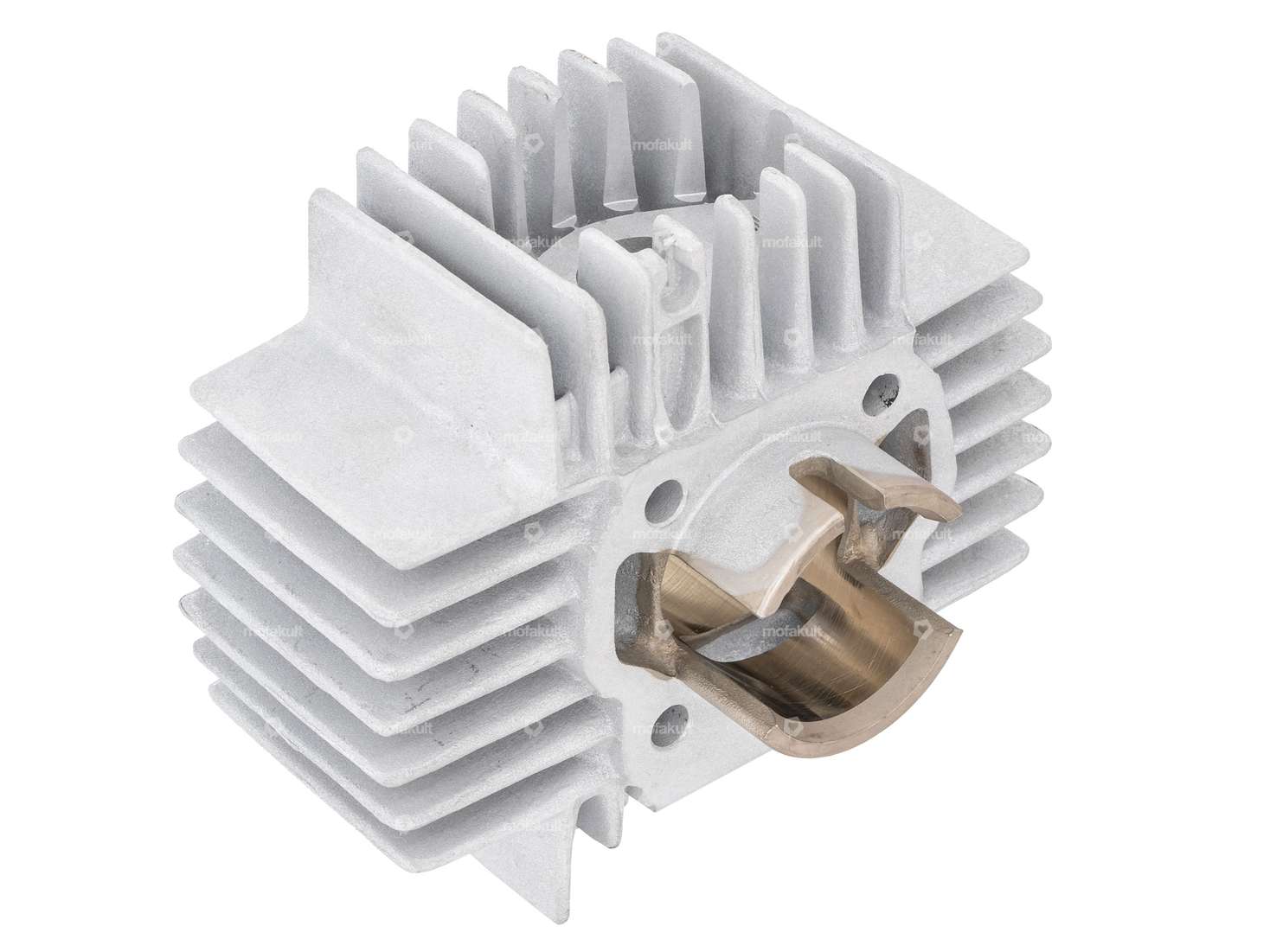

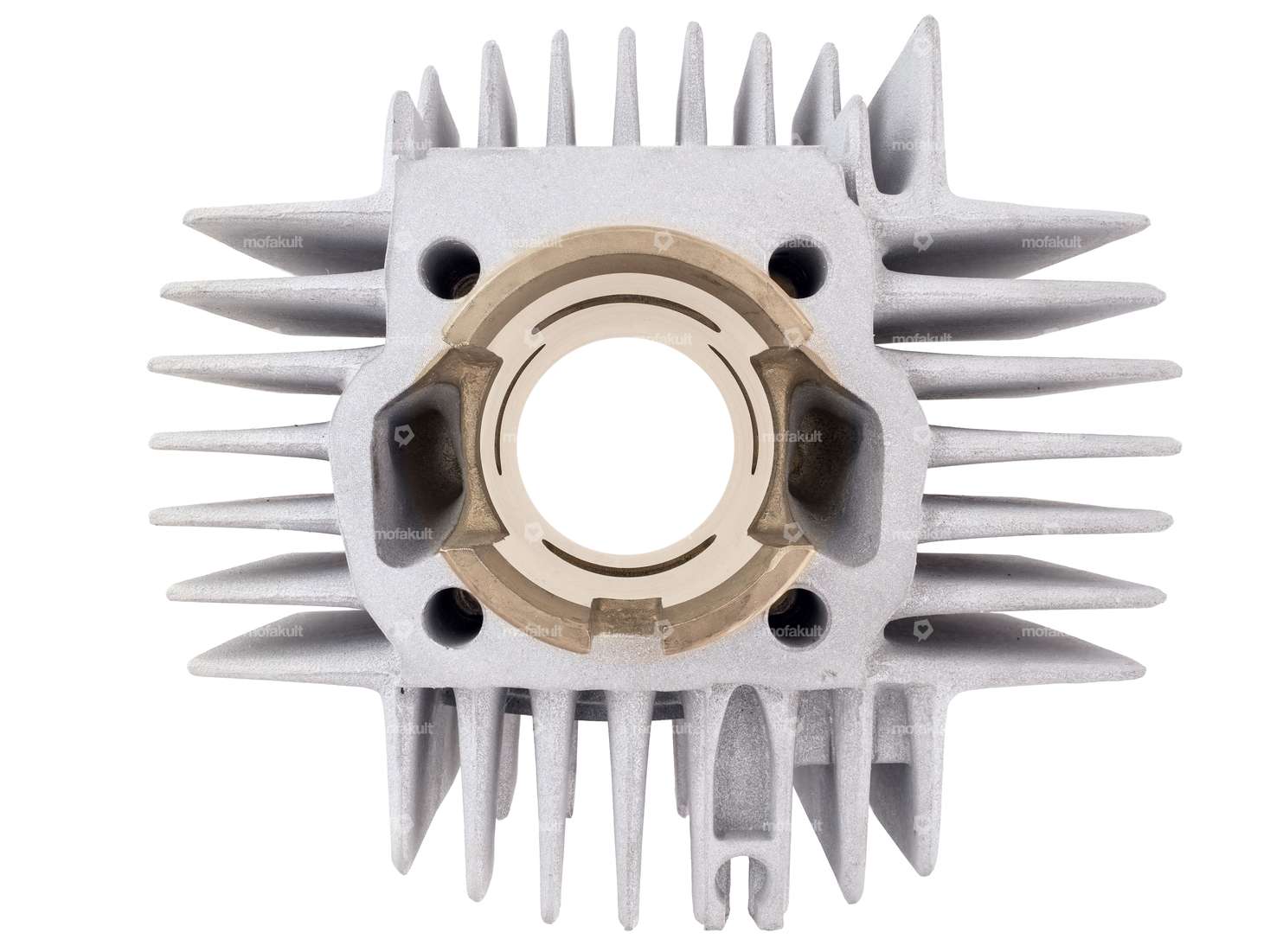

The 38 mm tuning cylinder has a large intake and exhaust as well as optimized timing. In combination with a 15 mm carburettor, this allows significantly more power to be achieved than with the original cylinder.
Compared to other products on the market, the sealing surface in the exhaust area has been enlarged and refreshed. This also makes it possible to fit a 28 mm exhaust manifold, which significantly increases performance even further.

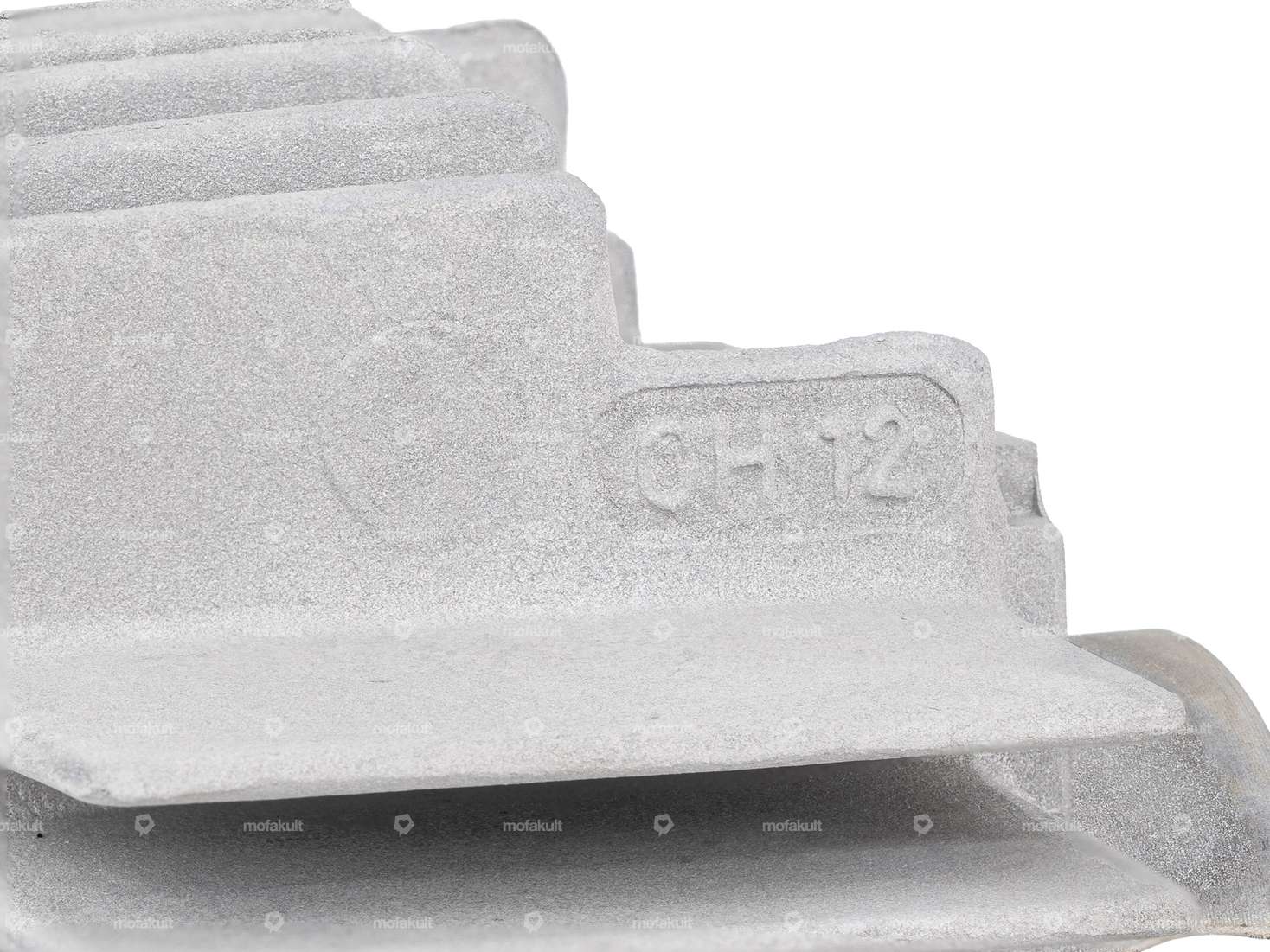

Otherwise, the racing cylinder is virtually indistinguishable from the original. The cast-in «CH12» and the original-style cooling fins ensure an unobtrusive appearance and provide reliable protection from prying eyes, especially from the race organizers.

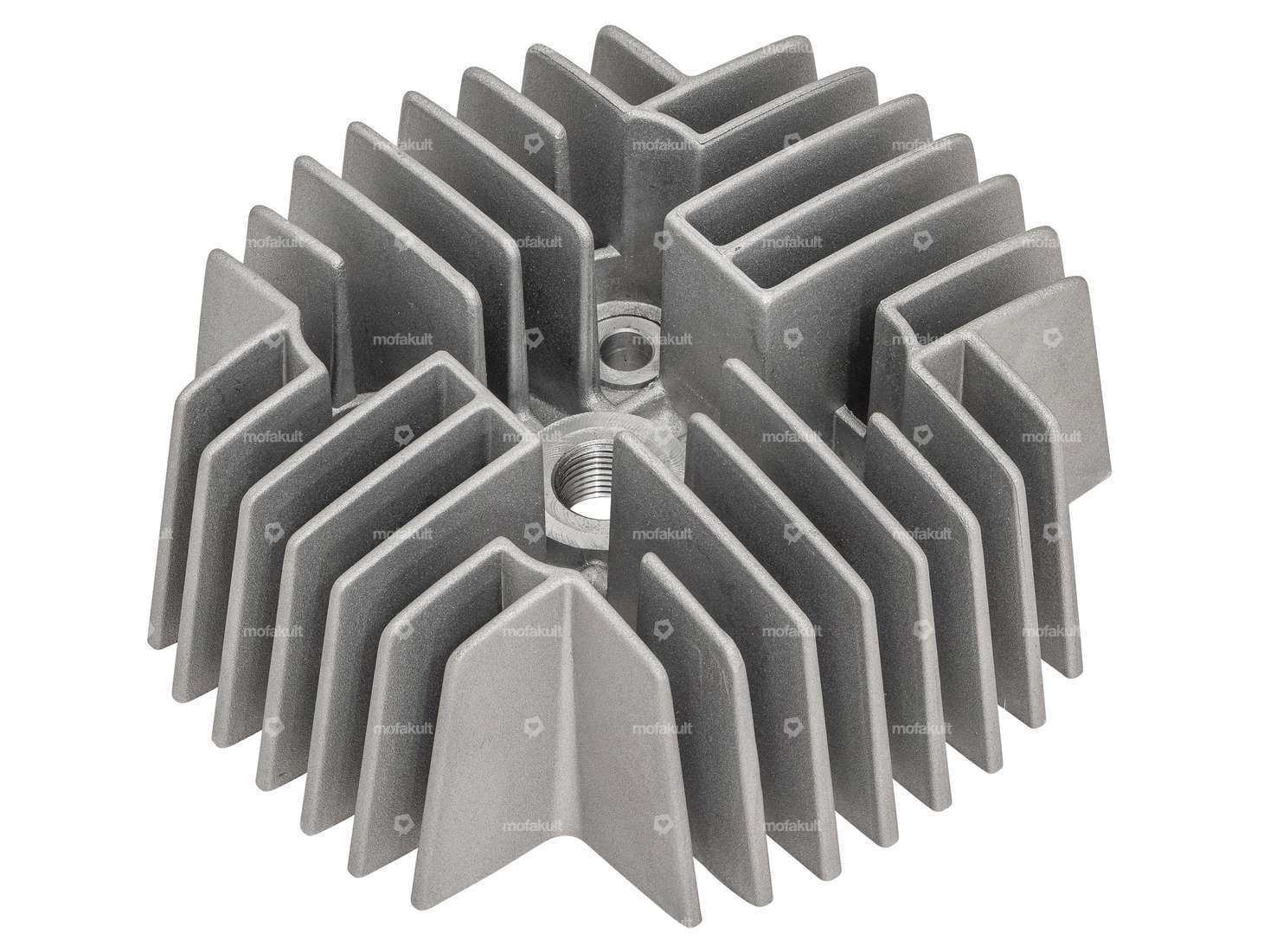

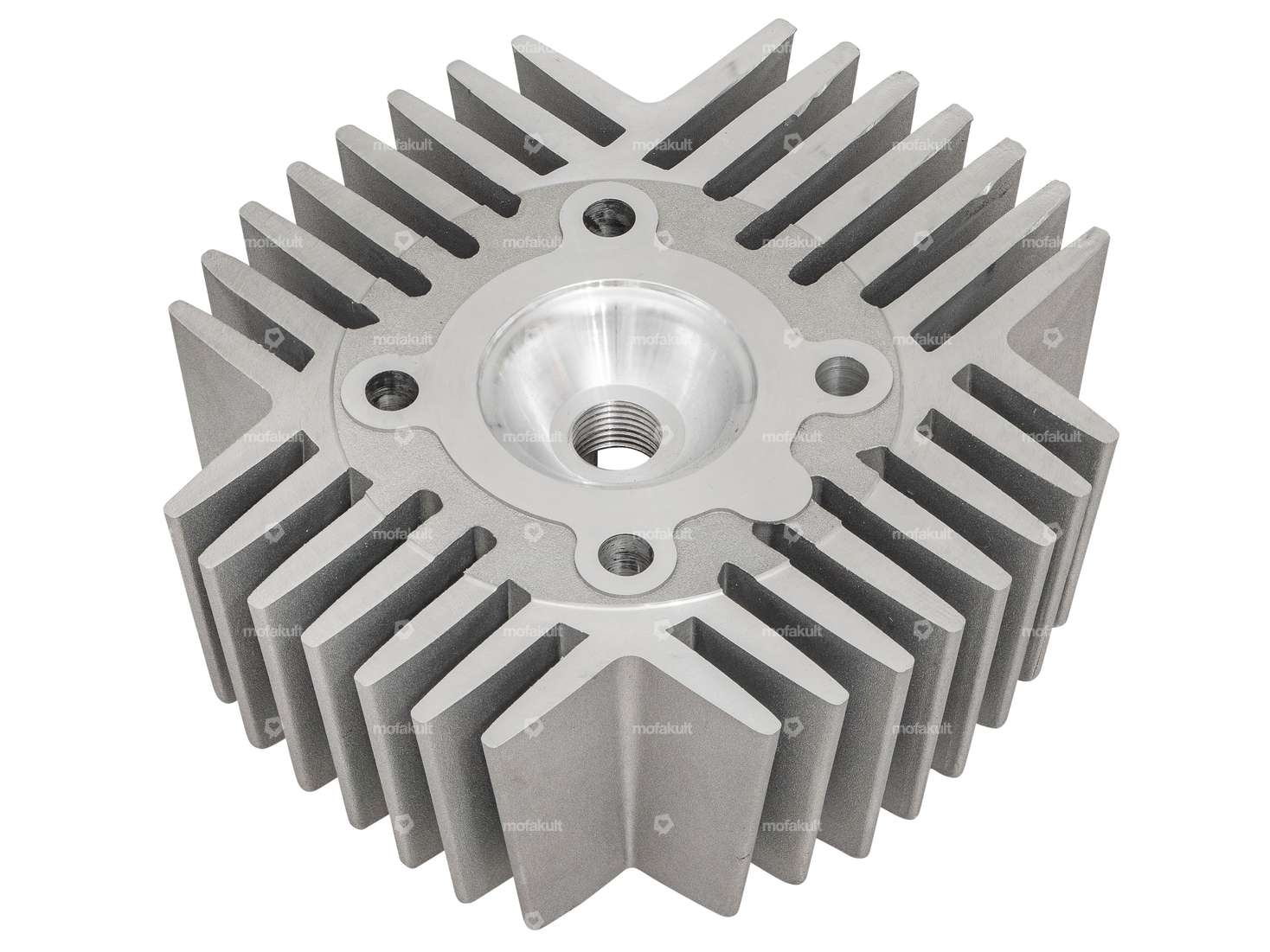

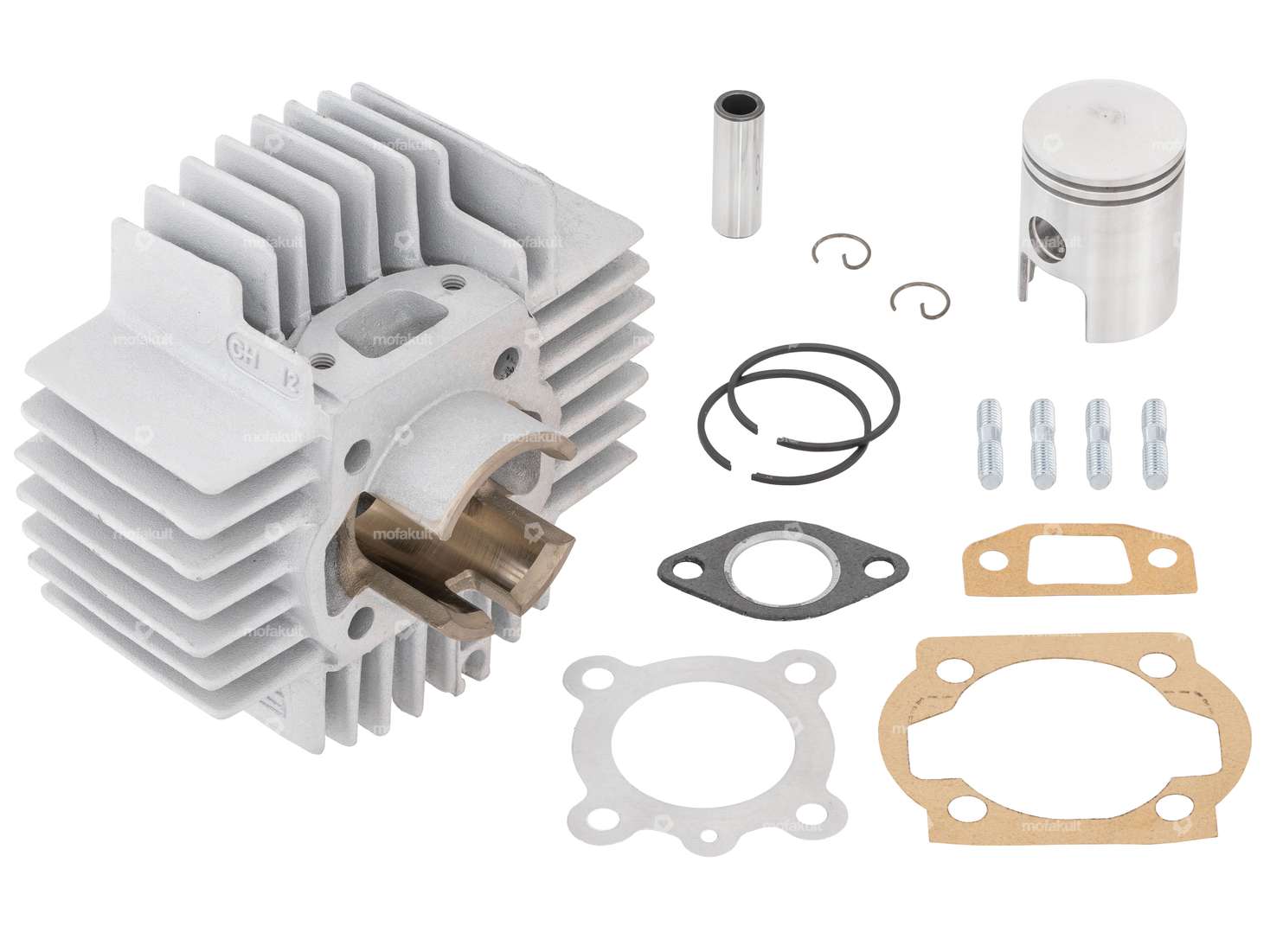

In addition to the cylinder, the scope of delivery also includes the complete piston kit, all gaskets, the stud bolts and detailed assembly instructions. If you would like to have the complete set, select this in the selection field to also receive the matching cylinder head.
Note:
This racing kit should be run with at least a 22 mm exhaust (2-bend) or 22 mm manifold so that the exhaust gases can also be removed and no heat build-up occurs. Please observe the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
Hole pattern [mm]: 44 x 44 · Inlet window: 23.4 x 14.7 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Camouflaged | Yes |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 48 mm |
| Hole spacing inlet | 38 mm |
| Inlet window | 23 / 20 x 14 mm |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Number of fixing points | 4 pcs |
| Hole spacing outlet | 42 mm |
| Decompressor | Yes |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Alternative version of the Puch OEM number | 349.7.10.105.0 |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
Hot
swiing® ingenious exhaust 22 mm camouflaged 2-piece | Puch Maxi S, N
Manufacturer: swiing® ingenious parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø outside: 59 mm · Ø Silencer: 54.5 mm · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Total length: 910 mm · Number of fixing points: 4 pcs · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Flame tube attachment: Flange
EUR 166.00
Hot
swiing® ingenious 15 mm carburetor camouflaged | Puch
Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Width: 50 mm · Carburetor type: SRE · Ø Internal connection: 20 mm · Height: 95 mm · Mounting type: Plug connection clamped · Ø Inside entrance: 15 mm · Total length: 66 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Area of application: Tuning · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Alternative version of the Puch OEM number: 349.1.15.100.0 · Alternative version of the Puch OEM number: 349.2.15.800.0 · Alternative version of the Puch OEM number: 349.4.15.500.0 · Alternative version of the Puch OEM number: 349.4.15.000.0 · Alternative version of the Puch OEM number: 349.4.15.300.0 · Alternative version of the Puch OEM number: 349.6.15.400.0 · Alternative version of the Puch OEM number: 349.7.15.700.0 · Alternative version of the Puch OEM number: 349.8.15.400.0 · Alternative version of the Puch OEM number: 349.9.15.300.0
EUR 98.30
Hot
swiing® ingenious 15 mm intake manifold camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing inlet: 38 mm · Total height: 53 mm · Area of application: Tuning · Height flange center hole: 43 mm · Total length: 46 mm · Camouflaged: Yes · Puch OEM number: 349.2.15.330.1 · Puch OEM number: 349.2.15.130.1
EUR 43.00
Hot

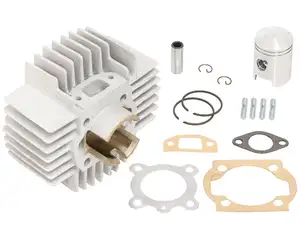

swiing® ingenious 38 mm cylinder kit (CH12 Vertex-Edition) Tuning camouflaged | Puch
Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø piston pin (B): 12 mm · Inlet window: 24 / 21 x 15 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 20 mm · Number of fixing points: 4 pcs · Decompressor: Yes · Hole spacing outlet: 42 mm · Camouflaged: Yes · Outlet type: straight · Hole spacing inlet: 38 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Alternative version of the Puch OEM number: 349.7.10.105.0
EUR 172.20
GPO 15 mm intake manifold | Puch ZA50
Manufacturer: GPO · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing inlet: 32 - 38 mm · Total height: 63 mm · Area of application: Tuning · Height flange center hole: 52.5 mm · Total length: 51.5 mm · Camouflaged: No
EUR 48.60
swiing® ingenious 44 mm cylinder kit CH12 camouflaged | Puch
Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 44 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 24 / 21 x 14 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Hole spacing inlet: 38 mm
EUR 147.60
swiing® ingenious 45 mm cylinder kit CH12 camouflaged | Puch
Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Inlet window: 23 / 21 x 14 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 25 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Number of fixing points: 4 pcs · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Hole spacing inlet: 38 mm
EUR 147.60

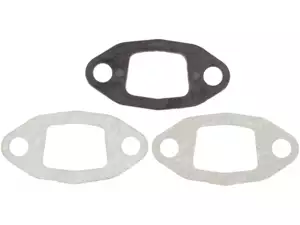

swiing® ingenious 4 mm intake gasket 15 mm intake manifold square | Puch E50, Z50, ZA50
