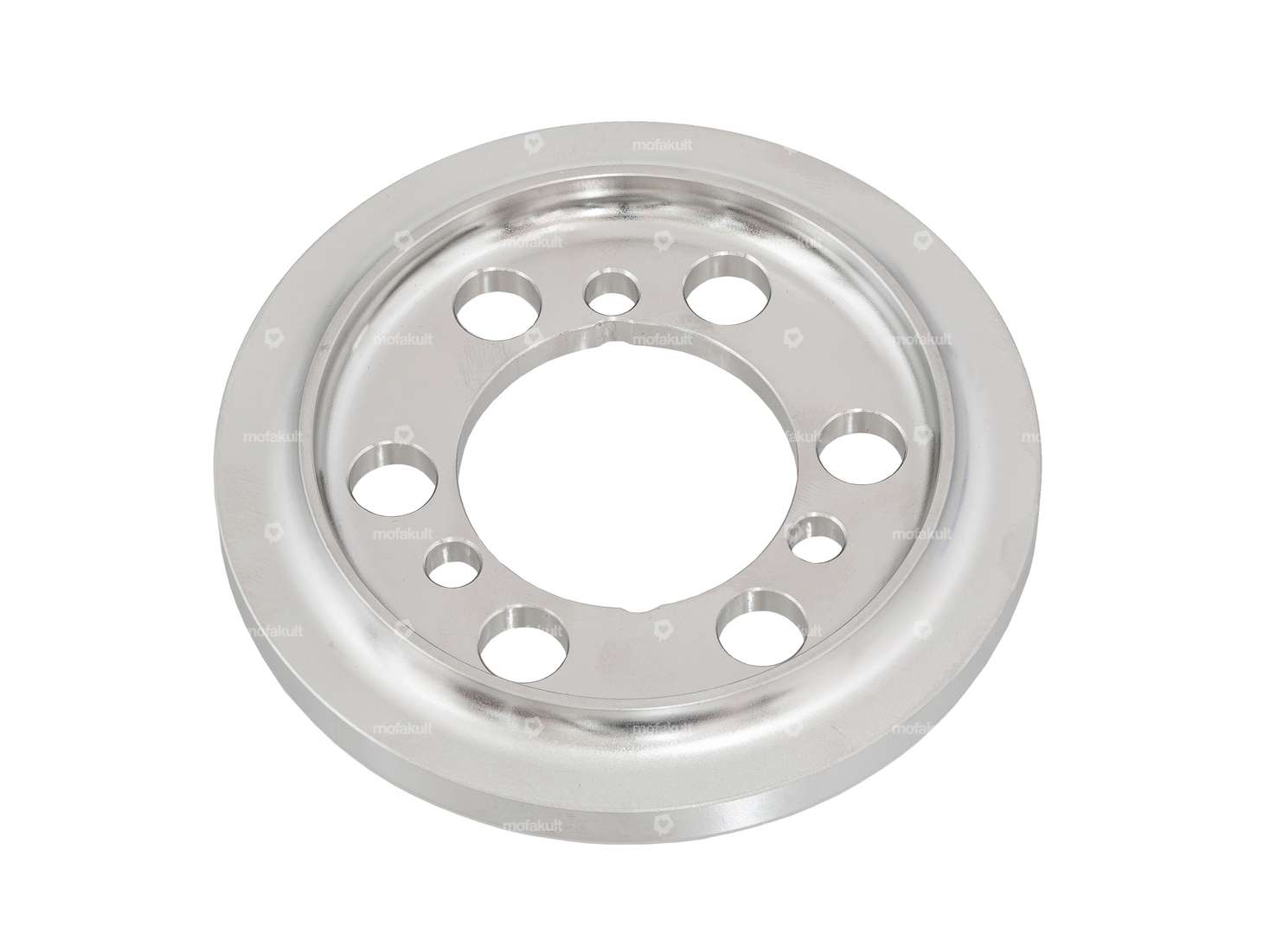

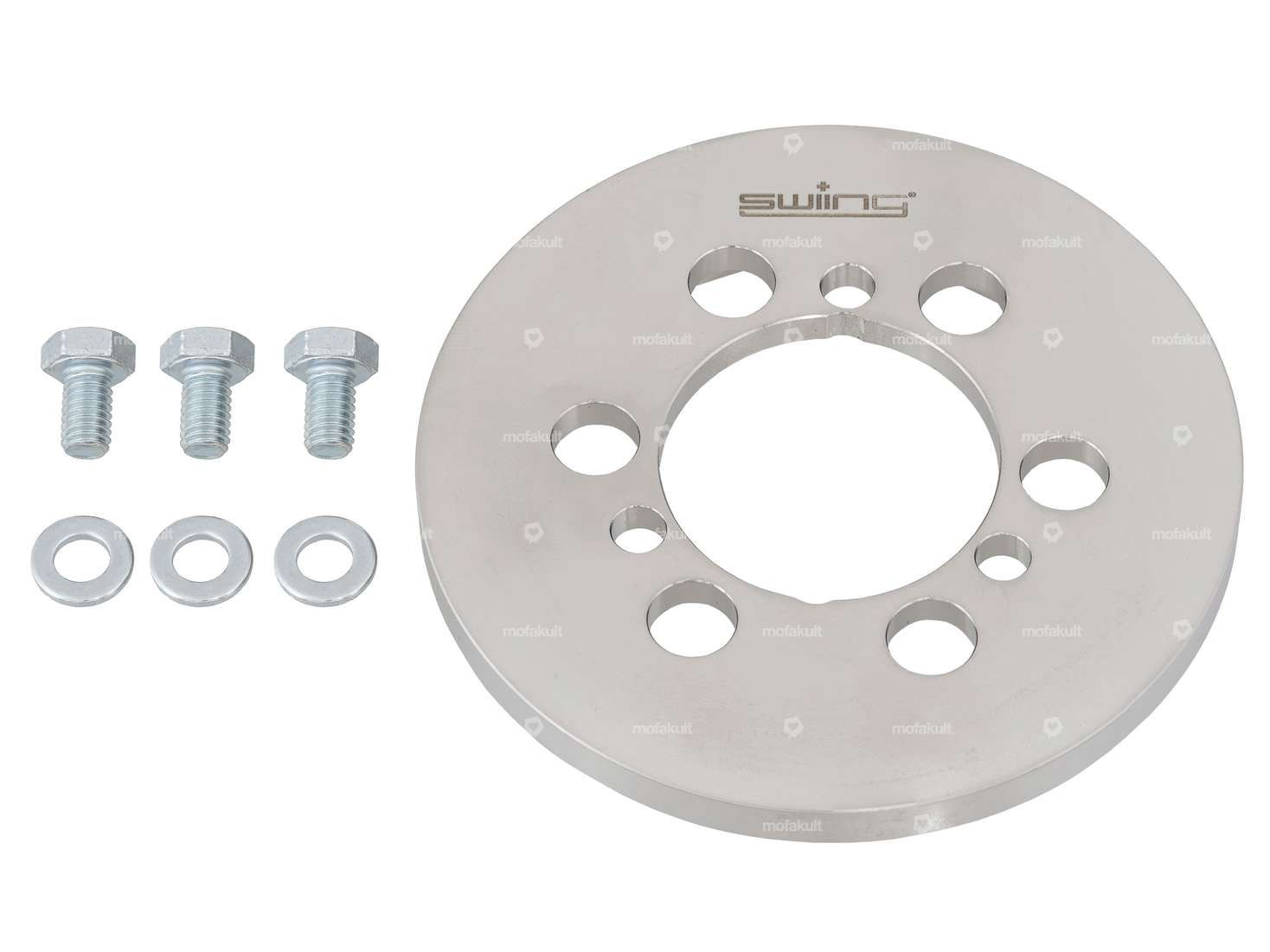

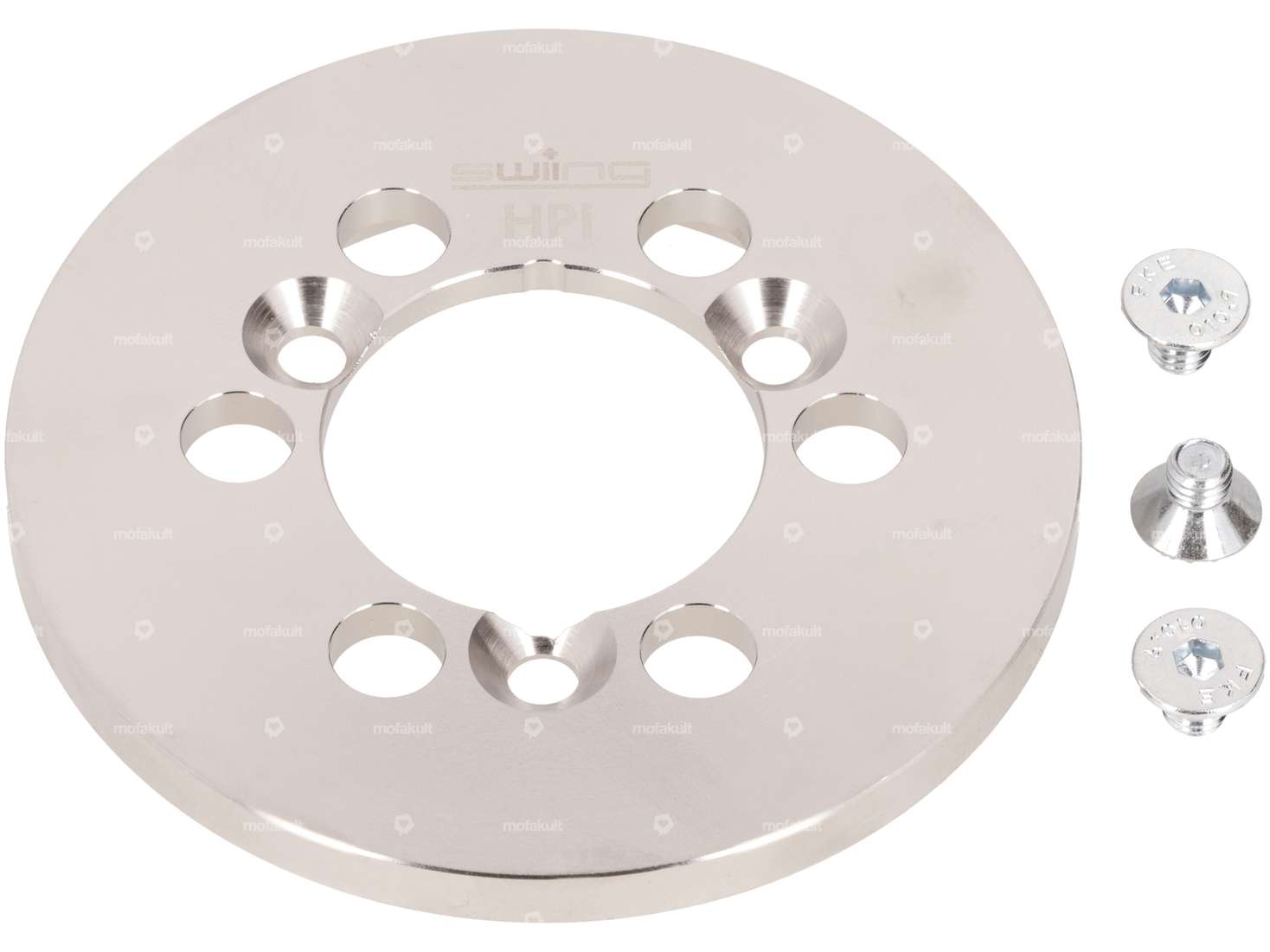

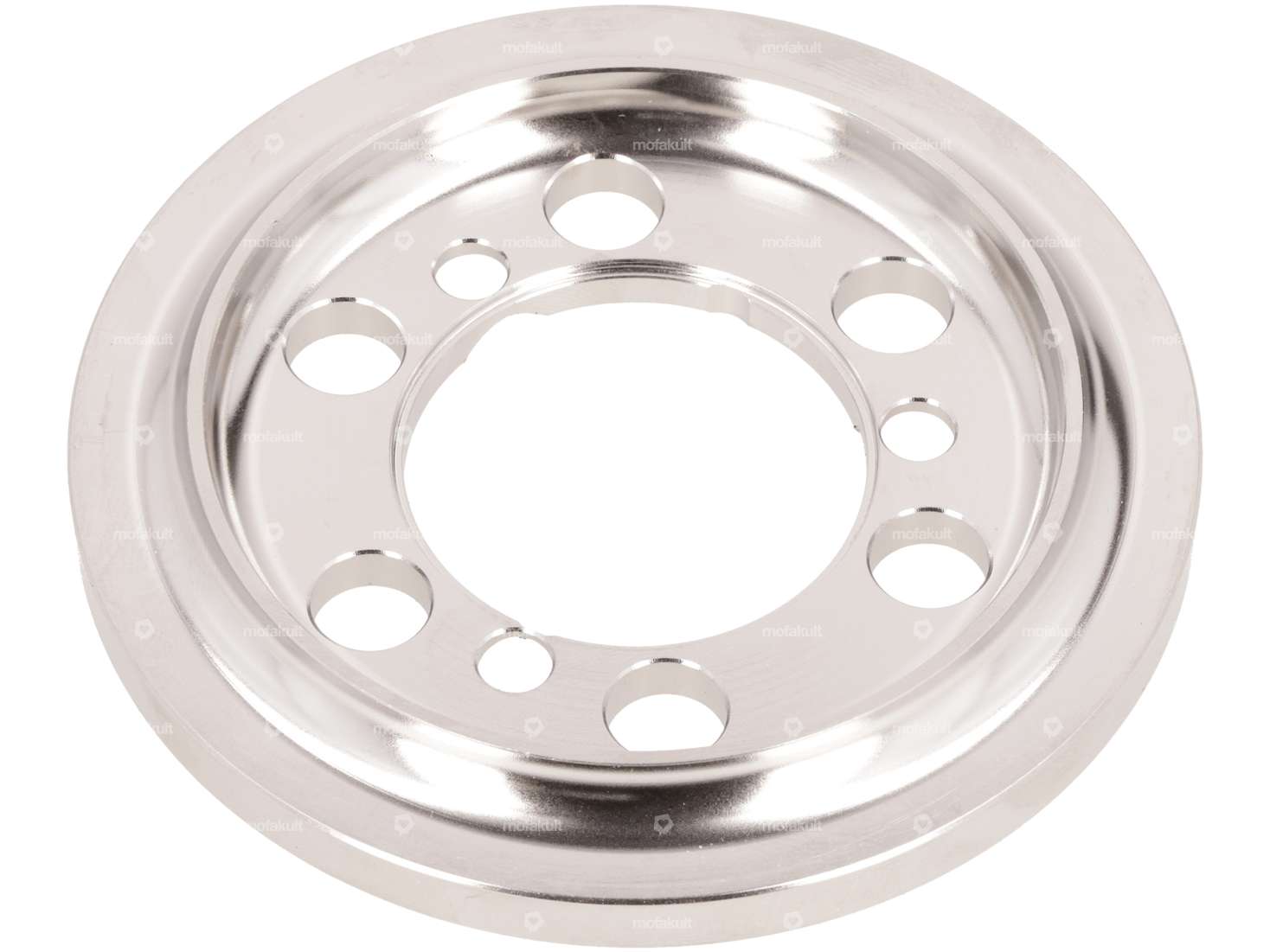

Additional stainless steel flywheel weight for all HPI ignition systems on your moped, scooter, and small motorcycle.
The plate fits perfectly on the rotor and is secured with three screws.
We recommend securing the screws with Loctite.
Weight of the plate without screws: 280 grams
; weight of the plate with screws: 300 grams.
The additional weight makes the engine run more smoothly at a standstill and makes it easier to start off without stalling the engine, which is often the case with a lighter flywheel.

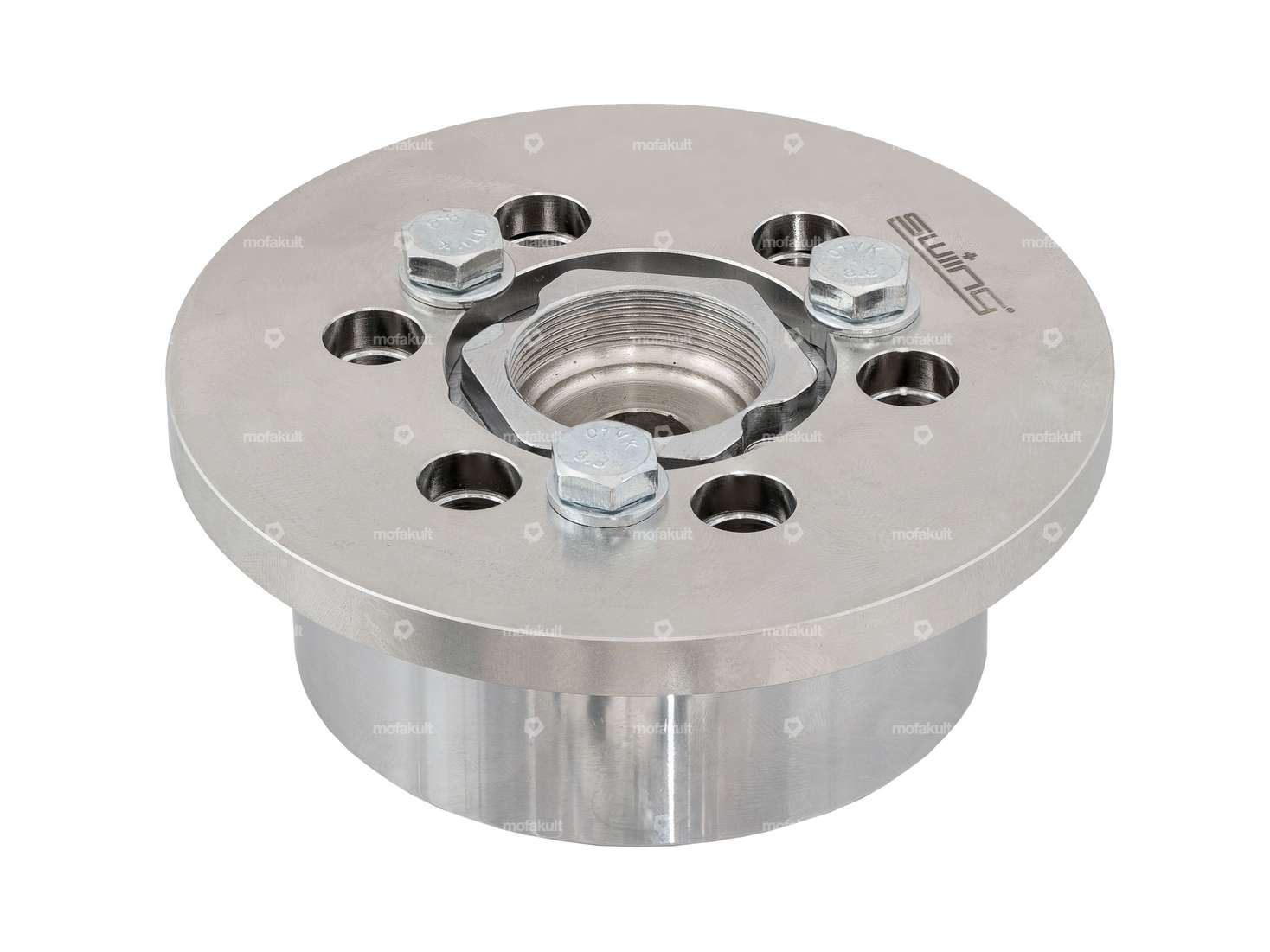

Figure 3 shows the plate in its installed state.
A sophisticated product meeting the highest standards of the swiing® quality brand.
| Manufacturer | swiing® ingenious parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Performance, Racing, High End, Tuning |
| Ø inside | 39 mm |
| Ø outside | 95 mm |
| Ø bolt circle | 55 mm, 50 mm |
| Weight | 300 g |
| Thickness | 12.5 mm |
| Number of fixing points | 7 pcs |
| Ø mounting hole | 10 mm, 5.5 mm |
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta various Beta 521 (engine) |
| Zündapp Belmondo | |
| Zündapp | 434 Chassis (mountaineer) 278 Motor |
