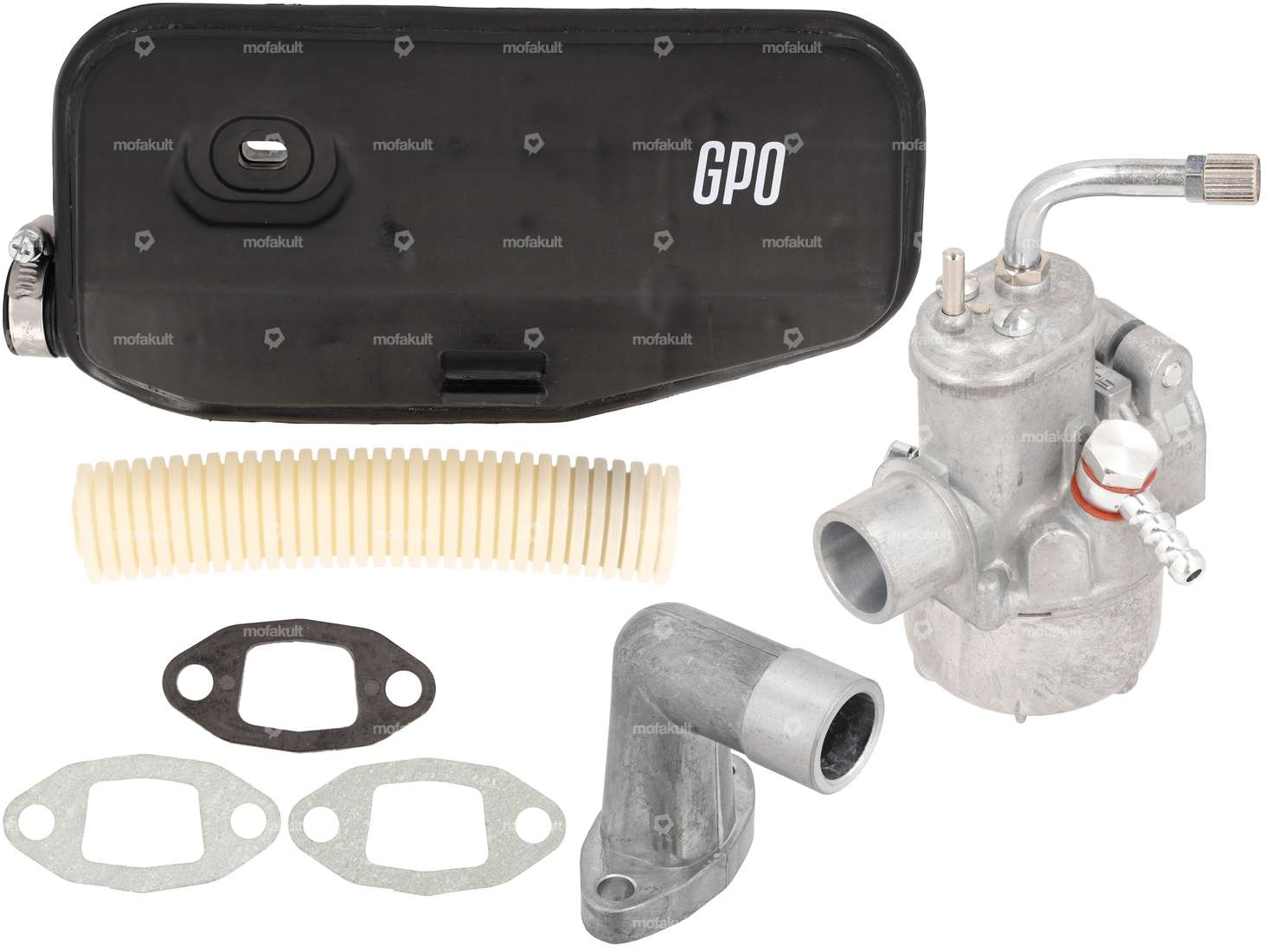

15 mm carburetor kit suitable for your Puch Maxi S / N, Supermaxi LG1, or LG2 moped with a 1-speed E50 engine.
The tuning carburetor is engraved with the original number “1 / 12 / 197.” The tuning intake manifold bears the recessed marking “12.” As a result, once installed, the tuning kit is visually indistinguishable from the original.
All components have been carefully matched to one another, ensuring a harmonious overall package. The complete air filter box is delivered pre-assembled. As is standard from the factory, it has already been neatly sealed by hand with a silicone sealant along the seam to minimize the risk of air leaks and facilitate carburetor adjustment. The GPO “Racing” air filter screen is used as the filter medium.
With this complete set, you’ll save money compared to buying the individual items.
Watch the video below to learn how to properly tune your carburetor.
You can find the right jets in the accessories section.
A sophisticated product from the swiing® quality brand, designed to meet the highest standards.
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete · Alternative version of the Puch OEM number: 349.9.15.300.0, 349.6.15.400.0, 349.7.15.700.0, 349.4.15.500.0, 349.4.15.000.0, 349.4.15.300.0, 349.1.15.100.0, 349.8.15.400.0, 349.2.15.800.0
Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 46 mm · Area of application: Tuning · Puch OEM number: 349.2.15.330.1, 349.2.15.130.1

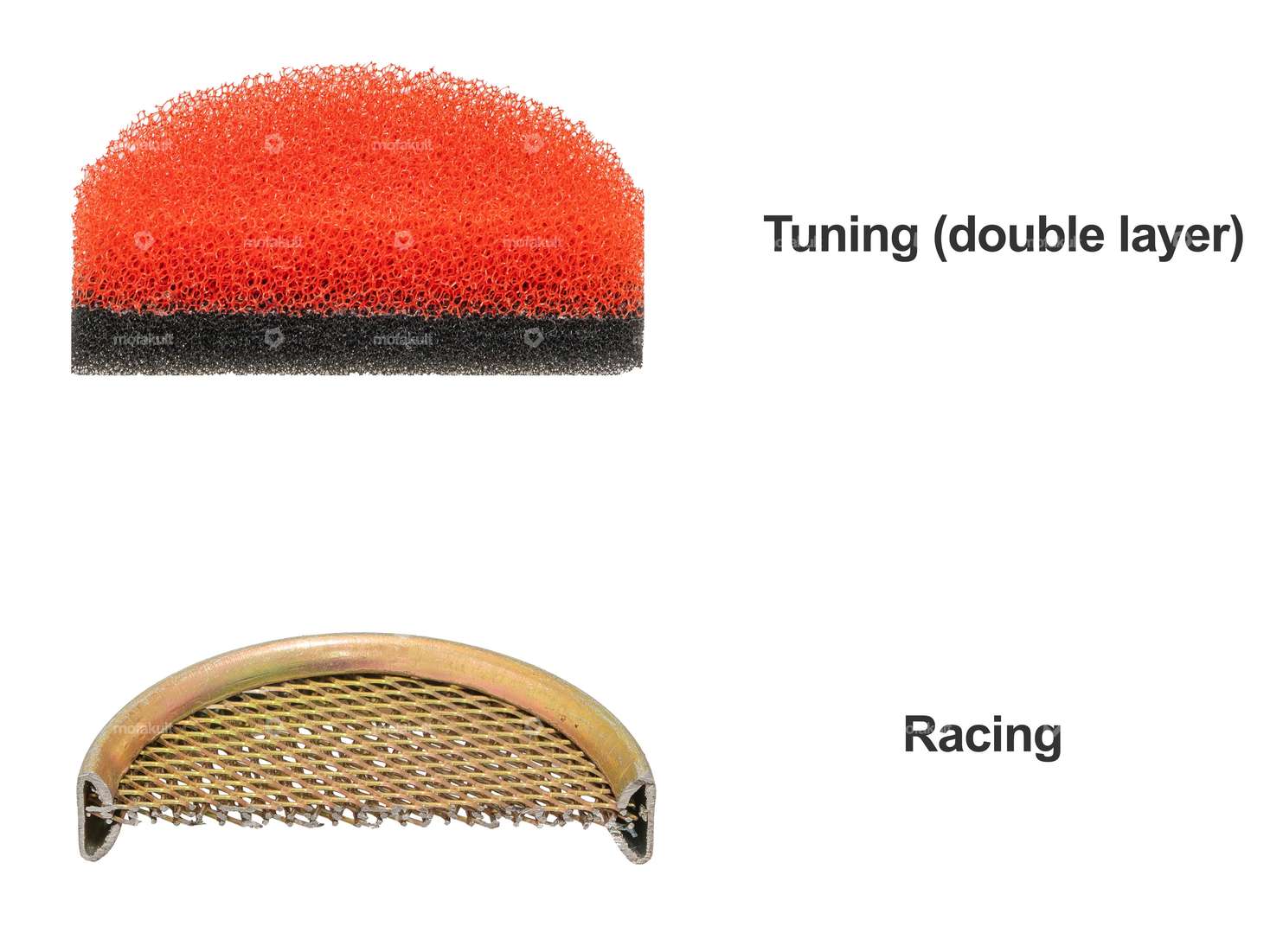

Manufacturer: GPO · Camouflaged: Yes · Color: black · Filter type: Racing screen · Ø Internal connection: 20 mm · Area of application: Tuning, Racing
Manufacturer: swiing® ingenious parts · Material: Oiled paper, Phenolic resin (colloquially known as Bakelite) · Thickness: 4 mm · Hole spacing inlet: 38 mm · Ø screw holder: 6.2 mm · Nominal diameter: 15 mm · Ø inside: 15 mm · Place of use: Admission
| Puch | E50 |
