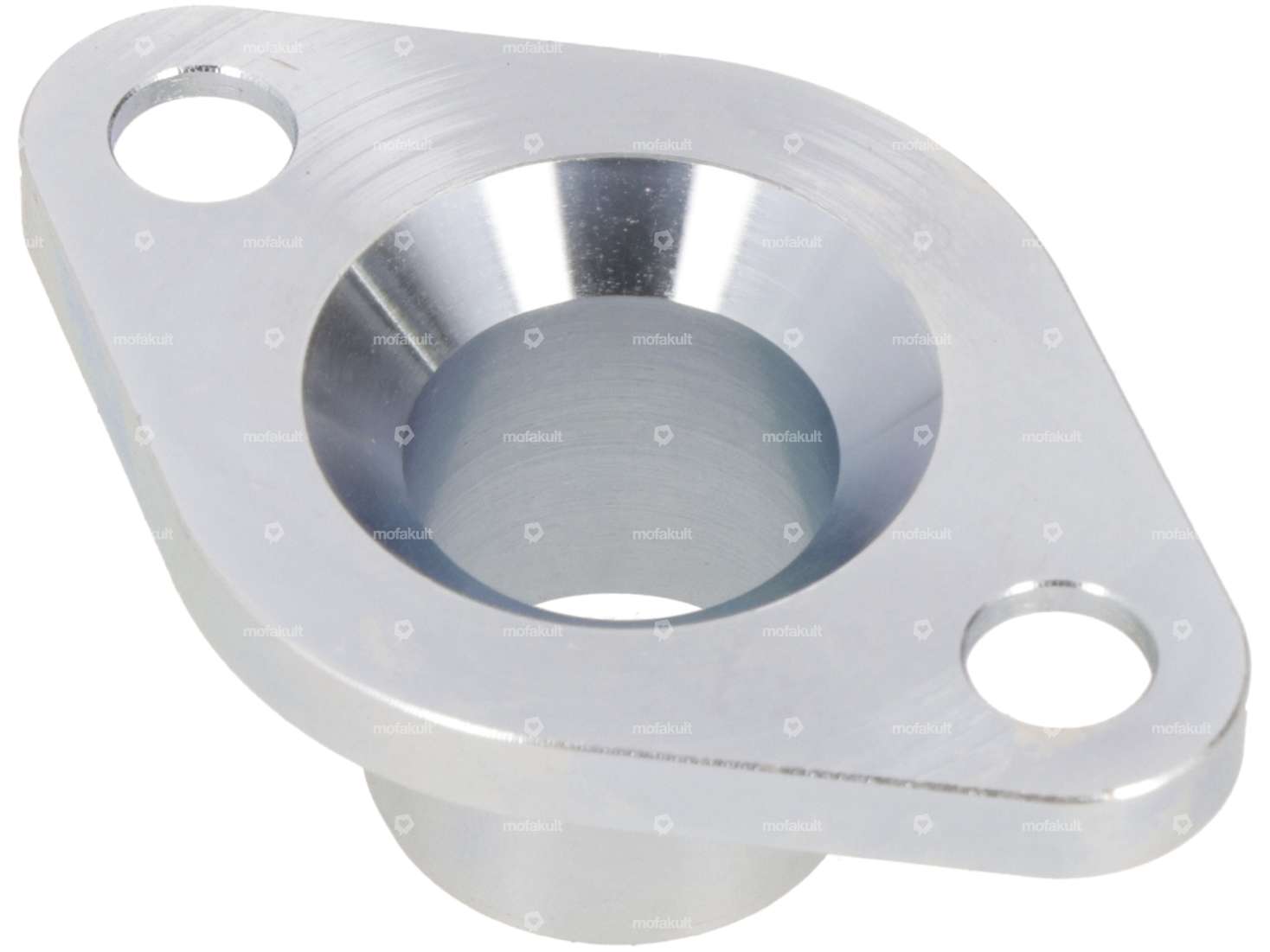

CNC machined exhaust adapter made of galvanized steel, suitable for the Athena cylinder on your moped / moped with Sachs 504, 505 or 508 engine.

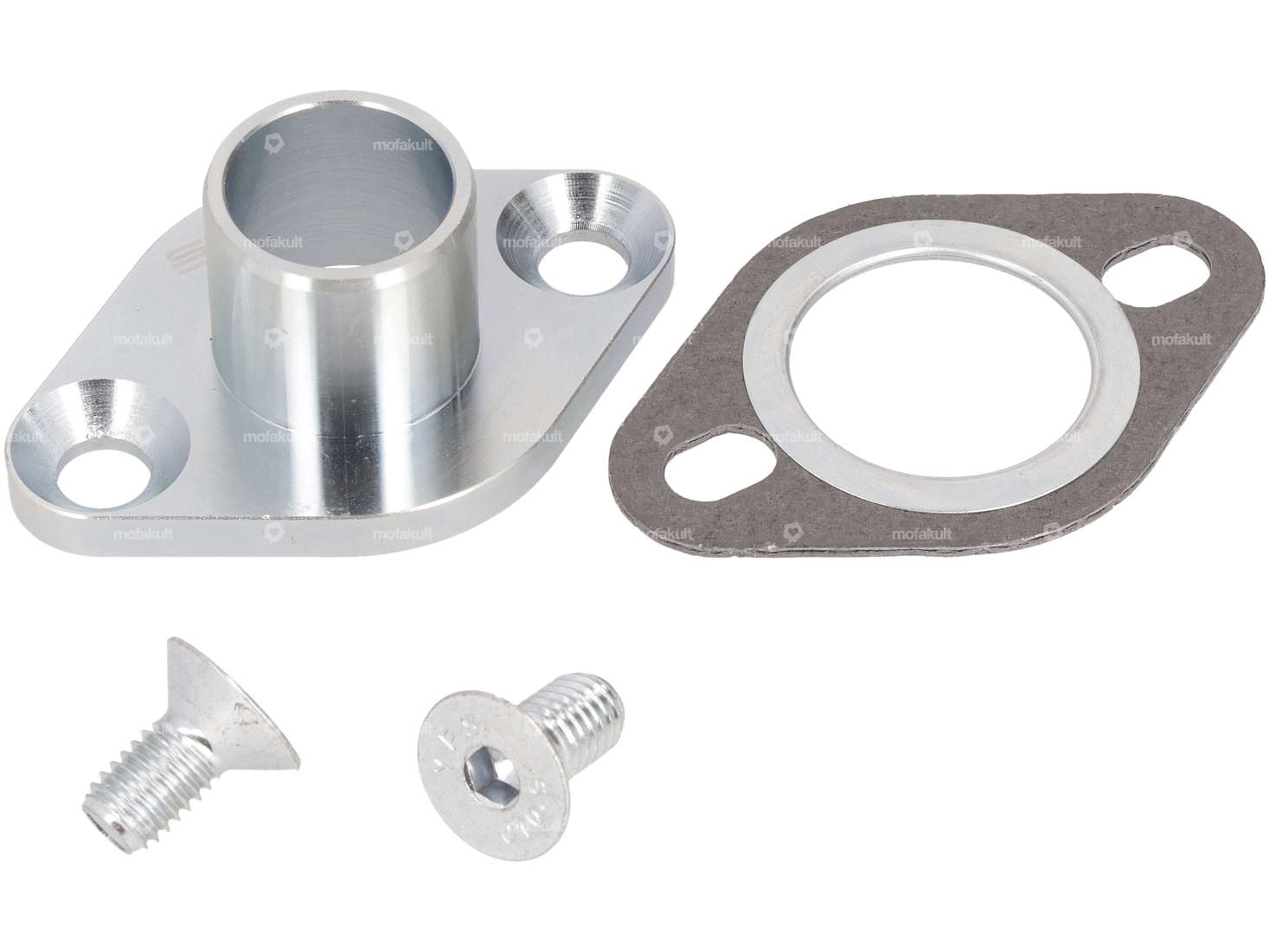

As is well known, the Athena exhaust flange included in the cylinder set can only be fitted with laborious adjustments due to incorrect holes and a missing seal. The swiing® exhaust adapter is supplied with a gasket and the matching countersunk screws and solves this problem without any adjustment work.
| Manufacturer | swiing® ingenious parts |
| Total length | 67 mm |
| Width | 43 mm |
| Height | 25.5 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø mounting hole | 8.3 mm |
| Hole spacing | 50 mm |
| Ø inside | 20 mm |
| Ø outside | 24 mm |
| Sachs | 50/4 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
| Hercules |
Ratings
Accessories & related products
Athena 38 mm cylinder kit without mounting parts | Sachs 504, 505, 508, 535
Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28.3 mm · Inlet window: 23.6 x 12.8 / 16.5 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Hole pattern [mm]: 56/61 x 56 · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Camouflaged: No
EUR 344.50
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 31.5 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Hole pattern [mm]: 56 (61) x 56 · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Camouflaged: No
EUR 369.10
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508, 535
Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32.5 mm · Area of application: Tuning · Ø piston pin (B): 12 mm · Hole pattern [mm]: 56/60 x 56 · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5 · Camouflaged: No
EUR 369.10
Athena piston 45 mm #A | Sachs 504, 505
Manufacturer: Athena · Ø outside piston (A): 44.92 mm · Compression height (C): 28.2 mm · Total piston height (E): 45.2 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 45 mm · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 98 g
EUR 86.00

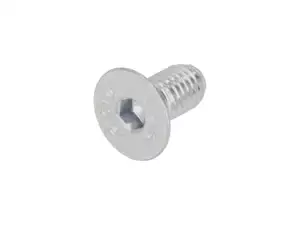

Screw M8x16 countersunk head hexagon socket, galvanized (10.9 strength)
