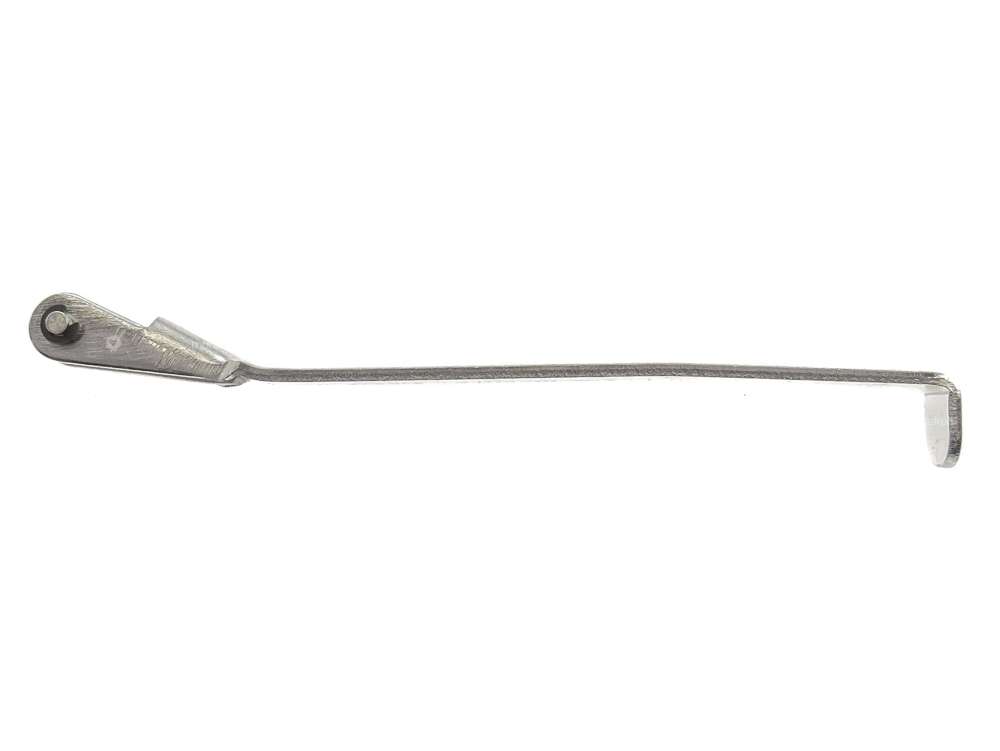

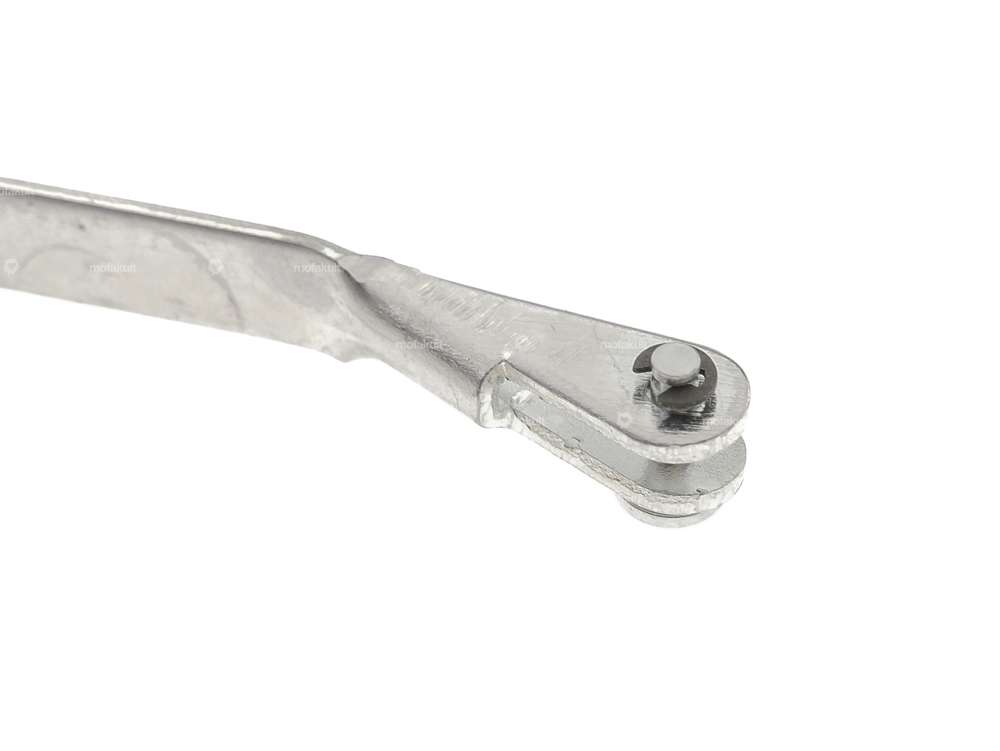

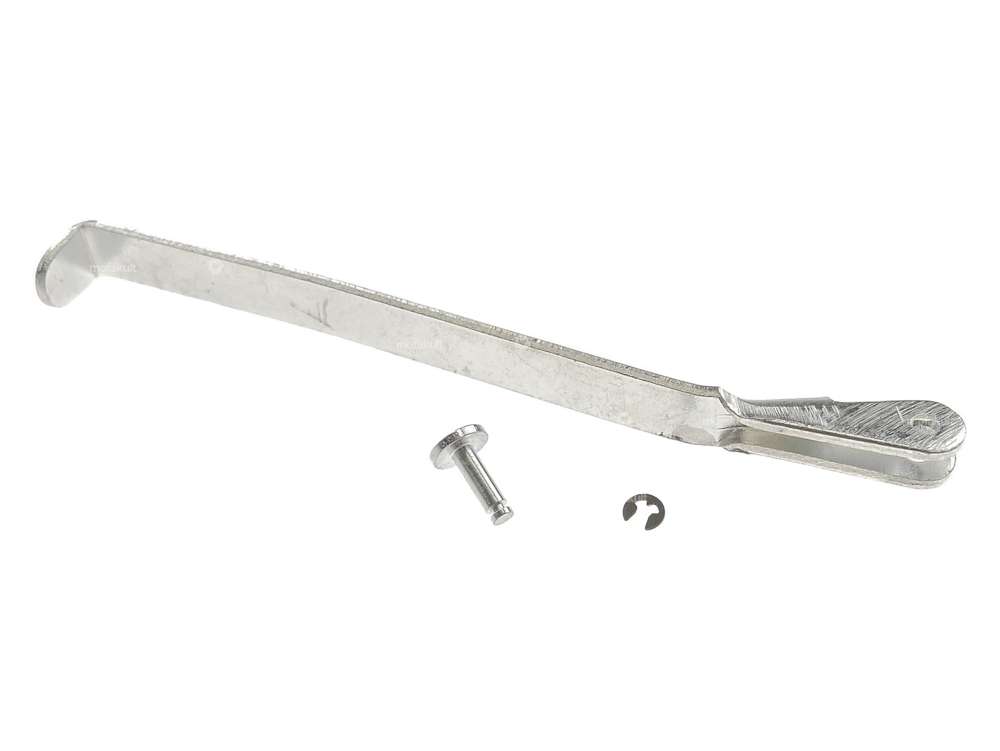

Start lever | Pony / Cilo Cross Beta 521 (A8091K)

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Temperature resistance (min.): -36 - 200 °C · Manufacturer: Motorex · Oil type: ATF Dexron 3 (DEXIII) · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Thread type: MF10x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Mounting type: screw in (thread) · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: below · Spare tube shape: straight · Reserve level: 65 mm

NGK B8ES spark plug long thread

Manufacturer: NGK · Candle designation: B8ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

SIS Tuning Exhaust | Pony / Cilo Beta 521

Manufacturer: Made in Portugal · Material: Steel · Surface: varnished · Ø outside: 60 mm · Total length: 780 mm · Color: Chrome · Color: black · Mounting type: Welded lug · Ø Silencer: 60 mm · Flame tube attachment: Flange · Number of fixing points: 2 pcs · Ø Flame tube outside: 22 mm · Exhaust type: Cigar · Ø Internal connection: 19 mm

Dell'Orto 12/10 SHA carburetor hand choke

Nominal diameter: 10 mm · Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Area of application: Original · Area of application: Tuning · Carburetor type: SHA (Piaggio) · Choke control: Hand choke · Width: 60 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Ø without reducing sleeve: 19 mm · Nozzle size: 37 · Ø Inside entrance: 10 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Height: 111 mm · Ø Internal connection: 16 mm · Total length: 55 mm · Mixed oil connection: No · Vacuum connection: No · Mounting type: Plug connection clamped

Exhaust gasket exhaust | Beta 521 & 512 (A8099)

Manufacturer: Pony · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 21.8 mm · Place of use: Exhaust · Reinforced: Yes · Thickness: 1.7 mm · Ø screw holder: 6 mm · Area of application: Standard

Dell'Orto 12/10 SHA carburetor (replacement) | Pony Beta 521

Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Mounting type: Plug connection clamped · Ø Internal connection: 16 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Total length: 45 mm · Ø Output inside: 12 mm · Width: 60 mm · Ø Air filter connection: 50.6 mm · Height: 96 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Area of application: Tuning · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 37

Fuel tap M10x1 (to screw in) bottom outgoing | Cilo / Pony Cross 521 (P8068)

Manufacturer: Made in Italy · Thread type: MF10x1 (fine pitch thread) · Spare tube shape: straight · Mounting type: screw in (thread) · Ø fuel hose connection: 6 mm · Reserve level: 65 mm

Start lever | Pony GTX Beta 521 (A8091L)

Manufacturer: Pony · Material: Steel · Color: silver · Surface: chrome-plated · Total length: 130 mm
