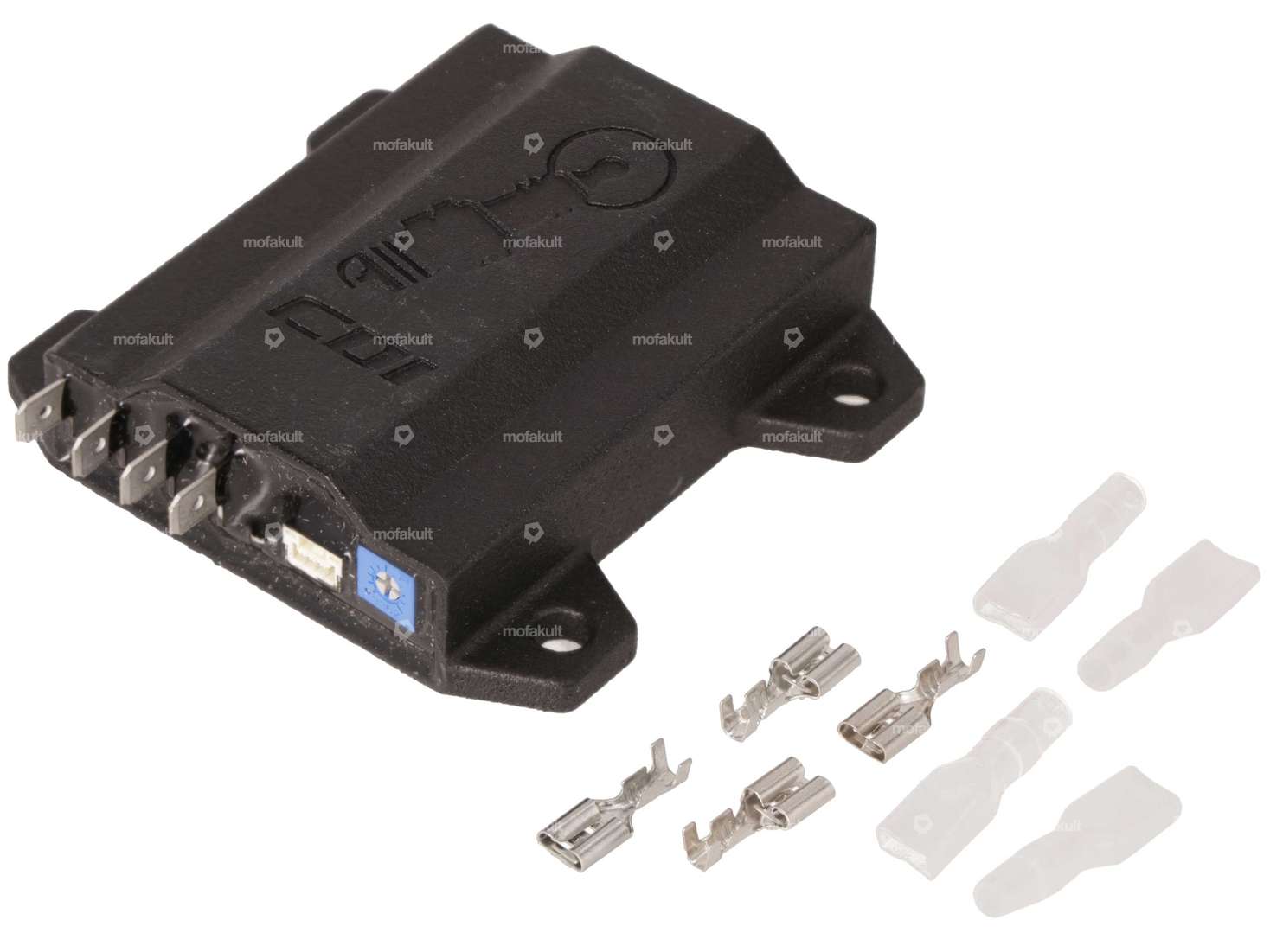

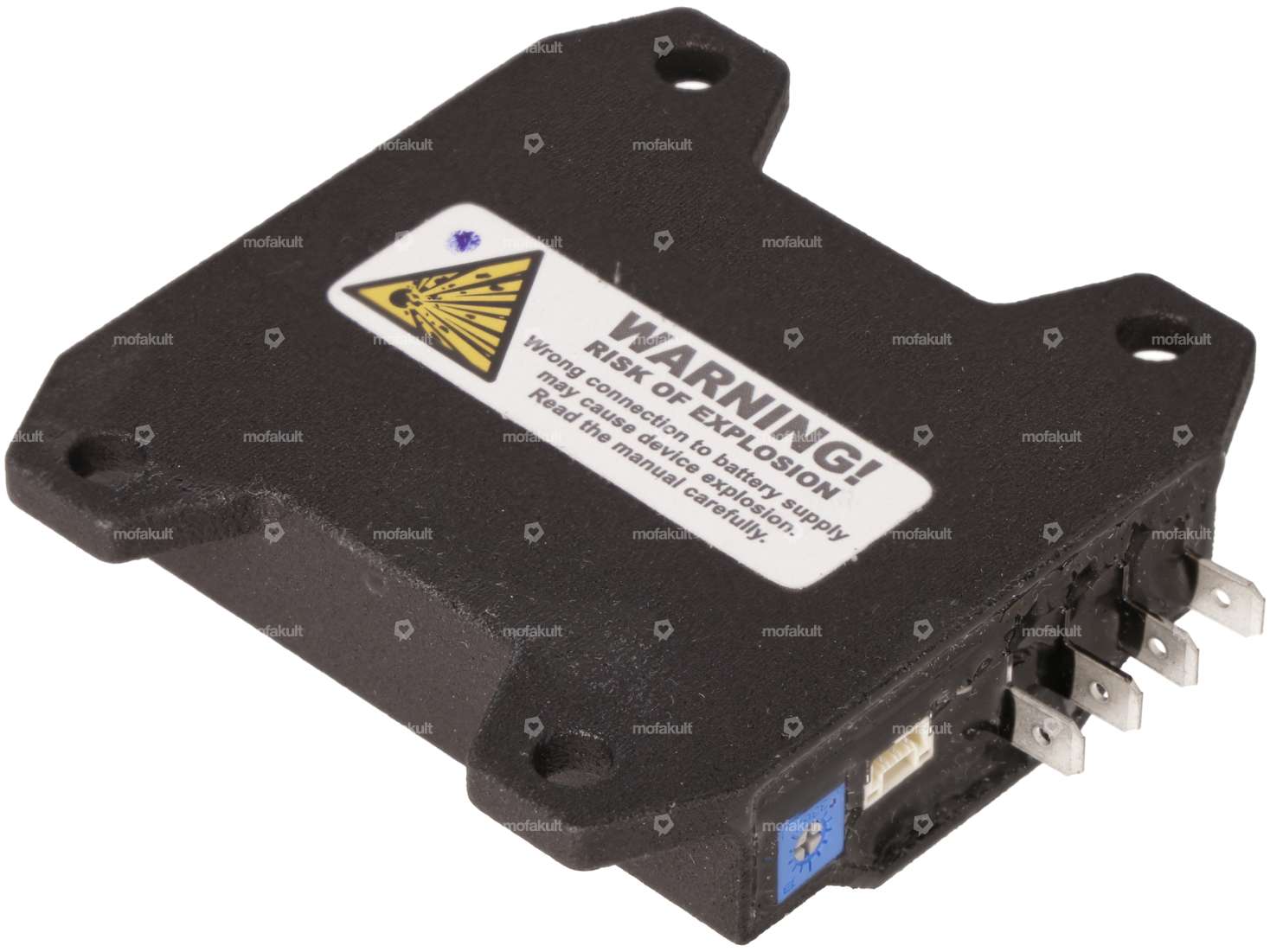

Special, electronic capacitor for the circuit breaker ignition of your moped, moped or small motorcycle.

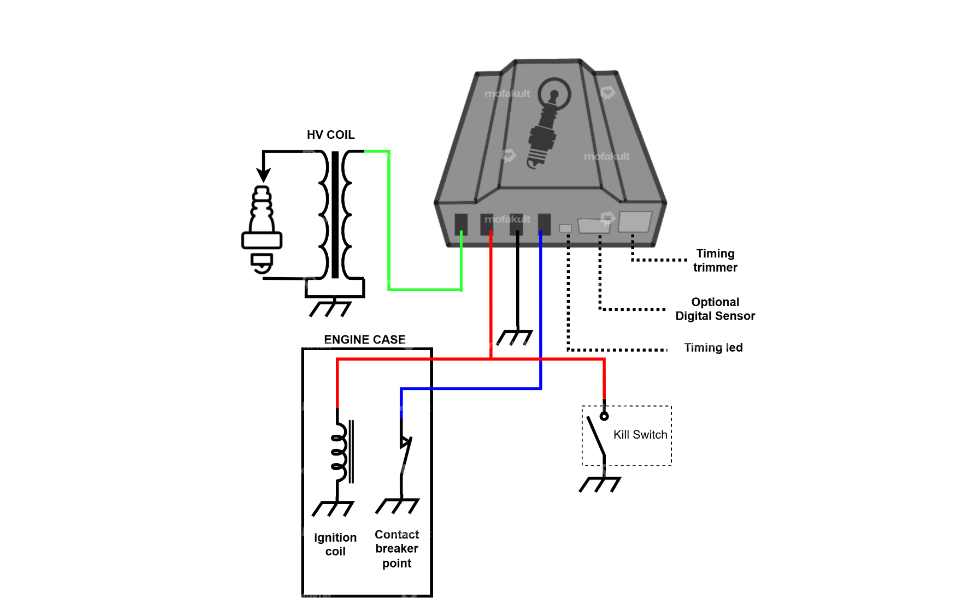

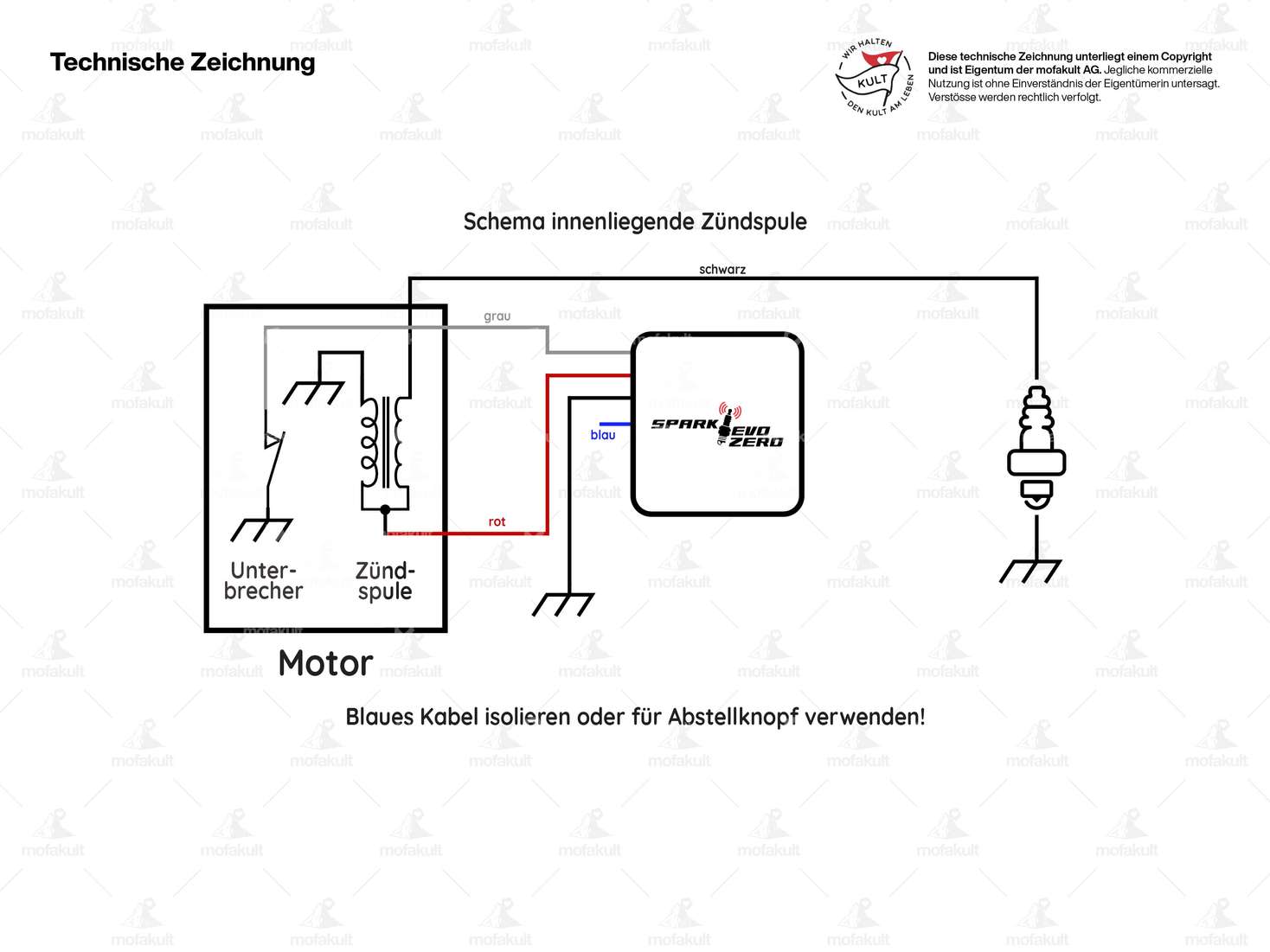

The CDI box only uses the breaker as a clock generator and replaces the capacitor at the same time. Problems with worn breaker contacts and poor-quality capacitors are therefore a thing of the past. In addition, your pulse coil can build up higher voltages, which has a positive effect on the upper speed limit of heavily tuned motors.
| Manufacturer | SparkEVO |
| Mounting type | Nuts & bolts |
| Connection type | Plug connection |
| Ø mounting hole | 5 mm |
| Puch |
| Sachs |
| Piaggio |
