For: Sachs · Hercules

35884

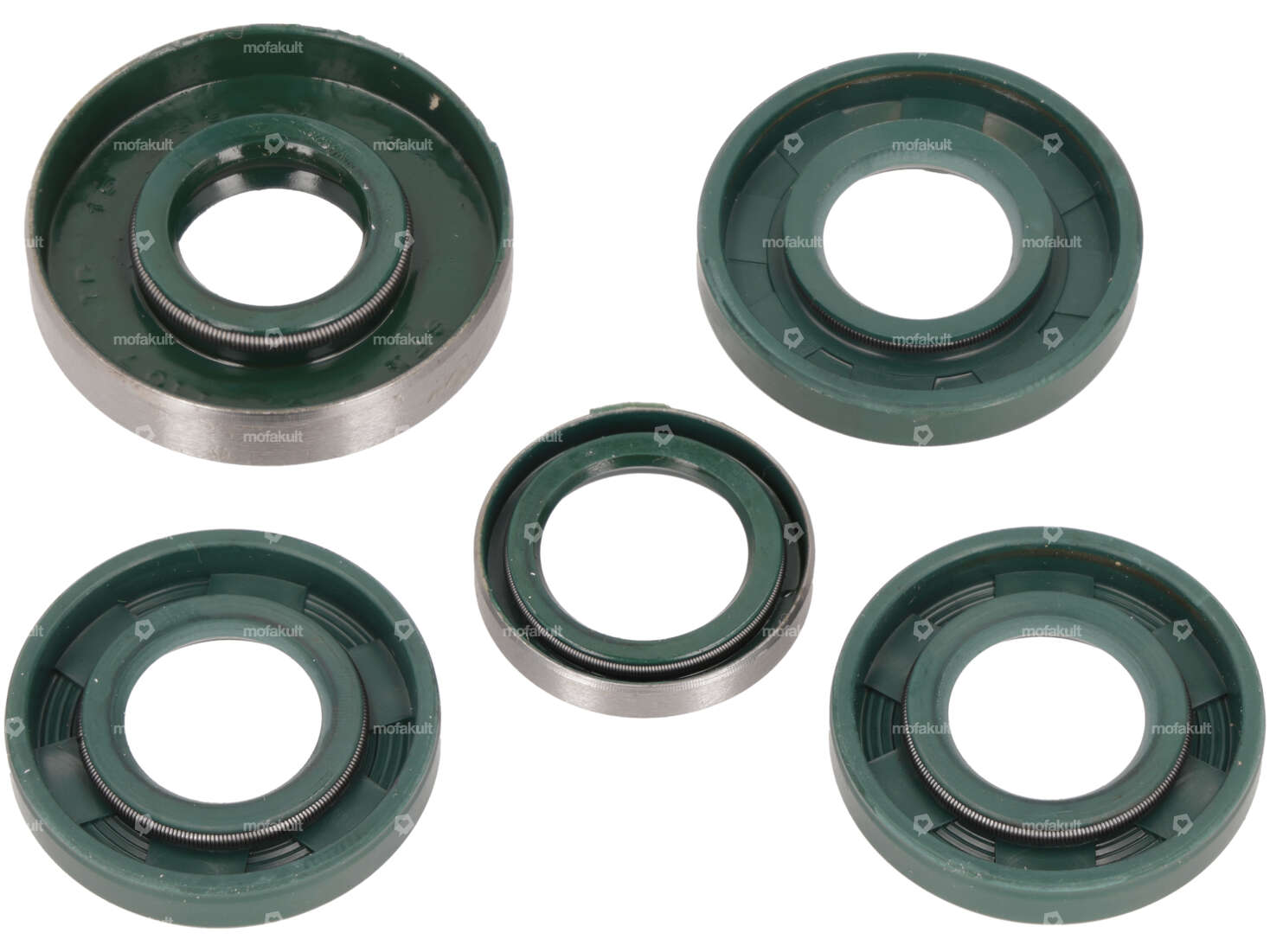

Shaft seal set | Sachs 504, 505

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 28.20

Incl. 25.5% VAT.

Description

Shaft seal set for your moped / moped with Sachs 504 engine such as Pony City, or Hercules Prima M, 2, 3, 4, 5, SX, Optima and P1 with Sachs 505 engine.

The following radial shaft seals (colloquially known as oil seals) are included in the set:

1x shaft seal 15/35/7 NBR
1x shaft seal 15/32/5.5 NBR
2x oil seal 15/30/5.5 NBR
1x oil seal 15/24/4 B NBR

You can find more spare parts for your Sachs engine in the accessories section.

Shaft seal typeA - With rubberized outer part / one sealing lip., B - With sheet metal outer casing / one sealing lip.
Place of useMotor housing
MaterialNBR
Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT) , 2A (HG)

Hercules

Great - 2 , 3 , 4 , 5 , Optima

Accessories & related products

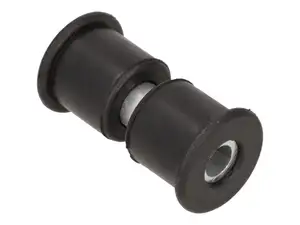

Silent block set | Sachs 503, 504, 505, 535 (A4286 & A4271)

For: Sachs · Hercules

15767

Silent block set | Sachs 503, 504, 505, 535 (A4286 & A4271)

Ø inside: 8.4 mm · Ø outside: 22.4 mm · Material: Rubber · Material: Steel · Total length: 48 mm · Ø Bundle: 27.5 mm · Pony OEM number: A4271 · Pony OEM number: A4286 · Sachs OEM no.: 0247 144 100 · Sachs OEM no.: 0251 121 000

EUR 14.70

NTN 6202 Ball bearing 15/35/11 | Sachs 503 ADV/AB, 504, 535 (A1165)
undefined

For: Sachs · Hercules

20289

NTN 6202 Ball bearing 15/35/11 | Sachs 503 ADV/AB, 504, 535 (A1165)

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Manufacturer: NTN · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Pony OEM number: A1165 · Sachs OEM no.: 0232 120 003

EUR 8.50

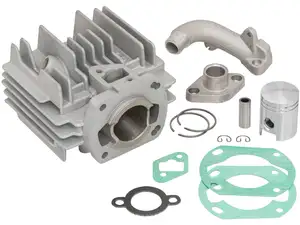

Athena 38 mm cylinder kit (incl. mounting parts) | Sachs 504, 505, 508, 535
