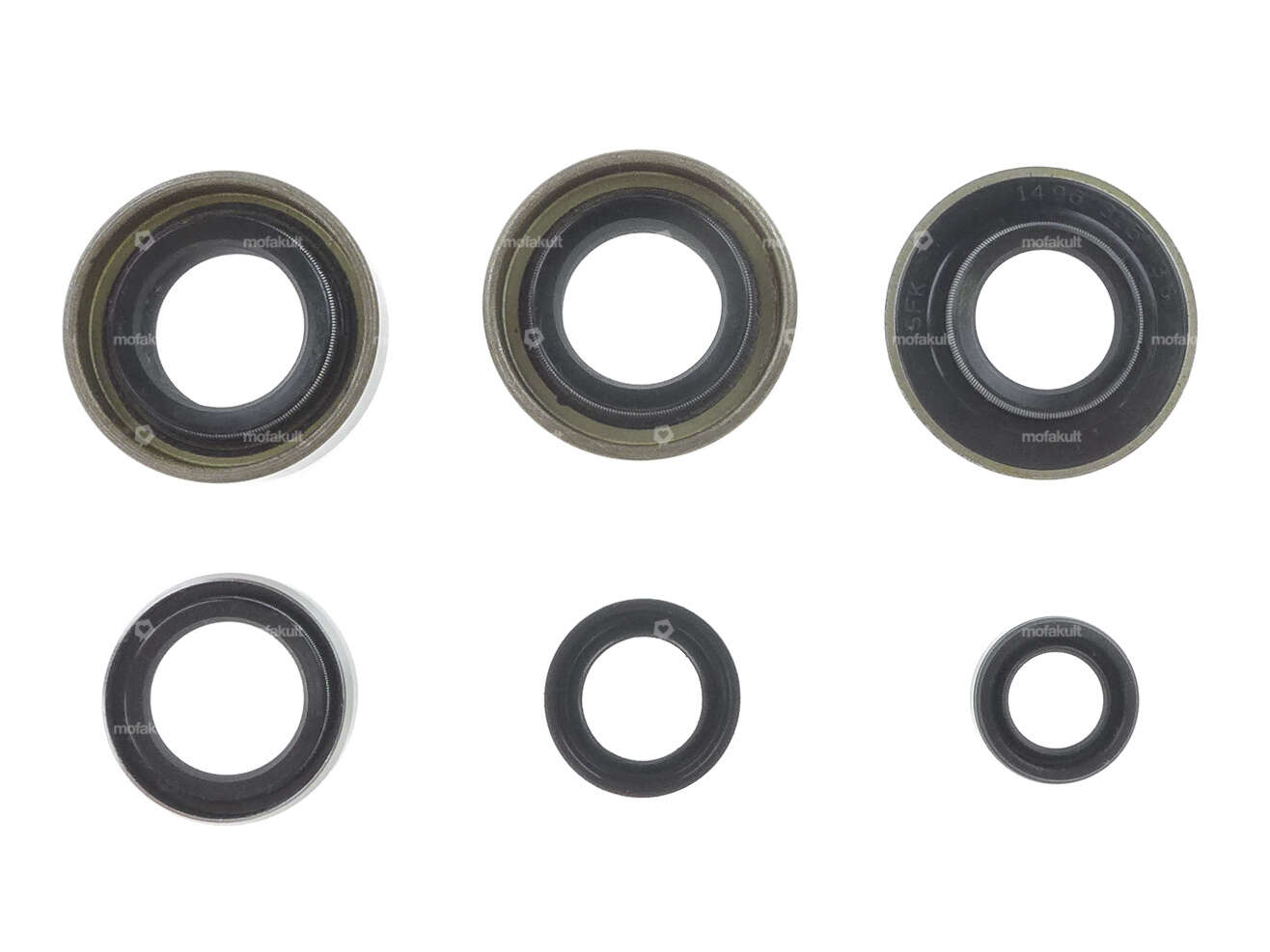

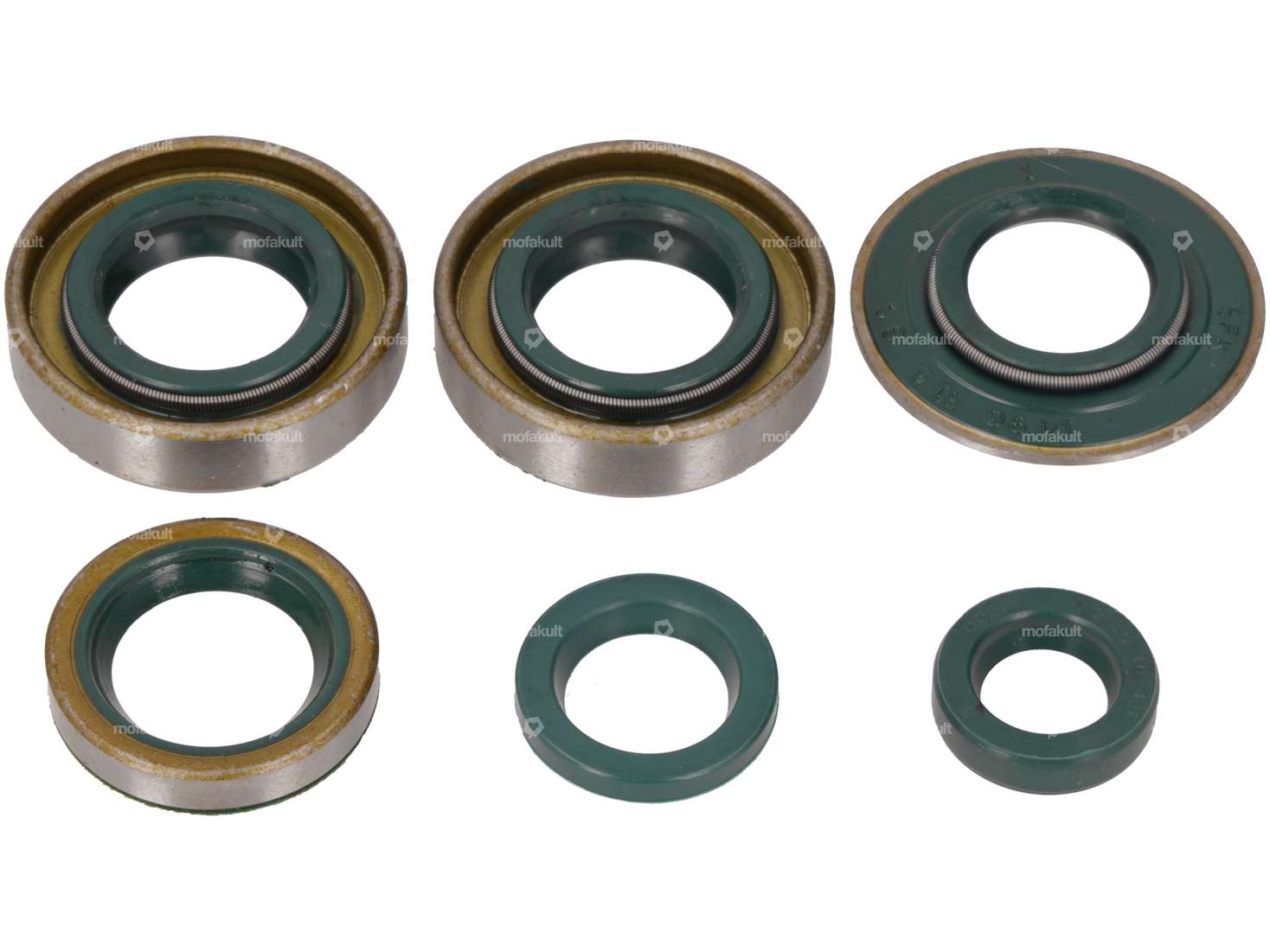

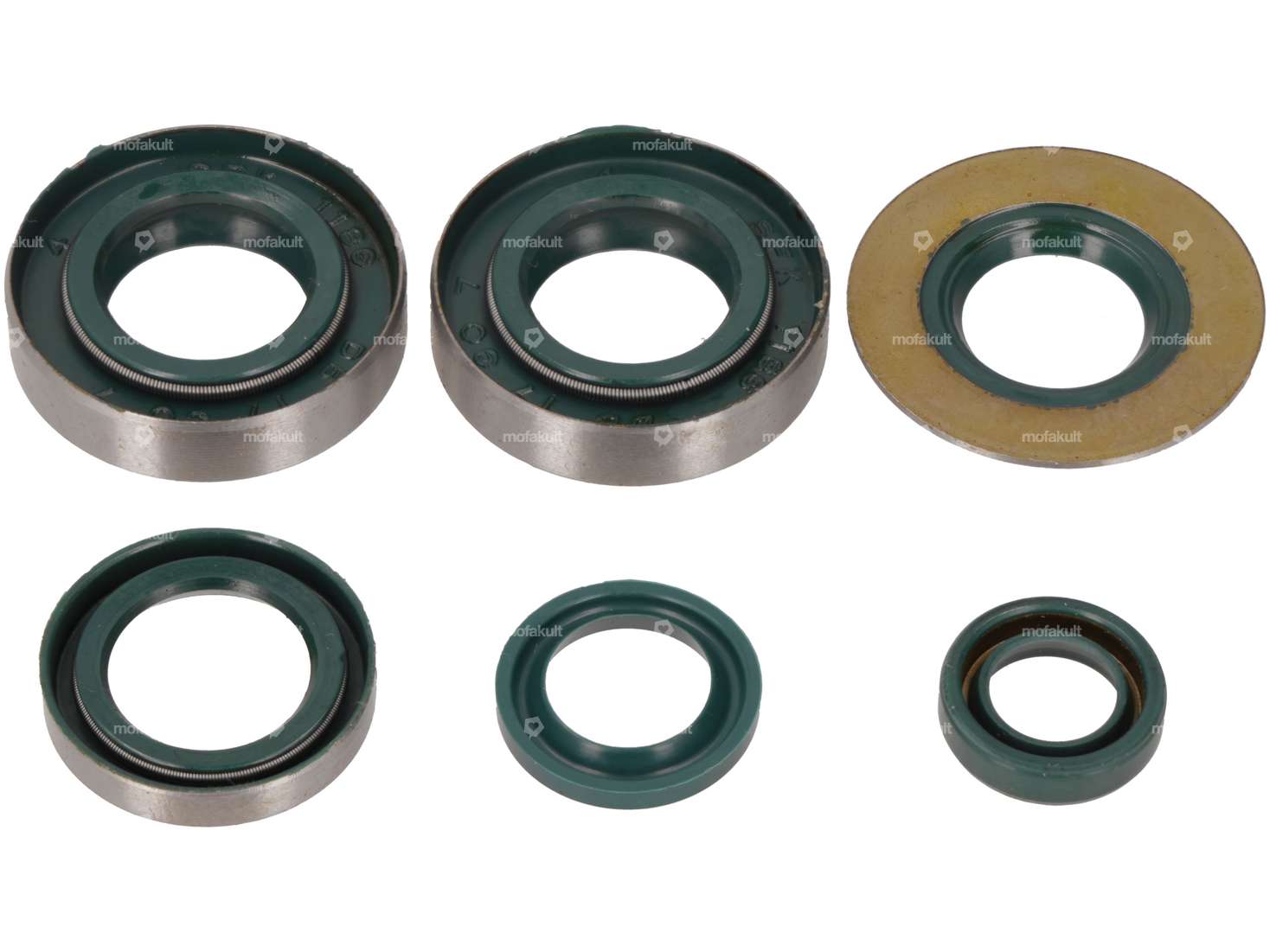

Complete shaft seal set suitable for mopeds / mopeds with Sachs 3, 4-speed engines that have a kick starter installed.
The set consists of the following six shaft seals (colloquially known as oil seals):
- 17/30/7 DUO - 2 pieces
- 14.96/31.5/3.5 - 1 piece
- 15/24/4 - 1 piece
- 13.8/19/2.5 - 1 piece
- 10/16/4.5 - 1 piece
Single sealing rings and alternative sets can be found in the accessories section.
| Ø outside | 16 mm, 19 mm, 24 mm, 30 mm, 31.5 mm |
| Ø inside | 10 mm, 13.8 mm, 14.96 mm, 15 mm, 17 mm |
| Width | 2.5 mm, 3.5 mm, 4 mm, 4.5 mm, 7 mm |
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Ratings
