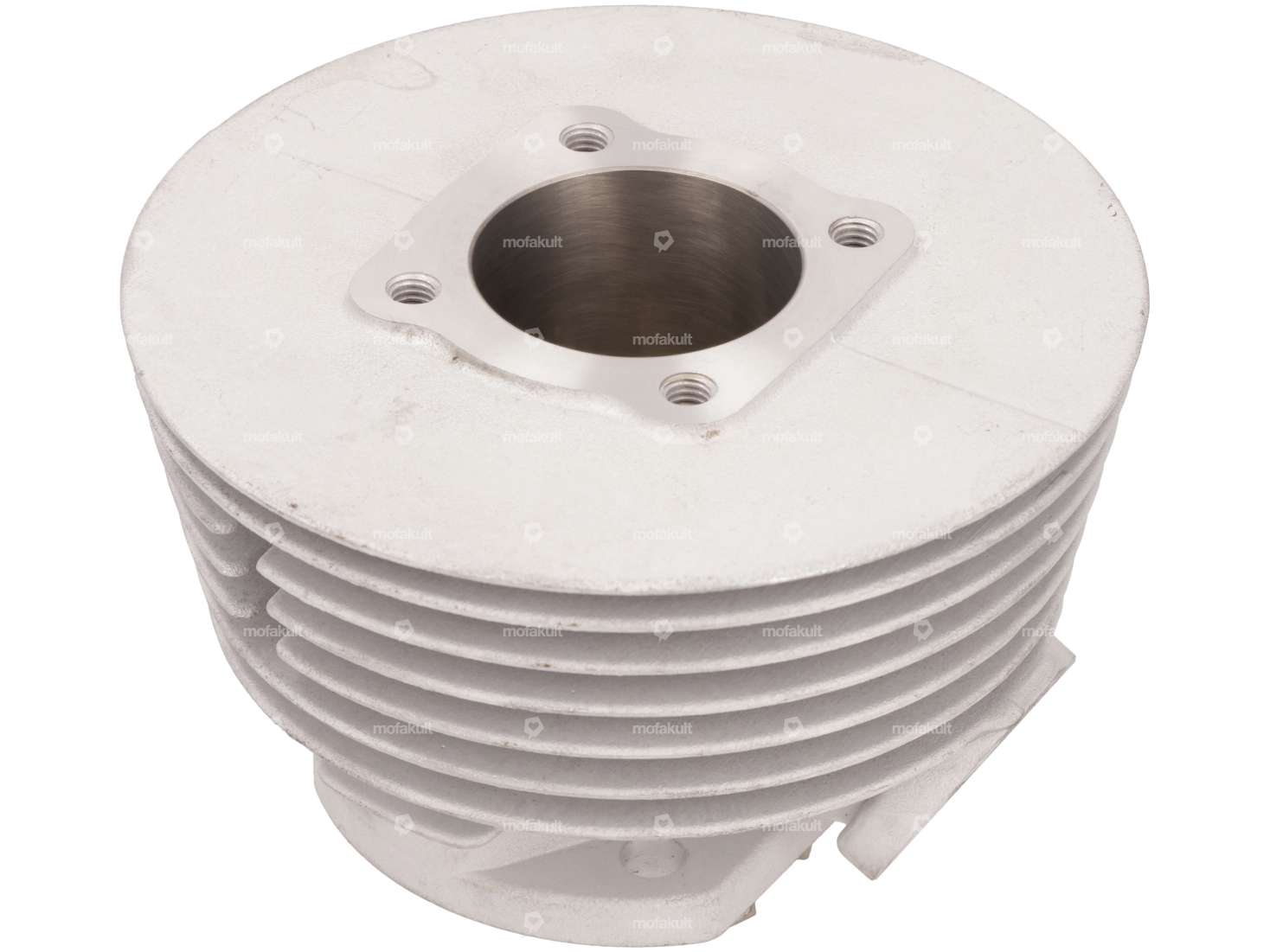

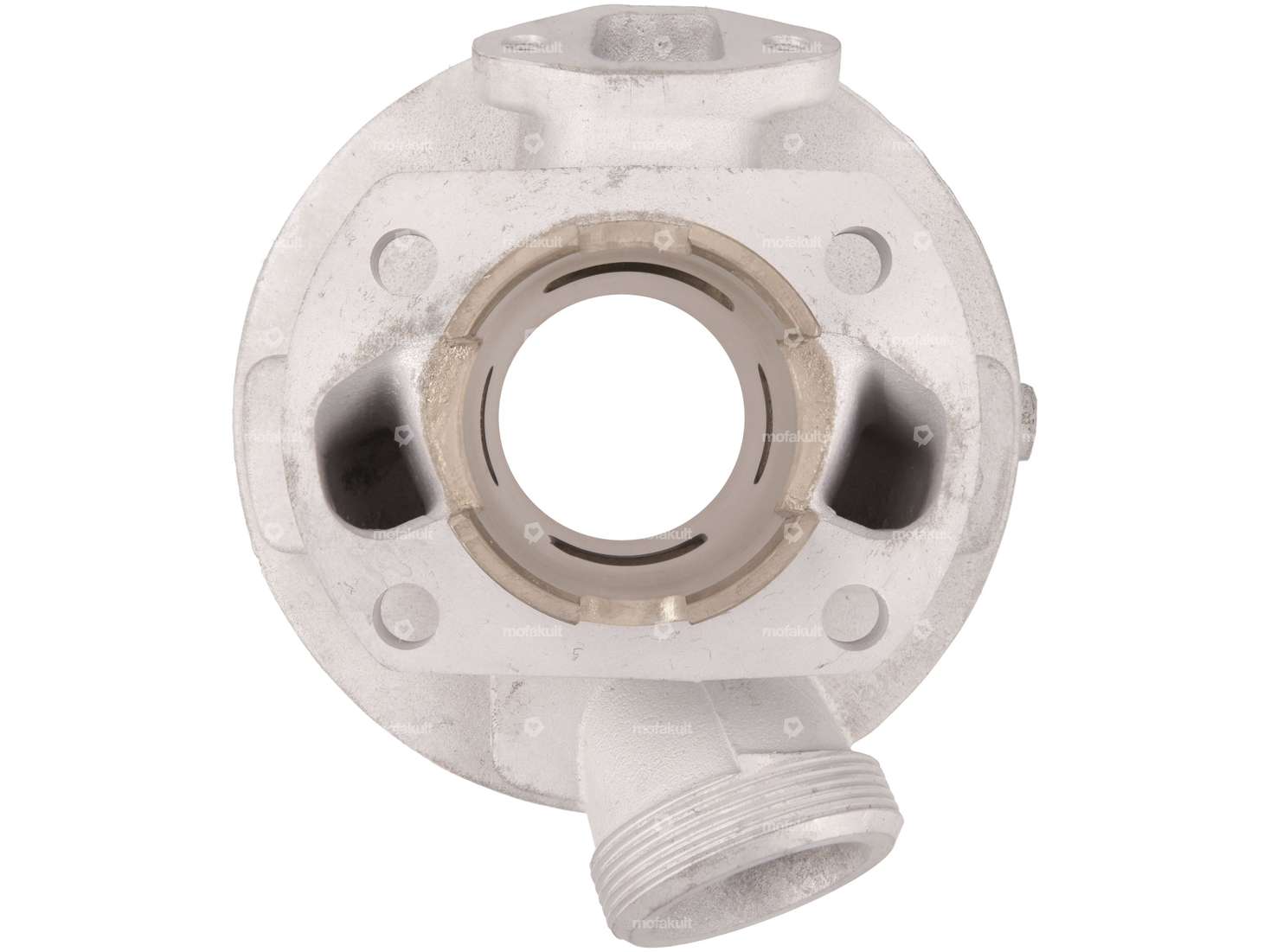

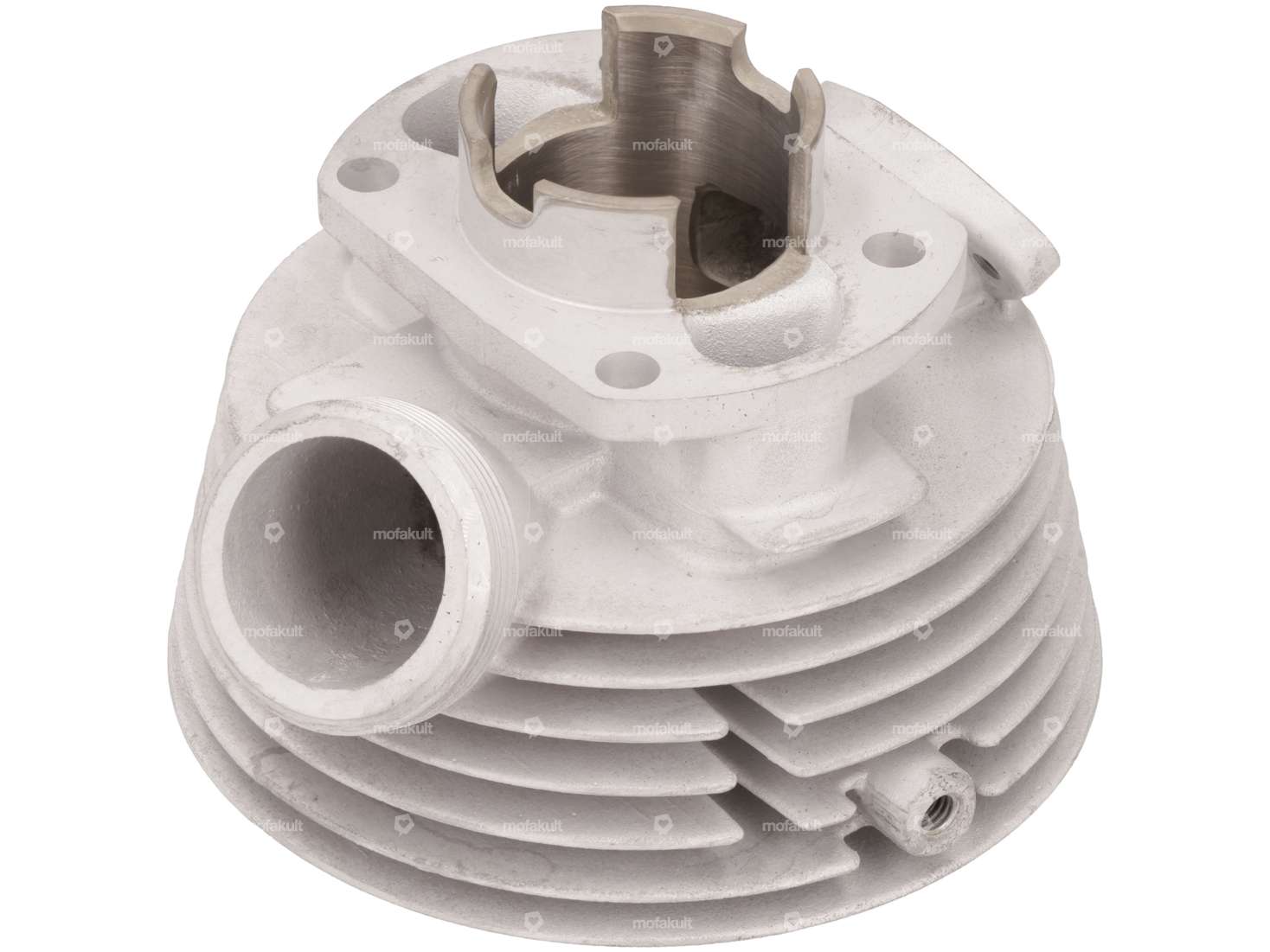

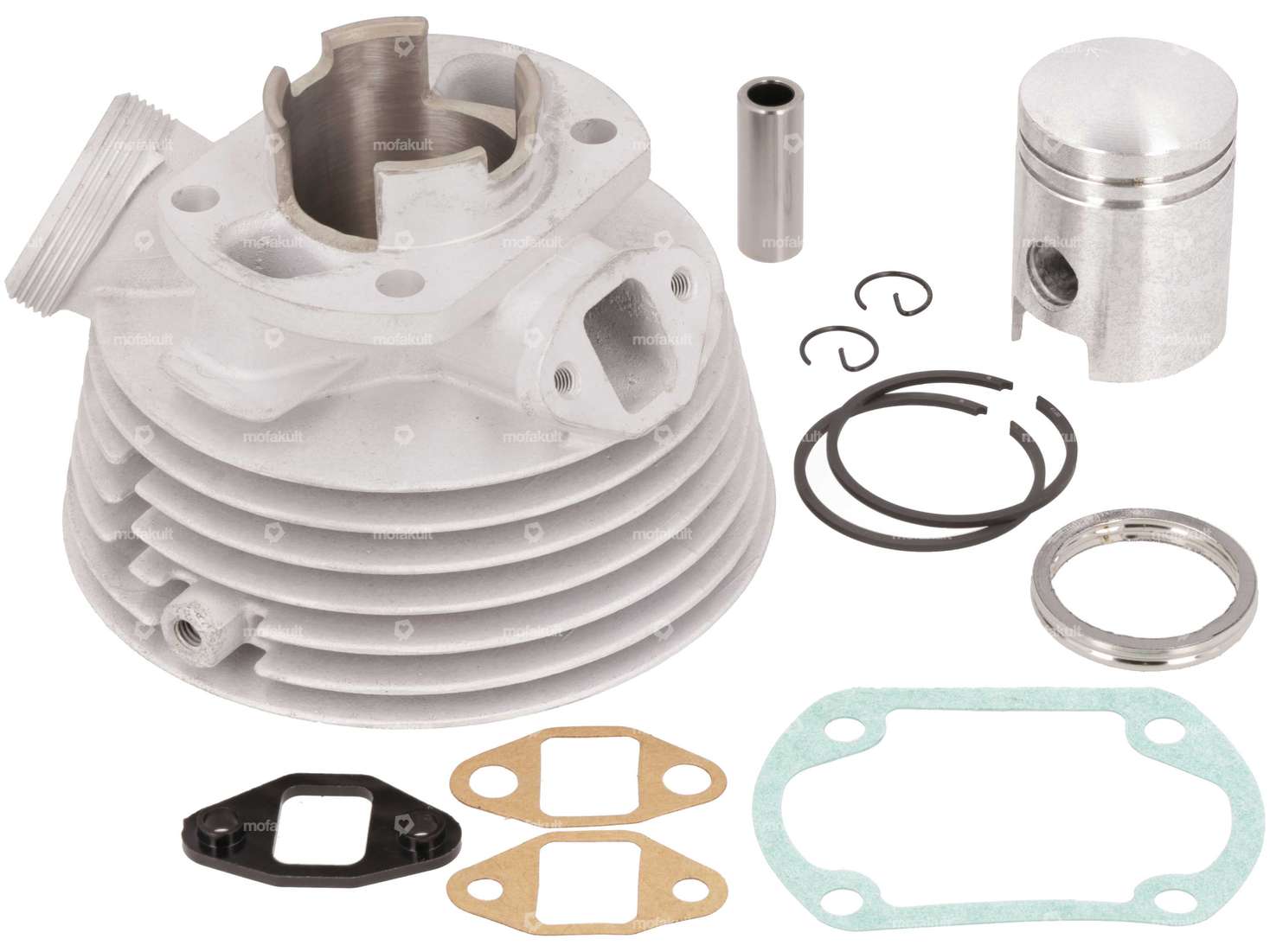

Complete 38 mm aluminum tuning cylinder with nickel-silicon carbide coating (colloquially known as Nikasil) and square inlet for small engine wheels with Sachs 3- and 4-speed engines with foot shift. These engines were used on Hercules 50/3 LS 50/4 LKH, Gritzner etc.
The workmanship of the 50 cc racing cylinder is fine, but could do with some rework on some edges.
In order to be able to mount this racing kit on a Sachs 50/2 engine, various adjustments must be made.
Note: An exhaust nut with M40x1.5 mm thread is required.
The cylinder kit requires a 17 mm Bing SSB carburetor. You can find this and other add-on parts in the accessories section.
| Nominal diameter | 38 mm |
| Manufacturer | Power1 |
| Material | Aluminum |
| Camouflaged | No |
| Surface | Nickel silicon carbide (colloquially known as Nikasil) |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Hole spacing inlet | 31 mm |
| Ø cylinder neck | 44 mm |
| Inlet window | 16 x 18 |
| Thread inlet | M5x0.8 (standard thread) |
| Hole pattern [mm] | 51 x 40 / 37 x 37 |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Number of fixing points | 4 pcs |
| Area of application | Tuning |
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Ratings
Accessories & related products
Carburetor 17 mm Bing SSB 1/17/69 reproduction
Nominal diameter: 17 mm · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Width: 86 mm · Choke control: without choke · Height: 99 mm · Nozzle thread: MF7x0.75 (fine pitch thread) · Ø fuel hose connection: 6.2 mm · Mounting type: Stud bolts & nuts · Nozzle size: 76 · Total length: 116 mm · Hole spacing inlet: 31 mm · Mixed oil connection: No · Vacuum connection: Yes · Camouflaged: No · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Area of application: Standard · Area of application: Tuning
EUR 98.20

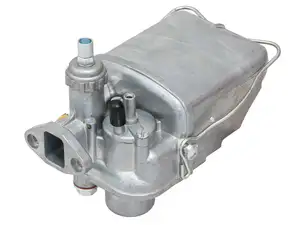

swiing® revival carburetor 17 mm Bing SSB 1/17/69
Manufacturer: swiing® revival parts · Nominal diameter: 17 mm · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SSB · Width: 85 mm · Choke control: without choke · Height: 100 mm · Ø fuel hose connection: 6 mm · Mounting type: Flange · Nozzle size: 76 · Total length: 132 mm · Hole spacing inlet: 31 mm · Mixed oil connection: No · Vacuum connection: No · Camouflaged: No · Area of application: Standard · Area of application: Tuning
EUR 156.00

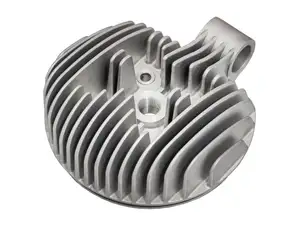

41 mm cylinder head tuning | Sachs 50/3, 50/4 LKH
Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 mm · Ø outside: 128 mm · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Decompressor: No · Camouflaged: Yes · Area of application: Tuning
EUR 119.10
Not in stock

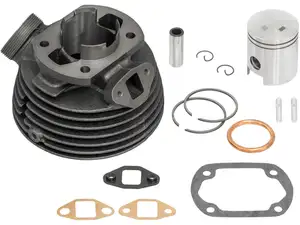

swiing 41 mm cylinder kit | Sachs 50/3, 50/4 LKH (square inlet)
Nominal diameter: 41 mm · Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: MF40x1.5 (fine pitch thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning
EUR 159.60

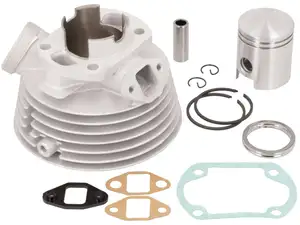

Power1 41 mm cylinder kit aluminum (square intake) | Sachs 50/3, 50/4 fan-cooled
