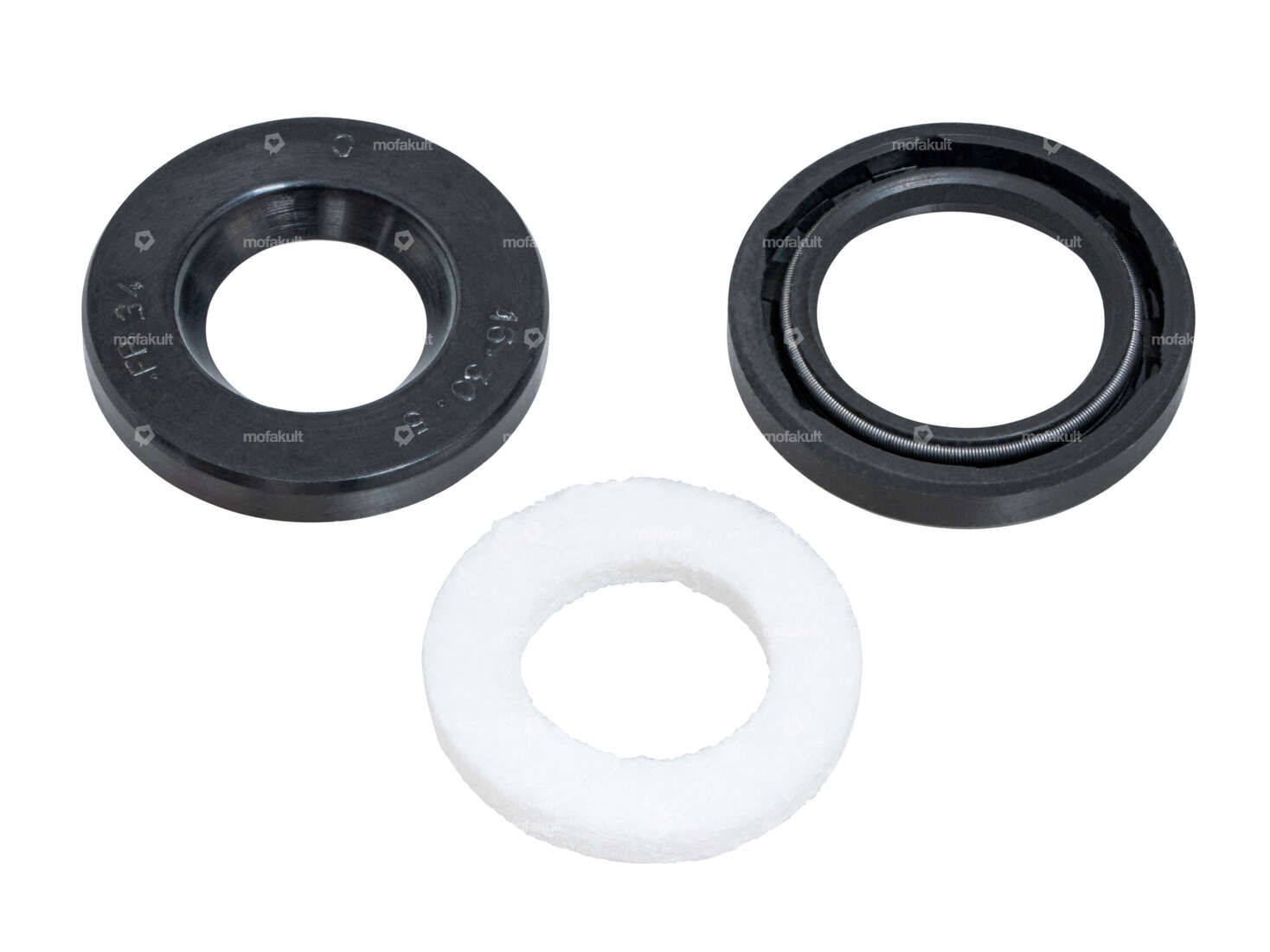

This radial shaft seal (colloquially known as a radial shaft seal) with the dimensions 16x30x5 and 20x30x5 mm from Polini fits your engine gearbox on the Peugeot 103, 103 SPX50, 104, 105, GL 10 moped / moped.
The delivery includes a felt washer. Felt washer included.
Radial seal ring:
Ø inner: 16 mm
Ø outer: 30 mm
Width: 5 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
Radial sealing ring:
Ø inner: 16 mm
Ø outer: 30 mm
Width: 5 mm
Material: NBR
Temperature-resistant: -30 to +100 °C, temporarily up to 120 °C
Type: A - With rubberized outer casing and one sealing lip.
Felt washer:
Ø inner: 15 mm
Ø outer: 28 mm
Width: 3.5 mm
Further parts for your Peugeot moped can be found under accessories.
Quality product from the Italian manufacturer Polini.
| Shaft seal type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Polini |
| Material | NBR |
| Ø outside | 30 mm |
| Ø inside | 16 mm |
| Width | 5 mm |
| Temperature resistance (min.) | 30 - 100 °C |
| Peugeot |
