For: Piaggio

20620

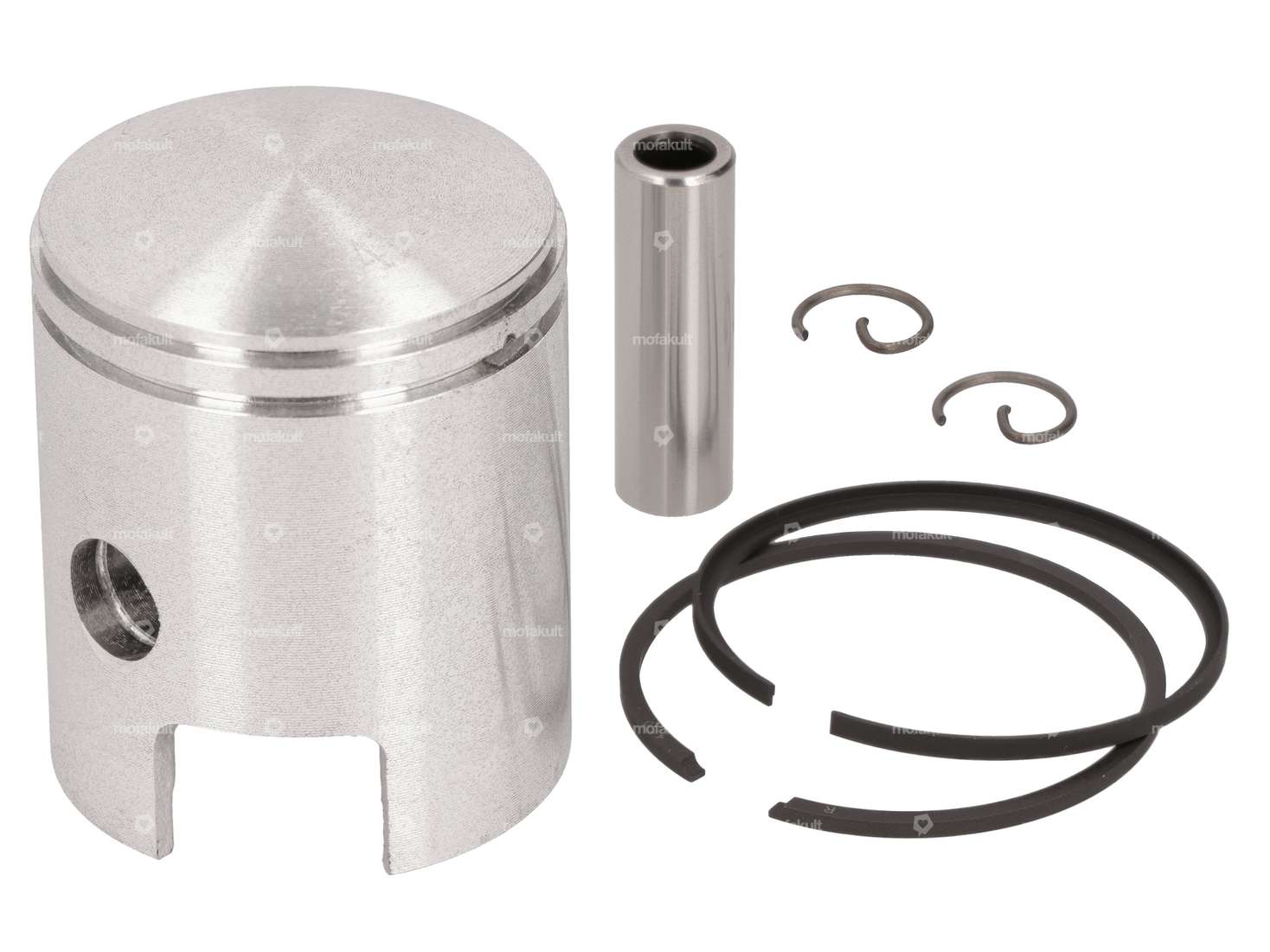

Piston 41 mm (10 mm KoBo) | Piaggio

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 46.60

Incl. 25.5% VAT.

Description

41.0 mm piston with a 2 mm L-piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) to fit the 41 mm Gilardoni ital kit for various Piaggio mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter41 mm
Ø outside piston (A)40.95 mm
Compression height (C)26.2 mm
Curvature (D)2.3 mm
Total piston height (E)50.55 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Ø piston pin (B)10 mm
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Piston ring height2 mm, 1.5 mm
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo

Accessories & related products

- 11 %
Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.90

EUR 28.20

EUR 28.20/l

Meteor piston pin lock Ø 10 mm (double)
undefined

For: Universal · Puch · Piaggio · Tomos

11032

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

EUR 1.50

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.60

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm

EUR 24.50

Malossi needle bearing 10/13/14.5 aluminum cage piston pin
undefined

For: Universal · Piaggio

19420

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Bearing cage: Sheet steel cage · Dimension needle bearing: 10/13 x 14.5 · Manufacturer: Malossi · Ø outside: 1 mm · Width: 14.5 mm

EUR 18.30

Airsal piston pin lock Ø 10 mm (single)
undefined

For: Universal · Puch · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos

25564

Airsal piston pin lock Ø 10 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 10 mm

EUR 1.50

Explore categories from Piston

S-10-60-020-010_Kolbenring
Piston ring
S-10-60-020-020_Kolbenbolzen
Piston pin
S-10-60-020-030_Kolbenbolzenclip
Piston pin clip
S-10-60-020-040_Kolbenkit
Piston kit
S-10-60-020-050_Werkzeug
Tool

Moped fans also bought

Continental 2.00 - 2.50 x 17" tube
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Tomos · Zündapp

10757

Continental 2.00 - 2.50 x 17" tube

Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Valve type: TR6 car valve · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Wheel size: 17 "

EUR 18.30

Circlip pliers (4 holders)

Universal

11120

Circlip pliers (4 holders)

Area of application: (Dis)assembly tool · Number of components: 5 pcs · Width: 80 mm · Height: 15 mm · Total length: 160 mm · Surface: raw · Surface: varnished · Clamping range: 10 - 50 mm

EUR 24.50

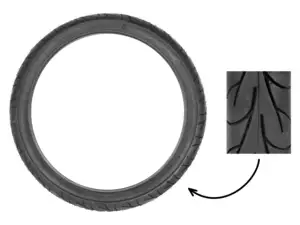

Continental 2.25 x 17" Go tires Semi-Slick
