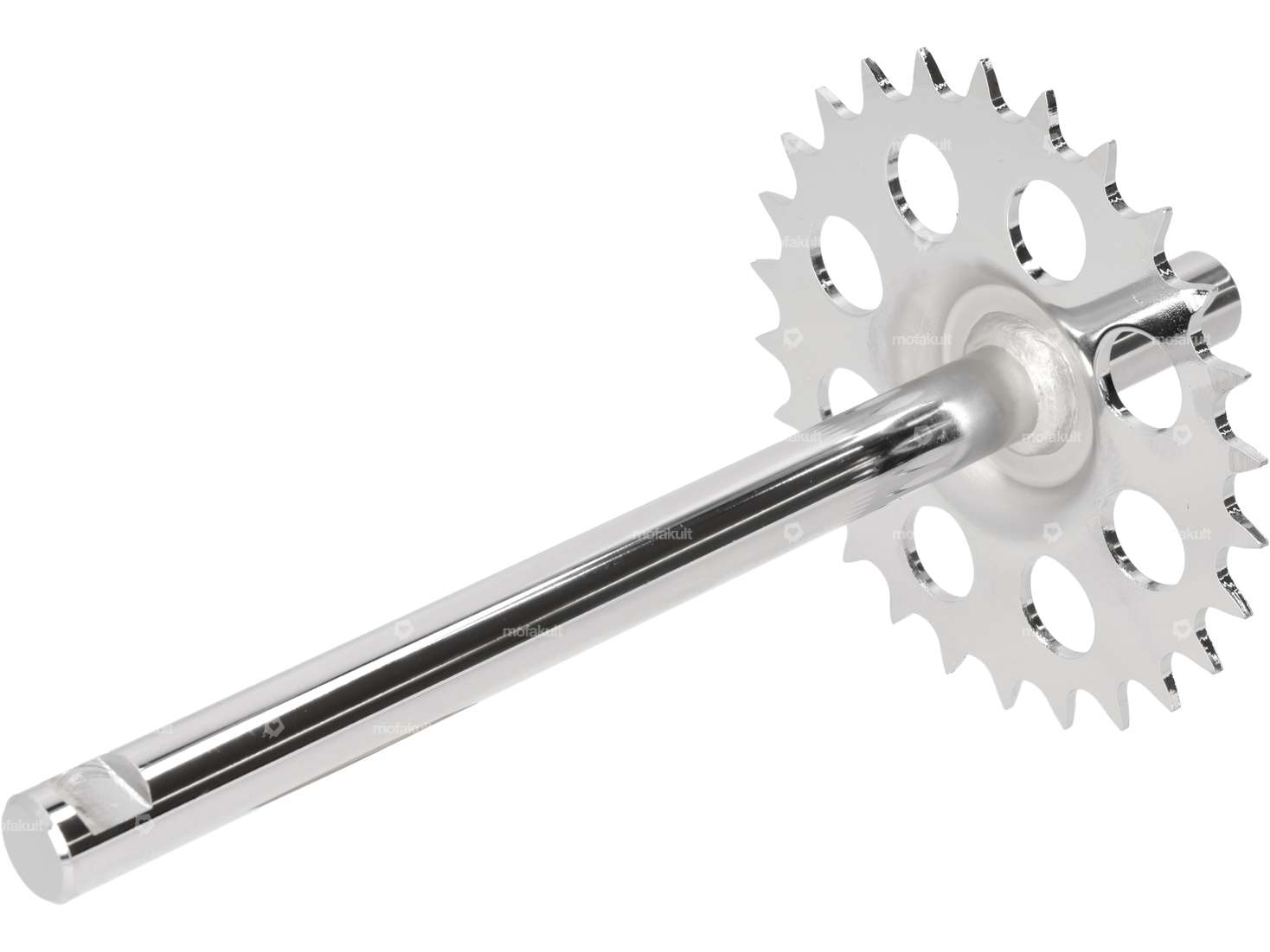

Chrome-plated pedal axle with sprocket for your Puch Maxi S and moped / moped.
The pedal mechanism is designed for mounting the pedal arms using a wedge. The pedal axle is firmly welded to the sprocket.
Ø axle: 15.8 mm
Ø sprocket: 120 mm
Total length: 230 mm
Shaft length from sprocket: 180 resp. 41 mm
Number of teeth: 26 pieces
Chain pitch: 1/2" x 1/8"
Note: To eliminate the axial play, we recommend using a 0.5 mm thick spacer washer (item no. 20530) in combination with a spring washer (item no. 11862). A cover washer (item no. 11864) should also be fitted to the weld seam that connects the bottom bracket axle and bottom bracket shell.
You can find all the washers listed in the accessories section.
Details
| Chain pitch | 1/2" x 1/8" |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Number of teeth | 26 pcs |
| Total length | 230 mm |
| Wavelength from wreath | 180 mm, 41 mm |
| Ø Outer sprocket | 120 mm |
Suitable for the following models
| Puch | E50 |
