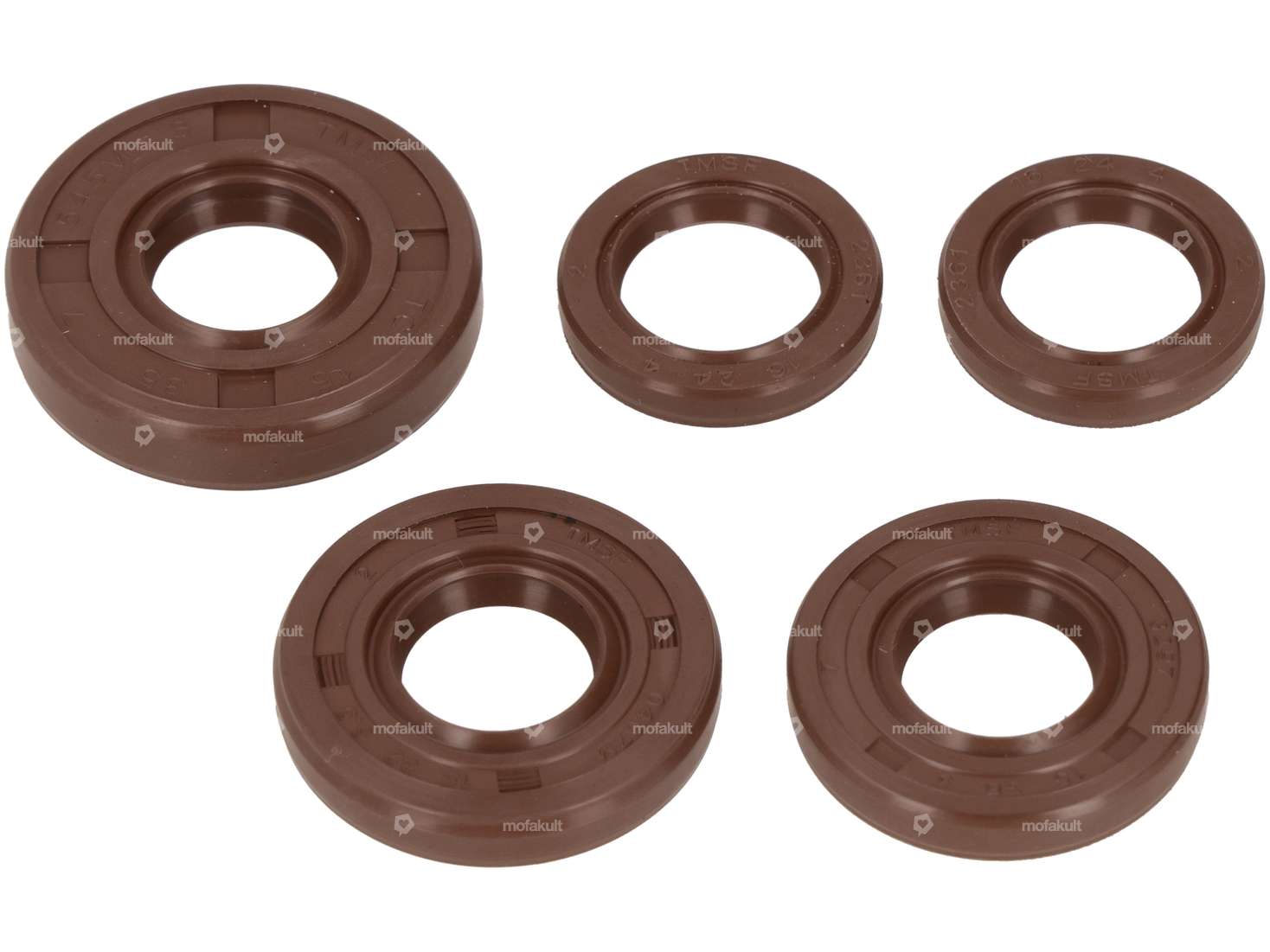

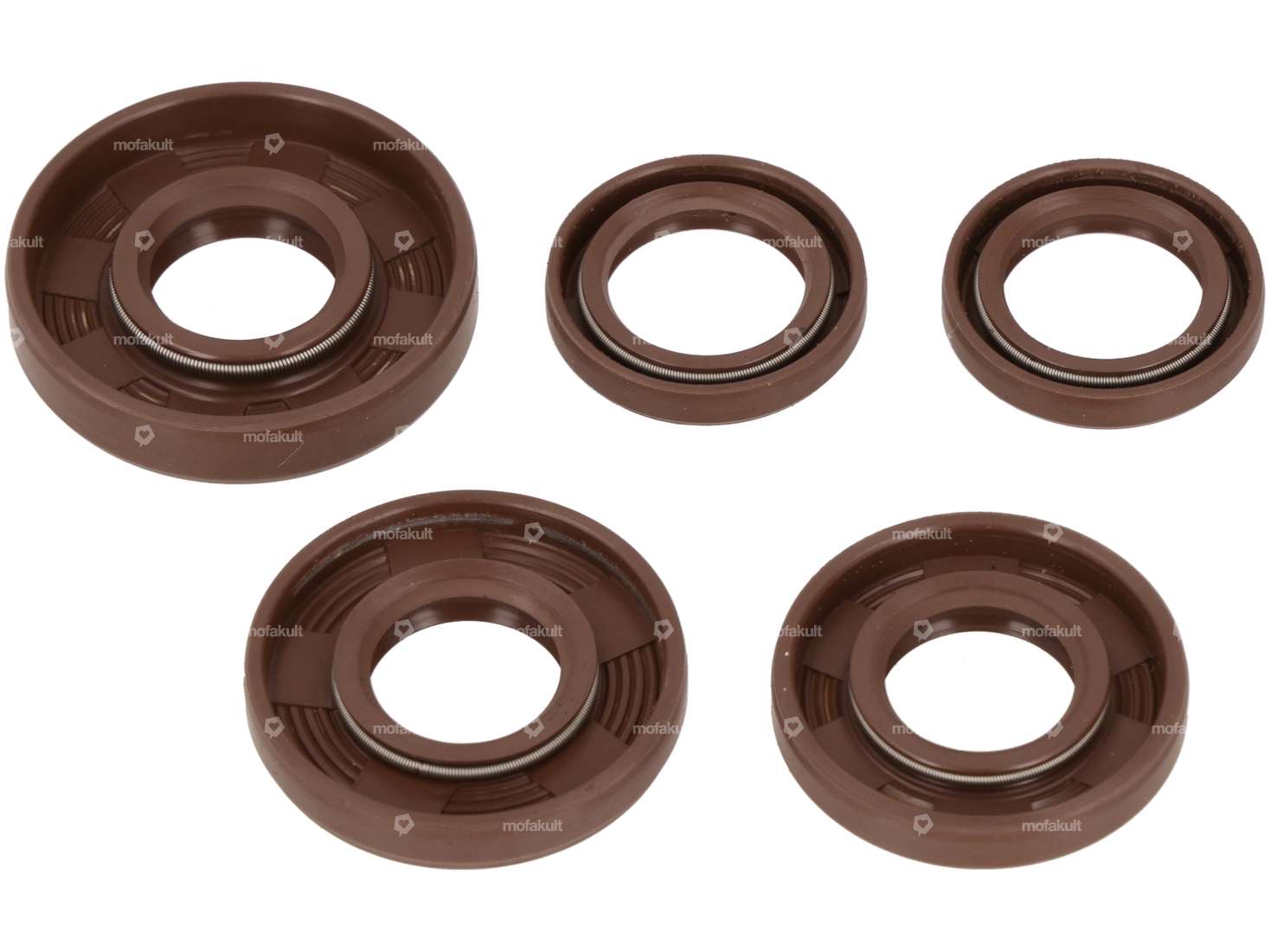

Shaft seal set made from FPM / FKM suitable for your moped / moped with Sachs 505 engine
.The radial shaft seals included are suitable for sealing your engine during an overhaul or for repairs. All oil seals are manufactured in AS design and therefore have a rubberized outer casing, a sealing lip and an additional dust lip. These shaft seals made of fluorine rubber are resistant up to a temperature of 200°C. Conventional NBR shaft seals are temperature-resistant up to 100 °C. Shaft seals made of FPM / FKM (commonly known as Viton) are therefore particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
| Temperature resistance (min.) | 0 - 200 °C |
| Shaft seal type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Ø inside | 15 mm, 16 mm |
| Ø outside | 32 mm, 30 mm, 24 mm, 35 mm |
| Material | FPM - Fluororubber |
| Width | 7 mm, 5.5 mm, 5 mm, 4 mm |
| Sachs | 505 (with pedal shaft) - 1A (AT) , 2A (HG) , 2B (HG) |
