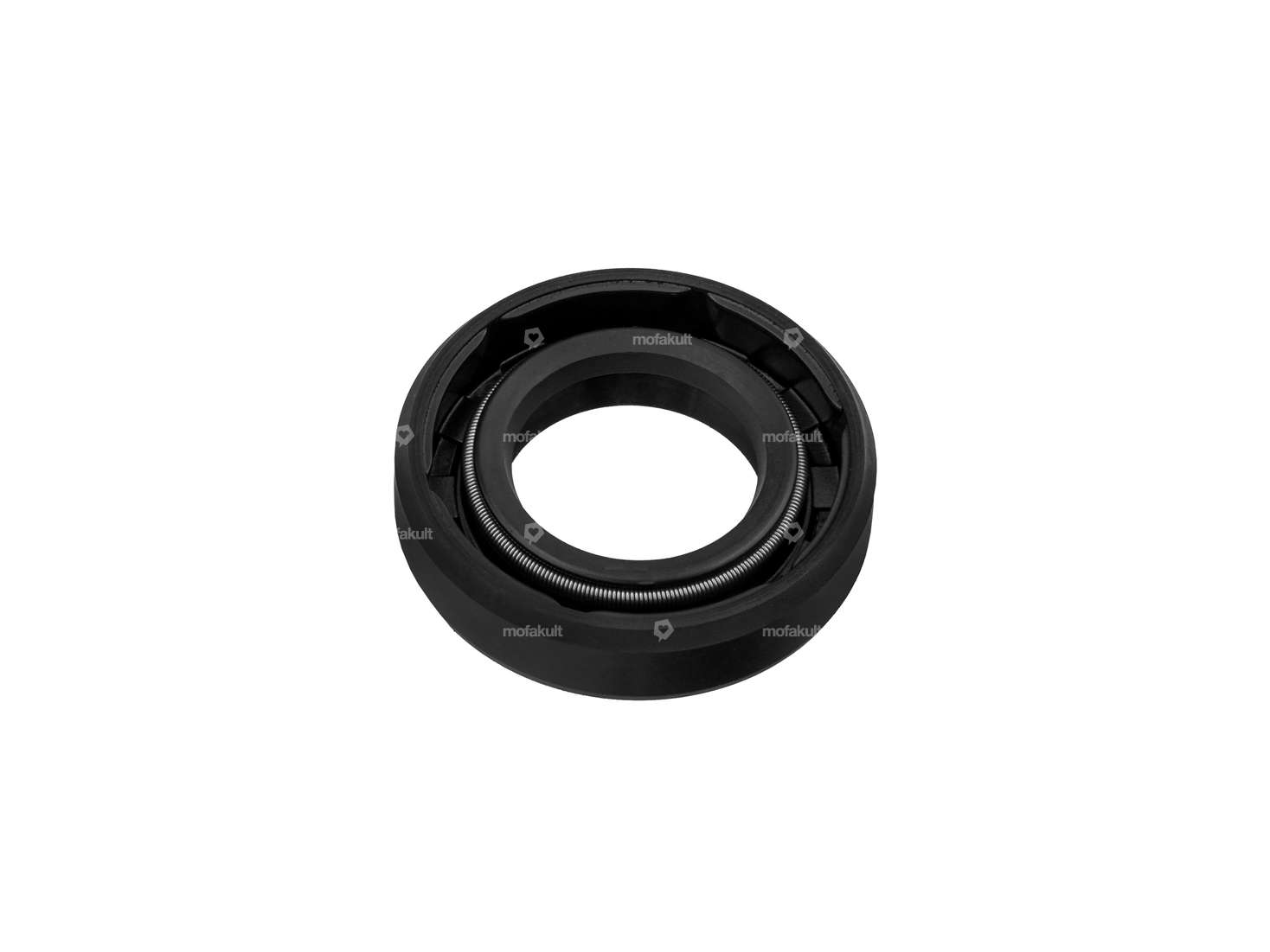

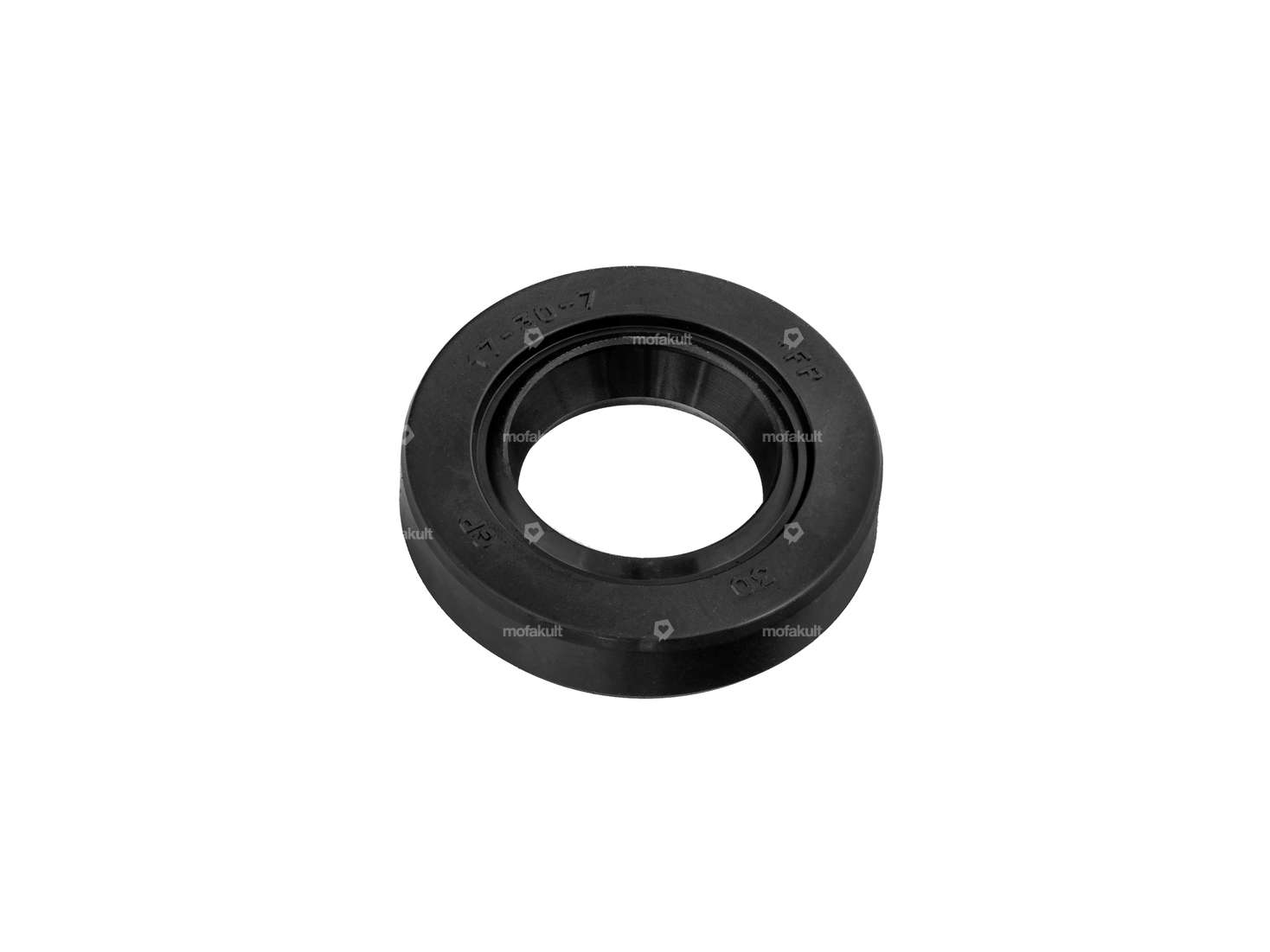

Oil seal NBR 17/30/7 AS crankshaft | Cilo

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents [ml]: 10 ml · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

"Cilo" glue

Place of use: Frame (+ tank) · Material: Polyvinyl chloride (PVC) · Rear side texture: Adhesive · Consistency: petrol resistant · Width: 165 mm · Height: 44 mm

Cilo sticker tank/ side panel 110x20mm (transparent)

Material: Polyvinyl chloride (PVC) · Place of use: Tank (+ frame) · Color: transparent · Rear side texture: Adhesive · Width: 110 mm · Height: 20 mm

swiing® revival bearings & shaft seals Motor | Cilo

Manufacturer: NTN · Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 7 pcs

Oil seal NBR 17/30/7 BS crankshaft | Sachs 50/3, 50/4

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Ø inside: 30 mm · Ø outside: 17 mm · Width: 7 mm

Oil seal NBR 17/30/7 B DUO crankshaft | Sachs 50/3, 50/4

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 17 mm · Ø outside: 30 mm · Width: 7 mm

Cilo sticker tank/ side panel 110x20mm (white)

Place of use: Frame (+ tank) · Material: Polyvinyl chloride (PVC) · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Width: 110 mm · Height: 20 mm

Motorex engine oil (gear oil) manual 450 ml

Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch

NTN wheel bearing 12/28/8 rear cast hub Leleu | Puch Maxi

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Plastic · Material: Steel · Surface: blank · Stock number: 6001 · Bearing type: Deep groove ball bearing · Ø outside: 28 mm · Ø inside: 12 mm · Width: 8 mm · Ball bearing closed: Yes · Area of application: Standard

Nut M17x1.25 x 5

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Thread type: MF17x1.25 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 22 mm · Height: 5.5 mm

swiing® revival motor seal | Cilo

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of fixing points: 9 pcs · Number of components: 1 pcs

swiing® revival gearbox cover gasket | Cilo 502T

Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.4 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs

swiing® revival spacer ring pinion Inox | Cilo 502

Nominal diameter inside: 17 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Ø inside: 17 mm · Ø outside: 20 mm · Total length: 12 mm

swiing® revival piston 38 mm | Cilo 502

Manufacturer: swiing® revival parts · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Piston weight: 78 g

EFFE breaker without cable | Cilo / Dansi / Ducati / Minarelli

Manufacturer: EFFE · Ø axle: 4 mm · Ø mounting hole: 4.5 mm · Material: Steel · Area of application: Original · Area of application: Standard · Cable available: No · Number of fixing points: 1 pcs · Garelli OEM number: 20 36010 224 · DUCATI OEM number: 3122008 · DUCATI OEM number: 3195066 · DUCATI OEM number: 3195621 · DUCATI OEM number: 3195799 · DUCATI OEM number: 3195800 · DUCATI OEM number: 3196057 · DUCATI OEM number: 31312203 · DUCATI OEM number: 31312204 · Moto Guzzi OEM number: 48 708 870 · Dansi OEM number: 408800 · Dansi OEM number: 418143 · Minarelli OEM number: 8200116

Oil seal NBR 20/30/7 A

Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Material: NBR · Surface: rubberized · Ø inside: 20 mm · Ø outside: 30 mm · Width: 7 mm

Shaft seal 20/30/7 Motor | Cilo 502

Place of use: Crankshaft · Ø inside: 20 mm · Ø outside: 30 mm · Width: 7 mm · Manufacturer: Cilo
