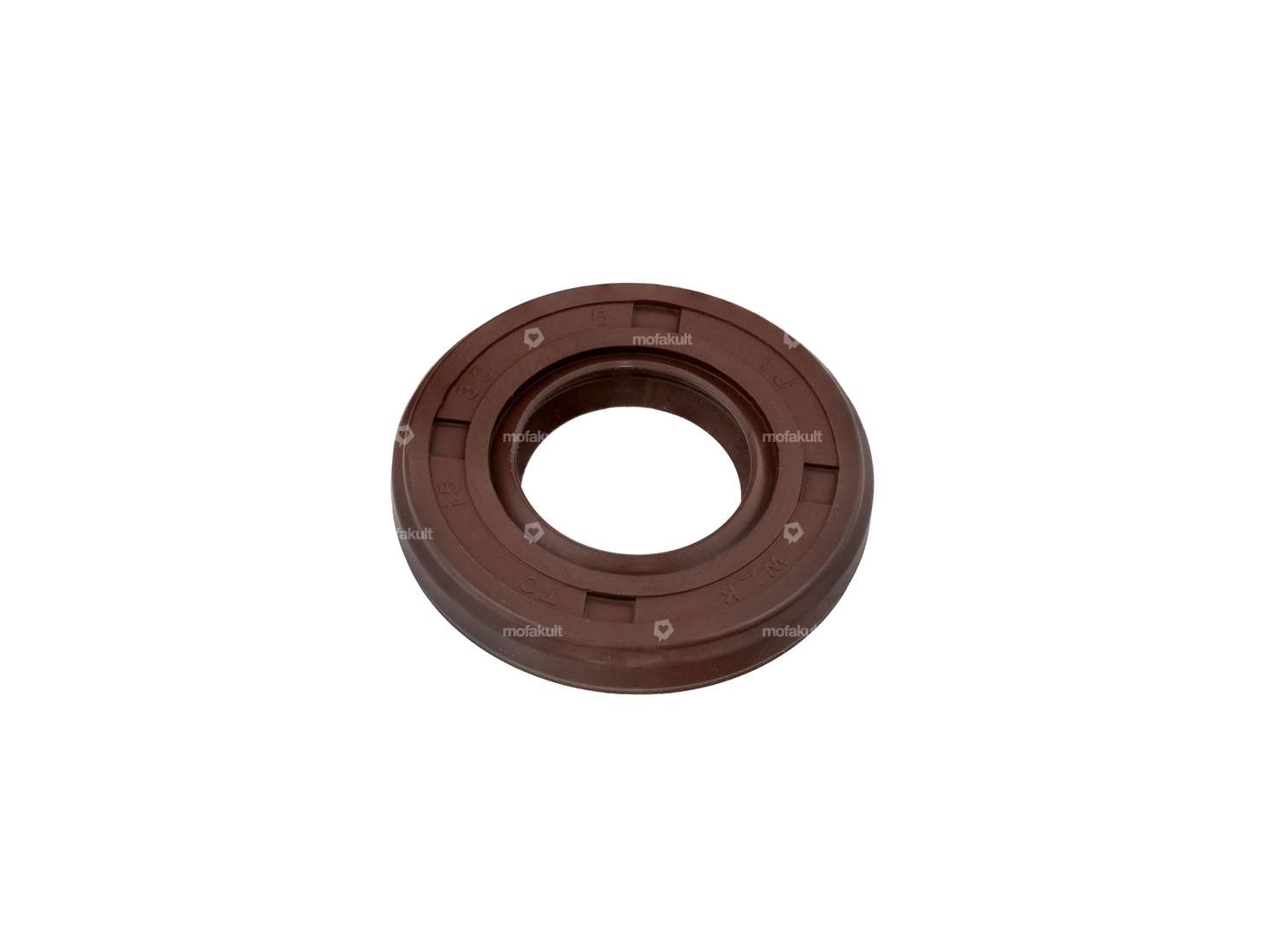

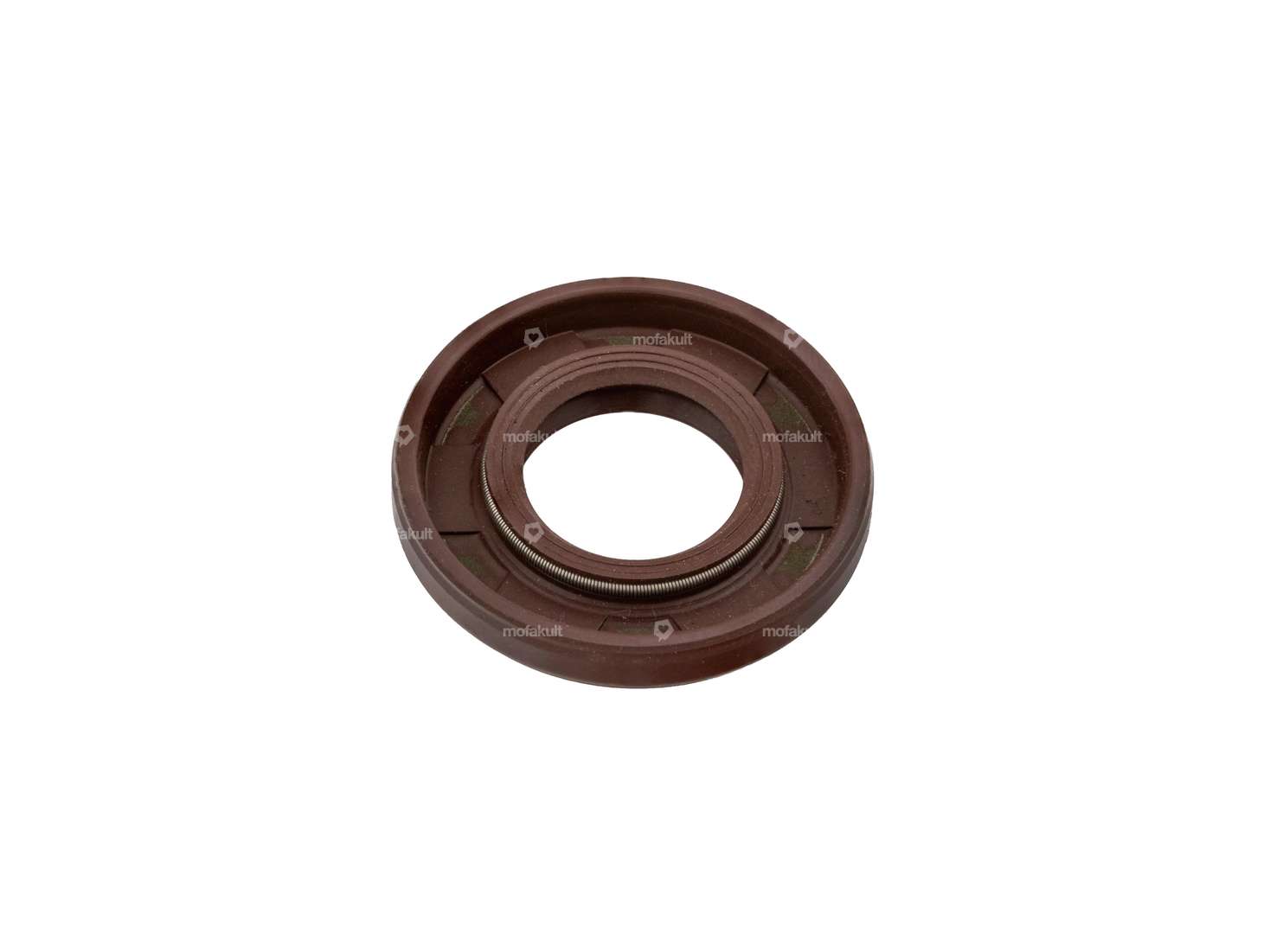

Shaft seal ring (colloquially known as a radial shaft seal) with the dimensions 15x30x5.5 mm for universal use on various mopeds, mopeds and small motorcycles.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200 °C.
Manufactured NBR shaft seals are temperature-resistant up to 100 °C. FPM or FKM shaft seals (colloquially known as Viton) are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Ø inner: 15 mm
Ø outer: 30 mm
Width: 5.5 mm
Material: Fluorocarbon rubber FPM / FKM
Temperature resistant: approx. -30 to +200 °C, briefly up to 220 °C
Type: AS - With rubberized outer casing, one sealing lip and one dust lip.
| Temperature resistance (min.) | -30 - 200 °C |
| Shaft seal type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Material | FPM - Fluororubber |
| Surface | rubberized |
| Ø outside | 30 mm |
| Ø inside | 15 mm |
| Width | 5.5 mm |
