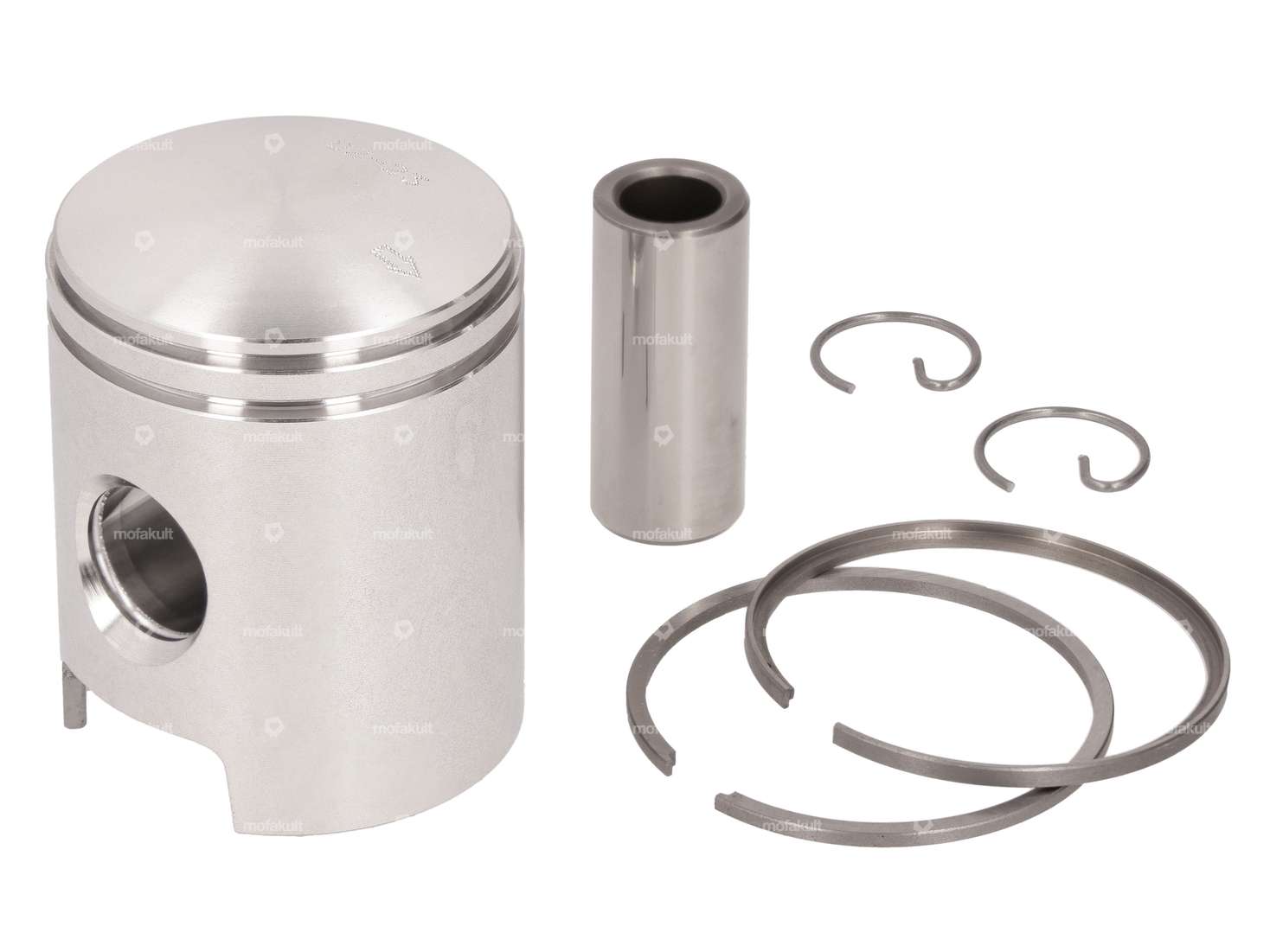

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Meteor |
| Ø outside piston (A) | 39.965 mm |
| Compression height (C) | 27 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 40 mm |
| Piston ring mold | Rectangular ring, L-ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm, 2 mm |
| Ø piston pin (B) | 14 mm |
| Tolerance group | D |
| Weight piston kit | 100 g |
| Kreidler |
