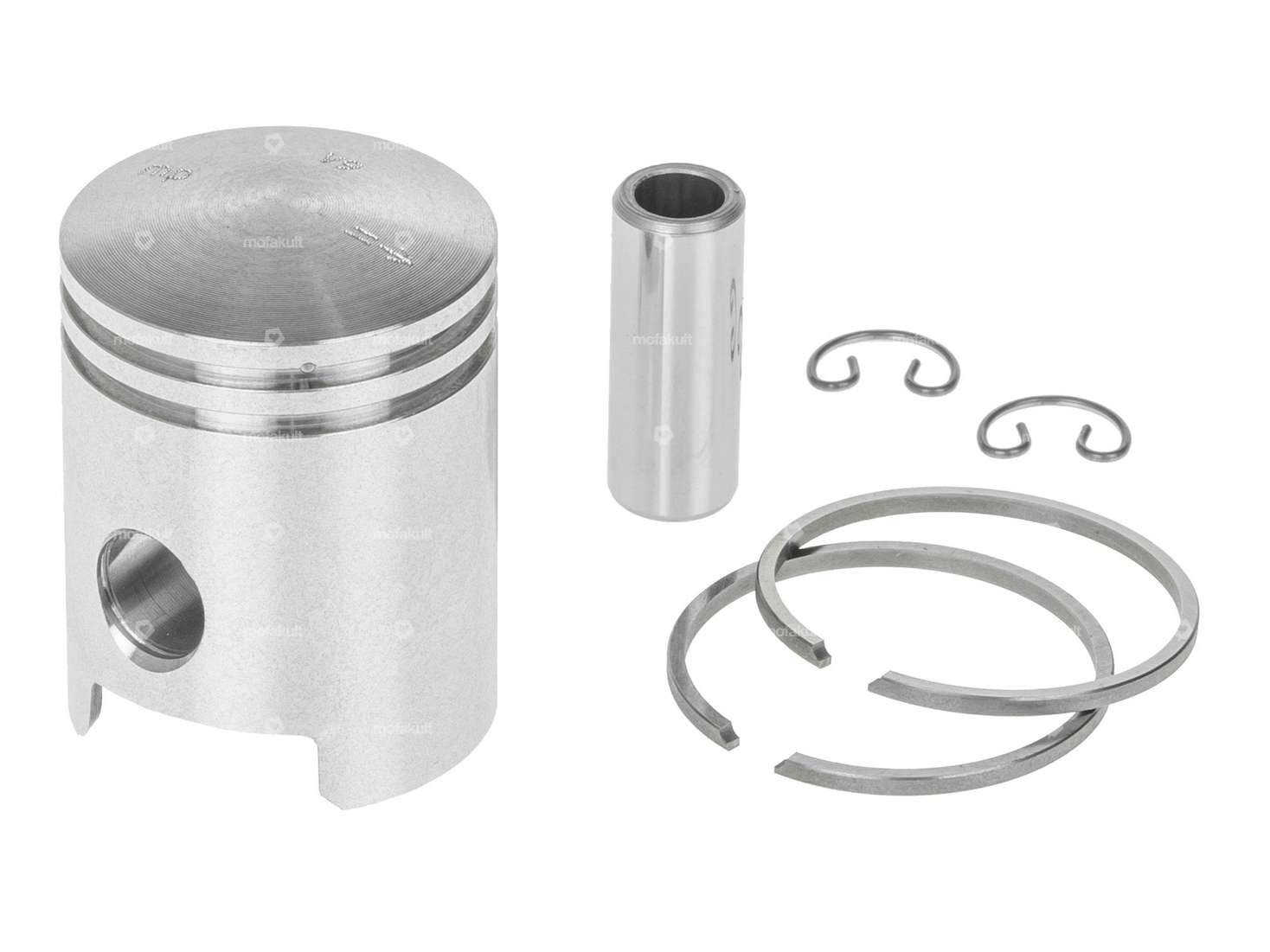

37.97 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 505 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.97 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | A |
| Weight piston kit | 79 g |
| Sachs | 505 (with pedal shaft) - 1A (AT) , 2A (HG) |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Number of components: 7 pcs · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.50
Meteor piston 38 mm #B | Sachs 505
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 79 g
EUR 69.50
Meteor piston 38 mm #C | Sachs 505
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.99 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 79 g
EUR 69.50
Meteor piston 38 mm #D | Sachs 505
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 38 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: D · Weight piston kit: 78 g
EUR 69.50
Explore categories from Piston
Moped fans also bought
swiing® revival float cap Bing replica SRE, SRC, SRF, SRA
Ø outside: 43.5 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Component group Carburetor: Adjusting screws, float, etc. · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Height: 32.5 mm · Width across flats: 14 mm · Alternative version of the Pony OEM number: A4587 · Alternative version of the Sachs OEM number: 0962 056 000
EUR 11.30
Oil seal NBR 24.8/31.4/4 A Brake shaft | Sachs 50
Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Place of use: Clutch cover · Width: 4 mm · Ø inside: 24.8 mm · Ø outside: 31.4 mm
EUR 7.15
Hot
swiing® revival screw-in condenser | Bosch / Ducati
Manufacturer: swiing® revival parts · Area of application: Original · Area of application: Standard · Capacity: 0.16 µF · Mounting type: Plug connection clamped · Connection type: Thread for screwing · Ø outside: 18 mm · Thread type: M3x0.5 (standard thread) · Height: 23 mm · Total height: 32 mm · BOSCH OEM number: 2 207 330 050
EUR 12.20
swiing® revival carburetor 12 mm "Original" | Sachs 503
Nominal diameter: 12 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Total length: 65 mm · Ø Inside entrance: 12 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Ø Output inside: 12 mm · Width: 55 mm · Ø Air filter connection: 20 mm · Height: 112 mm · Ø fuel hose connection: 5 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Camouflaged: No · Nozzle size: 52 · Clamping screw torque (max.): 4 N/m · Pony OEM number: A2442 · Sachs OEM no.: 0281 115 105
EUR 98.30
GPO ignition coil (high contact shoes)
Manufacturer: GPO · Ø Internal flywheel: 90 mm · Place of use: Internal (in the ignition) · Color: black · Ø cable holder: 6.4 mm · Total length: 76.2 mm · Height: 17 mm · Cable length: 68 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 4.5 mm · Hole spacing: 54 mm · Area of application: Original · Area of application: Standard
EUR 49.10

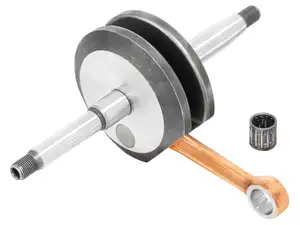

Jasil crankshaft original | Sachs 505, 535 A1, 535 AV (A4477)
