For: Puch

10917

Meteor piston 38 mm #5 | Puch

Home
| Motor
| Cylinder
| Piston
EUR 60.30

Incl. 25.5% VAT.

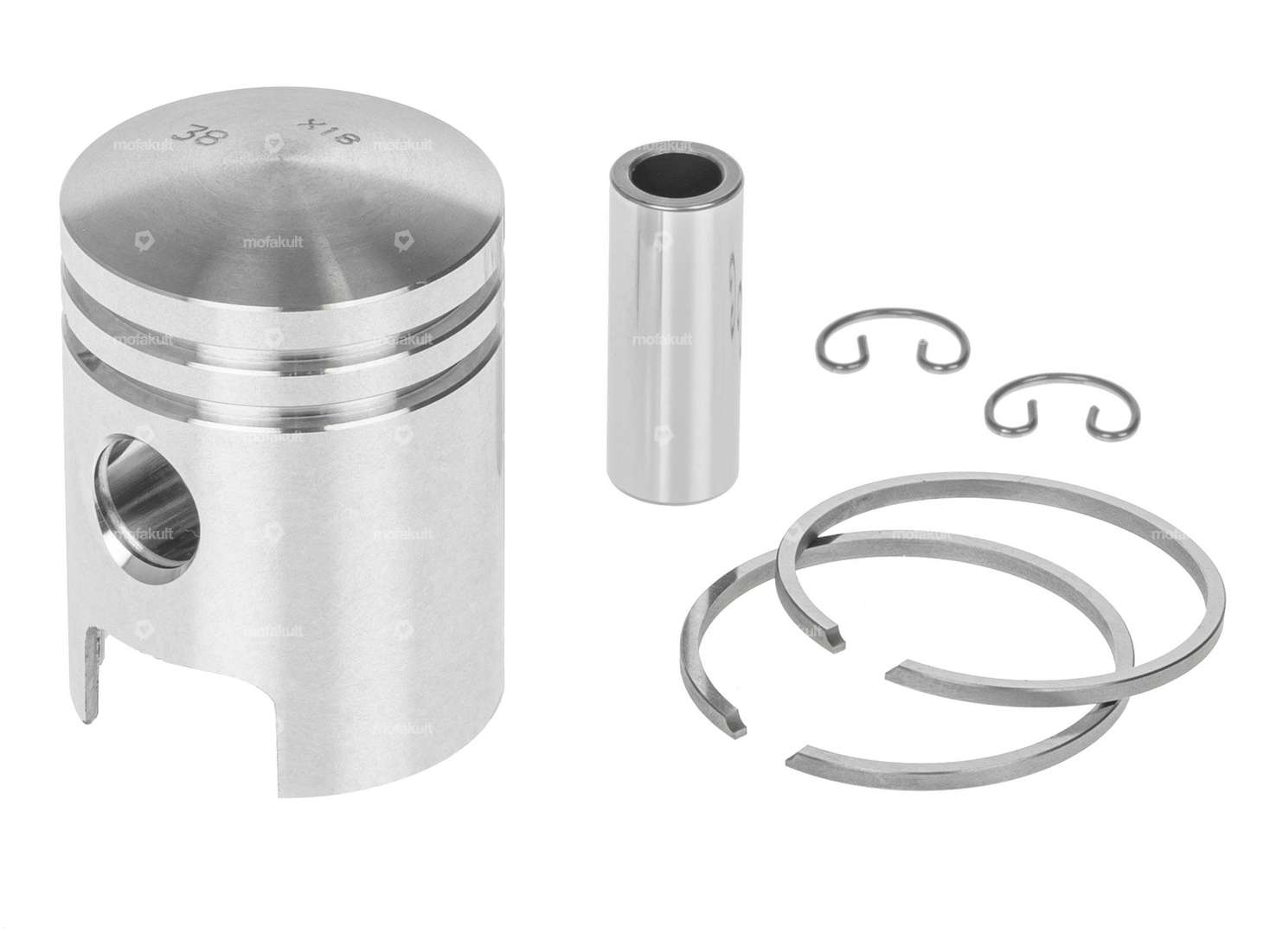

38.0 mm piston with two 2 mm rectangular piston rings for original Puch Maxi, X30 Sport.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the pictures.

Tolerance no. 5

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.

Quality product from the Italian manufacturer Meteor.

Details

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.99 mm
Compression height (C)22.7 mm
Curvature (D)3.3 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Tolerance group5
Piston weight80 g

Suitable for the following models

Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Sport)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
