logo_meteor-piston-mk

For: Puch

11875

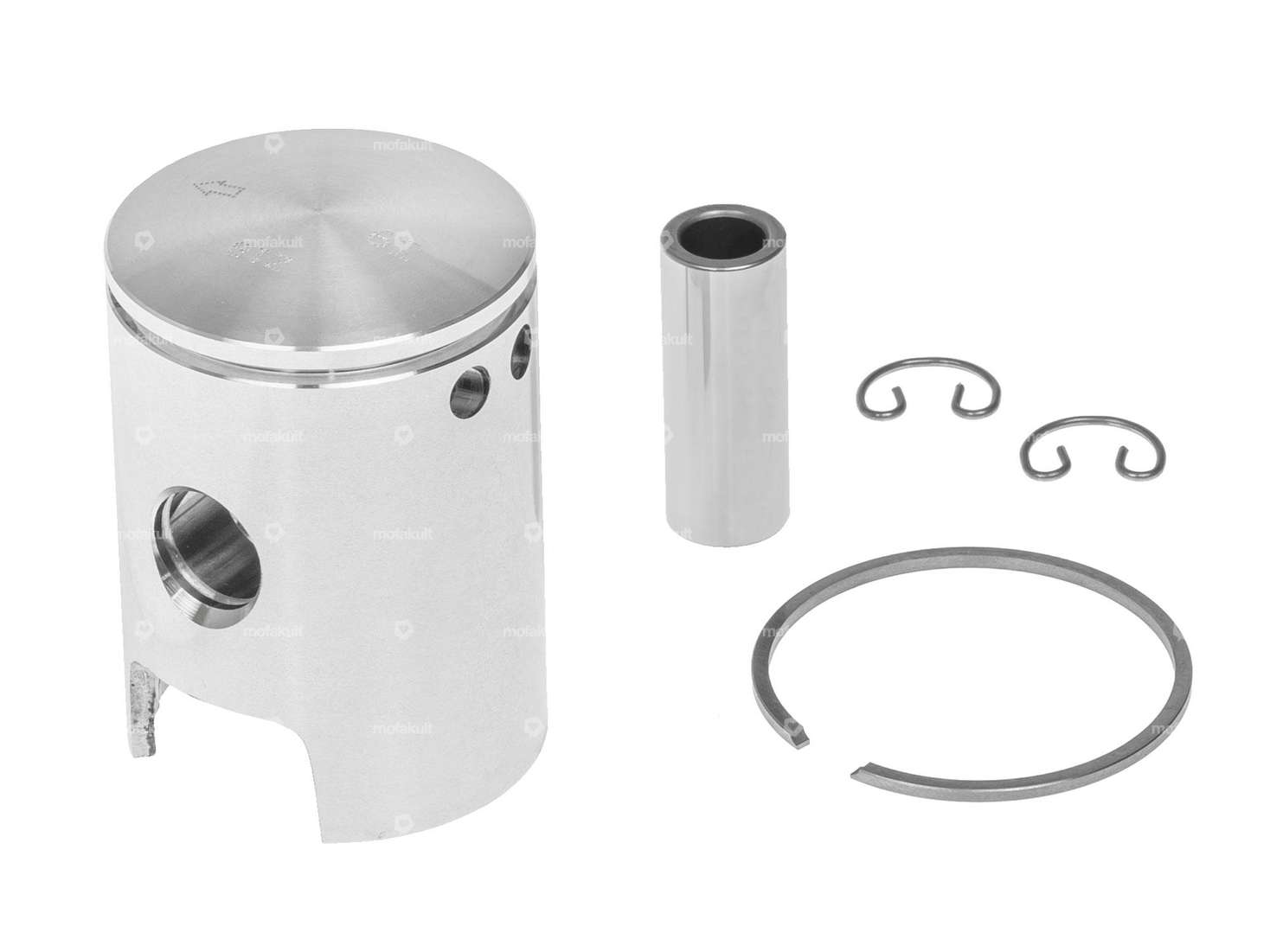

Meteor piston 38 mm #3 | Puch Supermaxi Cat.

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 67.60

Incl. 25.5% VAT.

Description

38.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Puch Supermaxi LG1 & LG2 mopeds / mopeds with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.965 mm
Compression height (C)24 mm
Curvature (D)2.3 mm
Total piston height (E)55.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance group3
Weight piston kit78 g
Puch

E50

ZA50 (air-cooled)
