logo_meteor-piston-mk

For: Sachs

17197

Meteor piston 37.98 mm type B | Sachs 504

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 69.50

Incl. 25.5% VAT.

Description

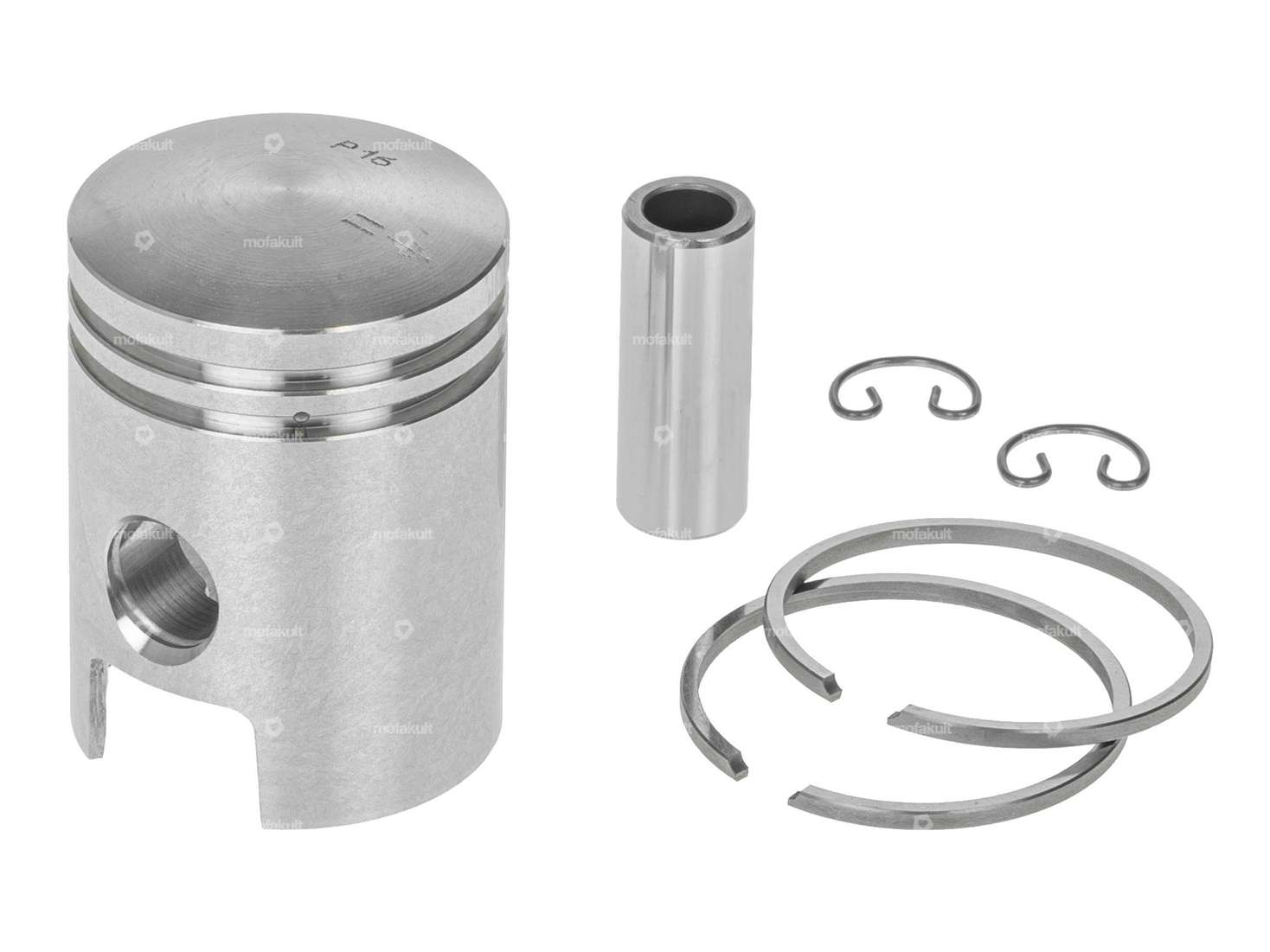

37.98 mm piston with two 2 mm rectangular piston rings with flank lock (FS) suitable for Sachs 504/2 ACH and 504/1 ACH mopeds / mopeds.

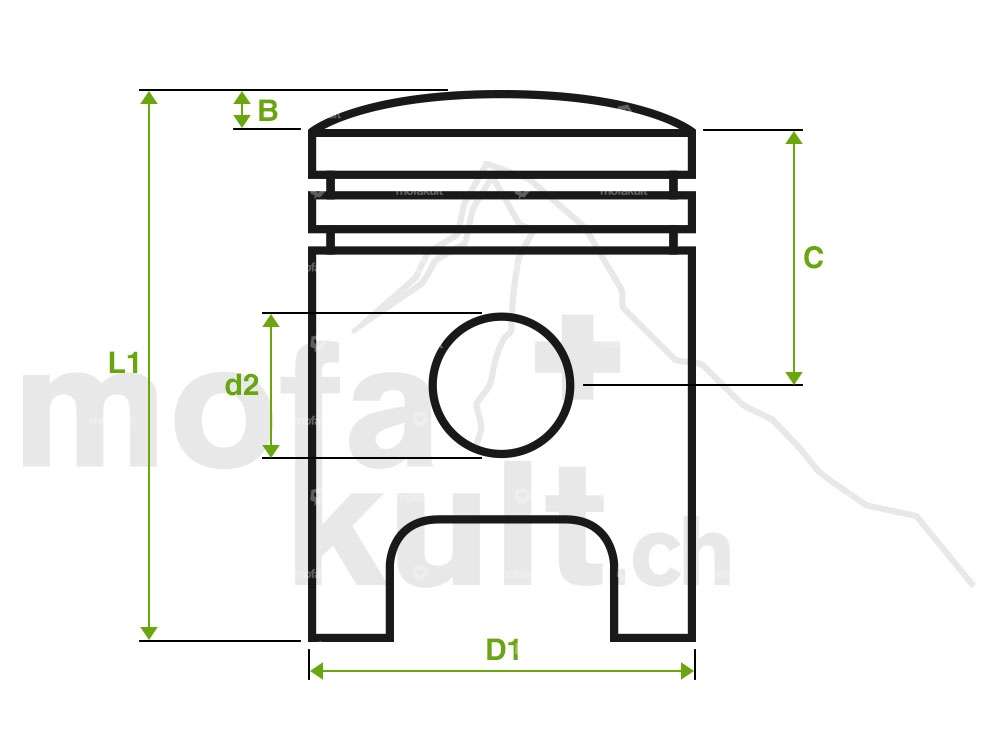

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Ø outside piston (A)37.98 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)53 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Tolerance groupB
Weight piston kit77 g
Sachs

504 (without pedal shaft)
