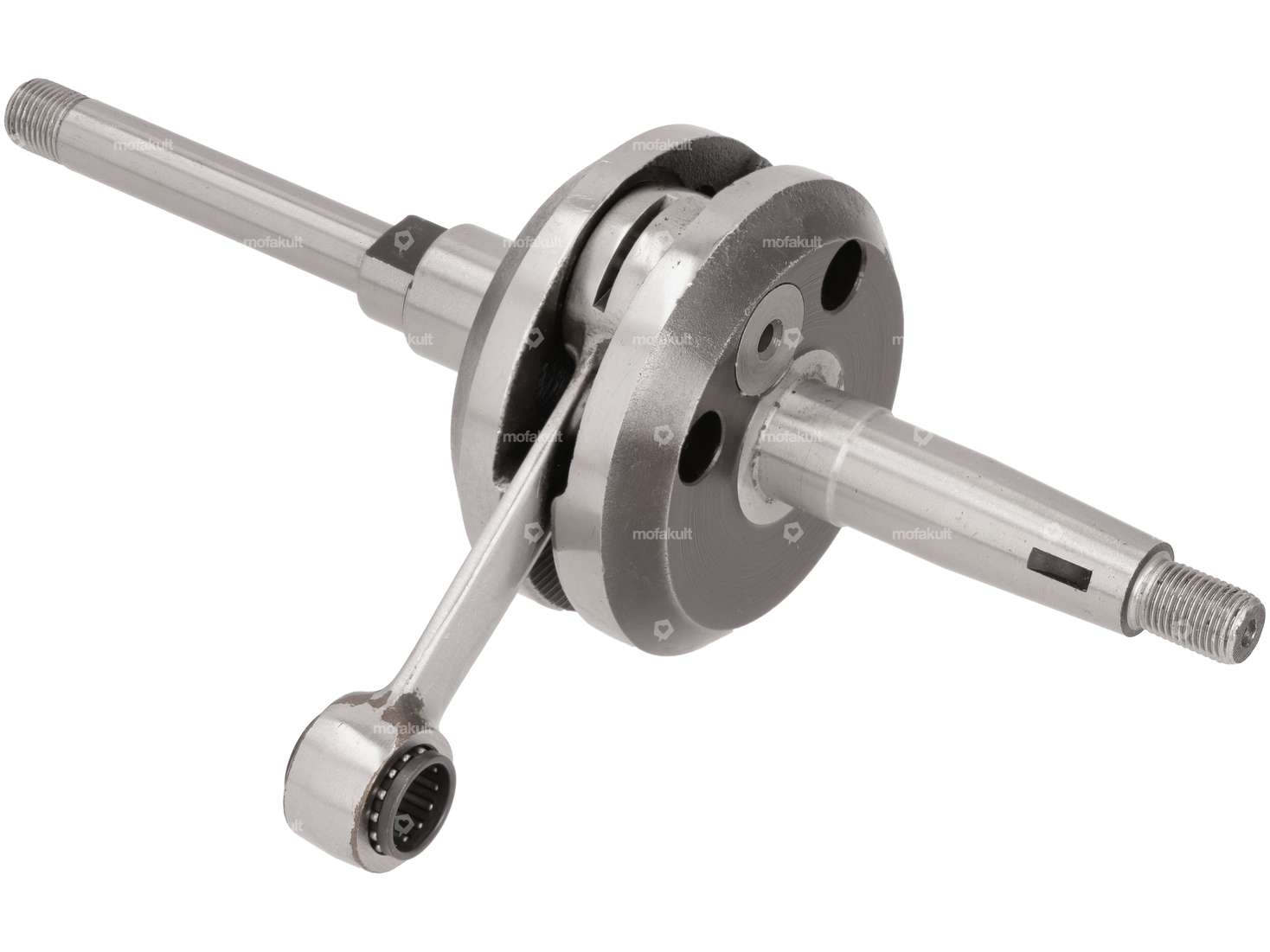

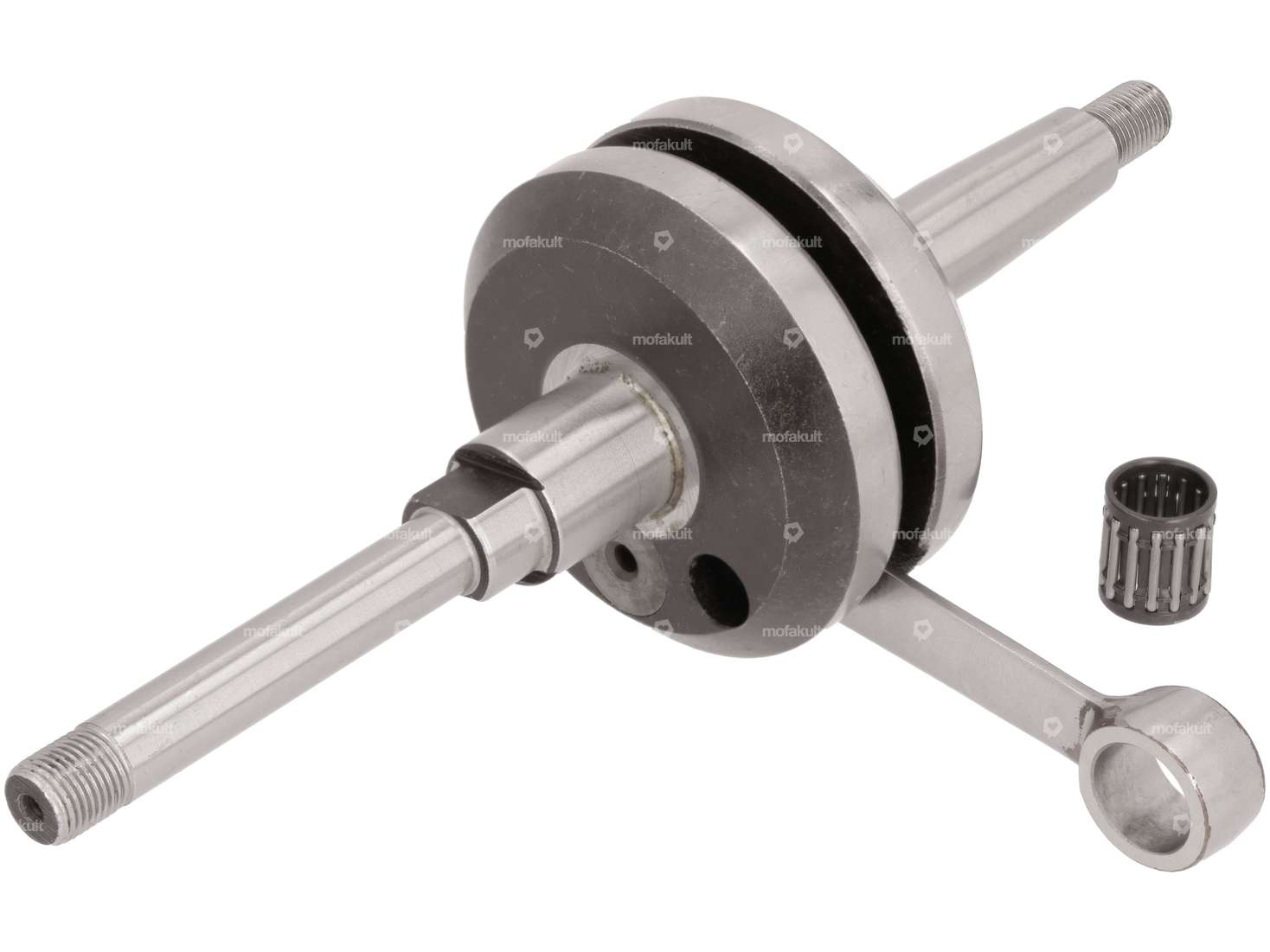

Racing crankshaft for Peugeot 103 SP, MV, MVL, LM, VOGUE and 104 mopeds / mopeds with interrupter ignition.
In addition to additional balancing holes, the connecting rod has been polished and the lower connecting rod eye and cheeks have been reinforced compared to the standard shaft. The workmanship is okay, but won't knock anyone off their feet in terms of quality.
The needle bearing is included in the scope of delivery.
| Dimension needle bearing | 12 / 15 x 12.5 mm (axe 12) |
| Manufacturer | Mazzucchelli |
| Thread type | MF10x1 (fine pitch thread), MF11x1 (fine pitch thread) |
| Thread length | 11 mm, 14 mm |
| Area of application | Racing, Tuning |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 39 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 76 mm |
| Total length of crankpin on clutch side | 100 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 72 mm |
| Ø crank webs | 68.7 mm |
| Ø Connecting rod eye | 14 mm |
| Weight | 996 g |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Wide crank webs | 36 mm |
| Length 1st paragraph | 22 mm |
| Length 2nd paragraph | 9.5 mm |
| Length 3rd paragraph | 56.5 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 15.9 mm |
| Ø 3rd step (on the clutch side) | 10.9 mm |
| Length of shoulder (ignition side) | 12 mm |
| Peugeot |
Accessories & related products
Airsal crankshaft 1 BAL WH | Peugeot 103
Dimension needle bearing: 12 / 15 x 15.6 mm (axe 12) · Manufacturer: Airsal · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 39 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 76 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 100 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF11x1 (fine pitch thread) · Total length crankpin ignition side: 72.3 mm · Ø crank webs: 68.5 mm · Ø Connecting rod eye: 15 mm · Weight: 995 g · Thread length: 10 mm · Thread length: 15 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: Standard · Wide crank webs: 36 mm · Length 1st paragraph: 22 mm · Length 2nd paragraph: 9 mm · Length 3rd paragraph: 57 mm · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 15.9 mm · Ø 3rd step (on the clutch side): 10.9 mm · Length of shoulder (ignition side): 12 mm
EUR 67.60
EUR 55.30
Polini 46 mm cylinder kit cast iron | Peugeot 103, 104, 105, GL 10
Manufacturer: Polini · Material: Gray cast iron · Nominal diameter: 46 mm · Displacement: 65 ccm · Crankshaft stroke: 39 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 49.9 mm · Ø outlet inside: 23.5 mm · Hole pattern [mm]: 46 x 50 · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Area of application: Tuning
EUR 233.70
EUR 202.90

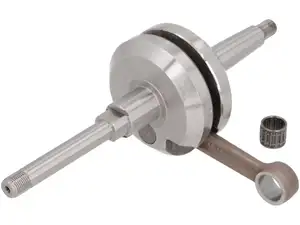

Mazzucchelli crankshaft "original" (breaker ignition) | Peugeot 103, 104
