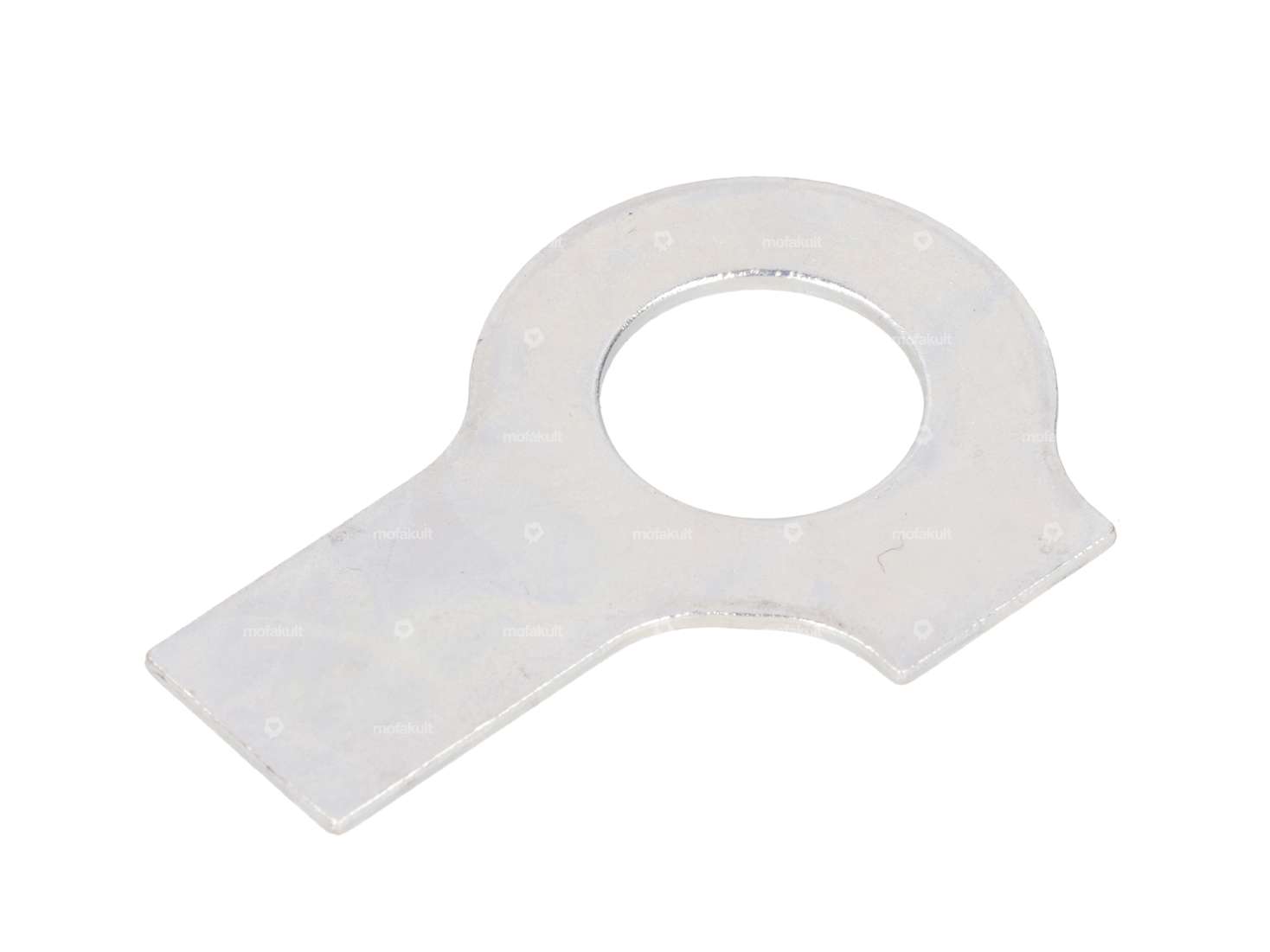

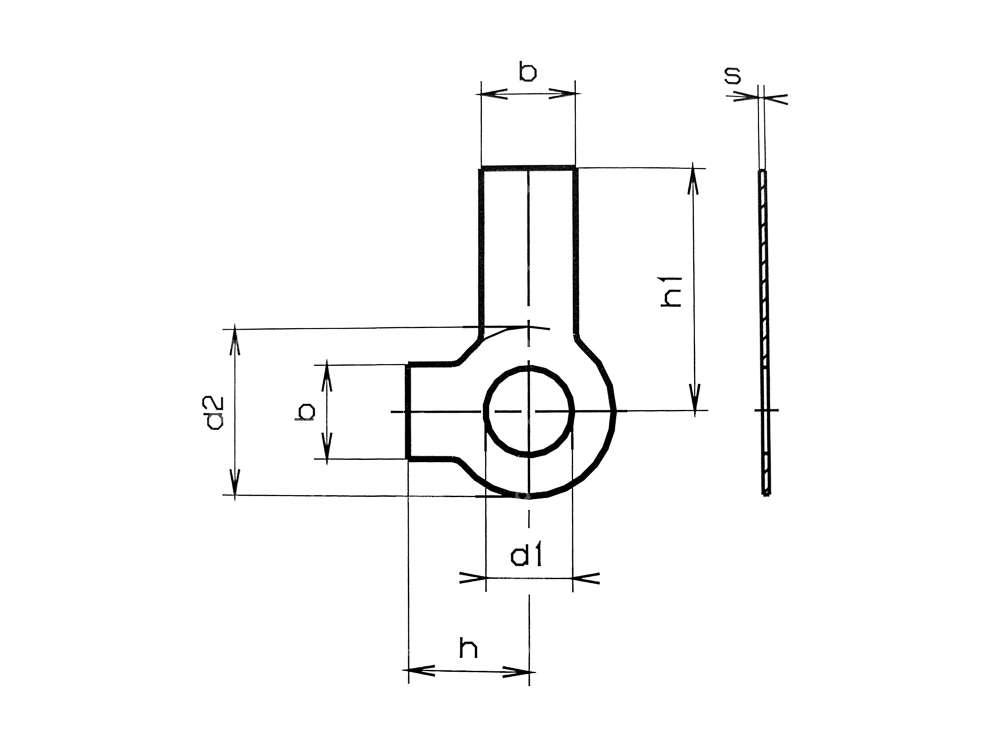

M12 locking plate 2 tabs

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 106 mm · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread length: 20 mm · Supporter: Sigg · Durchführungsort: CH-8493 Saland · Puch OEM number: 360.1.10.034.1

Clamping bridges aluminum | Puch

Material: Aluminum · Surface: raw · Color: silver · Total length: 48.9 mm · Ø mounting hole: 8 mm · Hole spacing: 30 mm · Height: 24.6 mm · Clamping diameter: 22 mm · Number of fixing points: 2 pcs · Width: 21.5 mm

Screw clamp 30 - 45 mm W2 Inox / galvanized

Manufacturer: Made in Europe · Material: Chrome steel (colloquially known as stainless steel) · Material: Steel · Surface: galvanized (blue) · Ø inside: 30 - 45 mm · Width: 9 mm

EBR clamping bridge chrome

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 61 mm · Hole spacing: 33 mm · Hole spacing: 45 mm · Height: 17 mm · Clamping diameter: 22 mm · Number of fixing points: 4 pcs · Width: 49 mm

Meteor piston 38 mm #C | Sachs 503 AB/AC

Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Nominal diameter: 38 mm · Total piston height (E): 51 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: C · Weight piston kit: 75 g · Pony OEM number: A5685C · Sachs OEM no.: 0286 382 306

Retaining plate with screw for lamp ring

Drive: Knurled screw

Rubber grommet round 2 cables | Sachs 502, 503, 504, 505, 535, 508 (A1923)

Material: Rubber · Color: black · Ø Cable bushing: 2.2 mm · Ø Bundle: 10.5 mm · Ø mounting hole: 8.5 mm · Total length: 7 mm · Ø outside: 12.8 mm · Waistband height: 2 mm · Pony OEM number: A1923 · Sachs OEM no.: 0260 020 000

M10 lock washer 2 tabs

Material: Steel · Surface: galvanized (blue) · Thickness: 0.75 mm · Number of lobes: 2 pcs · Nominal diameter (thread): 10 mm · Total length: 13 mm · Ø inside: 10.5 mm · Ø outside: 21 mm · Thread size: M10 · Length 2: 22 mm · Width 2: 10 mm · Width: 10 mm

M10 lock washer 1 tab

Material: Steel · Surface: galvanized (blue) · Thickness: 0.75 mm · Number of lobes: 1 pcs · Nominal diameter (thread): 10 mm · Total length: 22 mm · Ø inside: 10.5 mm · Ø outside: 26 mm · Thread size: M10 · Width: 10 mm
