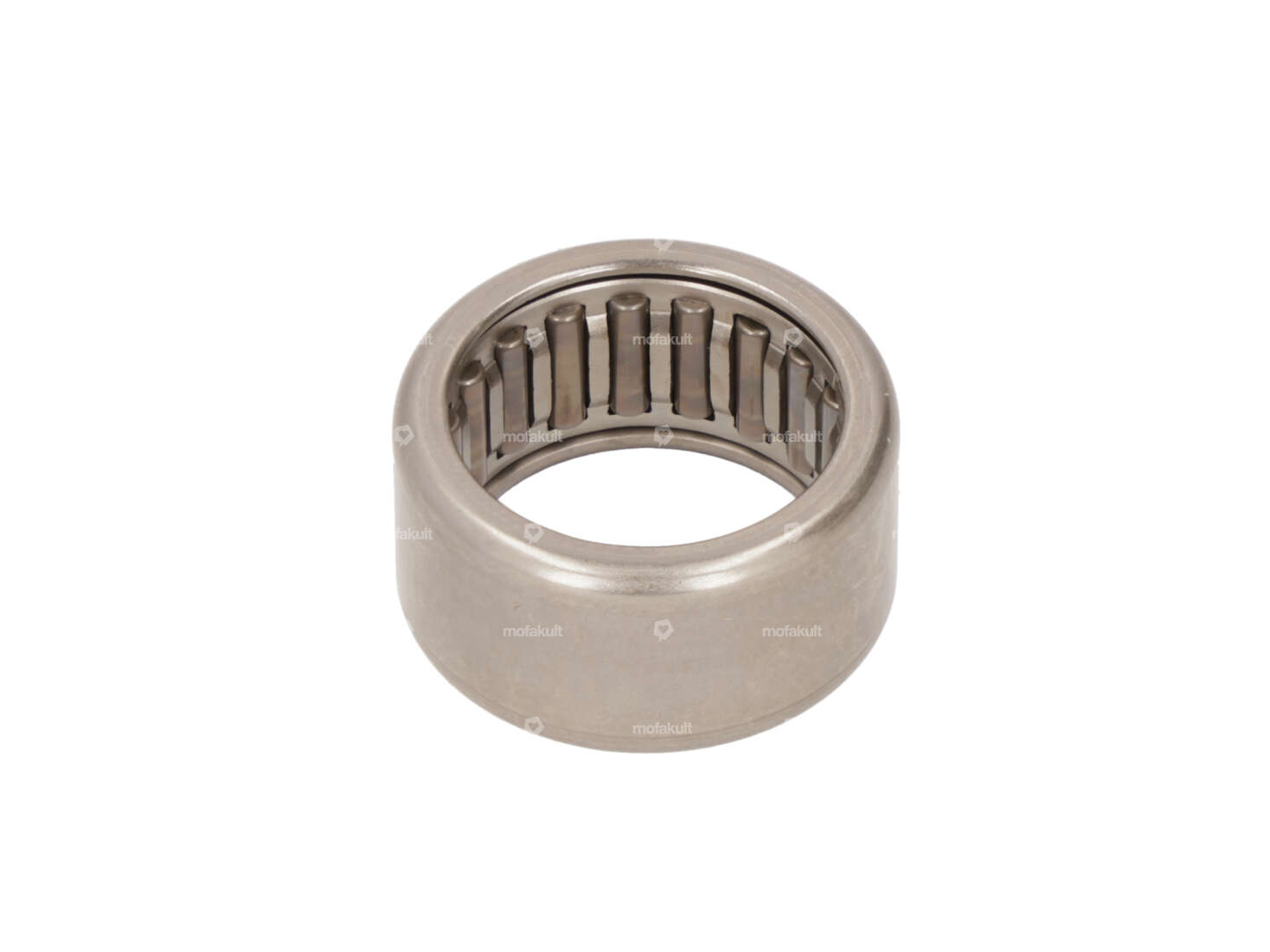

HK 1712 needle bearing race for the pully input shaft in the mono gearbox on your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The needle bearing race, which is open on the back, is installed in the gearbox cover.
Other needle bearing bushes can be found under accessories.
Quality product of the INA brand, a subsidiary of the world's leading ball bearing manufacturer SKF.
Original Piaggio spare part number: 103696
| Bearing cage | Sheet steel cage |
| Manufacturer | INA |
| Stock number | HK1712 |
| Bearing type | Needle sleeve |
| Ø inside | 17 mm |
| Ø outside | 23 mm |
| Width | 12 mm |
| Dimension needle bearing | 17/23 x 12 |
| Piaggio OEM number | 103696 |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
