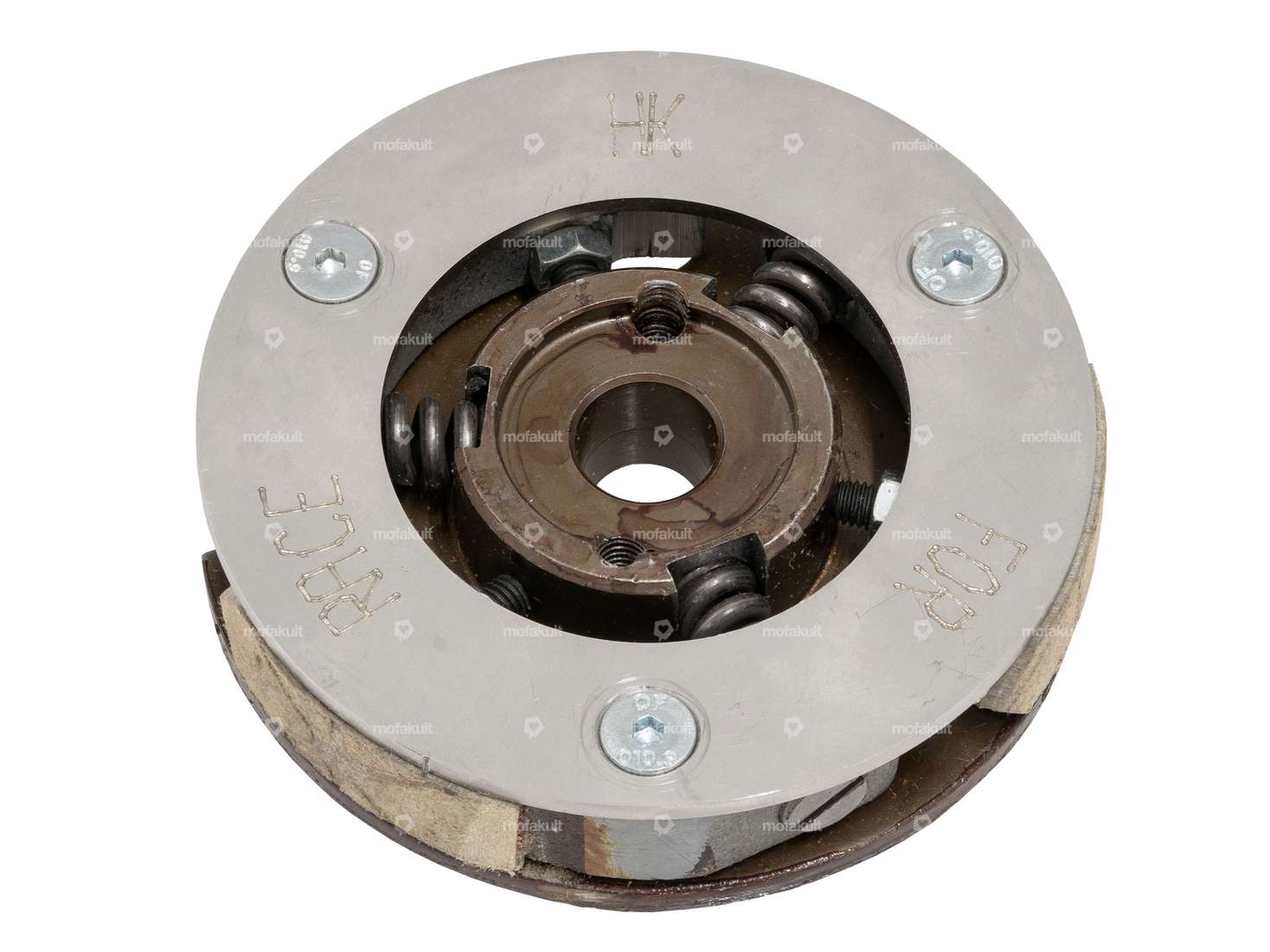

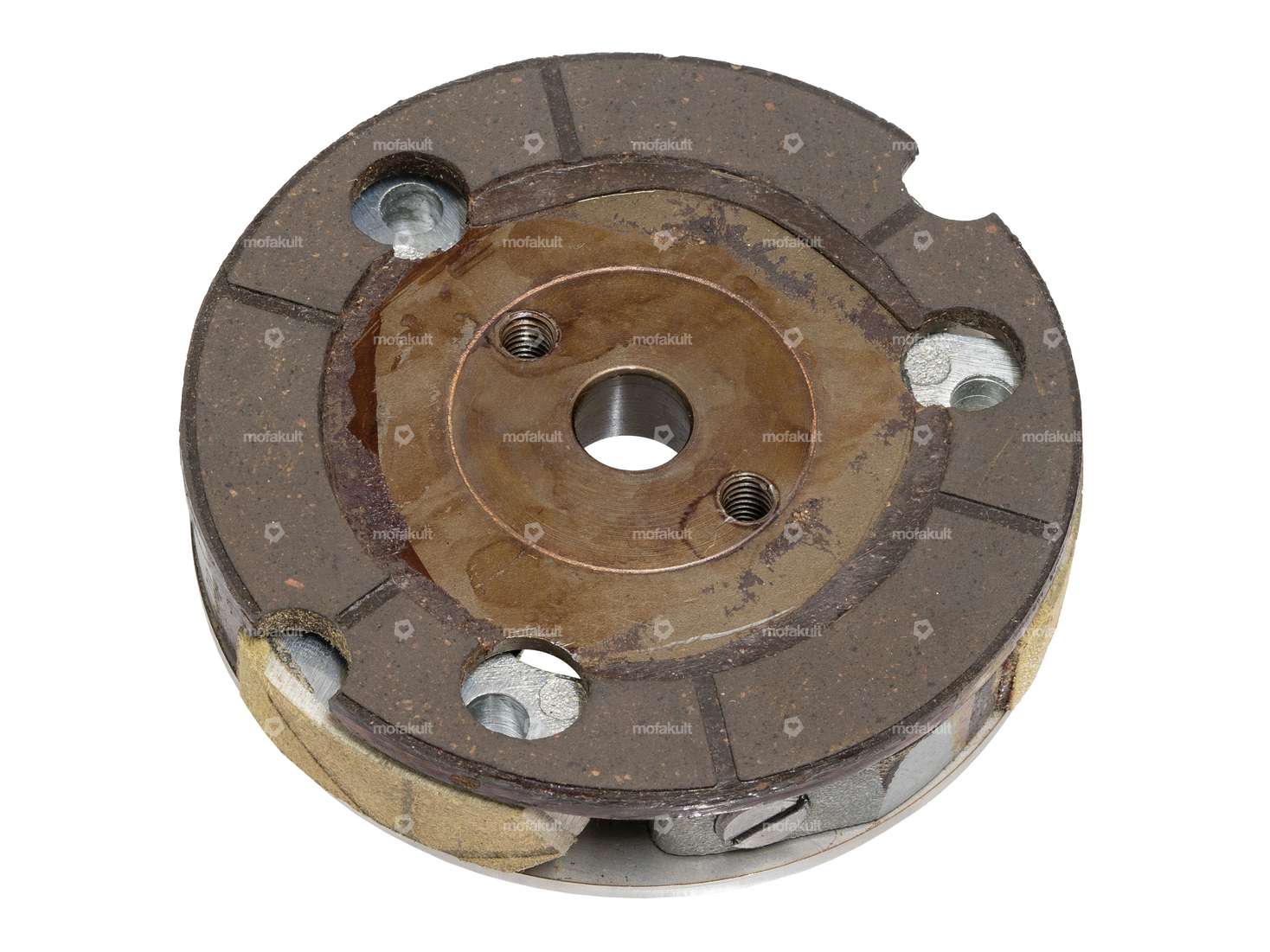

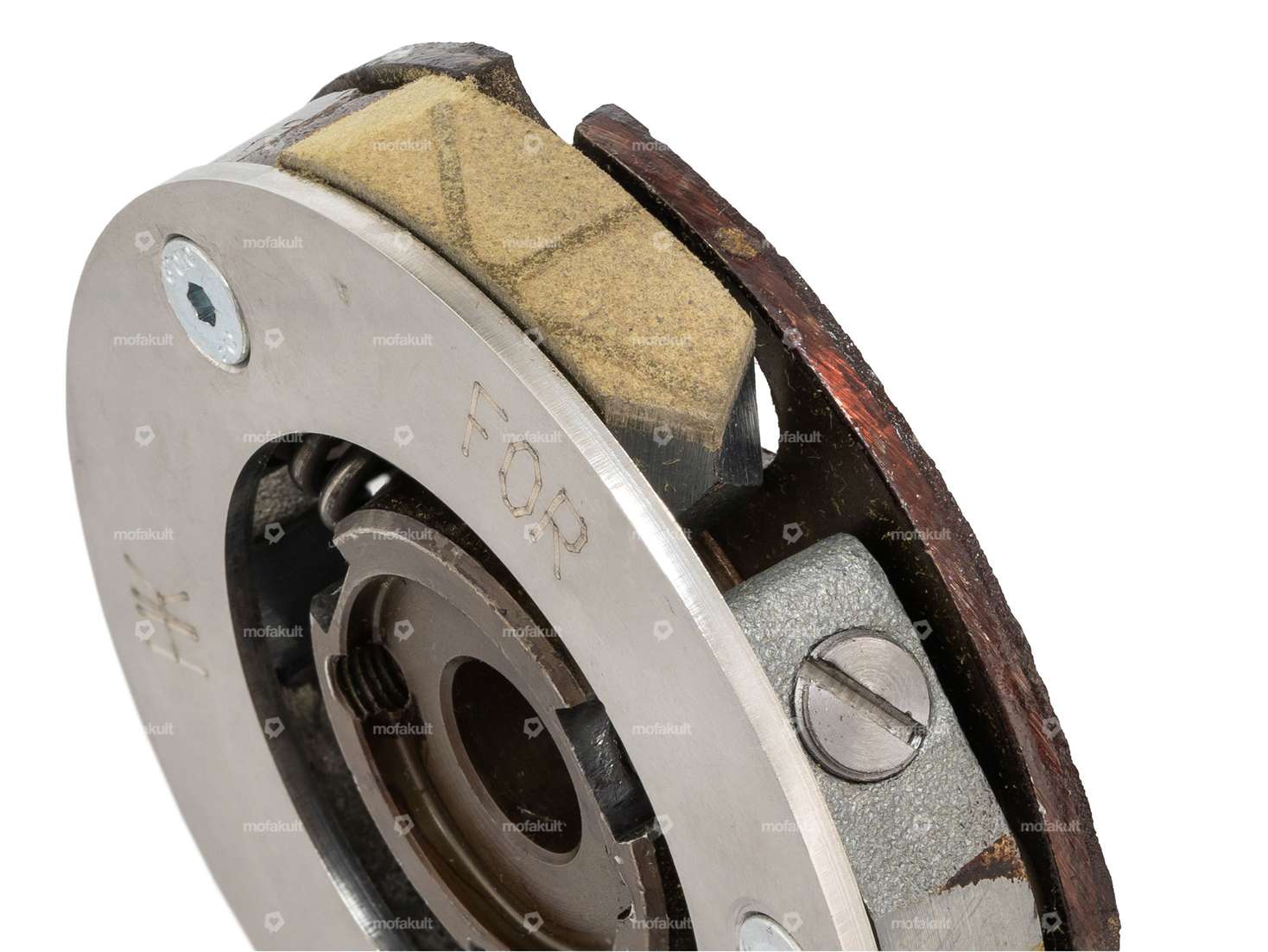

HK clutch "Racing" Aramid | Puch E50

Tank sticker "PUCH maxi S" 204 x 29 | Puch Maxi S

Material: Polyvinyl chloride (PVC) · Color: Chrome · Color: black · Color: green · Color: white · Width: 204 mm · Height: 29 mm · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Place of use: Tank (+ frame) · Border: Chrome surround · Puch OEM number: 349.2.20.537.0

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

PVL ignition coil analog 105458 / 458115

Manufacturer: PVL · Color: black · Place of use: External (outside the ignition) · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning · Ø mounting hole: 6 mm · Number of fixing points: 2 pcs · Mounting type: Screws

PVL stator "1443" ignition

Manufacturer: PVL · Material: Aluminum · Color: black · Number of cables: 2 pcs · Area of application: High End · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Number of fixing points: 3 pcs

MBR spur gear 94 teeth "Racing" straight | Puch E50

Ø outside: 145 mm · Manufacturer: MBR · Material: Steel · Surface: hardened & ground · Toothing type: straight toothed · Number of teeth: 94 pcs · Recording type: Interlocking · Ø axle: 17 mm

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Ø inside: 106 mm · Ø outside: 116 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 1 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Weight: 968 g · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
