For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables uniform load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, the result is an internal thread that can be used on both sides.

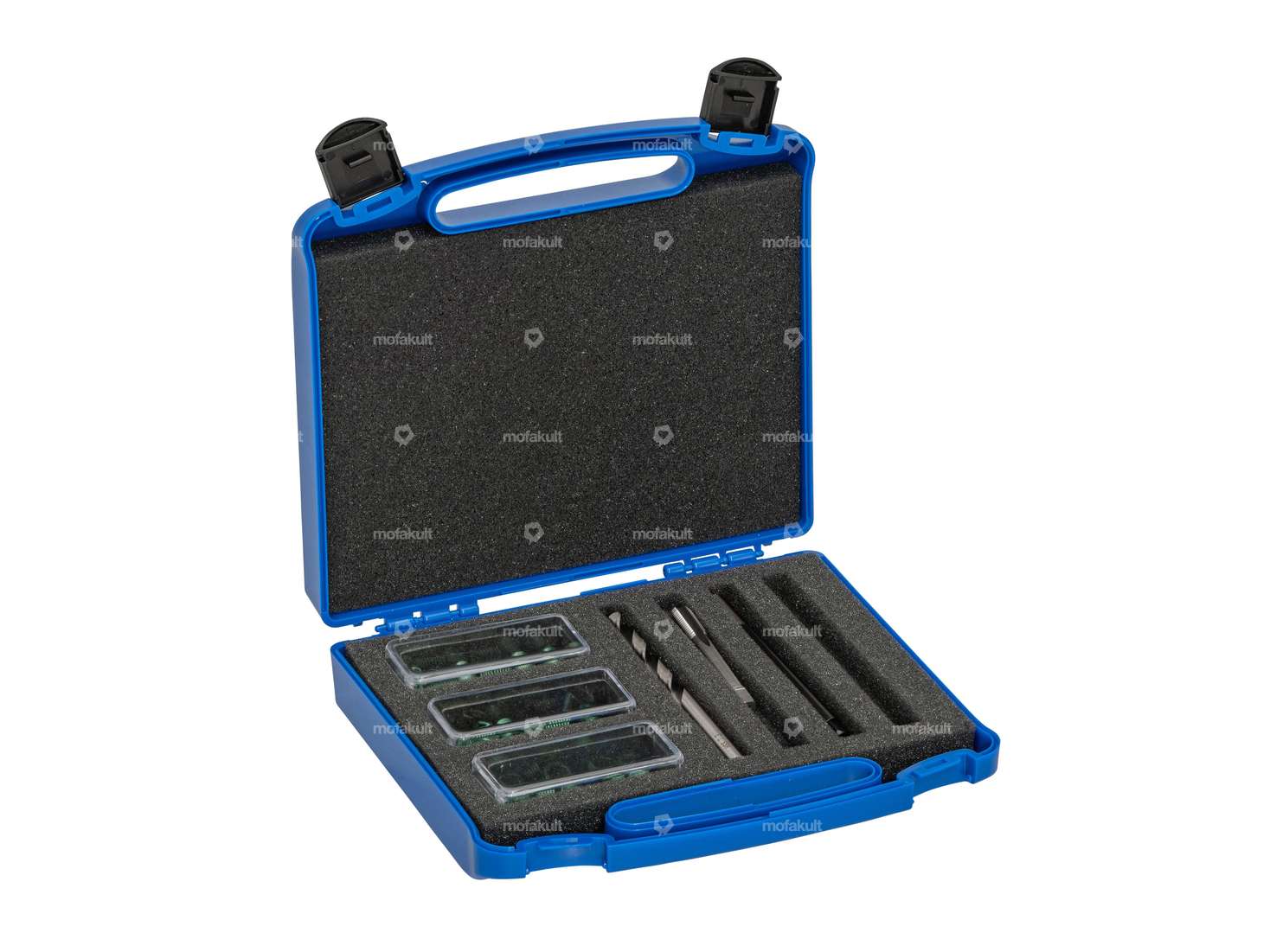

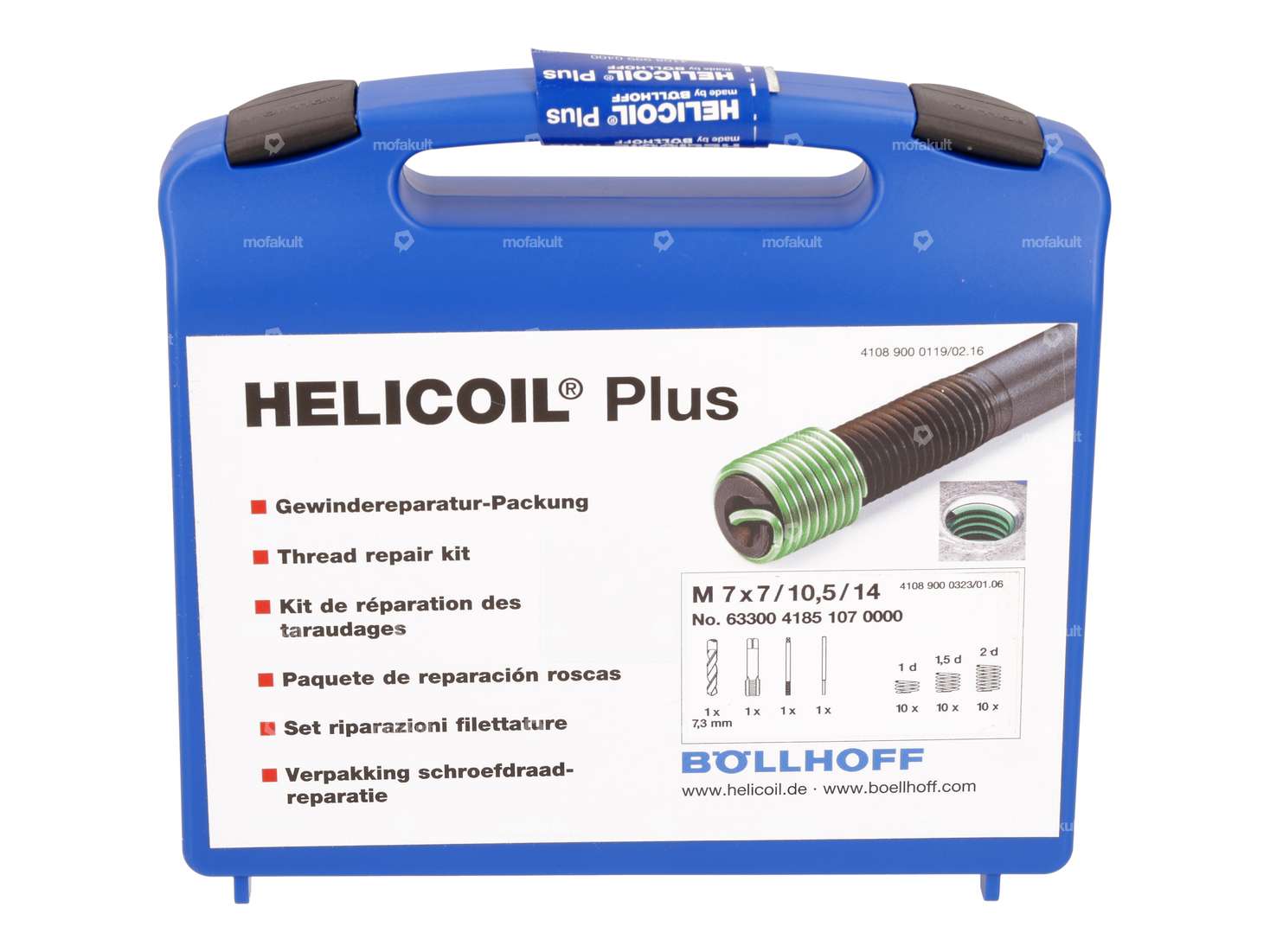

Complete repair kit for M7x1 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker.

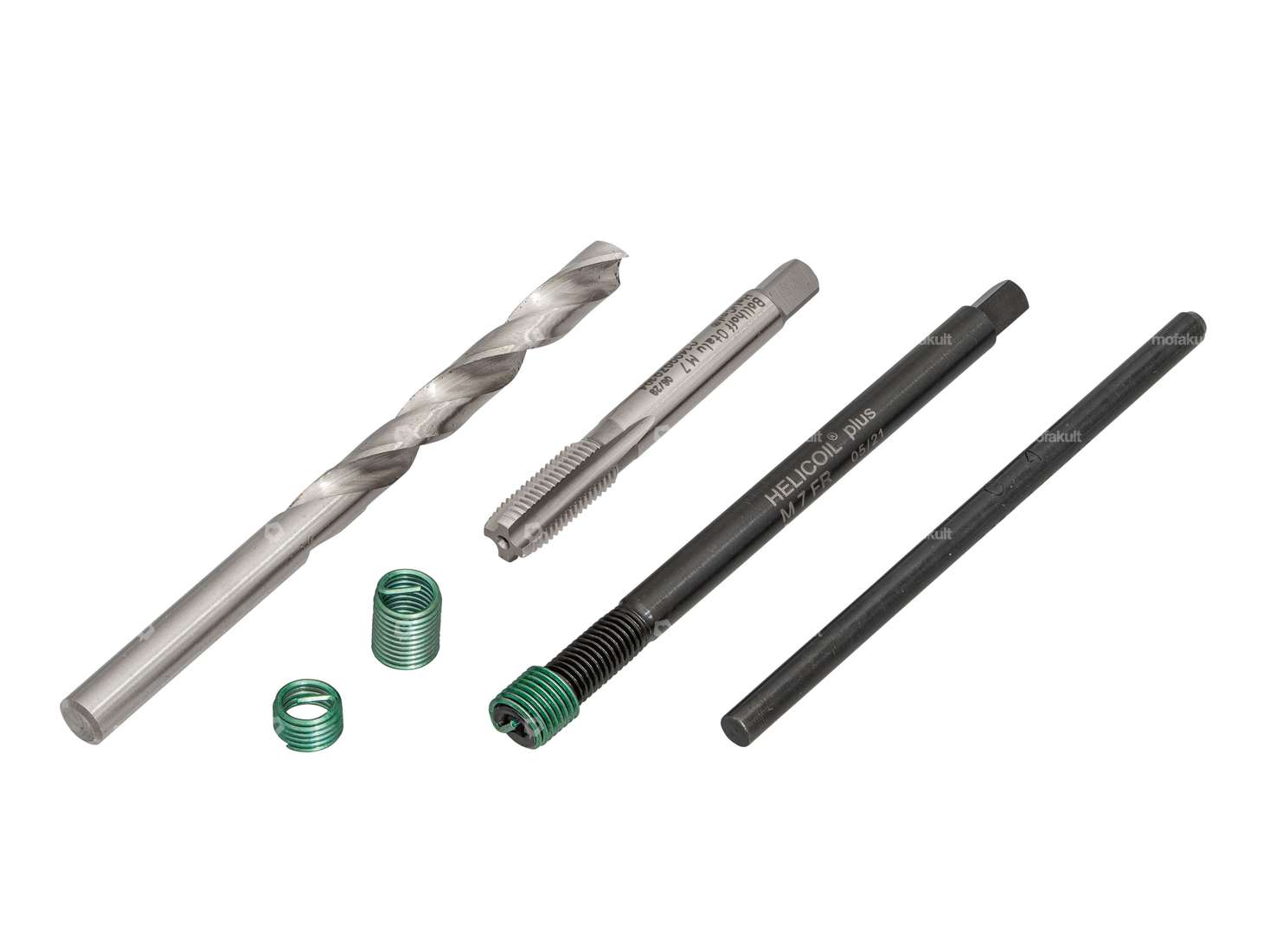

Scope of delivery
- 1 pc. twist drill
- 1 pc. Thread cutter
- 1 pc. Installation tool
- 1 pc. Tang breaker
- 10 pcs. HeliCoil thread insert (1D / 7 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 10.5 mm)
- 10 pcs. HeliCoil thread insert (2D / 14 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Manufacturer | HeliCoil |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Workshop accessories |
| Thread type | M7x1 (standard thread) |
| Nominal diameter (thread) | 7 mm |
| Dimension thread insert | 1D, 1.5D, 2D |
| Total length | 7 mm, 10.5 mm, 14 mm |
| Number of components | 34 pcs |
| Storage method | Plastic box |
Ratings
Accessories & related products
HeliCoil thread repair case M5 - M12 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Number of components: 300 pcs · Storage method: Suitcase · Storage box dimension [mm]: 420 x 345 x 120 mm
EUR 406.40
HeliCoil thread repair case M2.5 - M6 (professional tool)
Storage method: Suitcase · Manufacturer: HeliCoil · Storage box dimension [mm]: 420 x 345 x 125 mm · Material: Chrome steel (colloquially known as stainless steel) · Nominal diameter (thread): 2.5 mm · Nominal diameter (thread): 3 mm · Nominal diameter (thread): 4 mm · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Number of components: 300 pcs · Thread type: M2.5x0.45 (standard thread) · Thread type: M3x0.5 (standard thread) · Thread type: M4x0.7 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Area of application: Workshop accessories
EUR 406.40
HeliCoil thread repair set M8 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Surface: coated · Area of application: Workshop accessories · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.4 mm · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 30 pcs · Storage method: Suitcase · Storage box dimension [mm]: 180 x 165 x 45 mm
EUR 95.50
HeliCoil thread repair set M8x1 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Workshop accessories · Thread type: MF8x1 (fine pitch thread) · Nominal diameter (thread): 8 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 8.3 mm · Total length: 8 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 30 pcs · Storage method: Suitcase · Storage box dimension [mm]: 180 x 165 x 45 mm
EUR 119.50

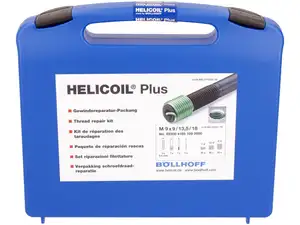

HeliCoil thread repair set M9x1.25
