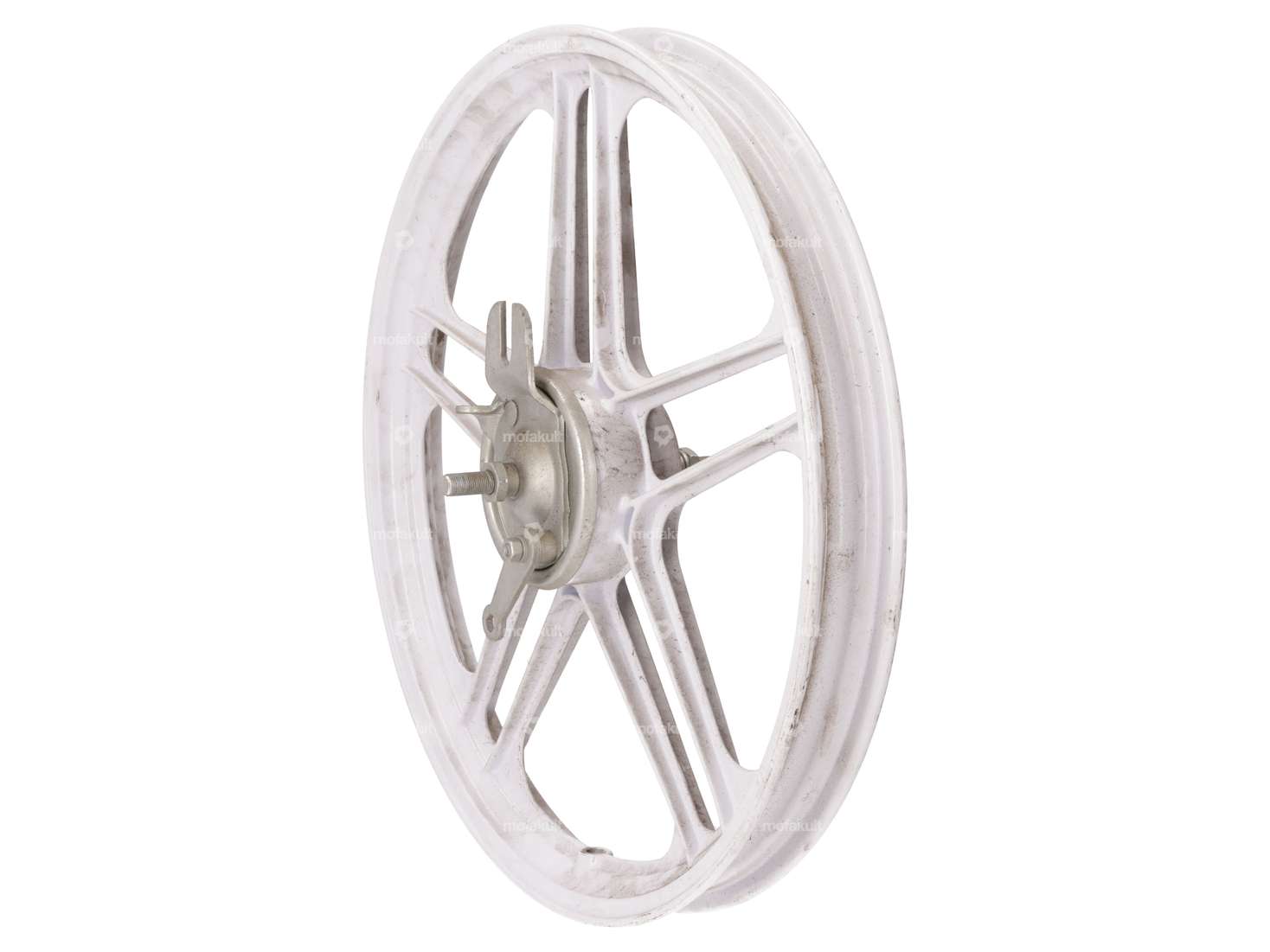

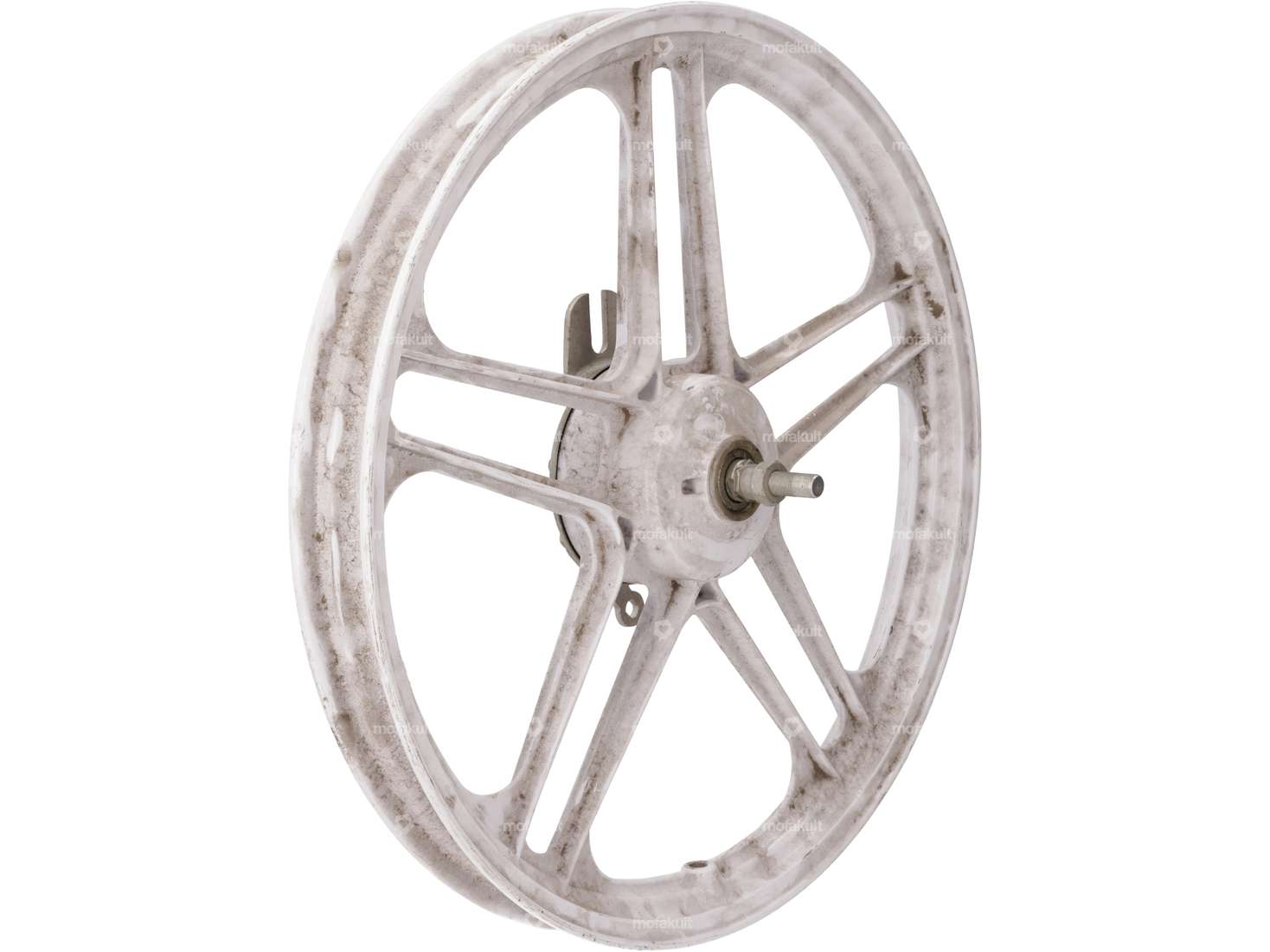

16 x 1.35" 5/10-star cast rim suitable for various mopeds / mopeds.
The front wheel rim is supplied ready for installation including matching brake plate and mounted axle.
Ø outside: 425 mm

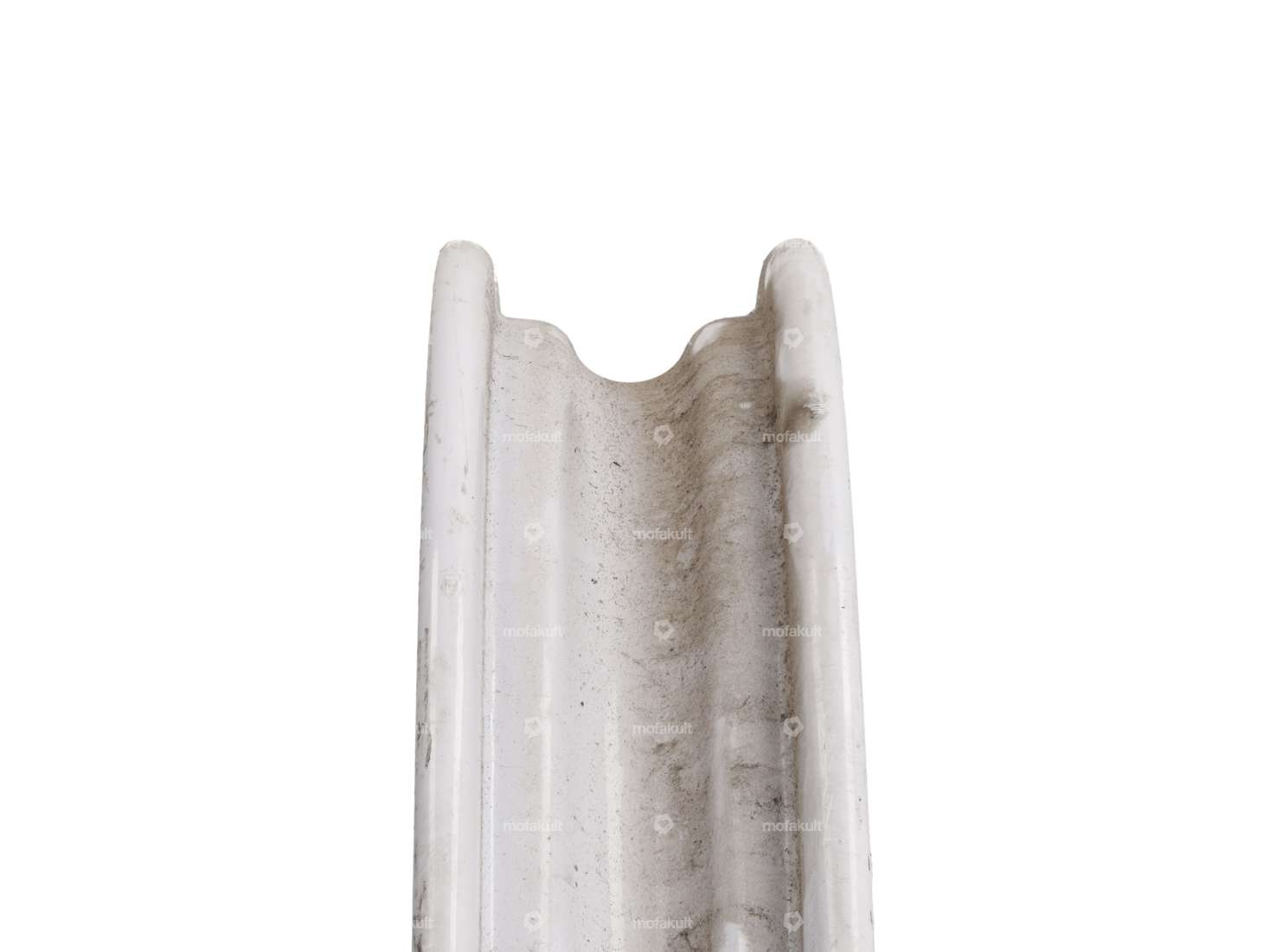

Rim width outside: 49 mm
Rim width inside: 34.29 mm (1.35”)
Ø Brake drum: 90 mm
Ø Axle: 11 mm
Axle width (mounting distance nut-to-nut): 120 mm
Brake pivot slot width: 10.5 mm
Thread length left/right: 22 mm each
Note: The product may show traces of dirt and slight damage due to age and storage, but this does not affect its function in any way.
Matching tires, additional mounting material and hoses can be found in the accessories section.
Quality product from the Italian manufacturer Grimeca.
Manufacturer | Grimeca |
