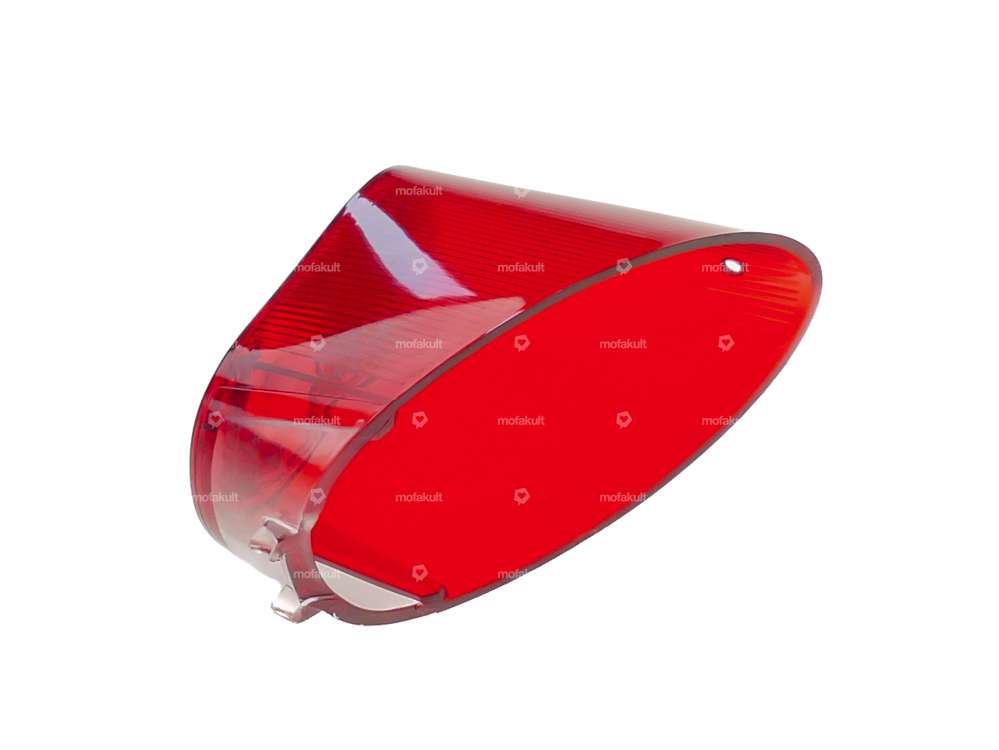

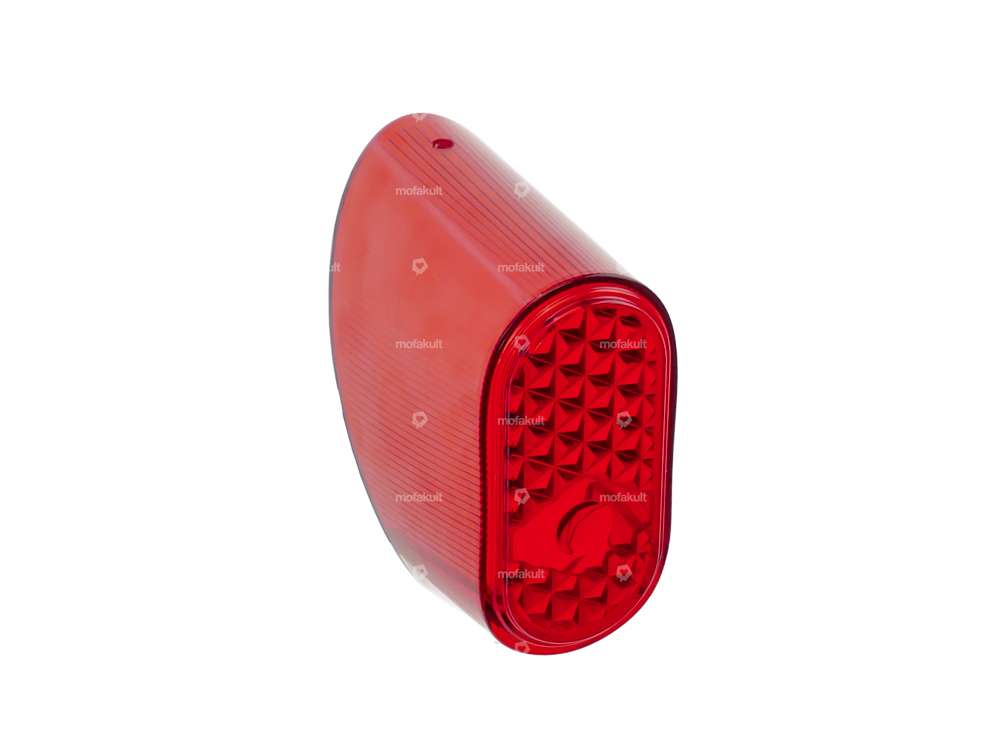

GPO rear light lens ULO

GPO tail light ULO | Puch Maxi N, S old version

Manufacturer: GPO · Material: Plastic · Test mark: none · Tension: 6 V · Ø Receptacle: 4 mm · Bulb holder: BA15s · Color: black · Color: red · Depth: 80 mm · Width: 60 mm · Height: 110 mm · Brake light: No · Battery operated: No · Reflectors: Yes · Number of fixing points: 2 pcs · Mounting type: Nuts & bolts

Magura cable clamp Ø 8 x 15 mm

Material: Brass · Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Drive: External hexagon · Thread type: M6x1 (standard thread) · Drive: Slot · Ø Cable bushing: 2.3 mm · Screw head: Hexagon · Ø Bundle: 6 mm · Total length: 15 mm · Ø outside: 8 mm · Thread length: 7 mm · Width across flats SW: 7 mm · Area of application: Standard

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Color: silver · Ø inside: 26.8 mm · Ø outside: 41 mm

GPO sprocket 13 teeth (wide) | Puch

Manufacturer: GPO · Surface: Hardened · Material: Steel · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Recording type: Interlocking · Number of teeth: 13 pcs · Total thickness: 4.6 mm · Ø inside: 13.7 mm · Ø inside: 16.9 mm

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Number of components: 1 pcs · Nipple length: 5 mm · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Material: Brass · Manufacturer: Magura · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Thread type: M4x0.7 (standard thread) · Drive: Slot · Ø Cable bushing: 1.6 mm · Screw head: Lens head · Total length: 6 mm · Ø outside: 5 mm · Thread length: 4 mm

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Tire height [%]: 100 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 " · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve

Leonelli 6V voltage regulator (1A quality)

Material: Aluminum · Manufacturer: Leonelli · Material: Plastic · Tension: 6 V · Performance: 50 W · Type of current: Alternating current (AC) · Ø mounting hole: 6 mm · Total length: 50 mm · Width: 27 mm · Height: 15 mm · Mounting type: Screws

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom | Puch Maxi S, N

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut · Puch OEM number: 349.3.22.030.0 · Puch OEM number: 349.4.22.030.0
