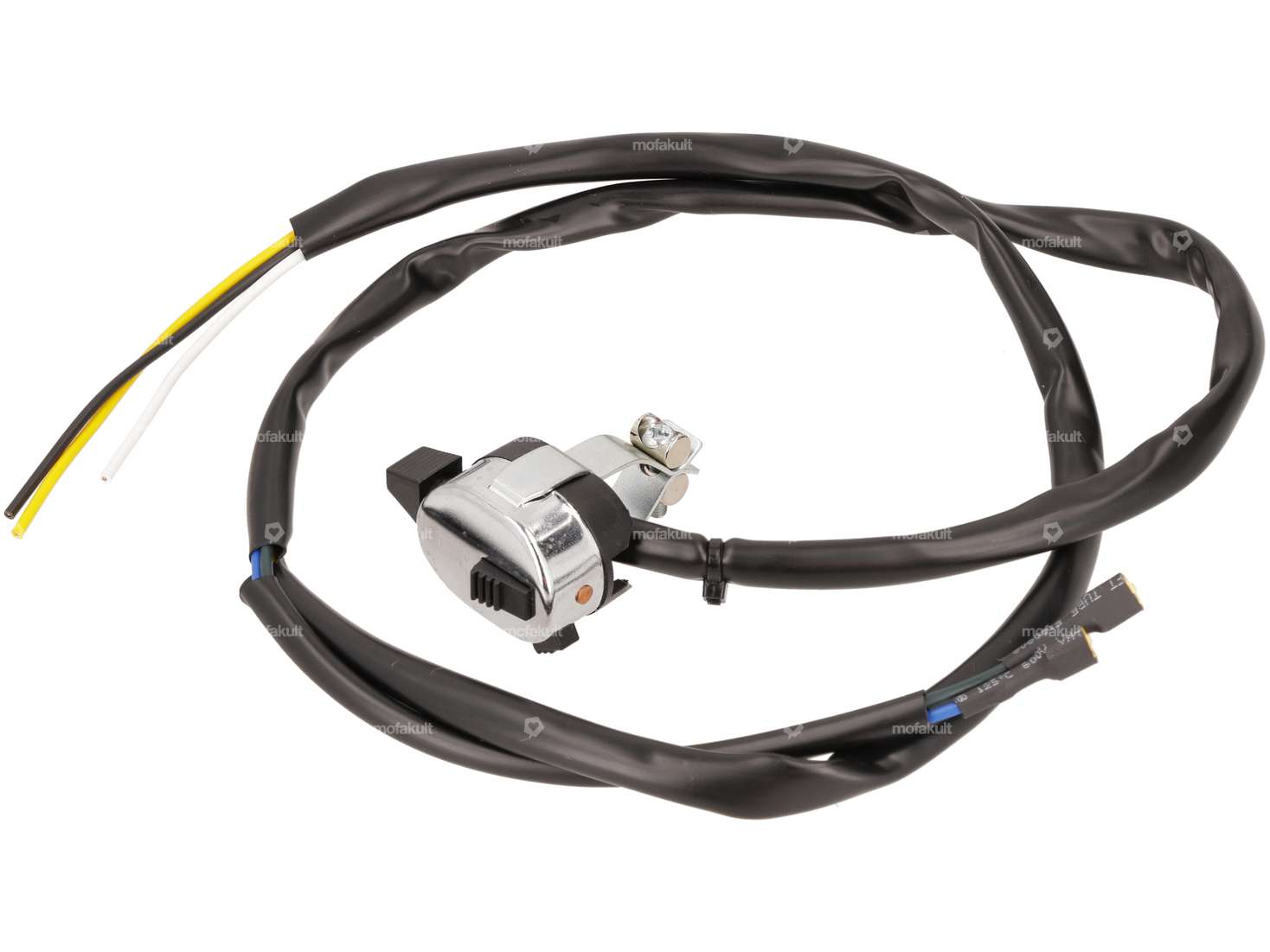

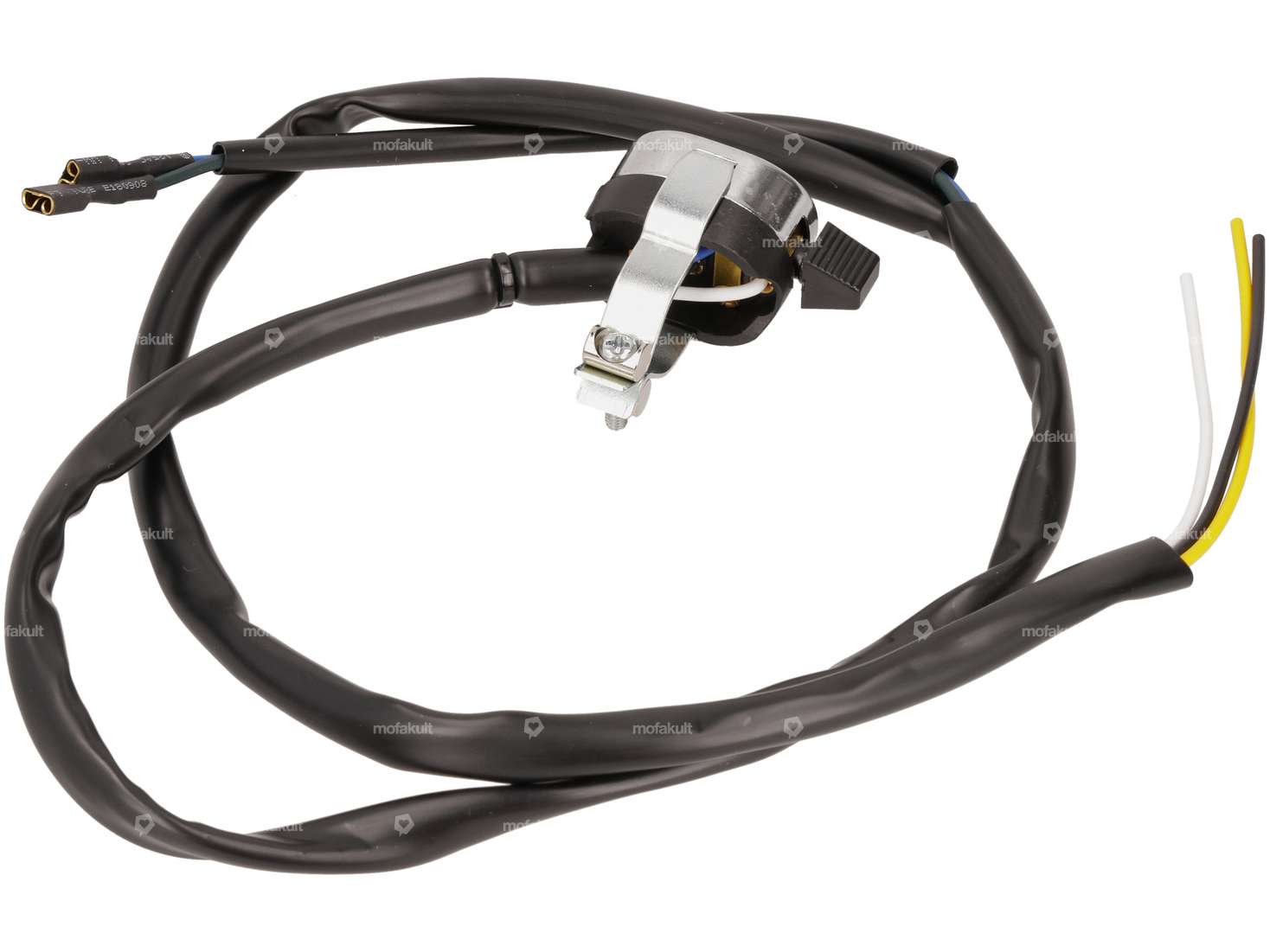

Light switch with wiring harness.
Cable lengths:
Cable fork to switch = 40 cm
Cable fork to lamp = 18 cm
Cable fork to end for motor = 50 cm

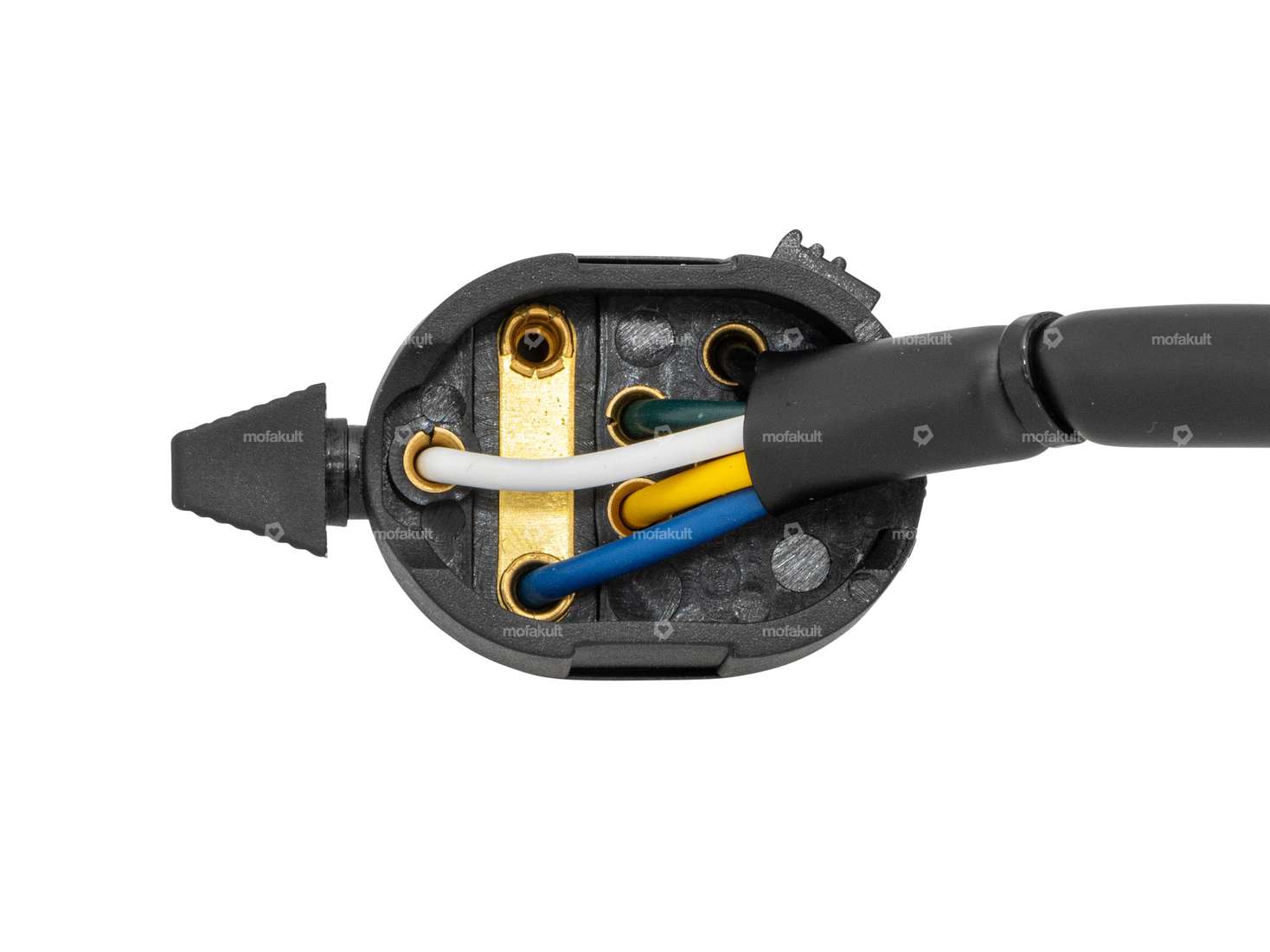

Please briefly check the cable clamps in the switch before installation. It can happen that individual cable clamps are not sufficiently tightened and are mixed up.
The correct connection type can be found in picture 4.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Total length | 50 mm |
| Width | 30 mm |
| Manufacturer | GPO |
| Material | Plastic |
| Housing material | Steel |
| Surface | chrome-plated |
| Substructure material | Steel |
| Color | Chrome |
| Functions | Light off, High beam (headlights), Low beam, Horn, Motor stop |
| Number of cables | 5 pcs |
| Number of positions | 3 pcs |
| Cable bifurcation to motor | 970 mm |
| Cable length | 970 mm |
| Cable bifurcation to lamp | 180 mm |
| Cable bifurcation to switch | 420 mm |
| Height | 25 mm |
| Ø Handlebars | 22 mm |
