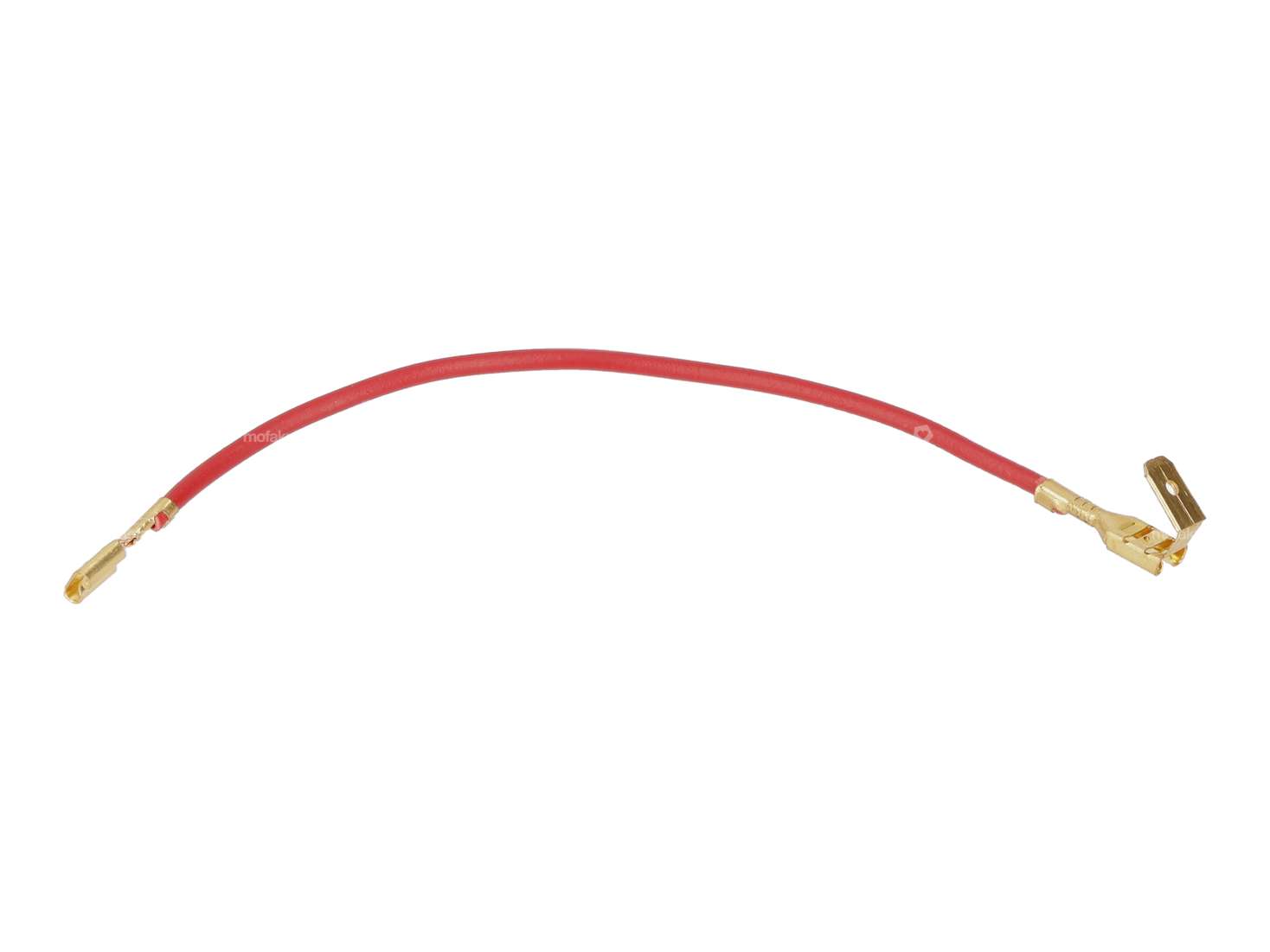

Simple Y-branch to connect a horn to the wiring harness of your Piaggio Ciao, Si, Bravo and Boxer mopeds/mopeds
.Thanks to the jumper cable, you don't have to cut up your original wiring harness or patch it up with solder clamps and other connectors. Simply connect the red cable lugs to the flat connector of the wiring harness on your headlight and plug the other side into one of the horn connections. The second, long gray cable is plugged into the other free slot of the horn and the opposite side is connected to the horn button to switch on the horn via the ground connection.
The black alternative, complete cable harnesses (without adapter), horns and horn holders can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Cable cross-section | 0.75 mm² |
| Manufacturer | GPO |
| Number of cables | 2 pcs |
| Switch included | No |
| Cable bifurcation to lamp | 130 mm |
| Cable bifurcation to switch | 700 mm |
| Piaggio | Ciao - P , SC , PX , C24 |
Accessories & related products
Horn 6V 15W (AC - alternating current) | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Made in Italy · Material: Steel · Surface: galvanized (blue) · Tension: 6 V · Color: silver · Mounting type: Screws · Type of current: Alternating current (AC) · Number of fixing points: 6 pcs · Ø outside: 73.8 mm · Ø screw holder: 2.8 mm · Height: 41.2 mm · Ø bolt circle: 65 mm · Total length: 41.2 mm · Piaggio OEM number: 93870
EUR 30.60
Button horn black | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Made in Italy · Material: Plastic · Housing material: Plastic · Color: black · Functions: Horn · Number of positions: 2 pcs · Number of cables: 1 pcs · Piaggio OEM number: 122364 · Piaggio OEM number: 243558 · Piaggio OEM number: 243564 · Piaggio OEM number: 293866
EUR 15.90

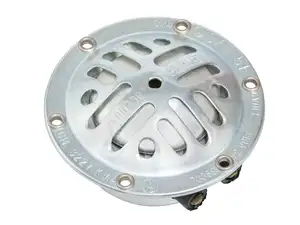

Horn 6V - 12V (AC - alternating current) NOS | Piaggio SI PTT
Manufacturer: Piaggio · Material: Sheet metal (steel) · Surface: galvanized (blue) · Color: silver · Tension: 6 V · Tension: 12 V · Type of current: Alternating current (AC) · Ø outside: 52 mm · Ø outside: 72.5 mm · Ø bolt circle: 65 mm · Ø screw holder: 3.2 mm · Total length: 40 mm · Height: 40 mm · Mounting type: Screws · Number of fixing points: 6 pcs
EUR 55.30
Horn holder | Piaggio Ciao
Material: Sheet metal (steel) · Surface: galvanized (blue) · Color: silver · Mounting type: Plug connection clamped · Number of fixing points: 1 pcs · Ø outside: 74 mm · Ø screw holder: 2.4 mm · Ø screw holder: 2.8 mm · Height: 62.8 mm · Width: 69.5 mm · Ø bolt circle: 65 mm · Total length: 75.8 mm
EUR 18.30
