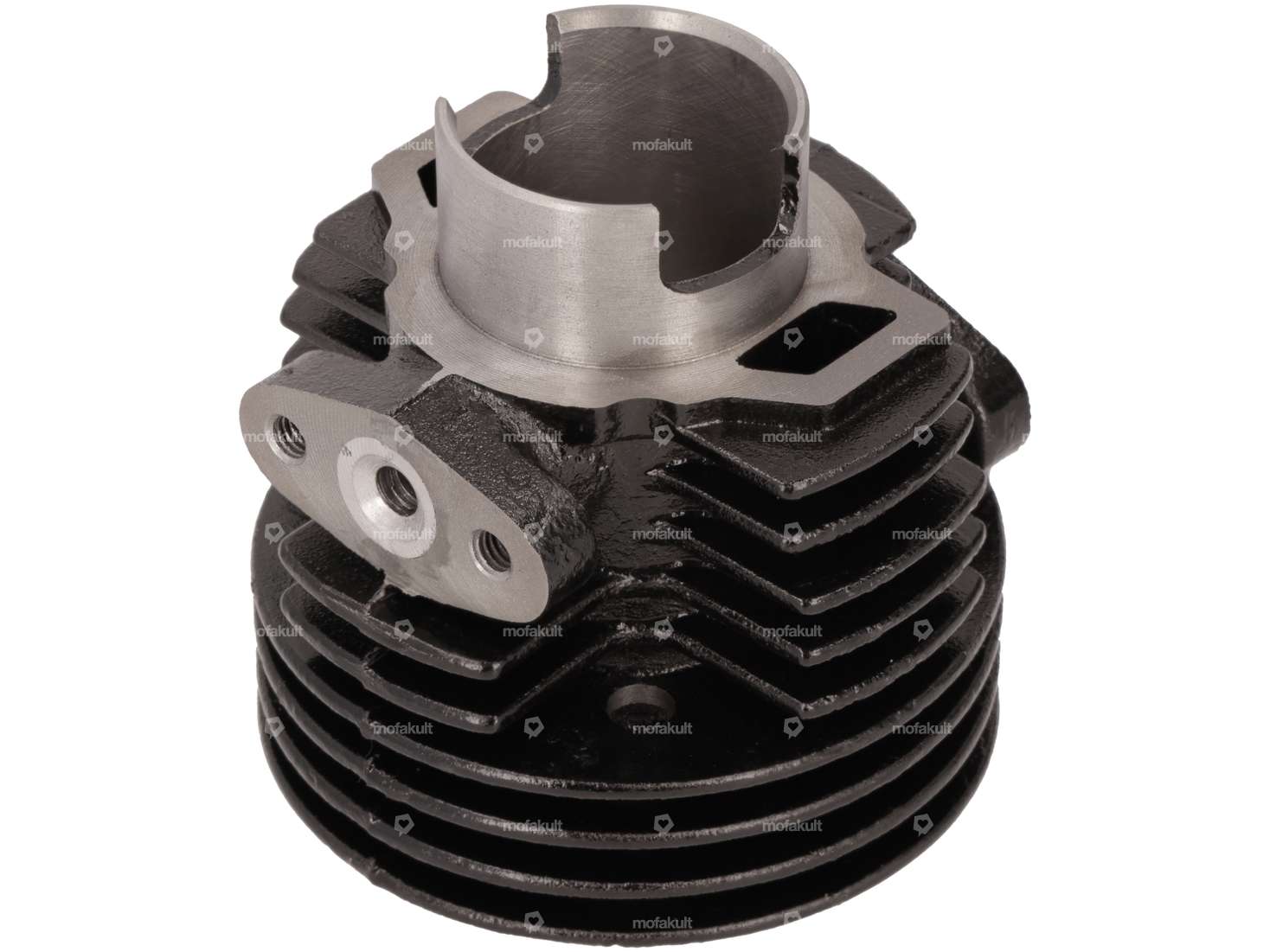

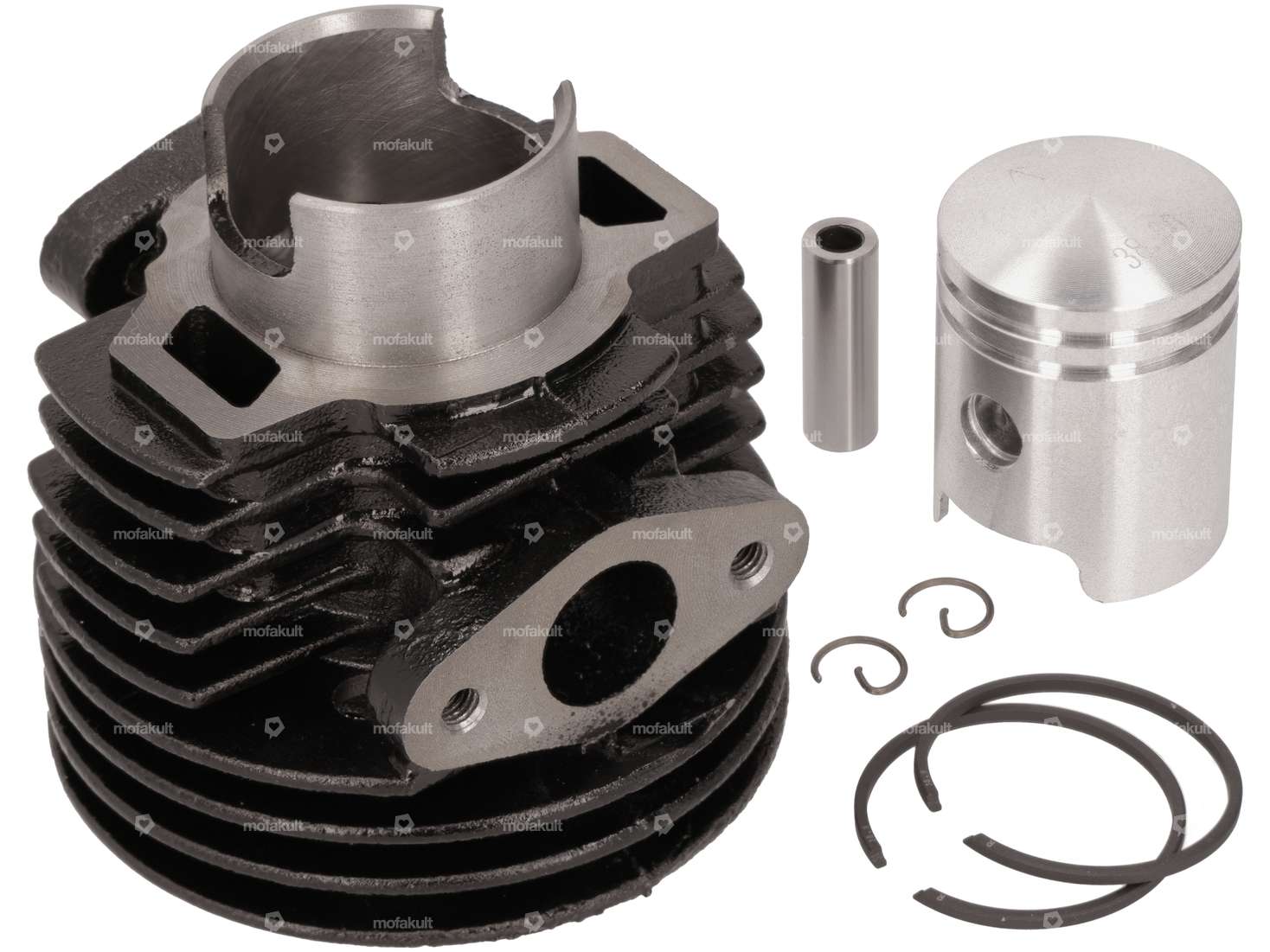

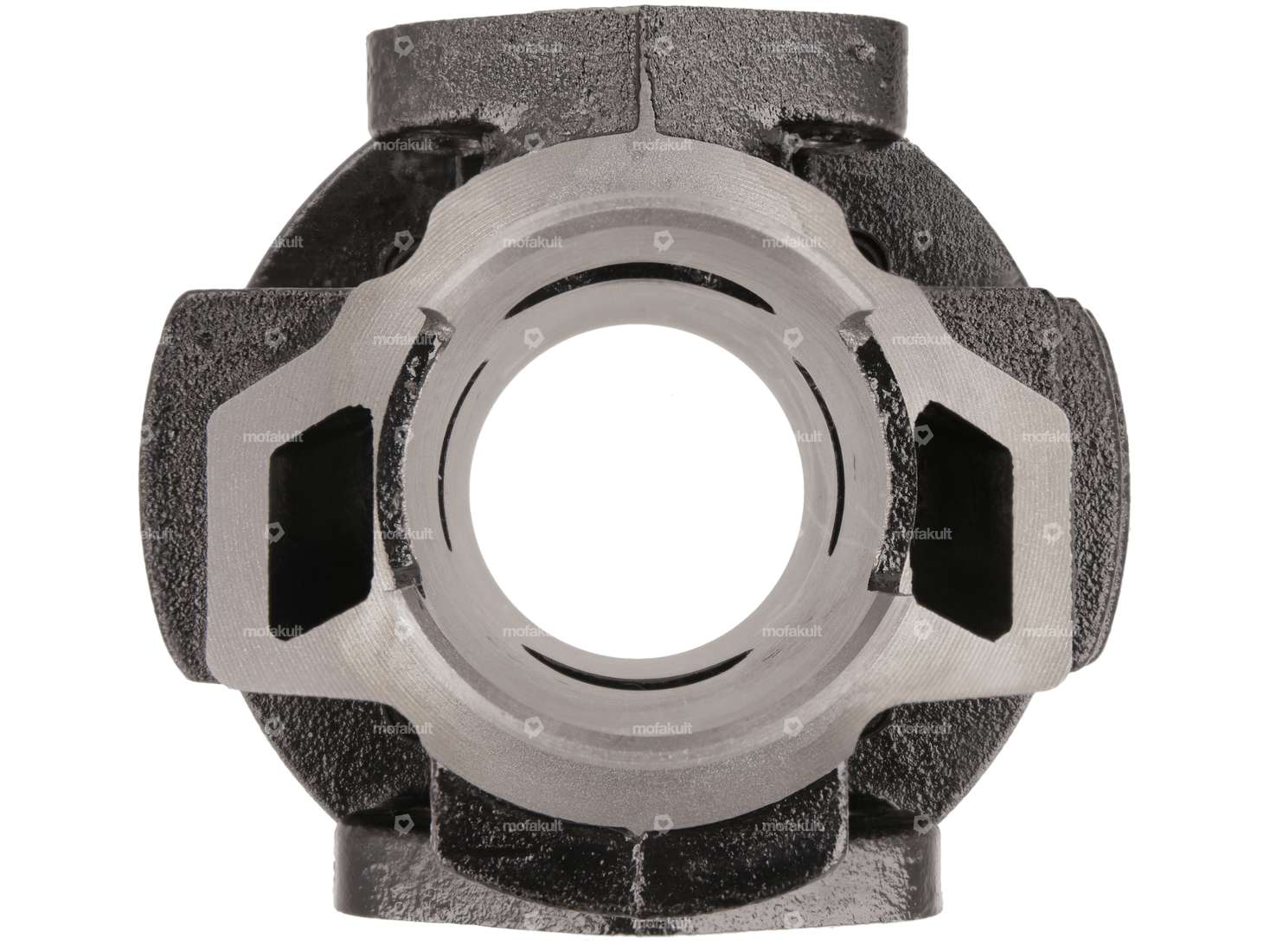

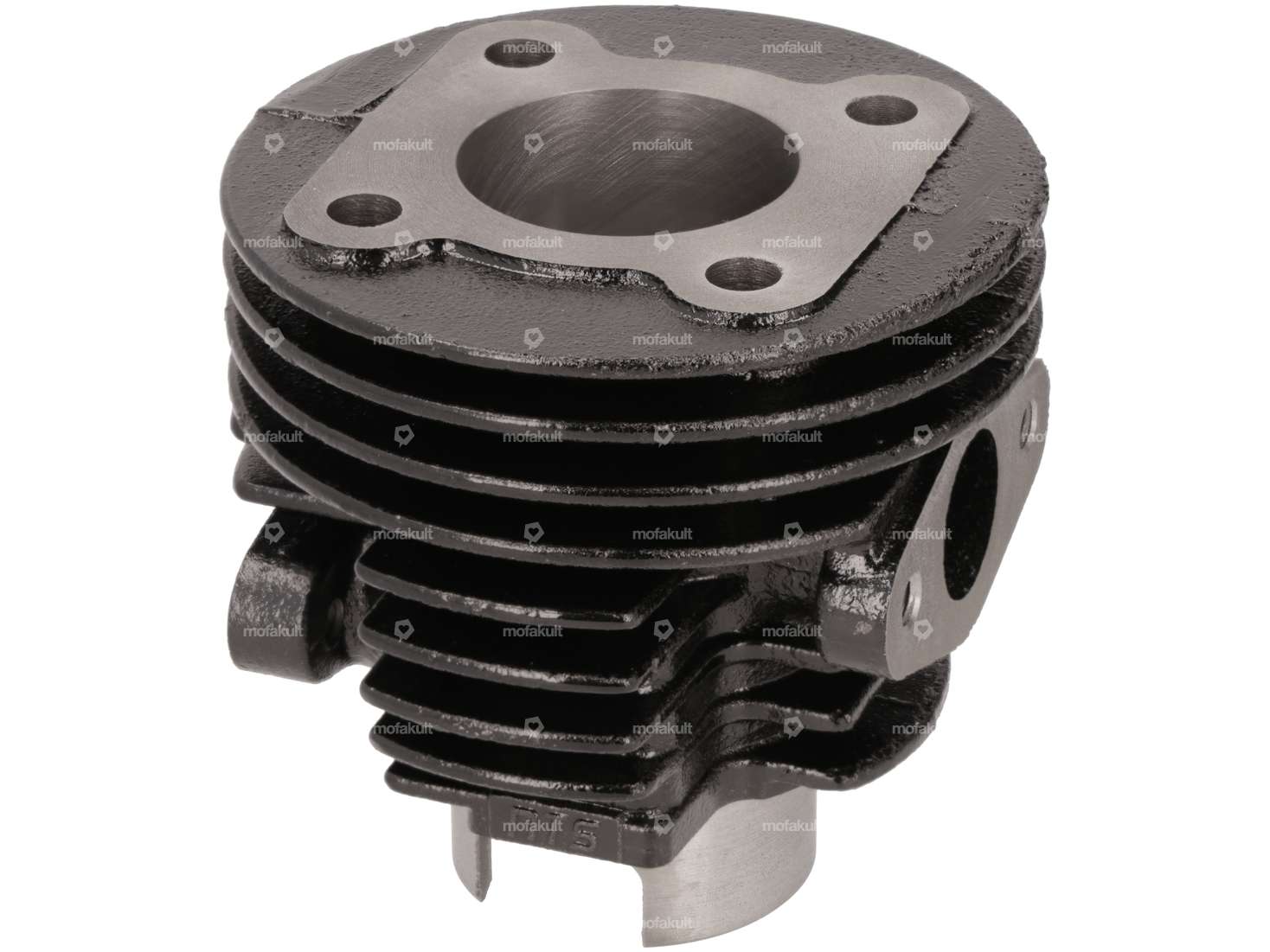

Expanded 38 mm cylinder kit with 10 mm piston pin. This reproduction cylinder is provided with a seal, which is why it can be used as an original cylinder.
Fits Puch X30 Velux and Puch X30 NG-2AH mopeds.
Attention: On Velux engines, the small slot at the sealing surface to the cylinder must be filled to ensure that the cylinder kit is tight.
The Wekem 2K liquid metal, which can be found in the accessories, is recommended for this purpose.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 10 mm · Compression height (C): 22.3 mm · Curvature (D): 3.6 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 73 g
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Thread inlet: M6x1 (standard thread) · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
| Nominal diameter | 38 mm |
| Manufacturer | GPO |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 32 mm |
| Area of application | Standard |
| Ø piston pin (B) | 10 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | No |
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products

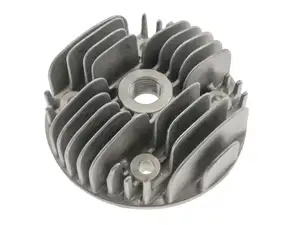

38 mm cylinder head, fan-cooled | Puch X30 NG-2AH, NG-2A, N-2A, DS, MV
Material: Aluminum · Area of application: Standard · Ø cylinder: 38 mm · Ø outside: 90 mm · Ø screw holder: 6.4 mm · Height: 35 mm · Candle thread: short · Hole pattern [mm]: 44 x 44 · Number of fixing points: 4 pcs · Decompressor: No
EUR 49.00
WEKEM 2K liquid metal
Manufacturer: WEKEM · Material to be used: Aluminum · Material to be used: Ceramics · Material to be used: Metal · Material to be used: Steel · Material to be used: Wood · Contents [ml]: 24 ml · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: Toxic to aquatic organisms (with long-term effects) · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Temperature resistance (min.): -20 - 80 °C · Type of application: 2K · Alignment time: 240 sec · Color: gray
EUR 24.40
EUR 488.00/kg
GPO gasket set 38 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
Manufacturer: GPO · Area of application: Standard · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes
EUR 10.90

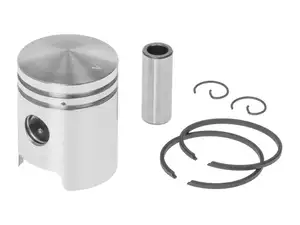

Piston 38 mm (10 mm KoBo) short shirt | Puch fan-cooled
