45.0 mm piston with two 1.5 mm rectangular piston rings with internal circlips (IS) for your moped / moped with blown BAD ASS Lucifer 45.00 mm cylinder on Puch X30 Velux and Puch X30 NG-2AH engines. The piston kit is used for the 45 mm cylinder variant.

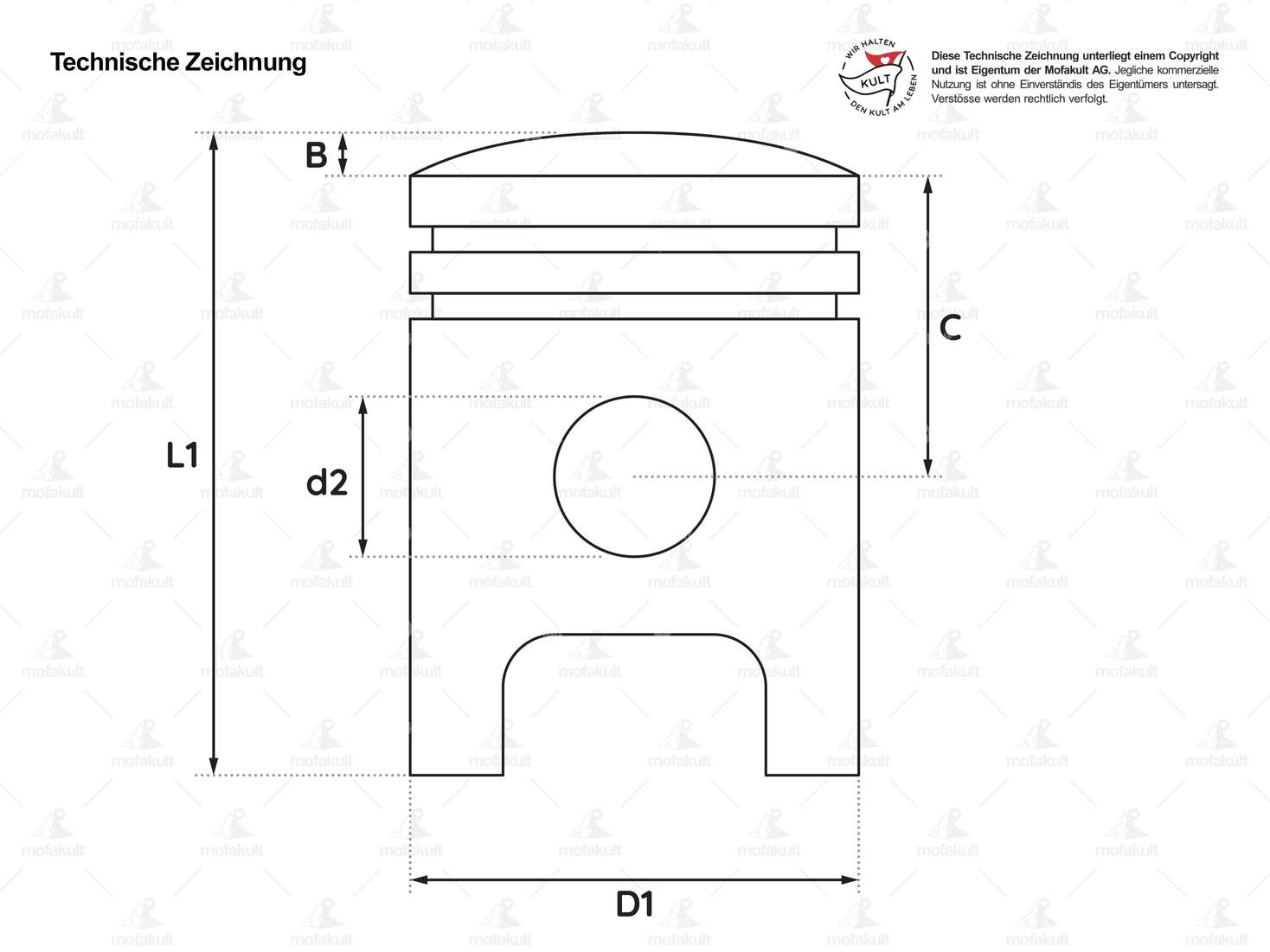

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

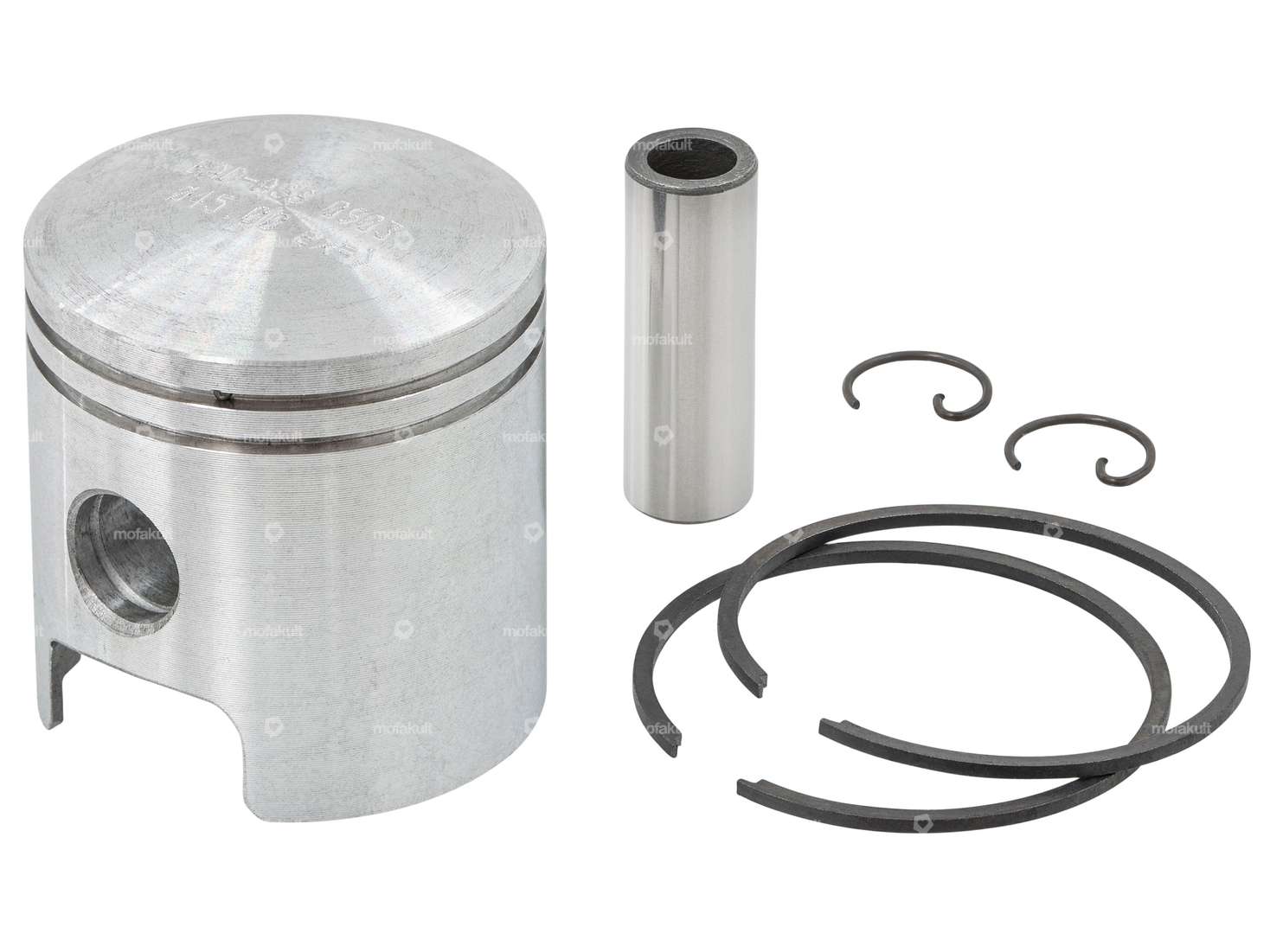

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer GOL.
| Nominal diameter | 45 mm |
| Manufacturer | BAD ASS |
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22.4 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 48.3 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Piston weight | 105 g |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
swiing® ingenious 15 mm carburetor set camouflaged | Puch X30 Velux
Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Nominal diameter: 15 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Area of application: Tuning · Carburetor type: SRE · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Air filter connection: 23 mm · Hole spacing inlet: 32 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 62
EUR 150.70
swiing resonance exhaust set Ø 28 / 70 mm | Puch X30 Velux
Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Total length: 730 mm · Mounting type: Screwed clamp · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Ø outside: 70 mm · Flame tube attachment: Flange
EUR 157.50
EUR 175.20
swiing® revival stud bolt set M6x30 (strength 10.9) galvanized
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Diameter: 6 mm · Strength class: 8 · Width across flats SW: 10 mm · Strength class: 10.9 · Total length: 30 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm
EUR 13.10
BAD ASS Lucifer BigBore cylinder kit Ø 45 mm | Puch X30 Velux, NG-2AH
Manufacturer: BAD ASS · Material: Gray cast iron · Displacement: 70 ccm · Nominal diameter: 45 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Area of application: Tuning
EUR 306.40

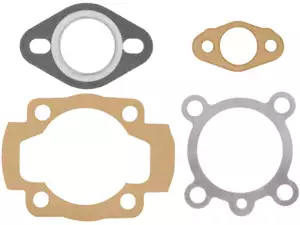

GPO cylinder gasket set BAD ASS Lucifer 45 mm | Puch X30 Velux, NG-2AH
