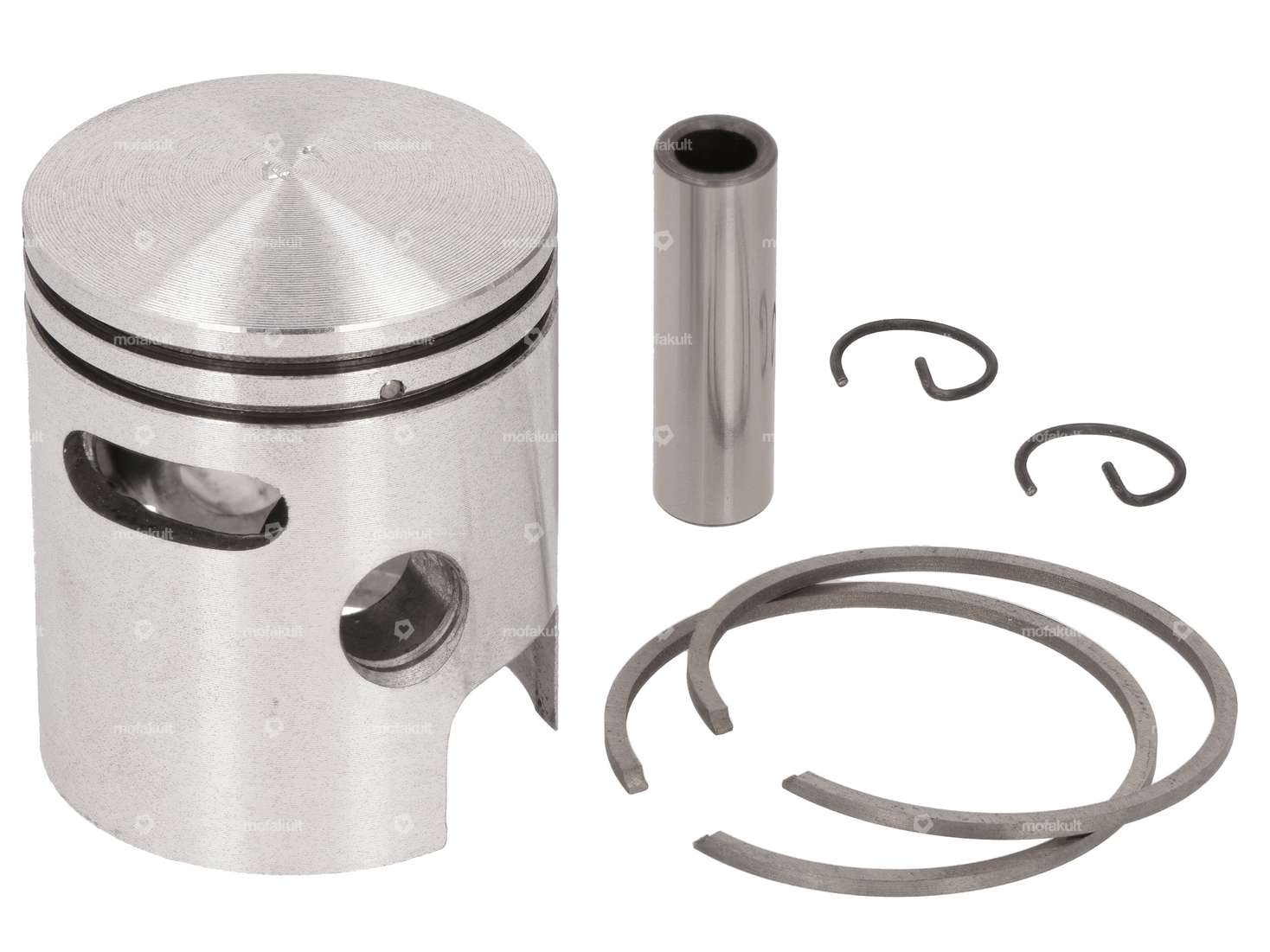

41 mm piston kit with two 1.5 mm rectangular piston rings with side protection (FS) for your Piaggio Ciao, Si, Bravo, Boxer and Grillo moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 41 mm |
| Manufacturer | GOL |
| Ø outside piston (A) | 40.94 mm |
| Compression height (C) | 25 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 50 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 10 mm |
| Piston ring height | 1.5 mm |
| Weight piston kit | 78 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Grillo Gilera CBA Gilera Citta |
