For: Puch

15028

Gilardoni italkit piston 47 mm #C | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 84.80

Incl. 25.5% VAT.

Description

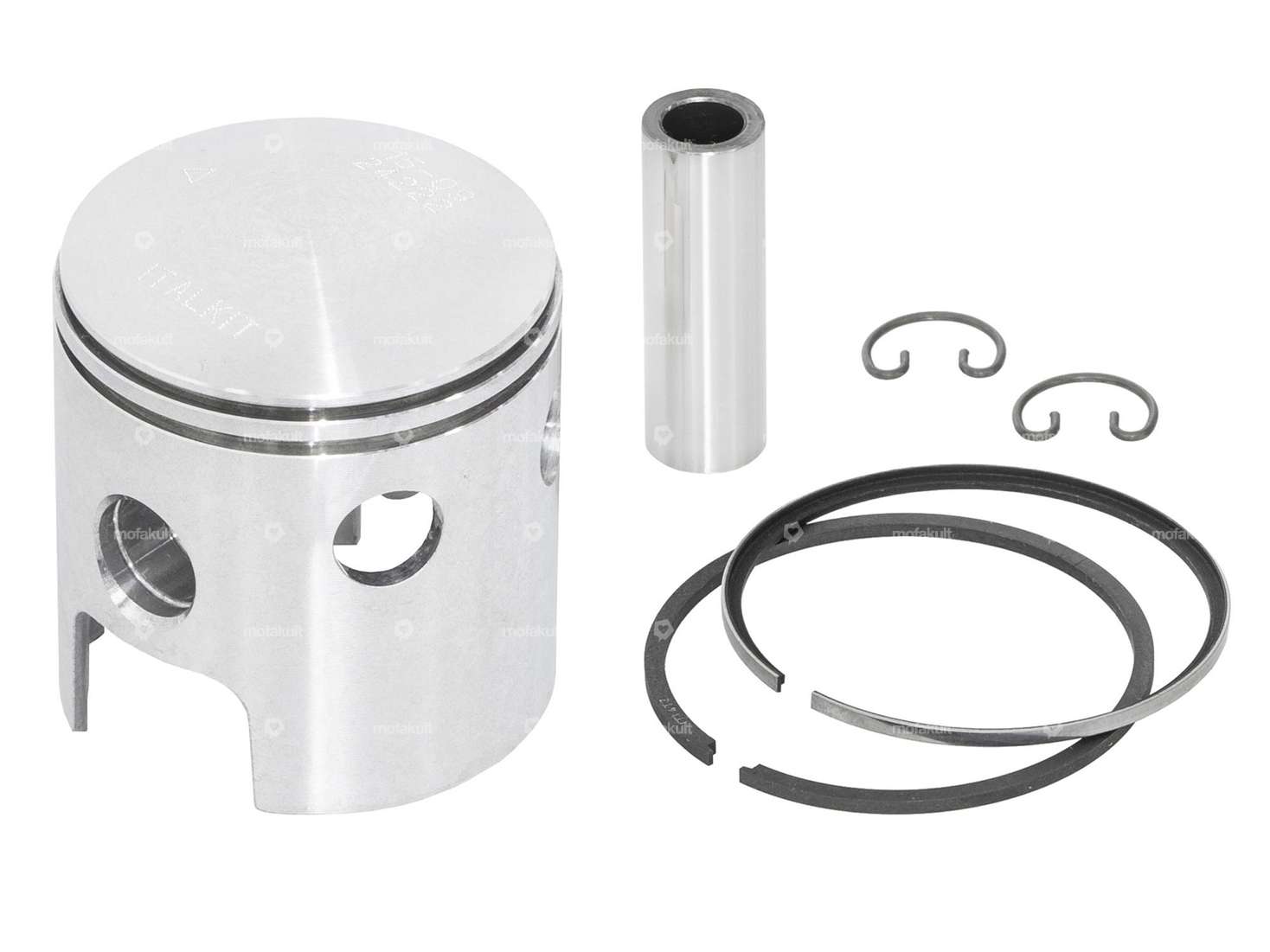

47.0 mm replacement piston with a 2 mm L-piston ring and a 1.5 mm rectangular piston ring with internal circlip (IS) to fit the Gilardoni italkit cylinder for your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.

Tolerance: C

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin locks etc. can be found in the accessories section.

Quality product from the Italian manufacturer Gilardoni under the italkit brand.

Nominal diameter47 mm
ManufacturerGilardoni italkit
Ø outside piston (A)46.98 mm
Compression height (C)22.5 mm
Curvature (D)3.2 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height2 mm, 1.5 mm
Ø piston pin (B)12 mm
Tolerance groupC
Weight piston kit101 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
