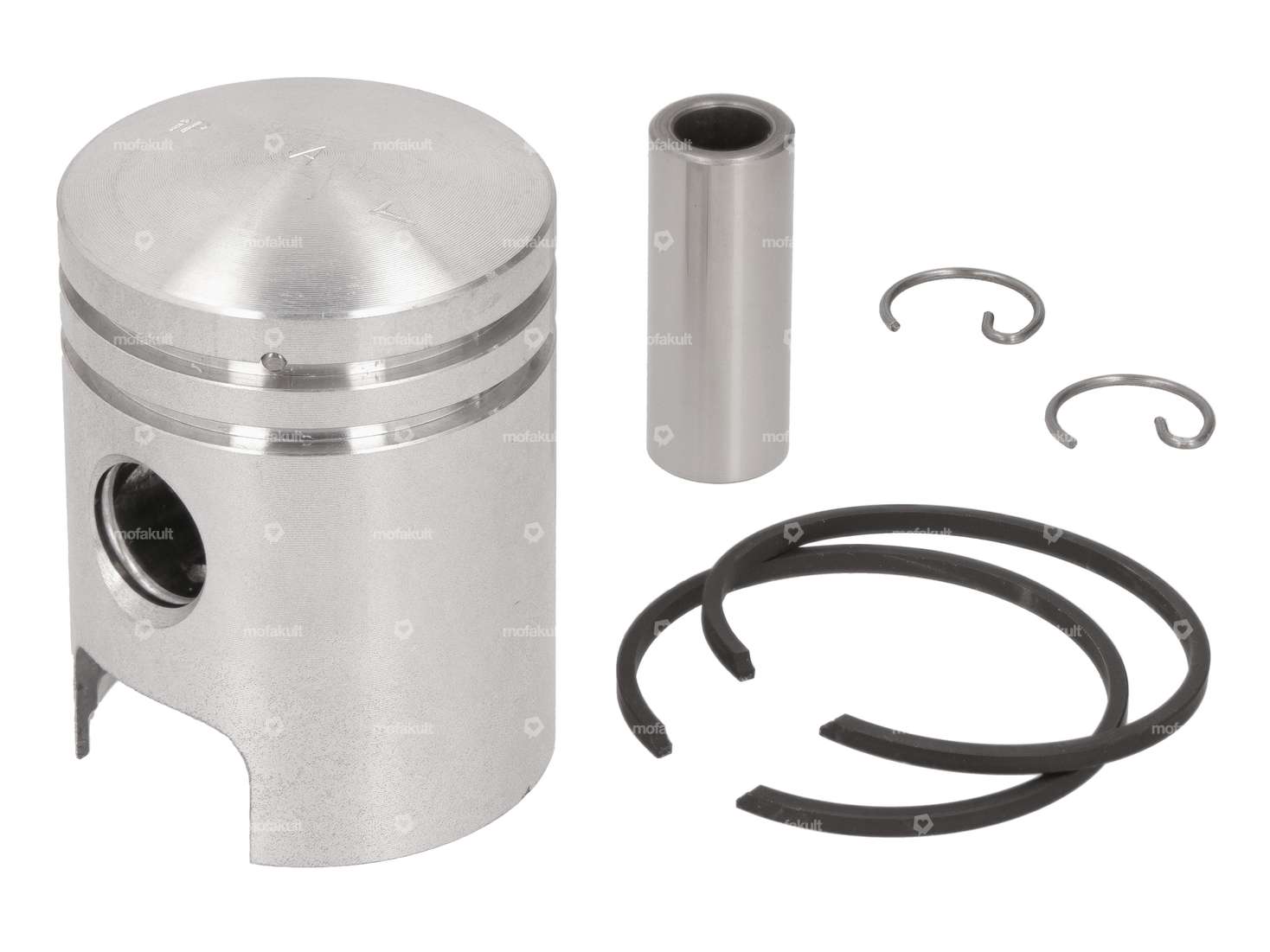

38 mm piston kit with two 2 mm rectangular piston rings with flank lock (FS) for your Puch Maxi moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin retainers and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Gilardoni under the italkit brand.
| Manufacturer | Gilardoni italkit |
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.94 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.9 mm |
| Total piston height (E) | 52.6 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Weight piston kit | 80 g |
| Puch | E50 |
