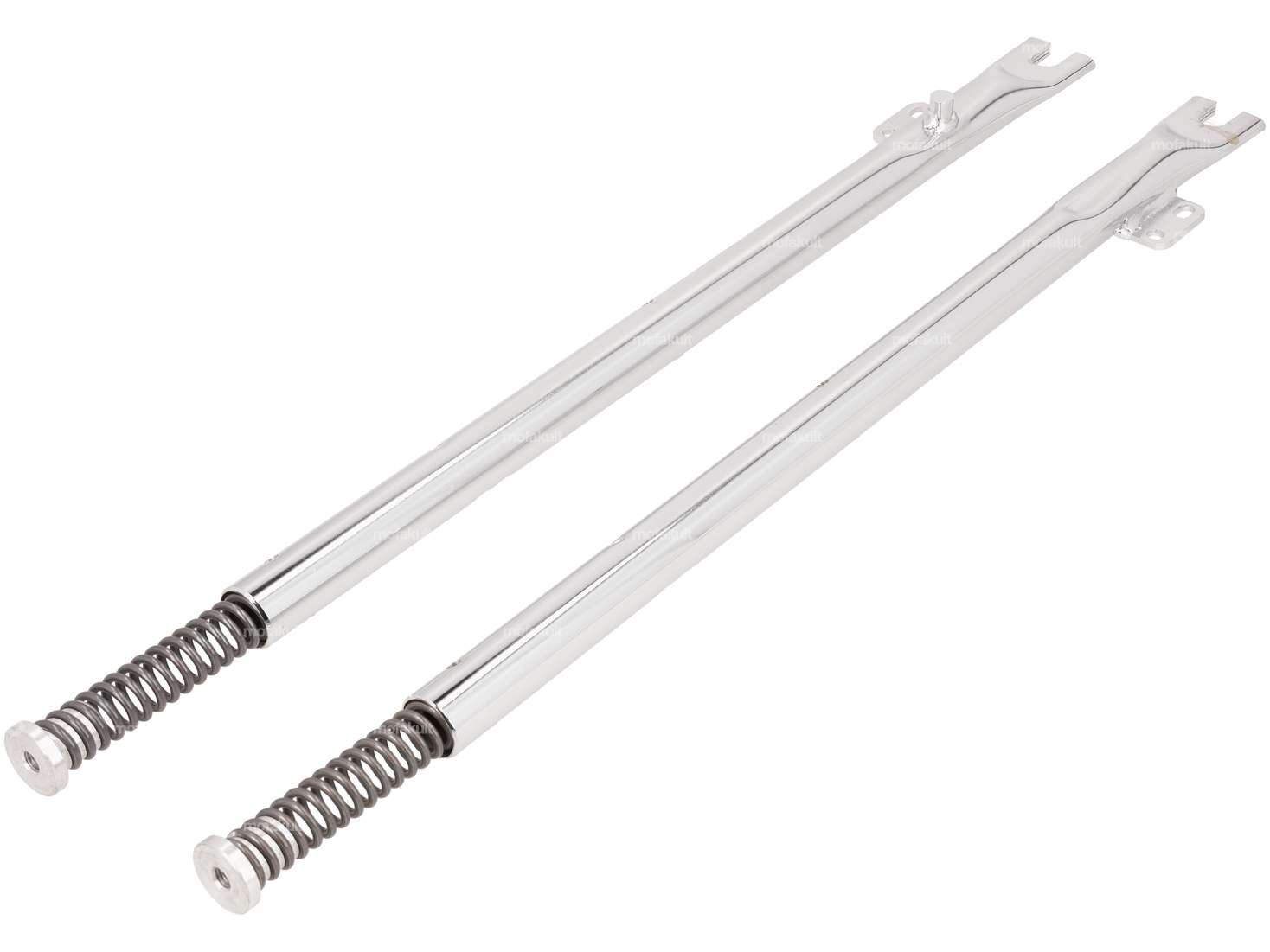

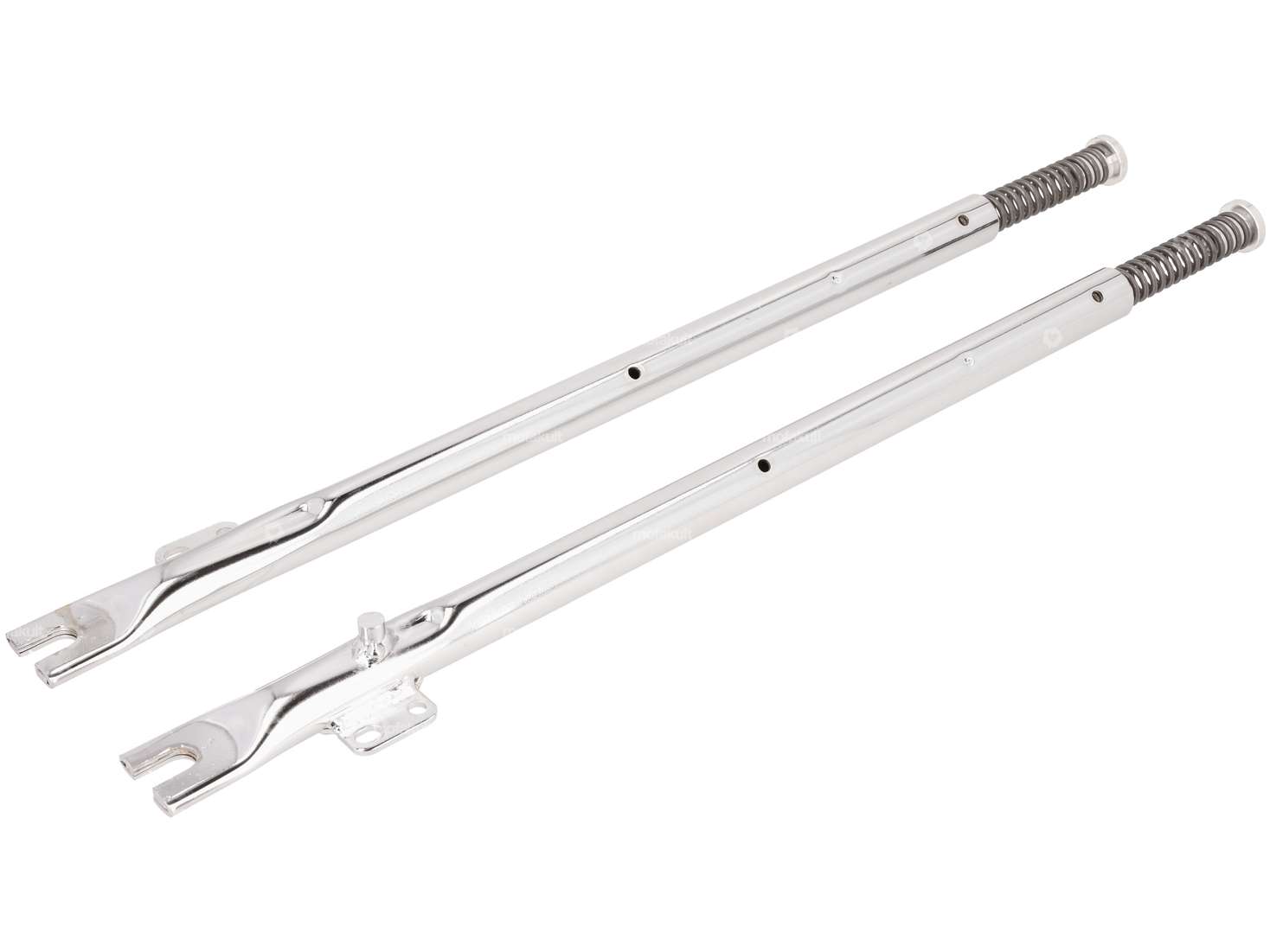

Fork uprights (pair) conditionally suitable for Sachs Pony Junior City 503 mopeds / mopeds and some other related models with 17" rims.
Length uprights: 490 mm
Total length with spring and spring mount: 575 mm
Ø fork uprights: 24.1 mm
Ø Bolt brake anchor plate: 10 mm
Lower edge of fork leg to center of bolt brake anchor plate: 95 mm
Ø Spring mount: 25 mm
Spring mount thread: M8x1.25
Top edge of fender flap to below fork leg: 102 mm
Length of fender flap: 35 mm
Hole spacing center - center of fender flap: 22 mm
Notes: The holes for the sliding bushes are 1 mm smaller than the original and may need to be drilled out. In addition, the hole in the original bars (measured from the lower edge of the bar to the middle of the hole) is 235 mm high, whereas this reproduction product is 275 mm high.
The diameter of the original bars is approx. 23.8 mm, whereas this product is approx. 24.1 mm. This means that adjustments may need to be made to the sliding bushes.
The attached tabs correspond to the design for 17" rims or mudguard arches. Pony Junior 503 models with 19" rims require adjustments to the bars or the strut for the mudguard. On the bars for the 19" models, the lugs are fitted higher up as standard.
You can find more parts for your Pony Junior in the accessories section.
| Material | Steel |
| Surface | chrome-plated |
| Total length | 490 mm, 580 mm |
| Adjustable | No |
| Color | Chrome |
| Ø spars | 24 mm |
| Distance brake cam to wheel axle center-center | 80 mm |
| Sachs |
