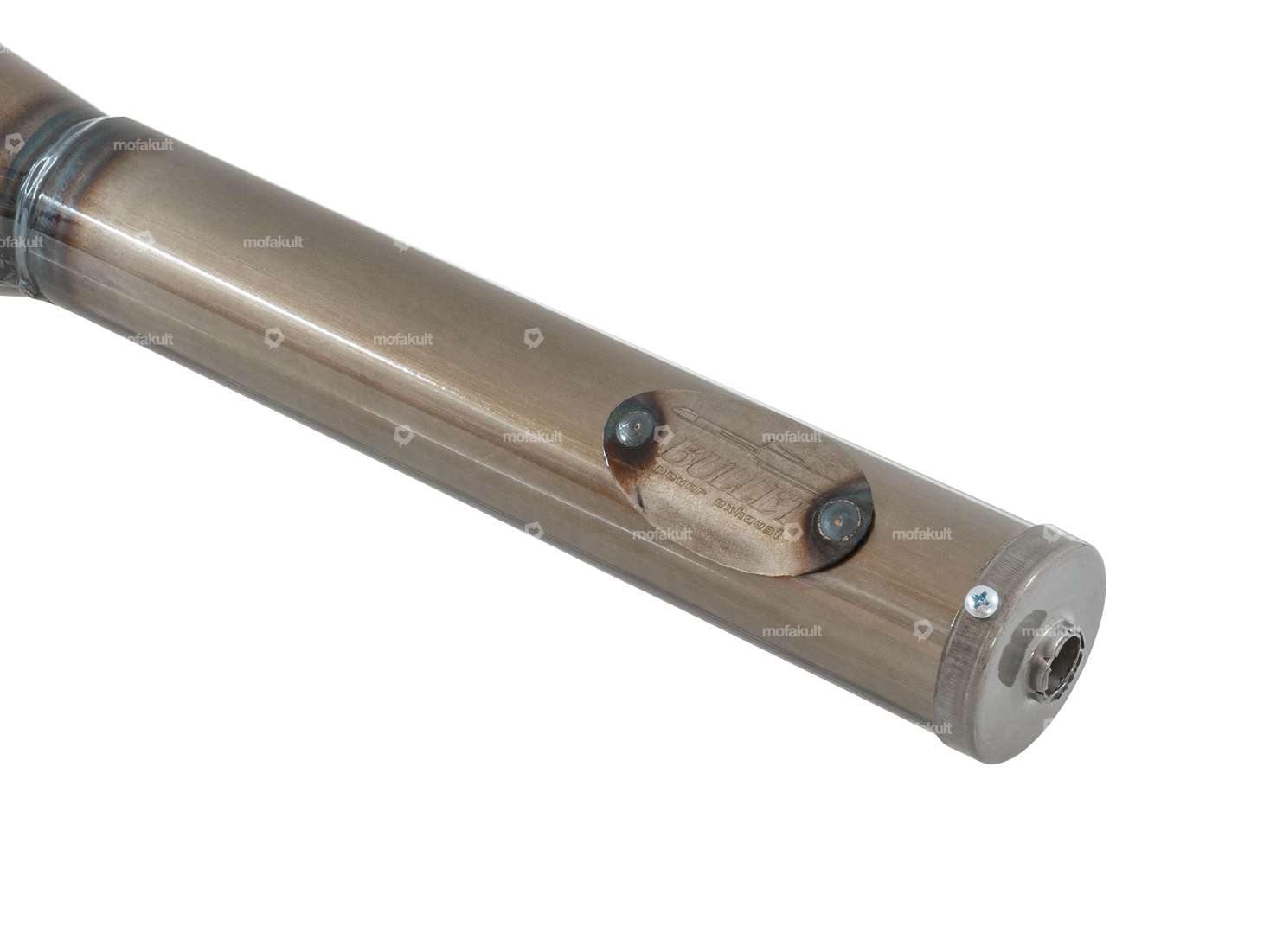

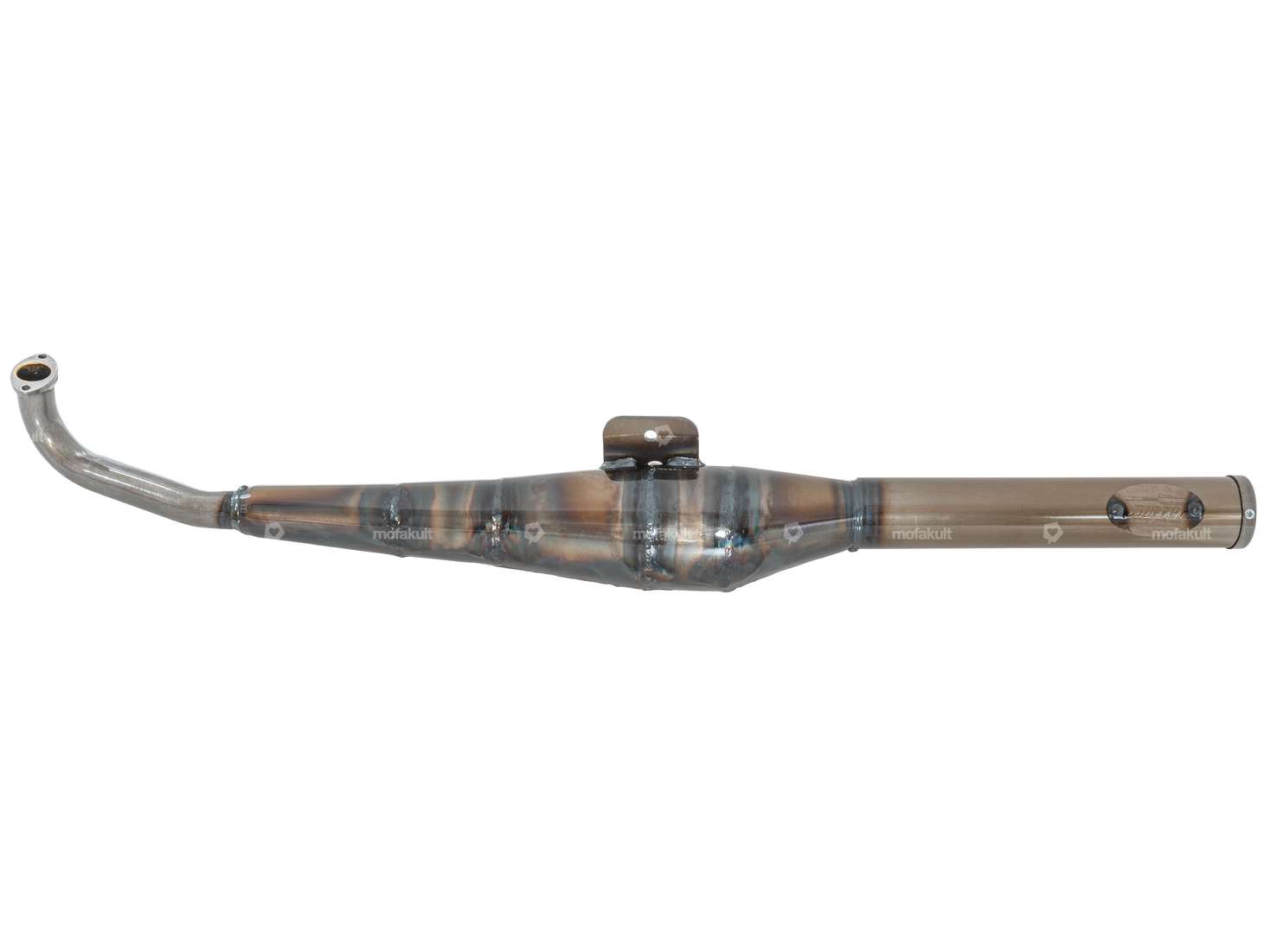

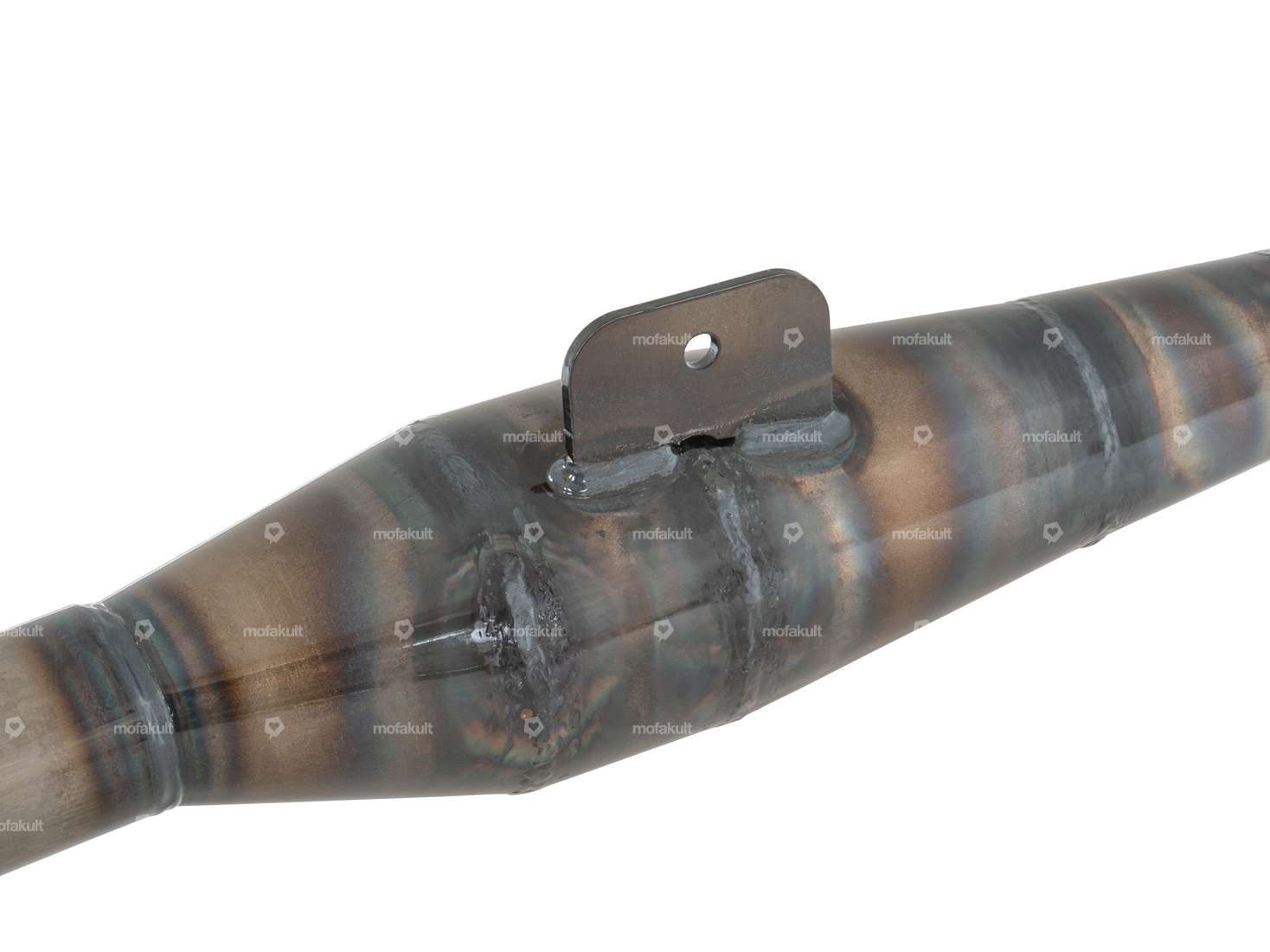

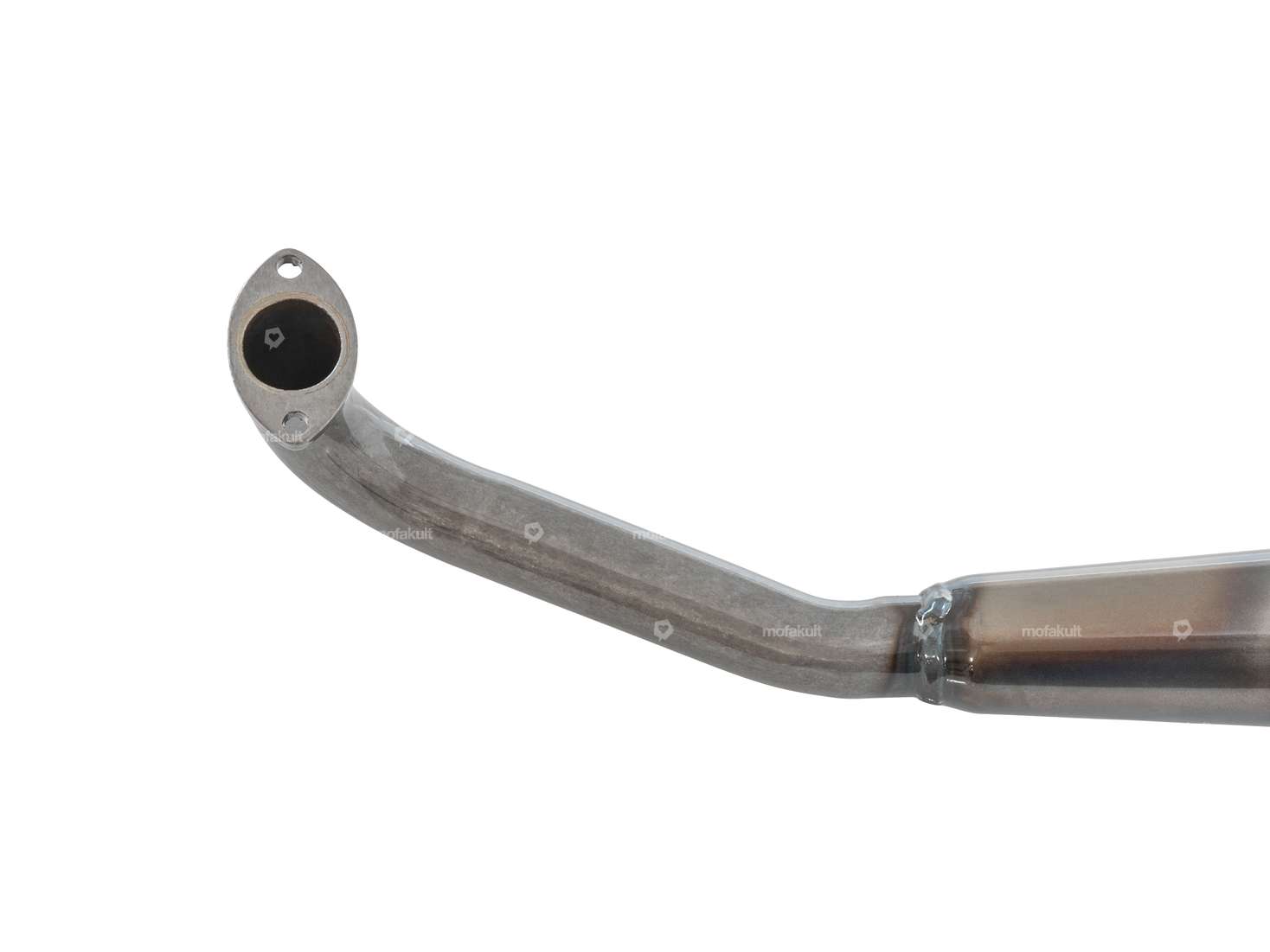

Exhaust "Bullet EVO-1" blanco | Puch Maxi E50

swiing® ingenious crankshaft "High End" | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

swiing® revival 50 ccm 1.6 hp cylinder set "original" | Puch E50

Centrifugal multi-plate clutch "Triple-Clutch" High End | Puch E50

Manufacturer: Made in Switzerland · Area of application: Cross · Area of application: High End · Area of application: Racing · Area of application: Tuning

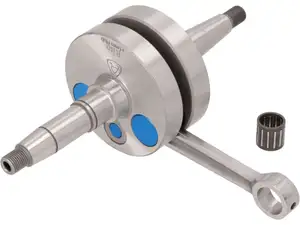

Rito crankshaft Racing (+1mm stroke) (old model) | Puch E50

Manufacturer: Rito · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 16 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 10.5 mm · Thread length: 12.5 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 939 g · Number of gears: 1 pcs · Area of application: High End · Puch OEM number: 349.1.10.015.0 · Alternative version of the Puch OEM number: 349.1.10.015.0

swiing® ingenious 17 mm carburetor set camouflaged | Puch E50

Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Component group Carburetor: Carburetor complete · Carburetor type: SRF · Nominal diameter: 17 mm · Ø Air filter connection: 27.5 mm · Mixed oil connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.2 · Nozzle size: 74 · Mounting type: Plug connection clamped · Hole spacing inlet: 38 mm · Clamping screw torque (max.): 4 N/m · Area of application: Racing · Area of application: Tuning

swiing® ingenious EVO ignition | Puch E50, Z50

Outlet seal Ø 27 Steel ring

Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Place of use: Outlet · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Ø inside: 13.7 mm · Number of teeth: 15 pcs · Ø inside: 16.9 mm · Recording type: Interlocking · Total thickness: 4.6 mm

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9 · Total length: 30 mm

swiing® revival stud bolt M6x106 (10.9 strength class)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 106 mm · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Nut M6 high (3D) galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut 3D · Thread type: M6x1 (standard thread) · Height: 18 mm · Drive: External hexagon · Nominal diameter (thread): 6 mm · Width across flats: 10 mm

ESJOT Gear Ring, 42 Teeth, 4/5/6-Hole, Ø 98 mm, Offset, Black

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: powder-coated · Color: black · Number of teeth: 42 pcs · Ø inside: 98 mm · Ø mounting hole: 6.5 mm · Thickness: 4.3 mm · Cranking (offset): 12 mm · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs · Ø bolt circle: 115 mm

swiing® ingenious 15 mm carburetor camouflaged | Puch

Manufacturer: swiing® ingenious parts · Total length: 66 mm · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SRE · Height: 95 mm · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Width: 50 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Alternative version of the Puch OEM number: 349.1.15.100.0 · Alternative version of the Puch OEM number: 349.2.15.800.0 · Alternative version of the Puch OEM number: 349.4.15.500.0 · Alternative version of the Puch OEM number: 349.4.15.000.0 · Alternative version of the Puch OEM number: 349.4.15.300.0 · Alternative version of the Puch OEM number: 349.6.15.400.0 · Alternative version of the Puch OEM number: 349.7.15.700.0 · Alternative version of the Puch OEM number: 349.8.15.400.0 · Alternative version of the Puch OEM number: 349.9.15.300.0

swiing® revival Screw Set, Engine, Galvanized, Small | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Drive: Cross recess · Drive: Hexagon socket · Puch OEM number: 900.1216 · Puch OEM number: 901.1308

Airsal gasket set cylinder 46 mm Puch

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 46 mm · Hole spacing inlet: 32 - 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: No · Area of application: Tuning
