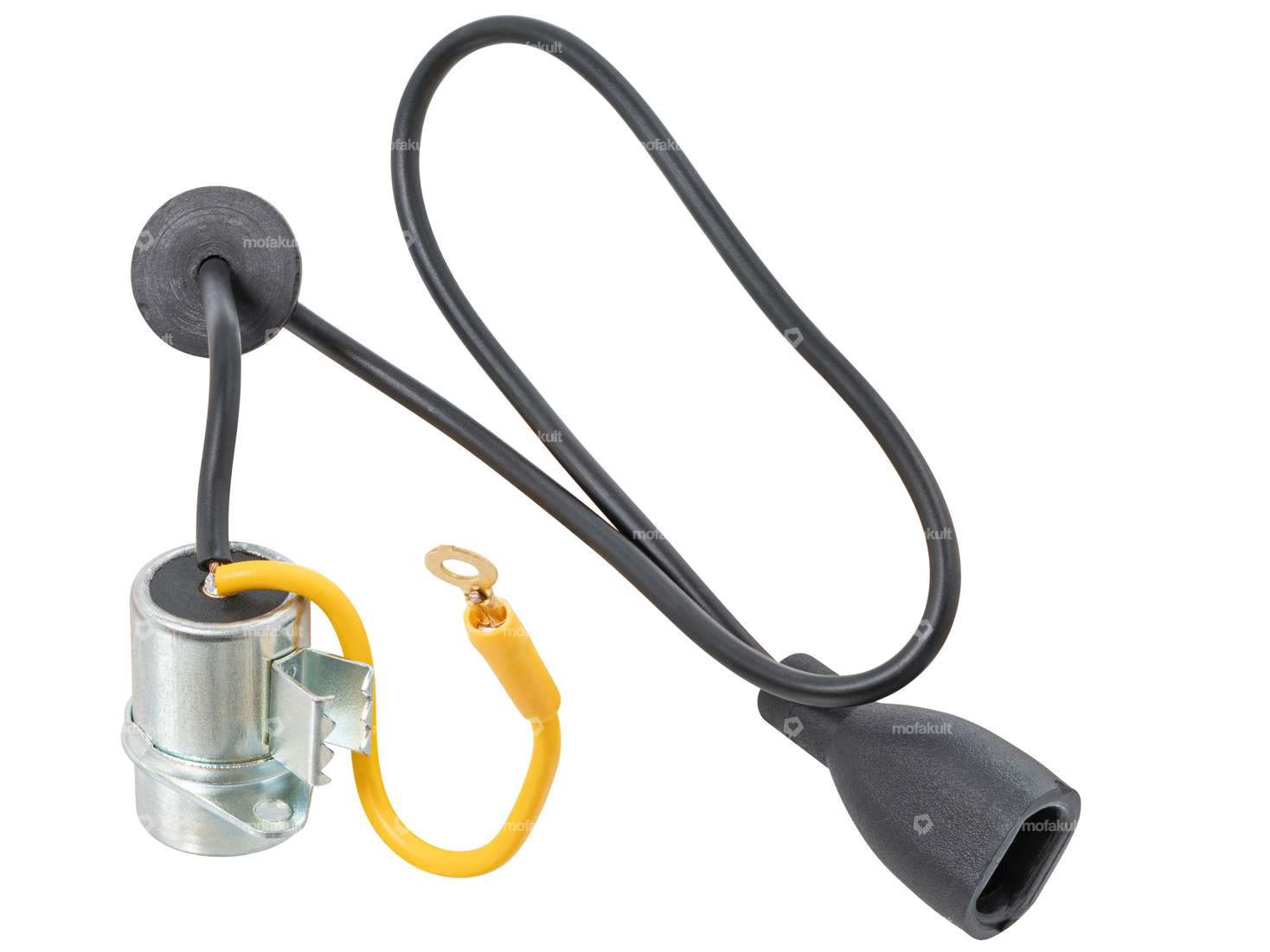

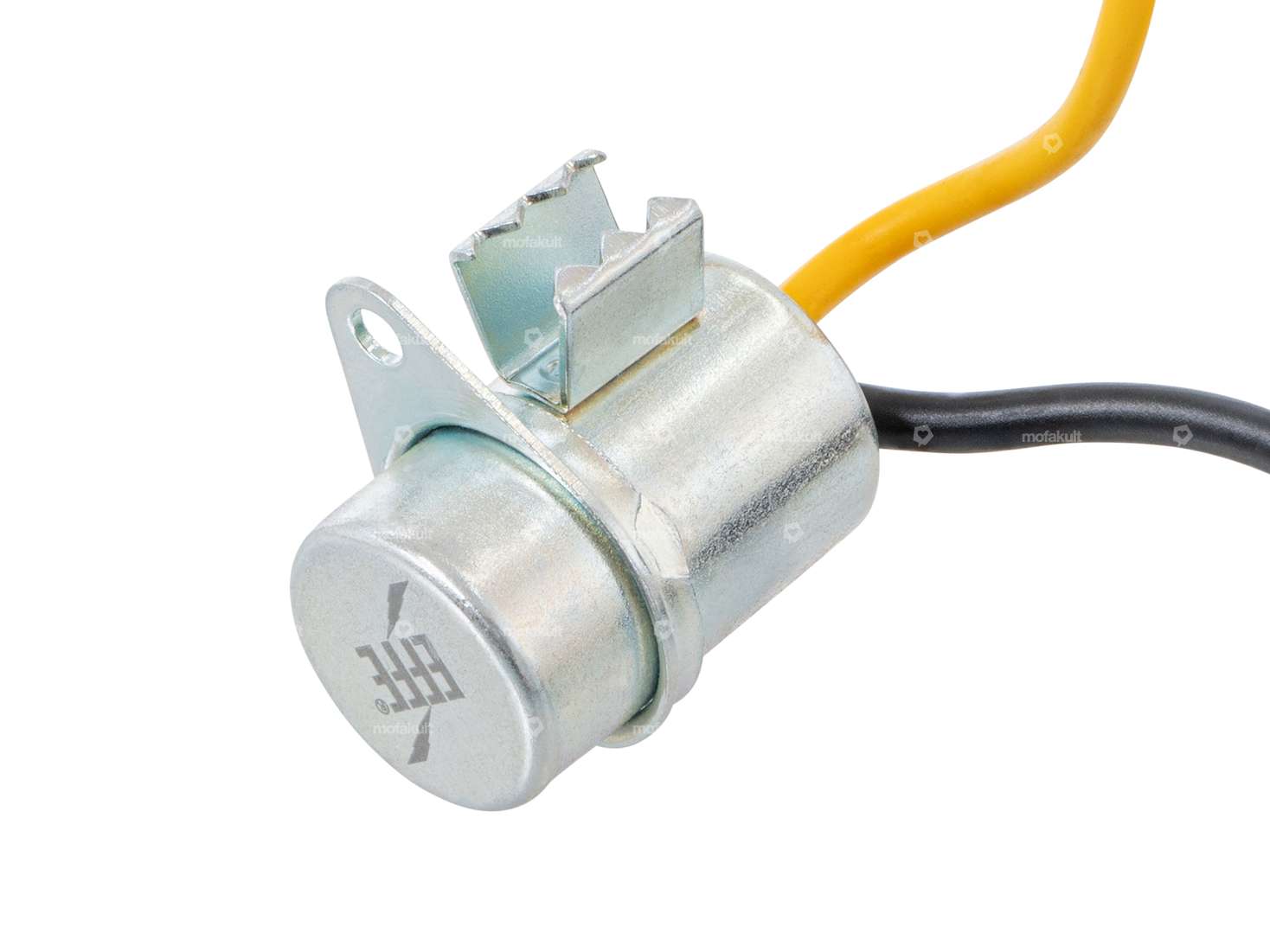

Capacitor with lug and cable for screwing, suitable for old Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds with breaker ignition.
This capacitor with attached output cable for the ignition coil was fitted as standard on early models between 1967 and 1979. The motor housings can be recognized by the hinged earth connection. In addition, these motors have a 13 mm hole for the rubber plug.
- Mounting type: lug for screwing
- Ø mounting hole: 4.5 mm
- Ø outer: 18 mm
- Height: 27 mm
- Connection type: Cable for screwing
- Length output cable coil: 380 mm
- Capacitance: 0.28 µF (micro Farad - capacitance of the capacitor)
Further parts such as the capacitor felt can be found in the accessories section.
Original Piaggio spare part number: 114471
Branded product from the Italian manufacturer EFFE.
Details
| Manufacturer | EFFE |
| Capacity | 0.28 µF |
| Mounting type | Tab for screwing |
| Connection type | Cable for screwing |
| Ø mounting hole | 4.5 mm |
| Height | 27 mm |
| Ø outside | 18 mm |
| Area of application | Original |
| Piaggio OEM number | 114471 |
Suitable for the following models
| Piaggio | Ciao - P, SC Bravo / Super Bravo Boxer |
