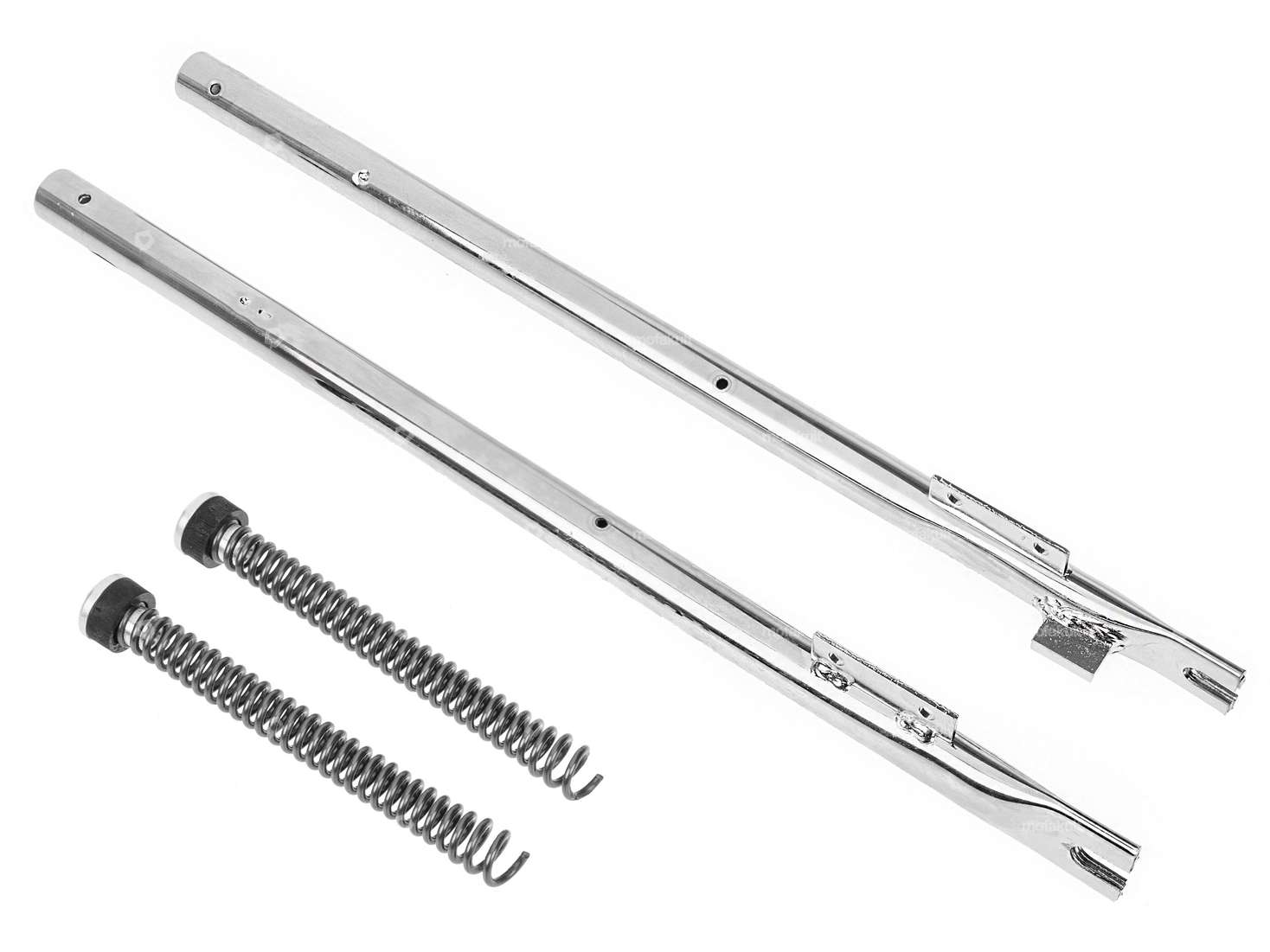

Pair of fork tubes for Puch X30 NS / NL, NG-2AH and Supermaxi LG1 / LG2 (catalytic converter).

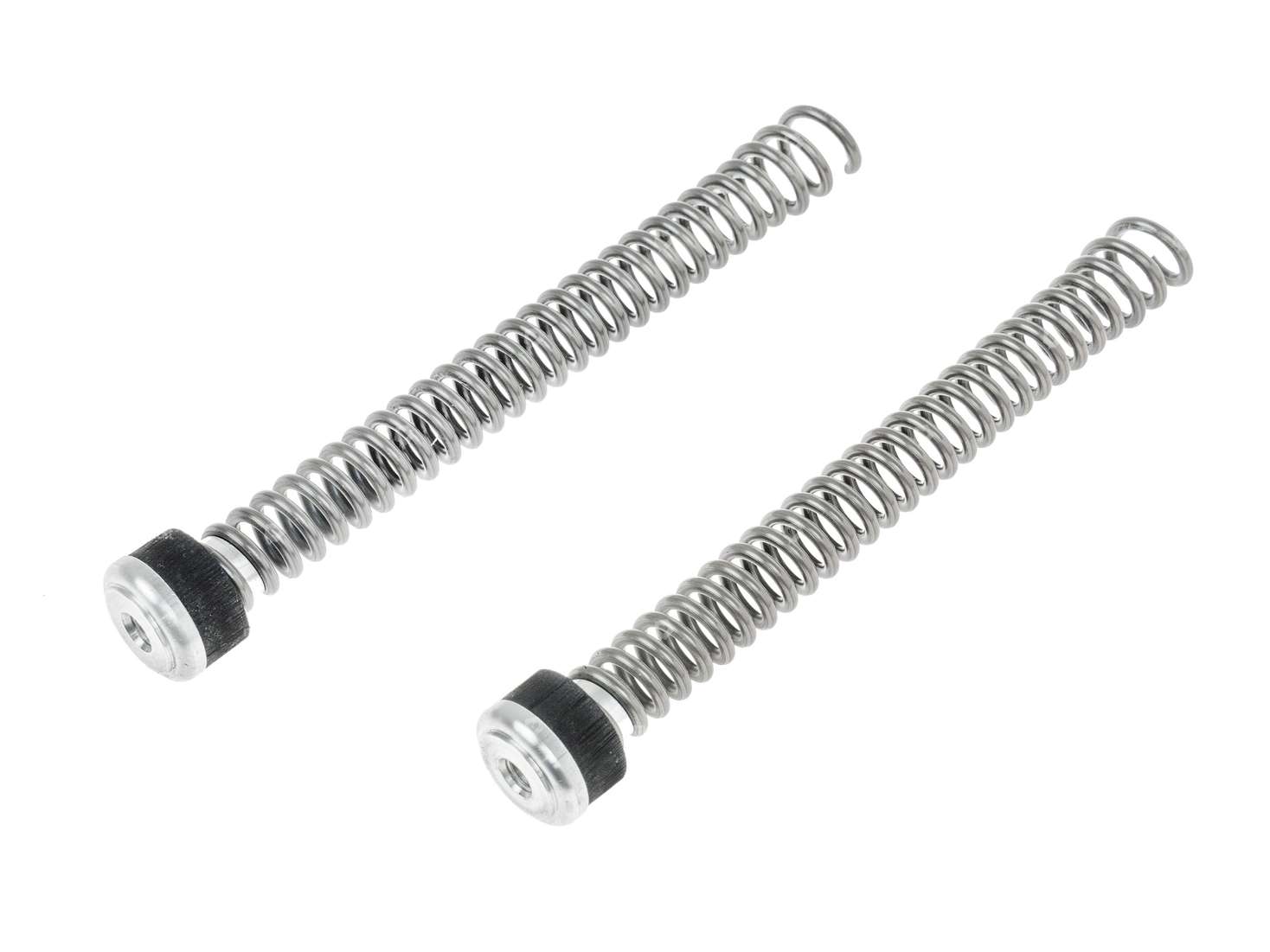

The fork tubes are supplied as a set (left & right) including the spring inserts.
The flat bar for attaching the brake anchor plate is located on the left fork tube, 30 mm above the center of the wheel axle.
Two lugs are provided for attaching the mudguard. The distance between the drill holes is 36 mm.
Ø dip tube: 23 mm
Flat bar for brake anchor plate: 25x8x16 mm (LxWxH)
Total length: 49.5 cm
Above mudguard flap to below fork leg: 127 mm
Length of mudguard flap: 56.5 mm
Combines top workmanship and accuracy of fit.
When you buy this complete set, you get a whopping percentage off the retail price of the individual parts.
Branded product from the Italian manufacturer EBR.
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Ø spars: 23 mm · Total length: 493 mm
Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Adjustable: No · Ø spars: 23 mm · Total length: 493 mm · Distance brake cam to wheel axle center-center: 45 mm
Manufacturer: EWC · Material: Spring steel · Surface: burnished · Color: brown · Ø outside: 19.5 mm · Ø inside: 13.5 mm · Ø wire: 3 mm · Total length: 185 mm · Thread type: M8x1.25 (standard thread)
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Ø spars | 23 mm |
| Distance brake cam to wheel axle center-center | 30 mm |
| Total length | 495 mm |
| Puch |
